2007 SATURN SKY Owners Manual

Battery Run-Down Protection
Your vehicle has a battery saver feature designed
to protect your vehicle’s battery.
When any interior lamp is left on and the ignition
is turned off, the battery rundown protection
system will automatically turn the lamp off after
20 minutes. This will avoid draining the battery.
Accessory Power Outlet(s)
The accessory power outlet can be used to
connect electrical equipment such as a cellular
phone or CB radio.
The accessory power outlet is located on the
instrument panel, to the right of the radio.
To use the outlet, remove the cover. When not in
use, always cover the outlet with the protective cap.
Notice:Leaving electrical equipment plugged
in for an extended period of time while the
vehicle is off will drain the battery. Power is
always supplied to the outlets. Always unplug
electrical equipment when not in use and
do not plug in equipment that exceeds
the maximum 20 ampere rating.Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem, see your retailer for
additional information on the accessory power
outlet.
Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your retailer before adding
electrical equipment.
When adding electrical equipment, be sure to
follow the installation instructions included with
the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
121
ProCarManuals.com

Ashtray(s) and Cigarette Lighter
Your vehicle may have a removable muffin
tin ashtray and cigarette lighter. The muffin tin
ashtray can be placed into the front console side
cupholder. To use the lighter, located on the
instrument panel to the left side of the glove box
door, push it in all the way and let go. When
it is ready, it will pop back out by itself.
Notice:Holding a cigarette lighter in while it
is heating will not allow the lighter to back
away from the heating element when it is hot.
Damage from overheating may occur to the
lighter or heating element, or a fuse could be
blown. Do not hold a cigarette lighter in
while it is heating.
Notice:If you put papers, pins, or other
ammable items in the ashtray, hot cigarettes
or other smoking materials could ignite
them and possibly damage your vehicle.
Never put ammable items in the ashtray.
Climate Controls
Climate Control System
With this system you can control the heating,
cooling, and ventilation of the vehicle. Set
the control between modes to get a combination
of the two modes.
Temperature:Turn the left knob on the control
panel to adjust the temperature of the air in
the vehicle. Turn the knob clockwise or
counterclockwise to increase or decrease the
temperature.
Climate Control System
122
ProCarManuals.com

#(Air Conditioning):Press the left knob on
the control panel to turn the air conditioning system
on or off. An indicator light on the button will
come on to let you know the air conditioning is
activated. When the system is on, this setting cools
and dehumidies the air entering your vehicle.
The air conditioning will not function if the fan is
turned off. If air conditioning is selected with
fan off, the indicator light ashes three times and
then turns off.
There could be a slight change in engine
performance when the air conditioning compressor
turns off and turns on again. This is normal. The
system is designed to make adjustments to
help with fuel economy while still maintaining the
selected temperature.
The air conditioning system removes moisture
from the air, so a small amount of water can drip
underneath your vehicle while idling or after
turning off the engine. This is normal.Air conditioning does not operate at temperature
below 40°F (4°C). In temperatures above 40°F
(4°C), the air conditioning cannot be turned off in
defrost, oor/defog, and recirculation modes
because it helps to remove moisture from the
vehicle. It also helps to keep the windows clear.
On hot days, open the windows to let the hot
inside air escape; then close them. This helps
reduce the time it takes for the vehicle to
cool down. It also helps the system to operate
more efficiently.
For quick cool down on hot days, do the following:
1. Select the vent mode.
2. Select recirculation mode.
3. Select the air conditioning to on.
4. Select the coolest temperature.
5. Select the highest fan speed.
Using these settings together for long periods of
time can cause the air inside of the vehicle to
become too dry. To prevent this from happening,
after the air in the vehicle has cooled, turn the
recirculation mode off.
123
ProCarManuals.com

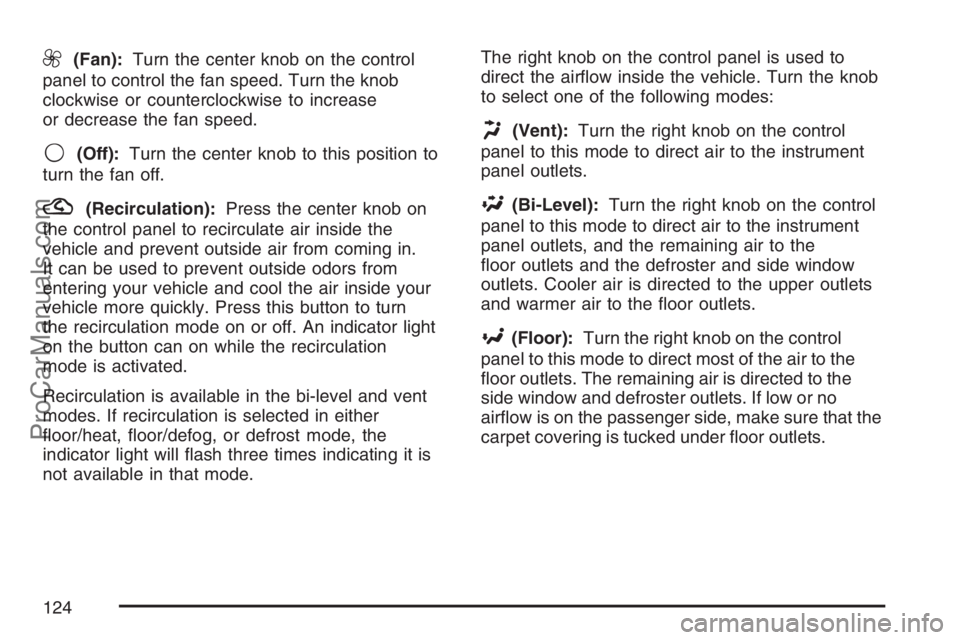

9(Fan):Turn the center knob on the control
panel to control the fan speed. Turn the knob
clockwise or counterclockwise to increase
or decrease the fan speed.
9(Off):Turn the center knob to this position to
turn the fan off.
?(Recirculation):Press the center knob on
the control panel to recirculate air inside the
vehicle and prevent outside air from coming in.
It can be used to prevent outside odors from
entering your vehicle and cool the air inside your
vehicle more quickly. Press this button to turn
the recirculation mode on or off. An indicator light
on the button can on while the recirculation
mode is activated.
Recirculation is available in the bi-level and vent
modes. If recirculation is selected in either
oor/heat, oor/defog, or defrost mode, the
indicator light will ash three times indicating it is
not available in that mode.The right knob on the control panel is used to
direct the airow inside the vehicle. Turn the knob
to select one of the following modes:
H(Vent):Turn the right knob on the control
panel to this mode to direct air to the instrument
panel outlets.
\(Bi-Level):Turn the right knob on the control
panel to this mode to direct air to the instrument
panel outlets, and the remaining air to the
oor outlets and the defroster and side window
outlets. Cooler air is directed to the upper outlets
and warmer air to the oor outlets.
[(Floor):Turn the right knob on the control
panel to this mode to direct most of the air to the
oor outlets. The remaining air is directed to the
side window and defroster outlets. If low or no
airow is on the passenger side, make sure that the
carpet covering is tucked under oor outlets.
124
ProCarManuals.com

Defogging and Defrosting
Fog on the inside of windows is a result of
high humidity (moisture) condensing on the
cool window glass. This can be minimized if the
climate control system is used properly. There
are two modes to clear fog or frost from your
windshield and side windows. Use the defog
mode to clear the windows of fog or moisture and
warm the passengers. Use the defrost mode to
remove fog or frost from the windshield more
quickly. For best results, clear all snow and ice
from the windshield before defrosting. Use a
temperature setting that provides warm air. The
warmer the air the quicker the windows clear.
To prevent fogging on the inside of the windows
in modes other than oor/defog and defrost,
make sure the air conditioning compressor is on
and recirculation mode is off.
/(Floor/Defog):Turn the right knob on the
control panel to this mode to direct the air to the
windshield, the side window outlets, and to the oor
outlets. When you select this mode, the system
runs the air conditioning compressor unless the
outside temperature is near freezing or below.
0(Defrost):Turn the right knob on the control
panel to this mode to direct most of the air to
the windshield, and the side window outlets.
When you select this mode, the system runs the
air conditioning compressor unless the outside
temperature is near or below freezing.
Do not drive the vehicle until all the windows
are clear.
Rear Window Defogger
The rear window defogger uses a warming grid
to remove fog or frost from the rear window. Be
sure to clear as much snow from the rear window
as possible. An indicator light on the knob comes
on while the rear window defogger is activated.
The rear window defogger will turn off about
fteen minutes after the knob is pressed. If turned
on again, the defogger will run for about seven and
one-half minutes before turning off. If vehicle
speed is greater than 50 mph (80 kph) and the
rear defogger is active, it will remain on as long
as the speed is greater than 50 mph (80 kph).
The defogger can also be turned off by pressing
the knob again or by turning off the engine.
125
ProCarManuals.com

Do not use the rear defogger when the convertible
top is down.
=(Rear Defogger):Press the right knob on
the control panel to turn the rear window defogger
on or off. Do not use the rear defogger when
the convertible top is down.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you could
cut or damage the warming grid, and the repairs
would not be covered by your warranty. Do not
attach a temporary vehicle license, tape, a decal
or anything similar to the defogger grid.
Outlet Adjustment
Use the air outlets located in the center and on the
side of your instrument panel to direct the airow.
Use the tab located on the air outlets to change
the direction of the airow.Your vehicle has ow through ventilation that
allows outside air to be forced through your
ventilation system when your vehicle is moving.
Outside air will enter the vehicle when the air
conditioning fan is running. Flow through
ventilation can be stopped in vent and bi-level
modes by pressing the recirculation button.
Operation Tips

Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the ow of air into your vehicle.
Use of non-Saturn approved hood deectors
may adversely affect the performance of the
system.
Keep the path under the front seats clear of
objects to help circulate the air inside of
your vehicle more effectively.
126
ProCarManuals.com

Warning Lights, Gages, and
Indicators
This part describes the warning lights and gages
that may be on your vehicle. The pictures will
help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes serious
enough to cause an expensive repair or
replacement. Paying attention to your warning
lights and gages could also save you or others
from injury.
Warning lights come on when there may be or
is a problem with one of your vehicle’s functions.
As you will see in the details on the next few
pages, some warning lights come on briey when
you start the engine just to let you know they
are working. If you are familiar with this section,
you should not be alarmed when this happens.Gages can indicate when there may be or is a
problem with one of your vehicle’s functions.
Often gages and warning lights work together
to let you know when there is a problem with
your vehicle.
When one of the warning lights comes on and
stays on as you are driving, or when one of
the gages shows there may be a problem, check
the section that tells you what to do about it.
Please follow this manual’s advice. Waiting to do
repairs can be costly and even dangerous. So
please get to know your warning lights and gages.
They are a big help.
127
ProCarManuals.com

Instrument Panel Cluster
Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will
know how fast you are going, about how much fuel is left in the tank, and many other things you will need
to drive safely and economically.
United States Base Cluster shown, Canada and Uplevel similar
128
ProCarManuals.com
