2007 SATURN SKY Owners Manual

Information Modes
q
(Information):Press this button to scroll
through the following vehicle information modes:
Outside Air Temperature and Odometer
Press the information button until the outside air
temperature and the odometer are displayed. This
mode shows the temperature outside of the vehicle
in either degrees Fahrenheit (°F) or degrees
Celsius (°C) and the total distance the vehicle has
been driven in either miles (mi) or kilometers (km).
The outside air temperature will appear on the left
side of the DIC display and the odometer will
appear on the right side of the display.
To change the DIC display to English or metric
units, see “UNITS” underDIC Vehicle
Personalization on page 152.
TRIP A or TRIP B
Press the information button until TRIP A or TRIP B
is displayed. These modes show the current
distance traveled since the last reset for each trip
odometer in either miles (mi) or kilometers (km).
Both odometers can be used at the same time.
Each trip odometer can be reset to zero separately
by pressing and holding the reset button for a
few seconds while the desired trip odometer
is displayed.
FUEL RANGE
Press the information button until FUEL RANGE
is displayed. This mode shows the remaining
distance you can drive without refueling in either
miles (mi) or kilometers (km). It is based on
fuel economy and the fuel remaining in the tank.
When the fuel level is low, FUEL RANGE LOW
will display.
The fuel economy data used to determine fuel
range is an average of recent driving conditions.
As your driving conditions change, this data is
gradually updated. The FUEL RANGE mode
cannot be reset.
145
ProCarManuals.com

ECON (Economy)
Press the information button until ECON is
displayed. This mode shows how many miles per
gallon (mpg) or liters per 100 kilometers (L/100 km)
your vehicle is getting based on current and past
driving conditions.
Press and hold the reset button while ECON is
displayed to reset the average fuel economy.
Average fuel economy will then be calculated
starting from that point. If the average fuel
economy is not reset, it will be continually updated
each time you drive.
AV (Average) SPEED
Press the information button until AV SPEED is
displayed. This mode shows the vehicle’s average
speed in miles per hour (mph) or kilometers per
hour (km/h).
Press and hold the reset button while AV SPEED
is displayed to reset the average vehicle speed.
OIL LIFE
Press the information button until OIL LIFE is
displayed. The engine oil life system shows
an estimate of the oil’s remaining useful life. It will
show 100% when the system is reset after an
oil change. It will alert you to change your oil on a
schedule consistent with your driving conditions.
In addition to the engine oil life system monitoring
the oil life, additional maintenance is
recommended in the Maintenance Schedule in this
manual. SeeEngine Oil on page 245and
Scheduled Maintenance on page 336.
Always reset the engine oil life system after an oil
change. See “How to Reset the Engine Oil Life
System” underEngine Oil Life System on
page 250.
COOLANT
Press the information button until COOLANT is
displayed. This mode shows the temperature of the
engine coolant in either degrees Fahrenheit (°F) or
degrees Celsius (°C).
146
ProCarManuals.com

BOOST (Turbo Only)
If your vehicle has this feature, press the
information button until BOOST is displayed. This
mode shows a graphic that indicates the amount
of boost the engine is receiving in either
pounds per square inch (psi) or kilopascals (kPa).
DIC Warnings and Messages
These messages appear if there is a problem
detected in one of your vehicle’s systems.
A message will clear when the vehicle’s condition
is no longer present. To acknowledge a message
and clear it from the display, press and hold
any of the DIC buttons. If the condition is still
present, the warning message will come back on
the next time the vehicle is turned off and back
on. With most messages, a warning chime sounds
when the message displays. Your vehicle may
have other warning messages.
AUTO (Automatic) LIGHTS OFF
This message displays if the automatic headlamp
system is disabled with the headlamp switch.
AUTO (Automatic) LIGHTS ON
This message displays if the automatic headlamp
system is enabled with the headlamp switch.
BRAKE FLUID
This message displays to inform the driver that the
brake uid level is low while the ignition is on.
The brake system warning light on the instrument
panel cluster also comes on. SeeBrake System
Warning Light on page 134for more information.
Have the brake system serviced by your retailer
as soon as possible.
CHANGE OIL SOON
This message displays when the life of the engine
oil has expired and it should be changed.
When you acknowledge the CHANGE OIL SOON
message by clearing it from the display, you
still must reset the engine oil life system
separately. SeeEngine Oil Life System on
page 250andScheduled Maintenance on
page 336for more information.
147
ProCarManuals.com

CHECK GAS CAP
This message displays if the fuel cap has not
been fully tightened. Recheck the fuel cap to make
sure that it is on properly. A few driving trips
with the cap properly installed should turn
the message off.
COMPETITIVE MODE
If your vehicle has this feature, this message
displays when the Competitive Driving mode is
selected. The Traction Control System (TCS) will
not be operating while in the Competitive
Driving mode and the ESC/TCS light on the
instrument panel cluster will be on solid. Adjust
your driving accordingly. SeeElectronic Stability
Control on page 201andElectronic Stability
Control (ESC)/Traction Control System (TCS)
Indicator/Warning Light (2.0L Engine Only)
on page 136for more information.
CRUISE ENGAGED
This message displays when the cruise control
system is active. SeeCruise Control on page 115
for more information.
DOOR AJAR
This message displays if one or more of the
vehicle’s doors are not closed properly. When this
message displays, make sure that the door(s)
are closed completely.
ENGINE DISABLED
This message displays if the starting of the engine
is disabled. Have your vehicle serviced by your
retailer immediately.
148
ProCarManuals.com

ESC (Electronic Stability Control) ACTIVE
If your vehicle has Electronic Stability Control
(ESC), this message displays and the ESC/TCS
light on the instrument panel cluster ashes
when ESC is assisting you with directional control
of the vehicle. You may feel or hear the system
working and see this message displayed in
the DIC. Slippery road conditions may exist when
this message is displayed, so adjust your
driving accordingly. This message may stay on for
a few seconds after ESC stops assisting you
with directional control of the vehicle. This
is normal when the system is operating. See
Electronic Stability Control on page 201and
Electronic Stability Control (ESC)/Traction Control
System (TCS) Indicator/Warning Light (2.0L
Engine Only) on page 136for more information.
ESC (Electronic Stability Control) OFF
If your vehicle has Electronic Stability
Control (ESC), this message displays and the
ESC/TCS light on the instrument panel cluster
comes on solid when ESC is turned off. Adjust
your driving accordingly. SeeElectronic Stability
Control on page 201andElectronic Stability
Control (ESC)/Traction Control System (TCS)
Indicator/Warning Light (2.0L Engine Only)
on page 136for more information.
ICE POSSIBLE
This message displays when the outside air
temperature is cold enough to create icy road
conditions. Adjust your driving accordingly.
KEY FOB BATT (Battery) LOW
This message displays if the Remote Keyless
Entry (RKE) transmitter battery is low. Replace
the battery in the transmitter. See “Battery
Replacement” underRemote Keyless Entry (RKE)
System Operation on page 63.
149
ProCarManuals.com

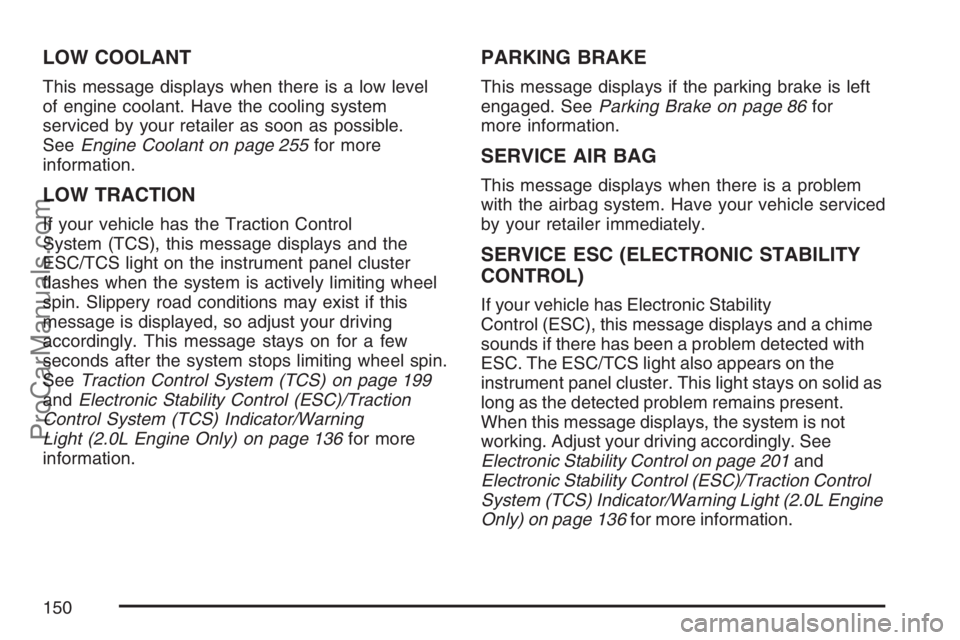

LOW COOLANT
This message displays when there is a low level
of engine coolant. Have the cooling system
serviced by your retailer as soon as possible.
SeeEngine Coolant on page 255for more
information.
LOW TRACTION
If your vehicle has the Traction Control
System (TCS), this message displays and the
ESC/TCS light on the instrument panel cluster
ashes when the system is actively limiting wheel
spin. Slippery road conditions may exist if this
message is displayed, so adjust your driving
accordingly. This message stays on for a few
seconds after the system stops limiting wheel spin.
SeeTraction Control System (TCS) on page 199
andElectronic Stability Control (ESC)/Traction
Control System (TCS) Indicator/Warning
Light (2.0L Engine Only) on page 136for more
information.
PARKING BRAKE
This message displays if the parking brake is left
engaged. SeeParking Brake on page 86for
more information.
SERVICE AIR BAG
This message displays when there is a problem
with the airbag system. Have your vehicle serviced
by your retailer immediately.
SERVICE ESC (ELECTRONIC STABILITY
CONTROL)
If your vehicle has Electronic Stability
Control (ESC), this message displays and a chime
sounds if there has been a problem detected with
ESC. The ESC/TCS light also appears on the
instrument panel cluster. This light stays on solid as
long as the detected problem remains present.
When this message displays, the system is not
working. Adjust your driving accordingly. See
Electronic Stability Control on page 201and
Electronic Stability Control (ESC)/Traction Control
System (TCS) Indicator/Warning Light (2.0L Engine
Only) on page 136for more information.
150
ProCarManuals.com

If this message turns on while you are driving, pull
off the road as soon as possible and stop carefully.
Try resetting the system by turning the ignition off
and then back on. If this message still stays on or
turns back on again while you are driving, your
vehicle needs service. Have the ESC inspected by
your retailer as soon as possible.
SERVICE TRACTION
If your vehicle has the Traction Control
System (TCS), this message displays and a chime
sounds when the system is not functioning
properly. The ESC/TCS light also appears on the
instrument panel cluster. This light stays on
solid as long as the detected problem remains
present. When this message displays, the system
is not working. Adjust your driving accordingly.
SeeTraction Control System (TCS) on page 199
andElectronic Stability Control (ESC)/Traction
Control System (TCS) Indicator/Warning
Light (2.0L Engine Only) on page 136for more
information. Have the TCS serviced by your
retailer as soon as possible.
TRACTION OFF
If your vehicle has the Traction Control
System (TCS), this message displays and the
ESC/TCS light on the instrument panel cluster
comes on solid when the TCS is turned off. Adjust
your driving accordingly. SeeTraction Control
System (TCS) on page 199andElectronic Stability
Control (ESC)/Traction Control System (TCS)
Indicator/Warning Light (2.0L Engine Only)
on page 136for more information.
TRUNK AJAR
This message displays when the trunk lid is not
closed completely. Make sure that the trunk
lid is closed completely. SeeTrunk on page 68
andTrunk Ajar Light on page 142.
151
ProCarManuals.com

DIC Vehicle Personalization
Your vehicle has personalization capabilities that
allow you to program certain features to a
preferred setting. All of the features listed may not
be available on your vehicle. Only the features
available will be displayed on the DIC.
The default settings for the features were set
when your vehicle left the factory, but may have
been changed from their default state since
that time.
To change feature settings, use the following
procedure:
Entering Personalization Menu
1. Turn the ignition on while the vehicle is
stopped.
To avoid excessive drain on the battery,
it is recommended that the headlamps
are turned off.2. Press and hold the information and reset
buttons at the same time for one second, then
release to enter the personalization menu.
If the vehicle speed is greater than 2 mph
(3 km/h), only the UNITS menu will be
accessible.
3. Press the information button to scroll through
the available personalization menu modes.
Press the reset button to scroll through
the available settings for each mode.
If you do not make a selection within
ten seconds, the display will go back to
the previous information displayed.
Personalization Menu Modes
OIL LIFE RESET
When this feature is displayed, you can reset
the engine oil life system. To reset the system,
seeEngine Oil Life System on page 250. See
“OIL LIFE” underDIC Operation and Displays
on page 144for more information.
152
ProCarManuals.com
