2007 Peugeot 307 Break Dag Owner's Manual

62

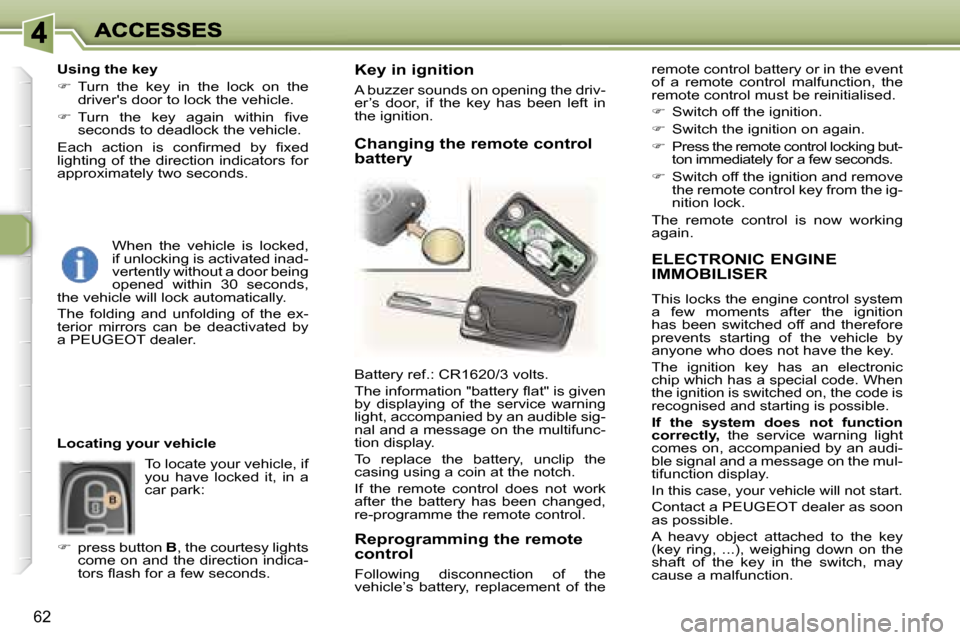

ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control systema few moments after the ignition has been switched off and therefore prevents starting of the vehicle by anyone who does not have the key.
The ignition key has an electronic chip which has a special code. When the ignition is switched on, the code is recognised and starting is possible.
If the system does not function correctly, the service warning light comes on, accompanied by an audi-ble signal and a message on the mul-tifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
A heavy object attached to the key (key ring, ...), weighing down on the shaft of the key in the switch, may cause a malfunction.
Battery ref.: CR1620/3 volts.
The information "battery flat" is given by displaying of the service warning light, accompanied by an audible sig-nal and a message on the multifunc-tion display.
To replace the battery, unclip the casing using a coin at the notch.
If the remote control does not work after the battery has been changed, re-programme the remote control.
Key in ignition
A buzzer sounds on opening the driv-er’s door, if the key has been left in the ignition.
remote control battery or in the event of a remote control malfunction, the remote control must be reinitialised.
Switch off the ignition.
 Switch the ignition on again.
Press the remote control locking but-ton immediately for a few seconds.
 Switch off the ignition and remove the remote control key from the ig-nition lock.
The remote control is now working again.
Locating your vehicle
Using the key
 Turn the key in the lock on the driver's door to lock the vehicle.
 Turn the key again within five seconds to deadlock the vehicle.
Each action is confirmed by fixed lighting of the direction indicators for approximately two seconds.
When the vehicle is locked, if unlocking is activated inad-vertently without a door being opened within 30 seconds, the vehicle will lock automatically.
The folding and unfolding of the ex-terior mirrors can be deactivated by a PEUGEOT dealer.
To locate your vehicle, if you have locked it, in a car park:
 press button B, the courtesy lights come on and the direction indica-tors flash for a few seconds.
Changing the remote control battery
Reprogramming the remote control
Following disconnection of the vehicle’s battery, replacement of the

63

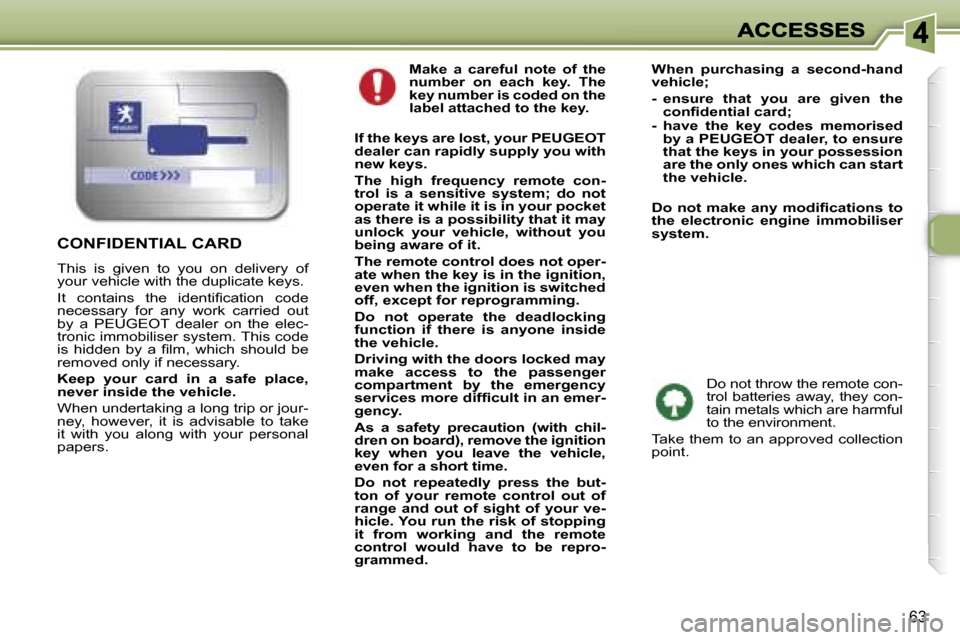

Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote con-trol is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not oper-ate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emer-gency.
As a safety precaution (with chil-dren on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the but-ton of your remote control out of range and out of sight of your ve-hicle. You run the risk of stopping it from working and the remote control would have to be repro-grammed.
When purchasing a second-hand vehicle;
- ensure that you are given the confidential card;- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.CONFIDENTIAL CARD
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code necessary for any work carried out by a PEUGEOT dealer on the elec-tronic immobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or jour-ney, however, it is advisable to take it with you along with your personal papers.
Do not throw the remote con-trol batteries away, they con-tain metals which are harmful to the environment.
Take them to an approved collection point.

62
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control systema few moments after the ignition has been switched off and therefore prevents starting of the vehicle by anyone who does not have the key.
The ignition key has an electronic chip which has a special code. When the ignition is switched on, the code is recognised and starting is possible.
If the system does not function correctly, the service warning light comes on, accompanied by an audi-ble signal and a message on the mul-tifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
A heavy object attached to the key (key ring, ...), weighing down on the shaft of the key in the switch, may cause a malfunction.
Battery ref.: CR1620/3 volts.
The information "battery flat" is given by displaying of the service warning light, accompanied by an audible sig-nal and a message on the multifunc-tion display.
To replace the battery, unclip the casing using a coin at the notch.
If the remote control does not work after the battery has been changed, re-programme the remote control.
Key in ignition
A buzzer sounds on opening the driv-er’s door, if the key has been left in the ignition.
remote control battery or in the event of a remote control malfunction, the remote control must be reinitialised.
Switch off the ignition.
 Switch the ignition on again.
Press the remote control locking but-ton immediately for a few seconds.
 Switch off the ignition and remove the remote control key from the ig-nition lock.
The remote control is now working again.
Locating your vehicle
Using the key
 Turn the key in the lock on the driver's door to lock the vehicle.
 Turn the key again within five seconds to deadlock the vehicle.
Each action is confirmed by fixed lighting of the direction indicators for approximately two seconds.
When the vehicle is locked, if unlocking is activated inad-vertently without a door being opened within 30 seconds, the vehicle will lock automatically.
The folding and unfolding of the ex-terior mirrors can be deactivated by a PEUGEOT dealer.
To locate your vehicle, if you have locked it, in a car park:
 press button B, the courtesy lights come on and the direction indica-tors flash for a few seconds.
Changing the remote control battery
Reprogramming the remote control
Following disconnection of the vehicle’s battery, replacement of the

63
Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote con-trol is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not oper-ate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emer-gency.
As a safety precaution (with chil-dren on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the but-ton of your remote control out of range and out of sight of your ve-hicle. You run the risk of stopping it from working and the remote control would have to be repro-grammed.
When purchasing a second-hand vehicle;
- ensure that you are given the confidential card;- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.CONFIDENTIAL CARD
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code necessary for any work carried out by a PEUGEOT dealer on the elec-tronic immobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or jour-ney, however, it is advisable to take it with you along with your personal papers.
Do not throw the remote con-trol batteries away, they con-tain metals which are harmful to the environment.
Take them to an approved collection point.

63
Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote con-trol is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not oper-ate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emer-gency.
As a safety precaution (with chil-dren on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the but-ton of your remote control out of range and out of sight of your ve-hicle. You run the risk of stopping it from working and the remote control would have to be repro-grammed.
When purchasing a second-hand vehicle;
- ensure that you are given the confidential card;- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.CONFIDENTIAL CARD
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code necessary for any work carried out by a PEUGEOT dealer on the elec-tronic immobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or jour-ney, however, it is advisable to take it with you along with your personal papers.
Do not throw the remote con-trol batteries away, they con-tain metals which are harmful to the environment.
Take them to an approved collection point.

64
THE ALARM
This provides two types of protection:
- exterior protection: it sounds if a door, the boot or the bonnet is opened.- interior protection: it sounds if the volume inside the passenger compart-ment changes (breaking of a window or a movement inside the vehicle).
 In the next ten seconds, press button A until the indicator light is on continuously,
 Get out of the vehicle,
 Set the alarm by locking or dead-locking using the remote control (button A indicator light flashes once a second).
In order for the alarm to be set in this mode, these operations must be carried out each time the ignition is switched off.
Setting the alarm
 Switch off the ignition and get out of the vehicle.
 Set the alarm, by locking or dead-locking using the remote control (button A indicator light flashes once per second).
Note: if you wish to lock your vehi-cle without setting the alarm, use the door lock.
When the alarm is triggered, the si-ren sounds and the direction indica-tor lights flash for thirty seconds.
After triggering, the alarm remains set.
Disarming
Unlock the vehicle with the remote control key (button A indicator light goes out).
Note: if the alarm has been triggered while you were away from your vehicle, the rapid flashing of the indicator light will stop when you switch on the ignition.
Failure of the remote control
 Unlock the doors with the key and open the door. The alarm is trig-gered.
 Switch on the ignition. The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if button A lights for ten seconds, there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked.
* According to country.
If the alarm has been trig-gered ten times in succes-sion, on the eleventh time it becomes inactive.
If button A indicator light flashes ra-pidly, the alarm has been triggered while you were away from your ve-hicle.
45 seconds following pressing of the locking button on the remote control, the alarm is set, regardless of the status of the doors or boot.
When washing your vehicle, to pre-vent triggering of the alarm:
- lock the doors using the key,or
- set the exterior alarm only.
To set the alarm with exterior protection only
If, while you are away from the vehi-cle, you wish to leave a window par-tially open or a pet inside the vehicle, you should choose exterior protec-tion only.
 Switch off the ignition,
Automatic activation*
The alarm is activated automatically two minutes after the last closure of a door or the boot.
In order to avoid accidental triggering of the alarm when a door or the boot is opened, it is essential to first press the unlocking button on the remote control.

65

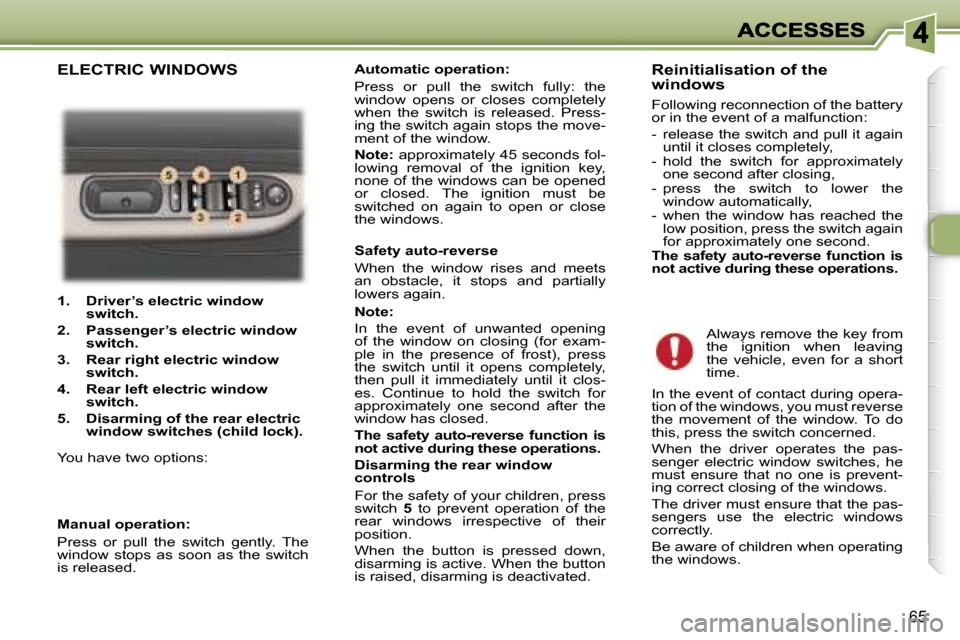

1. Driver’s electric window switch.
2. Passenger’selectric window switch.
3.Rear right electric window switch.
4. Rear leftelectric window switch.
5. Disarming of the rear electric window switches (child lock).
You have two options:
Automatic operation:
Press or pull the switch fully: the window opens or closes completely when the switch is released. Press-ing the switch again stops the move-ment of the window.
Note: approximately 45 seconds fol-lowing removal of the ignition key, none of the windows can be opened or closed. The ignition must be switched on again to open or close the windows.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of contact during opera-tion of the windows, you must reverse the movement of the window. To do this, press the switch concerned.
When the driver operates the pas-senger electric window switches, he must ensure that no one is prevent-ing correct closing of the windows.
The driver must ensure that the pas-sengers use the electric windows correctly.
Be aware of children when operating the windows.
Reinitialisation of the windows
Following reconnection of the battery or in the event of a malfunction:
- release the switch and pull it again until it closes completely,- hold the switch for approximately one second after closing,- press the switch to lower the window automatically,- when the window has reached the low position, press the switch again for approximately one second.The safety auto-reverse function is not active during these operations.
Manual operation:
Press or pull the switch gently. The window stops as soon as the switch is released.
ELECTRIC WINDOWS
Safety auto-reverse
When the window rises and meets an obstacle, it stops and partially lowers again.
Disarming the rear window controls
For the safety of your children, press switch 5 to prevent operation of the rear windows irrespective of their position.
When the button is pressed down, disarming is active. When the button is raised, disarming is deactivated.
Note:
In the event of unwanted opening of the window on closing (for exam-ple in the presence of frost), press the switch until it opens completely, then pull it immediately until it clos-es. Continue to hold the switch for approximately one second after the window has closed.
The safety auto-reverse function is not active during these operations.

66

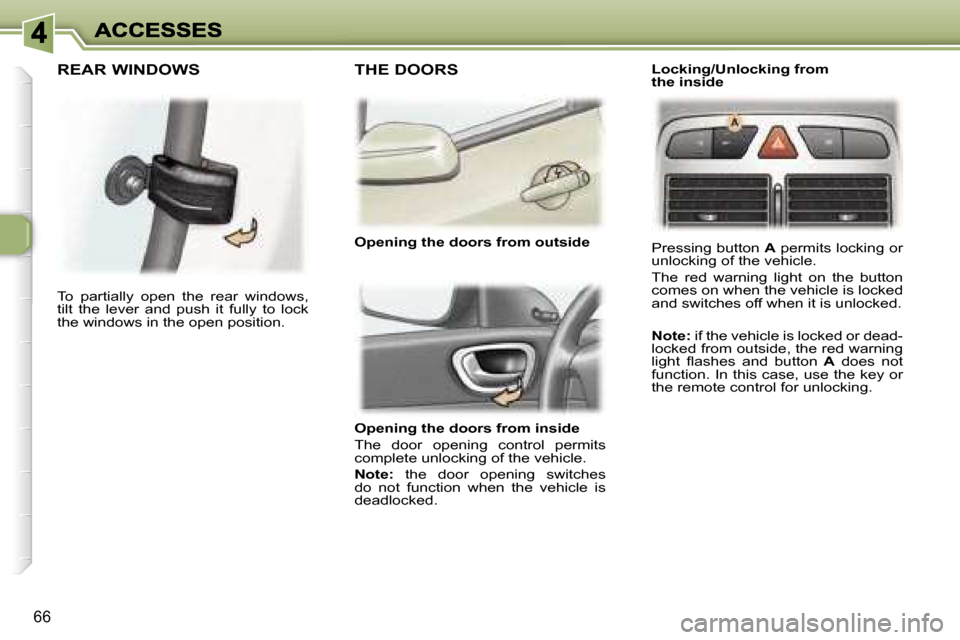

Opening the doors from inside
The door opening control permits complete unlocking of the vehicle.
Note: the door opening switches do not function when the vehicle is deadlocked.
Pressing button A permits locking or unlocking of the vehicle.
The red warning light on the button comes on when the vehicle is locked and switches off when it is unlocked.
Note: if the vehicle is locked or dead-locked from outside, the red warning light flashes and button A does not function. In this case, use the key or the remote control for unlocking.
THE DOORS
Opening the doors from outside
To partiallyopen the rear windows, tilt the lever and push it fully to lock the windows in the open position.
REAR WINDOWSLocking/Unlocking from the inside
