2007 Peugeot 307 Break Dag Owner's Manual

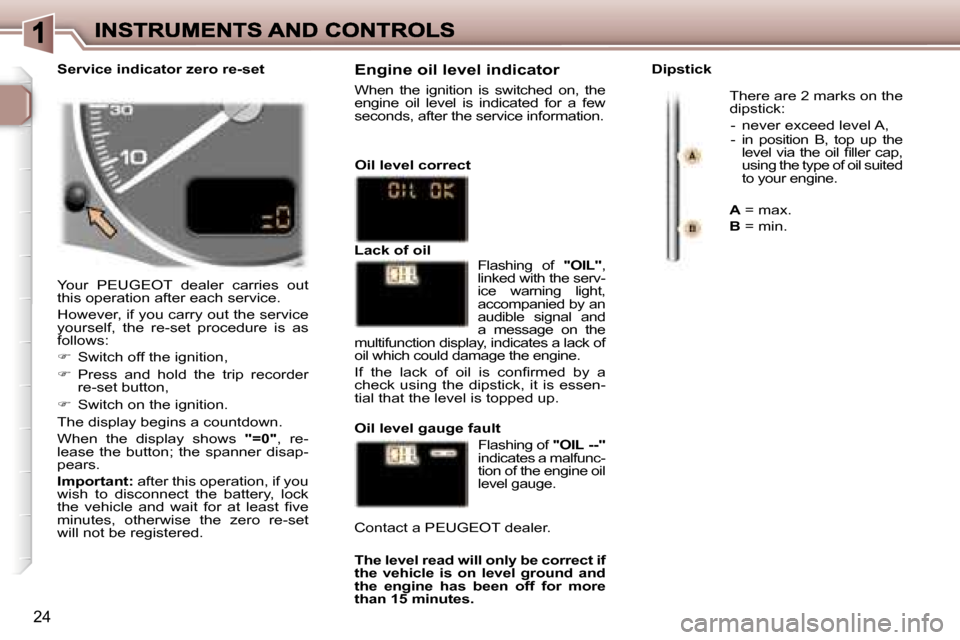

24
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is as follows:
 Switch off the ignition,
 Press and hold the trip recorder re-set button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0", re-lease the button; the spanner disap-pears.
Important: after this operation, if you wish to disconnect the battery, lock the vehicle and wait for at least five minutes, otherwise the zero re-set will not be registered.
Engine oil level indicator
When the ignition is switched on, the engine oil level is indicated for a few seconds, after the service information.
Oil level correct
Oil level gauge fault
Flashing of "OIL --" indicates a malfunc-tion of the engine oil level gauge.
Contact a PEUGEOT dealer.
The level read will only be correct if the vehicle is on level ground and the engine has been off for more than 15 minutes.
Flashing of "OIL", linked with the serv-ice warning light, accompanied by an audible signal and a message on the multifunction display, indicates a lack of oil which could damage the engine.
If the lack of oil is confirmed by a check using the dipstick, it is essen-tial that the level is topped up.
Lack of oil
Dipstick
There are 2 marks on the dipstick:
- never exceed level A,- in position B, top up the level via the oil filler cap, using the type of oil suited to your engine.
A = max.
B = min.
Service indicator zero re-set

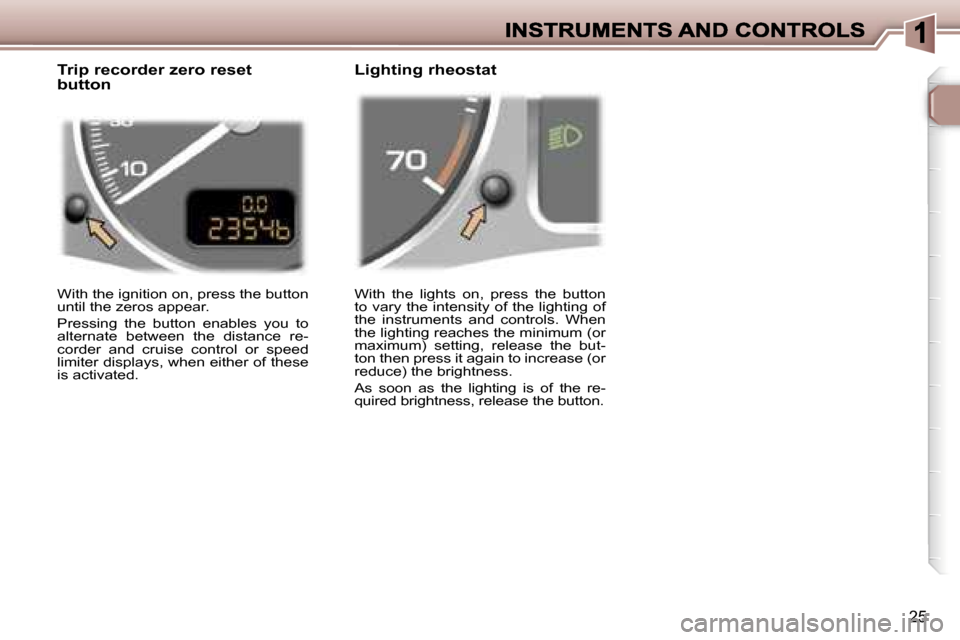

25
With the lights on, press the button to vary the intensity of the lighting of the instruments and controls. When the lighting reaches the minimum (or maximum) setting, release the but-ton then press it again to increase (or reduce) the brightness.
As soon as the lighting is of the re-quired brightness, release the button.
Trip recorder zero reset button
With the ignition on, press the button until the zeros appear.
Pressing the button enables you to alternate between the distance re-corder and cruise control or speed limiter displays, when either of these is activated.
Lighting rheostat

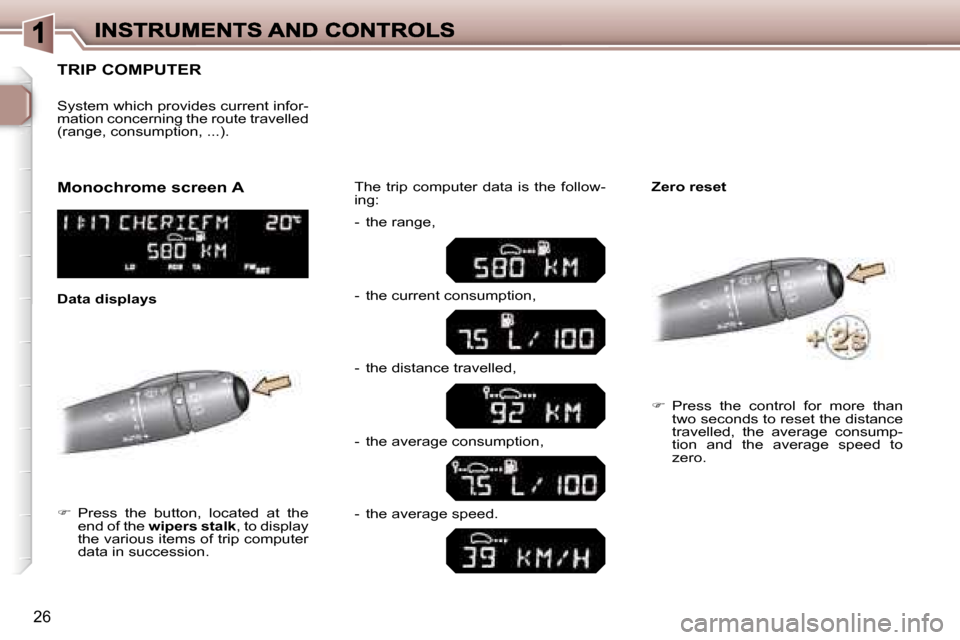

26
TRIP COMPUTER
 Press the button, located at the end of the wipers stalk, to display the various items of trip computer data in succession.
The trip computer data is the follow-ing:
System which provides current infor-mation concerning the route travelled (range, consumption, ...).
 Press the control for more than two seconds to reset the distance travelled, the average consump-tion and the average speed to zero.
Monochrome screen AZero reset
Data displays
- the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.

27
- the current information tab with: - the range, - the current consumption, - the distance remaining to be travelled,
Colour screen
Route zero resetMonochrome screen C
 Press the button, located at the end of the wipers stalk, to display the various trip computer tabs in succession:
Data displays
 When the route required is dis-played, press the control for more than two seconds.
- the route "1" tab with: - the distance travelled, - the average consump-tion, - the average speed, for the first route.
- the route "2" tab with:- the distance travelled,- the average consump-tion,- the average speed,for the second route.
Routes "1" and "2" are independent but their use is identical.
Route "1" permits, for example, daily calculations, and route "2" monthly calculations.
TRIP COMPUTER
System which provides current infor-mation concerning the route travelled (range, consumption, …).

28
Distance remaining to be travelled
(km or miles)
This is the distance remain-ing to be travelled to the final destina-tion. It is either calculated instantly by the navigation system if guidance is activated, or entered by the user.
If the distance is not entered, dashes are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed calculated since the last trip computer zero reset (ignition on).
Range
(km or miles)
This indicates the number of miles (or kilometres) which can still be travelled with the fuel remaining in the tank in relation to the average consumption over the last few miles (kilometres) travelled.
Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed over the last few seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed since the last trip computer zero reset.
Distance travelled
(km or miles)
This indicates the dis-tance travelled since the last trip computer zero reset.
A few definitions…
When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
If dashes are displayed continuously while driving in place of the digits, contact a PEUGEOT dealer.
This function is only displayed from 20 mph (30 km/h).
This figure may increase fol-lowing a change of driving style or relief, resulting in a significant change in the cur-rent consumption.

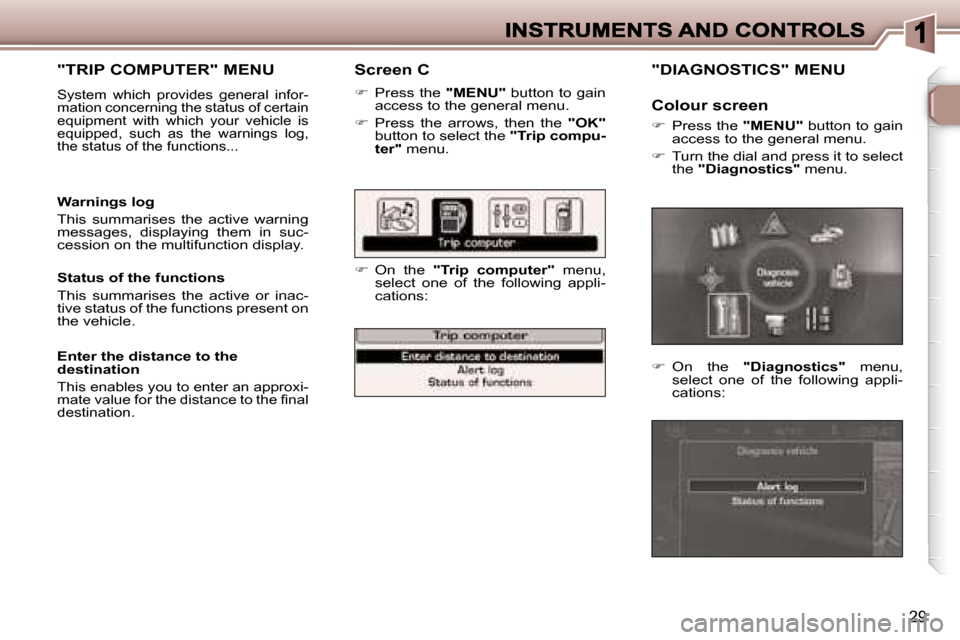

29
Screen C
 Press the "MENU" button to gain access to the general menu.
 Press the arrows, then the "OK"button to select the "Trip compu-ter" menu.
 On the "Trip computer" menu, select one of the following appli-cations:
Warnings log
This summarises the active warning messages, displaying them in suc-cession on the multifunction display.
Status of the functions
This summarises the active or inac-tive status of the functions present on the vehicle.
Enter the distance to the destination
This enables you to enter an approxi-mate value for the distance to the final destination.
"TRIP COMPUTER" MENU
System which provides general infor-mation concerning the status of certain equipment with which your vehicle is equipped, such as the warnings log, the status of the functions...
"DIAGNOSTICS" MENU
 On the "Diagnostics" menu, select one of the following appli-cations:
Colour screen
Press the "MENU" button to gain access to the general menu.
 Turn the dial and press it to select the "Diagnostics" menu.

30
Presentation
This displays the following informa-tion:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the warning messages (e.g.: "Emis-sion control system faulty") or infor-mation messages (e.g.: "Auto lights on"), displayed temporarily, can be cleared by pressing the "ESC" but-ton,- the trip computer (see correspond-ing section).
MONOCHROME DISPLAY A
(without RD4 audio equipment)Parameter configuration
There are three display control but-tons:
- "ESC" to abandon the operation in progress,- "MENU" to scroll through the men-us or sub-menus,- "OK" to select the menu or sub-menu required.
General menu
Press the "MENU" button to scroll through the various menus of the general menu:
- vehicle configuration,- options,- display settings,- languages,- units.Press the "OK" button to select the menu required.
* With air conditioning only.

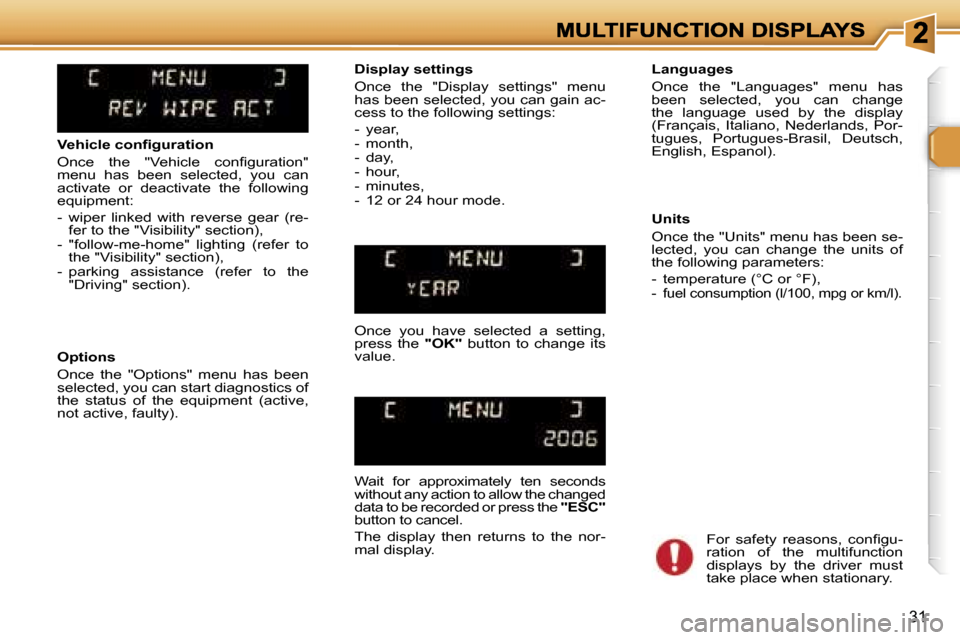

31
Vehicle configuration
Once the "Vehicle configuration" menu has been selected, you can activate or deactivate the following equipment:
- wiper linked with reverse gear (re-fer to the "Visibility" section),- "follow-me-home" lighting (refer to the "Visibility" section),- parking assistance (refer to the "Driving" section).
Options
Once the "Options" menu has been selected, you can start diagnostics of the status of the equipment (active, not active, faulty).
Languages
Once the "Languages" menu has been selected, you can change the language used by the display (Français, Italiano, Nederlands, Por-tugues, Portugues-Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has been selected, you can gain ac-cess to the following settings:
- year,- month,- day,- hour,- minutes,- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-lected, you can change the units of the following parameters:
- temperature (°C or °F),- fuel consumption (l/100, mpg or km/l).
Once you have selected a setting, press the "OK" button to change its value.
Wait for approximately ten seconds without any action to allow the changed data to be recorded or press the "ESC"button to cancel.
The display then returns to the nor-mal display.For safety reasons, configu-ration of the multifunction displays by the driver must take place when stationary.
