 Push the repeater forwards and release it.
 Remove the repeater and change it.
These can be obtained from a PEUGEOT dealer.
Amber coloured bulbs, such as the direction indicators, must be replaced with bulbs of identical specification and colour.

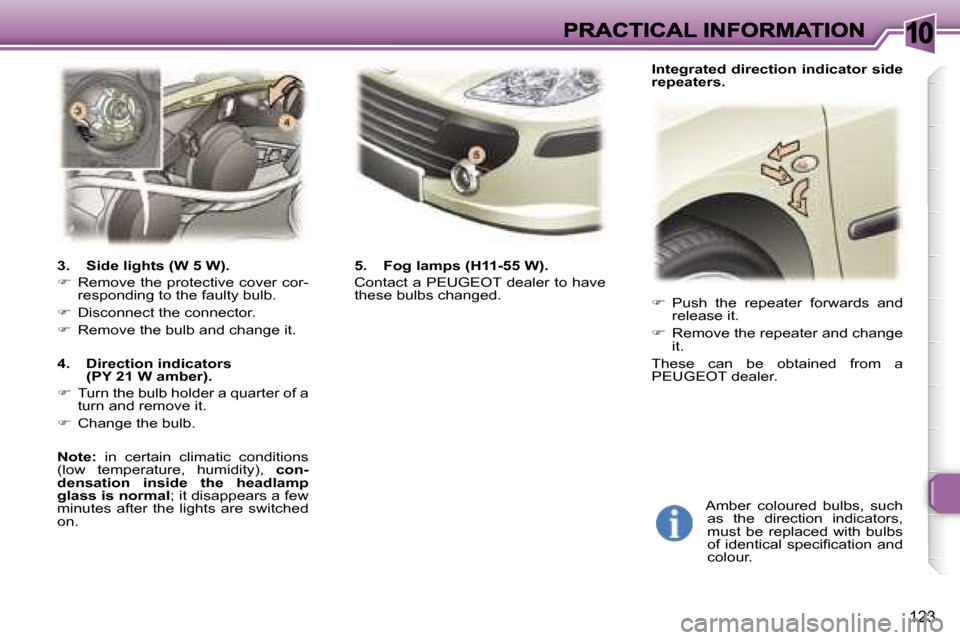

3. Side lights (W 5 W).
 Remove the protective cover cor-responding to the faulty bulb.
 Disconnect the connector.
 Remove the bulb and change it.
4. Direction indicators (PY 21 W amber).
 Turn the bulb holder a quarter of a turn and remove it.
 Change the bulb.
Note: in certain climatic conditions (low temperature, humidity), con-densation inside the headlamp glass is normal; it disappears a few minutes after the lights are switched on.
5. Fog lamps (H11-55 W).
Contact a PEUGEOT dealer to have these bulbs changed.
Integrated direction indicator side repeaters.

10
124

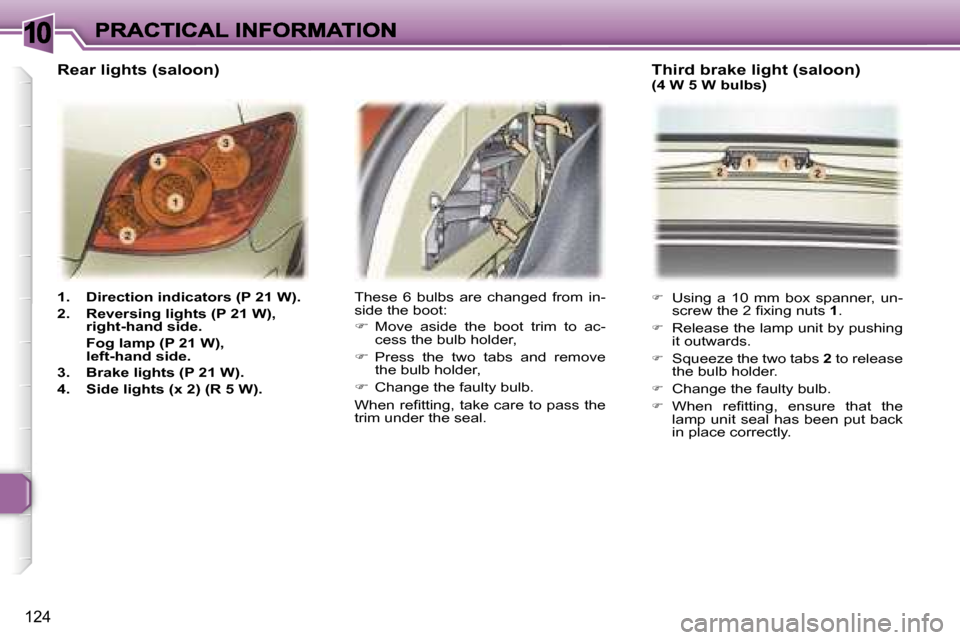

1. Direction indicators (P 21 W).
2. Reversing lights (P 21 W), right-hand side.
Fog lamp (P 21 W), left-hand side.
3. Brake lights (P 21 W).
4. Side lights (x 2) (R 5 W).
 Using a 10 mm box spanner, un-screw the 2 fixing nuts 1.
 Release the lamp unit by pushing
it outwards.
 Squeeze the two tabs 2 to release
the bulb holder.
 Change the faulty bulb.
 When refitting, ensure that the lamp unit seal has been put back
in place correctly.
These 6 bulbs are changed from in-side the boot:
 Move aside the boot trim to ac-cess the bulb holder,
 Press the two tabs and remove the bulb holder,
 Change the faulty bulb.
When refitting, take care to pass the trim under the seal.
Rear lights (saloon)Third brake light (saloon)(4 W 5 W bulbs)

10
125
Remove the tailgate upper trim carefully by unclipping it on either side, perpendicular to its direction of engagement.
Insert a screwdriver into the two outer holes B to press on the two tabs C.
 Push the light unit outwards while maintaining the pressure on the tabs.
 Pull the light unit outwards while tilting it.
 Change the faulty bulb.
 When refitting, ensure that the light unit tabs are engaged cor-rectly and that the tailgate upper trim has been put back in place correctly.
1. Brake lights (P 21 W).
2. Side lights (x 2) (R 5 W).
3. Direction indicators (P 21 W).
4. Reversing light (P 21 W), right-hand side.
Fog lamp (P 21 W), left-hand side.
These 6 bulbs are changed by re-moving the light:
 Remove the corresponding boot side trim to access the light,
 Remove the light fixing nut inside the boot,
 Remove the light fixing nut out-side the boot,
 Remove the light,
 Unclip the harness,
 Remove the bulb holder, pressing on the tabs A,
 Change the faulty bulb.
Note: if necessary, use the wheel-brace to remove the nuts.
When refitting, take care to position the bulb holder and the light correctly.
Number plate lights (W 5 W)
 Insert a thin screwdriver into one
of the external holes of the lens.
 Push it outwards to unclip it.
 Remove the lens.
 Change the faulty bulb.

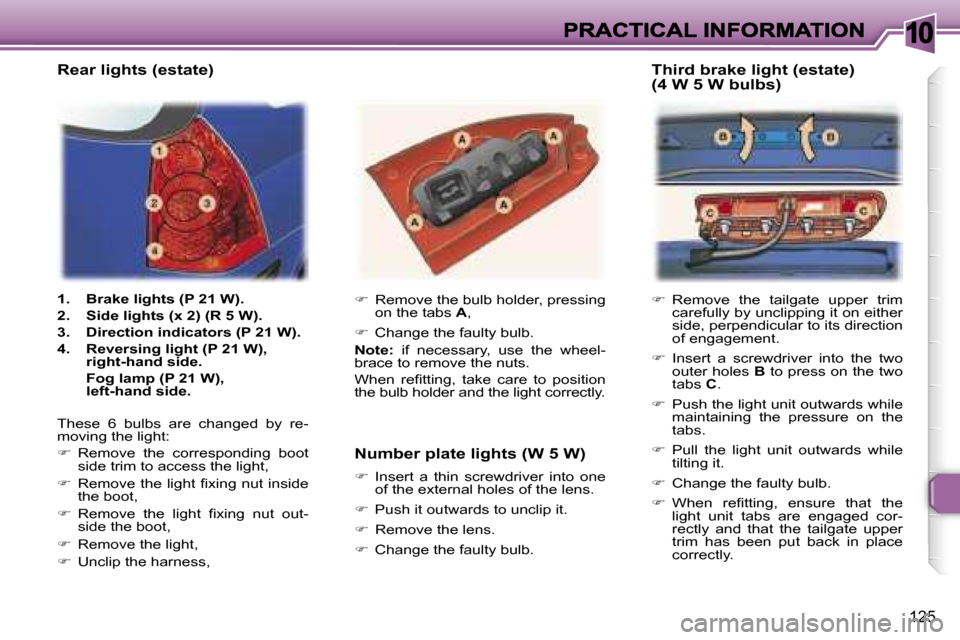

Rear lights (estate)Third brake light (estate)(4 W 5 W bulbs)

10
126

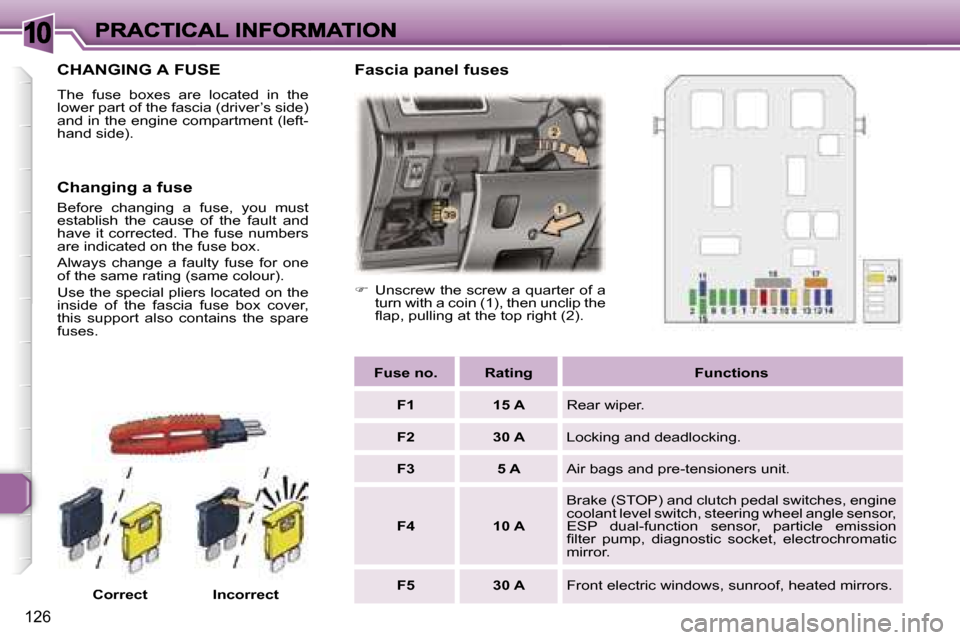

CHANGING A FUSE
The fuse boxes are located in the lower part of the fascia (driver’s side) and in the engine compartment (left-hand side).
CorrectIncorrect
 Unscrew the screw a quarter of a turn with a coin (1), then unclip the flap, pulling at the top right (2).
Fuse no.RatingFunctions
F115 ARear wiper.
F230 ALocking and deadlocking.
F35 AAir bags and pre-tensioners unit.
F410 A
Brake (STOP) and clutch pedal switches, engine coolant level switch, steering wheel angle sensor, ESP dual-function sensor, particle emission filter pump, diagnostic socket, electrochromatic mirror.
F530 AFront electric windows, sunroof, heated mirrors.
Changing a fuse
Before changing a fuse, you must establish the cause of the fault and have it corrected. The fuse numbers are indicated on the fuse box.
Always change a faulty fuse for one of the same rating (same colour).
Use the special pliers located on the inside of the fascia fuse box cover, this support also contains the spare fuses.
Fascia panel fuses

10
128

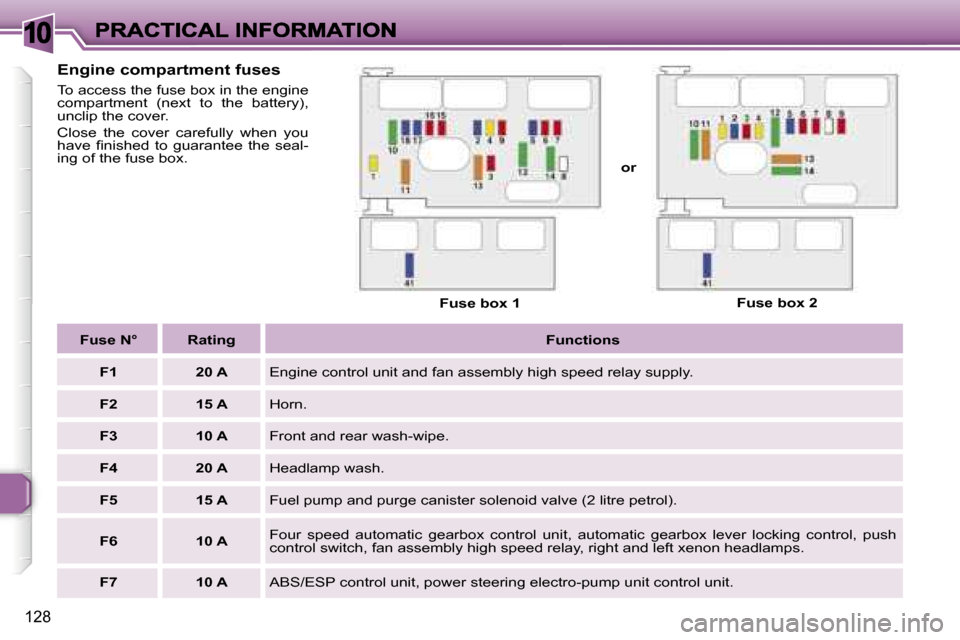

Engine compartment fuses
To access the fuse box in the engine compartment (next to the battery), unclip the cover.
Close the cover carefully when you have finished to guarantee the seal-ing of the fuse box.
Fuse box 2
or
Fuse box 1
Fuse N°RatingFunctions
F120 AEngine control unit and fan assembly high speed relay supply.
F215 AHorn.
F310 AFront and rear wash-wipe.
F420 AHeadlamp wash.
F515 AFuel pump and purge canister solenoid valve (2 litre petrol).
F610 AFour speed automatic gearbox control unit, automatic gearbox lever locking control, push control switch, fan assembly high speed relay, right and left xenon headlamps.
F710 AABS/ESP control unit, power steering electro-pump unit control unit .

10
129
* For fuse box 1 only.
Fuse N°RatingFunctions
F825 AStarter control.
F910 AAdditional heating unit (Diesel), coolant level switch.
F1030 AEngine control unit actuators (ignition coil, solenoid valves, oxygen sensors, control units, injectors, heaters), purge canister solenoid valve (1.4 litre petro l and 1.6 litre petrol).
F1140 AAir conditioning blower.
F1230 AWindscreen wipers low/high speed.
F1340 ABuilt-in systems interface supply (ignition positive).
F1430 AAir pump (2 litre petrol).
F15*10 ARight main beam headlamp.
F16*10 ALeft main beam headlamp.
F17*15 ALeft dipped headlamp.
F18*15 ARight dipped headlamp.
F4115 ASix speed automatic gearbox control unit.

10
130
The electrical system of your vehicle is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on you r vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept responsibility for the cost incurred in rep airing your vehicle or for rectifying the malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular where the equipme nt in question consumes more than 10 milliamperes.

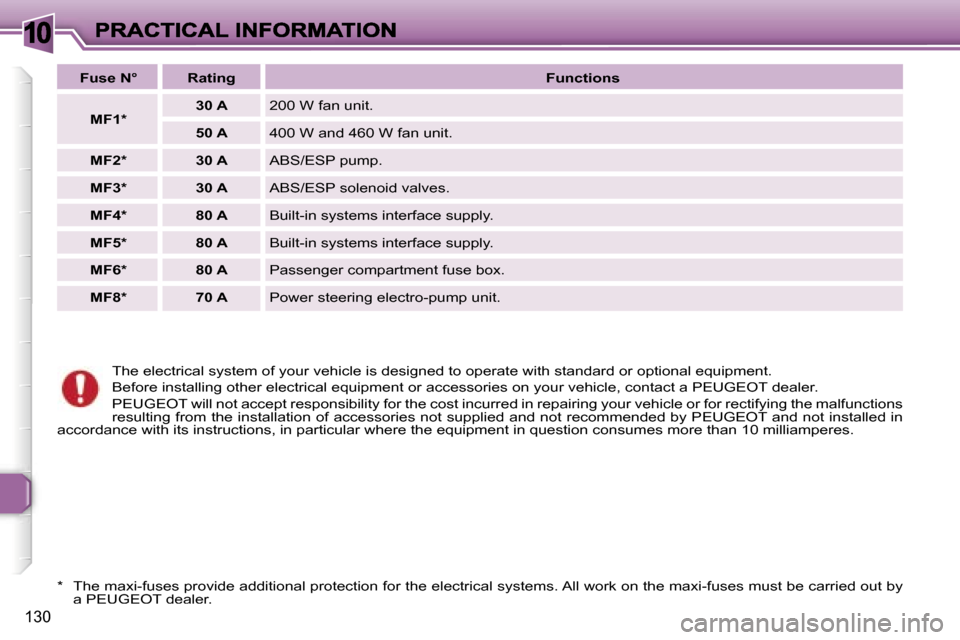

Fuse N°RatingFunctions
MF1*30 A200 W fan unit.
50 A400 W and 460 W fan unit.
MF2*30 AABS/ESP pump.
MF3*30 AABS/ESP solenoid valves.
MF4*80 ABuilt-in systems interface supply.
MF5*80 ABuilt-in systems interface supply.
MF6*80 APassenger compartment fuse box.
MF8*70 APower steering electro-pump unit.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer.

10
126
CHANGING A FUSE
The fuse boxes are located in the lower part of the fascia (driver’s side) and in the engine compartment (left-hand side).
CorrectIncorrect
 Unscrew the screw a quarter of a turn with a coin (1), then unclip the flap, pulling at the top right (2).
Fuse no.RatingFunctions
F115 ARear wiper.
F230 ALocking and deadlocking.
F35 AAir bags and pre-tensioners unit.
F410 A
Brake (STOP) and clutch pedal switches, engine coolant level switch, steering wheel angle sensor, ESP dual-function sensor, particle emission filter pump, diagnostic socket, electrochromatic mirror.
F530 AFront electric windows, sunroof, heated mirrors.
Changing a fuse
Before changing a fuse, you must establish the cause of the fault and have it corrected. The fuse numbers are indicated on the fuse box.
Always change a faulty fuse for one of the same rating (same colour).
Use the special pliers located on the inside of the fascia fuse box cover, this support also contains the spare fuses.
Fascia panel fuses
