79

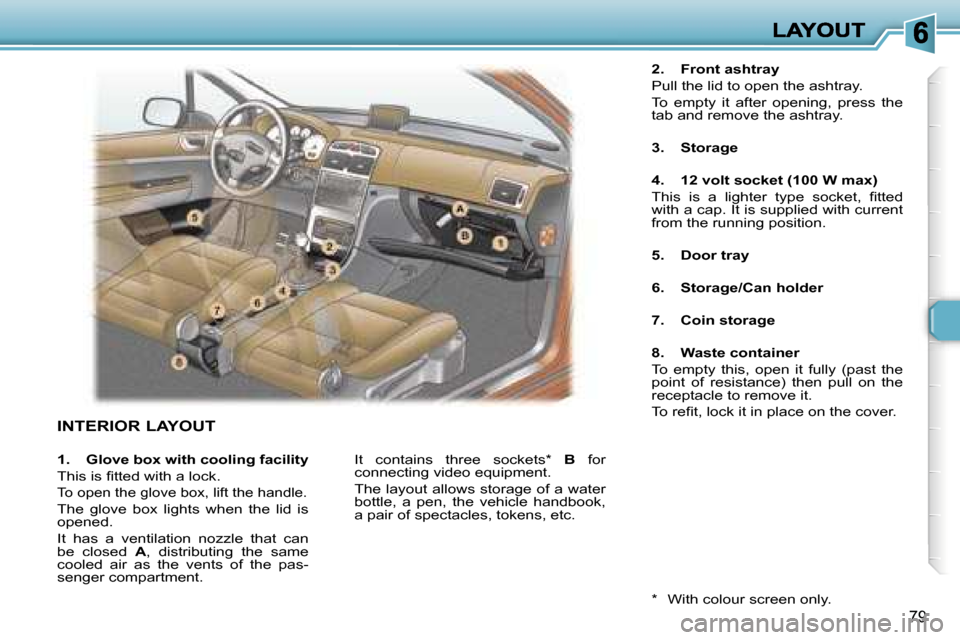

INTERIOR LAYOUT
2. Front ashtray
Pull the lid to open the ashtray.
To empty it after opening, press the tab and remove the ashtray.
3. Storage
4. 12 volt socket (100 W max)
This is a lighter type socket, fitted with a cap. It is supplied with current from the running position.
5. Door tray
6. Storage/Can holder
7. Coin storage
8. Waste container
To empty this, open it fully (past the point of resistance) then pull on the receptacle to remove it.
To refit, lock it in place on the cover.
It contains three sockets* B for connecting video equipment.
The layout allows storage of a water bottle, a pen, the vehicle handbook, a pair of spectacles, tokens, etc.
* With colour screen only.
1. Glove box with cooling facility
This is fitted with a lock.
To open the glove box, lift the handle.
The glove box lights when the lid is opened.
It has a ventilation nozzle that can be closed A, distributing the same cooled air as the vents of the pas-senger compartment.

80
When fitting the mat for the first time, use only the fixings supplied in the wallet attached.
When removing the mat on the driver’s side:
- push the seat as far back as possible,- unscrew the fixings fully,- remove the fixings, then the mat.

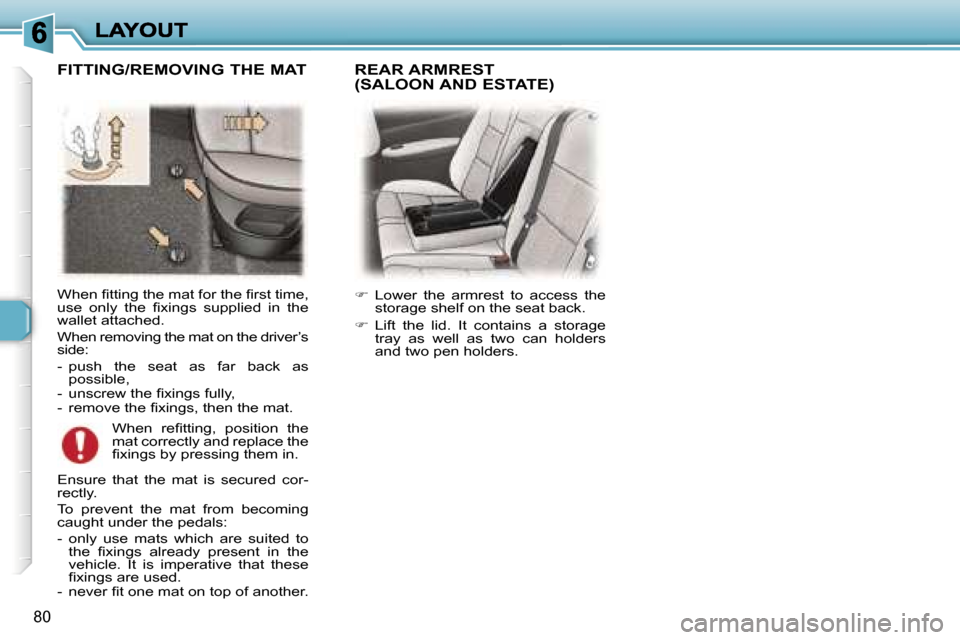

FITTING/REMOVING THE MAT
When refitting, position the mat correctly and replace the fixings by pressing them in.
Ensure that the mat is secured cor-rectly.
To prevent the mat from becoming caught under the pedals:
- only use mats which are suited to the fixings already present in the vehicle. It is imperative that these fixings are used.- never fit one mat on top of another.
 Lower the armrest to access the storage shelf on the seat back.
 Lift the lid. It contains a storage tray as well as two can holders and two pen holders.
REAR ARMREST
(SALOON AND ESTATE)

81
For further details, refer to the operating manuals "Video kit operation" and "VMA8582 7 inch LCD colour monitor".

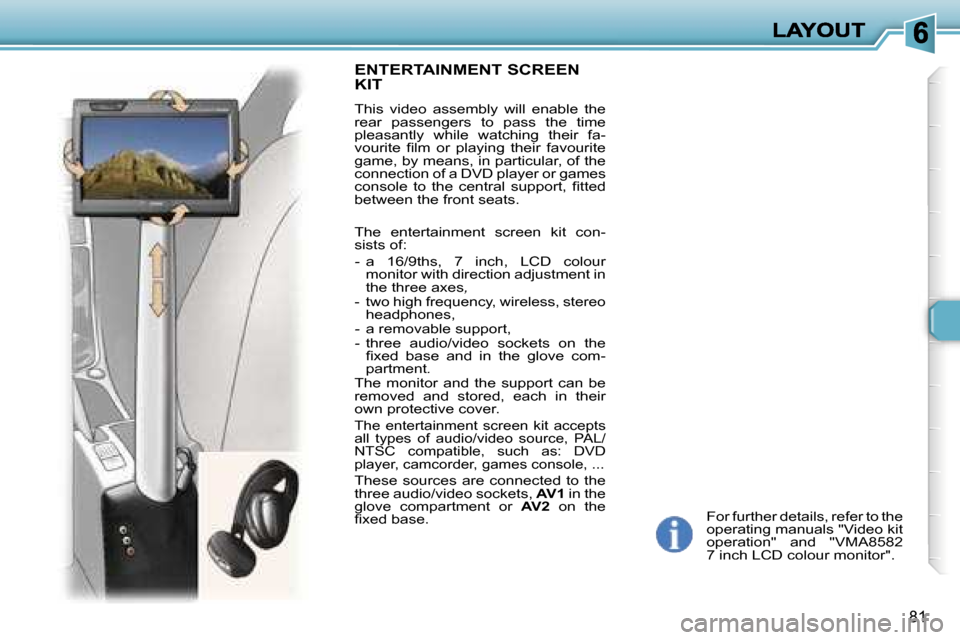

ENTERTAINMENT SCREEN
KIT
This video assembly will enable the rear passengers to pass the time pleasantly while watching their fa-vourite film or playing their favourite game, by means, in particular, of the connection of a DVD player or games console to the central support, fitted between the front seats.
The entertainment screen kit con-sists of:
- a 16/9ths, 7 inch, LCD colour monitor with direction adjustment in the three axes,- two high frequency, wireless, stereoheadphones,- a removable support,- three audio/video sockets on the fixed base and in the glove com-partment.The monitor and the support can be removed and stored, each in their own protective cover.
The entertainment screen kit accepts all types of audio/video source, PAL/NTSC compatible, such as: DVD player, camcorder, games console, ...
These sources are connected to the three audio/video sockets, AV1 in the glove compartment or AV2 on the fixed base.

82

83

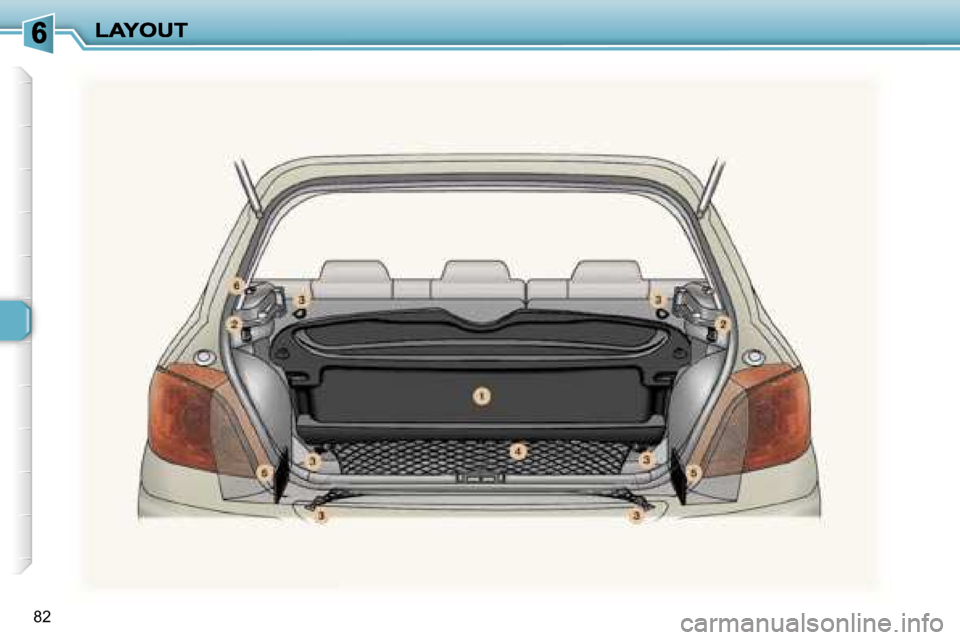

1. Rear parcel shelf
To remove the shelf:
- unhook the two strings,- slightly raise the shelf, then remove it.
The shelf can be stored:
- either behind the front seats,- or behind the rear seat.
2. Hooks
3. Stowing rings
4. Luggage retaining net
Hooked onto the stowing rings, this enables your luggage to be secured.
5. Open storage trays
6. 12 volt socket (100 W max)
This is a lighter type socket, installed on the left-hand side of the parcel shelf.
It is supplied from the "Running" position.

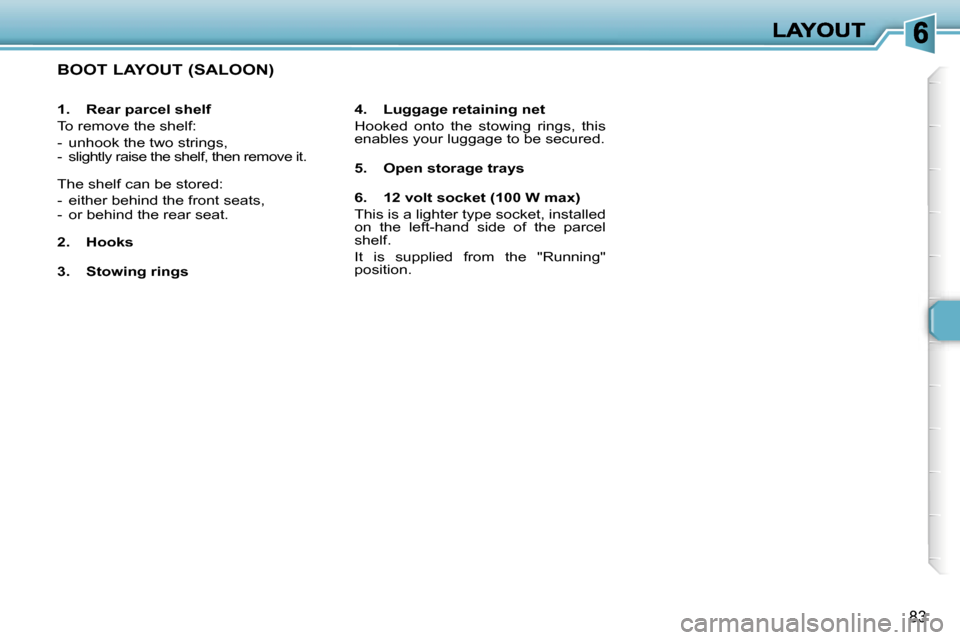

BOOT LAYOUT (SALOON)

84

85

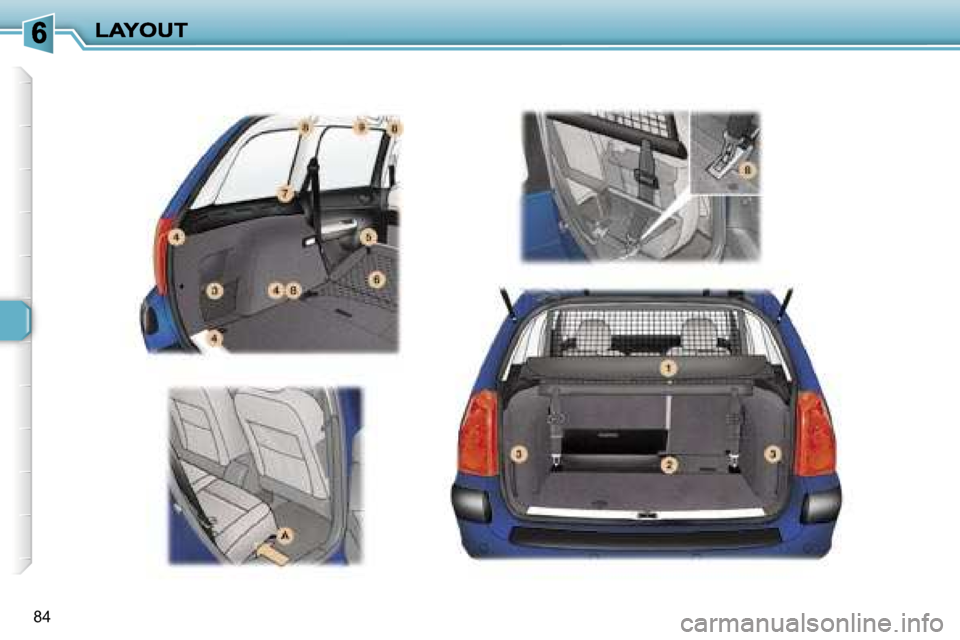

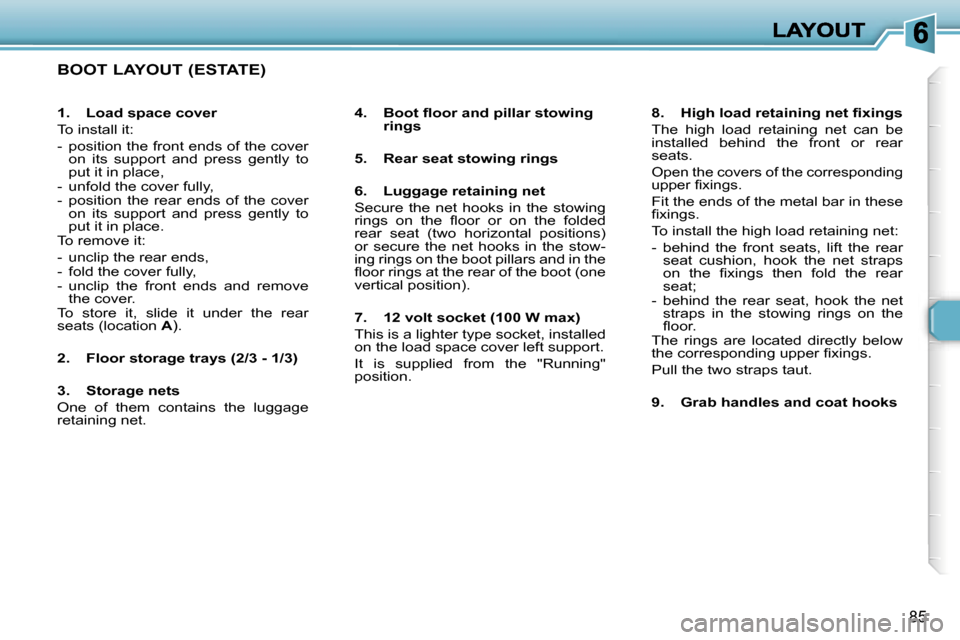

BOOT LAYOUT (ESTATE)
4. Boot floor and pillar stowing rings
5. Rear seat stowing rings
6. Luggage retaining net
Secure the net hooks in the stowing rings on the floor or on the folded rear seat (two horizontal positions) or secure the net hooks in the stow-ing rings on the boot pillars and in the floor rings at the rear of the boot (one vertical position).
7. 12 volt socket (100 W max)
This is a lighter type socket, installed on the load space cover left support.
It is supplied from the "Running" position.
8. High load retaining net fixings
The high load retaining net can be installed behind the front or rear seats.
Open the covers of the corresponding upper fixings.
Fit the ends of the metal bar in these fixings.
To install the high load retaining net:
- behind the front seats, lift the rear seat cushion, hook the net straps on the fixings then fold the rear seat;- behind the rear seat, hook the net straps in the stowing rings on the floor.The rings are located directly below the corresponding upper fixings.
Pull the two straps taut.
9. Grab handles and coat hooks
1. Load space cover
To install it:
- position the front ends of the cover on its support and press gently to put it in place,- unfold the cover fully,- position the rear ends of the cover on its support and press gently to put it in place.To remove it:
- unclip the rear ends,- fold the cover fully,- unclip the front ends and remove the cover.To store it, slide it under the rear seats (location A).
2. Floor storage trays (2/3 - 1/3)
3. Storage nets
One of them contains the luggage retaining net.

86

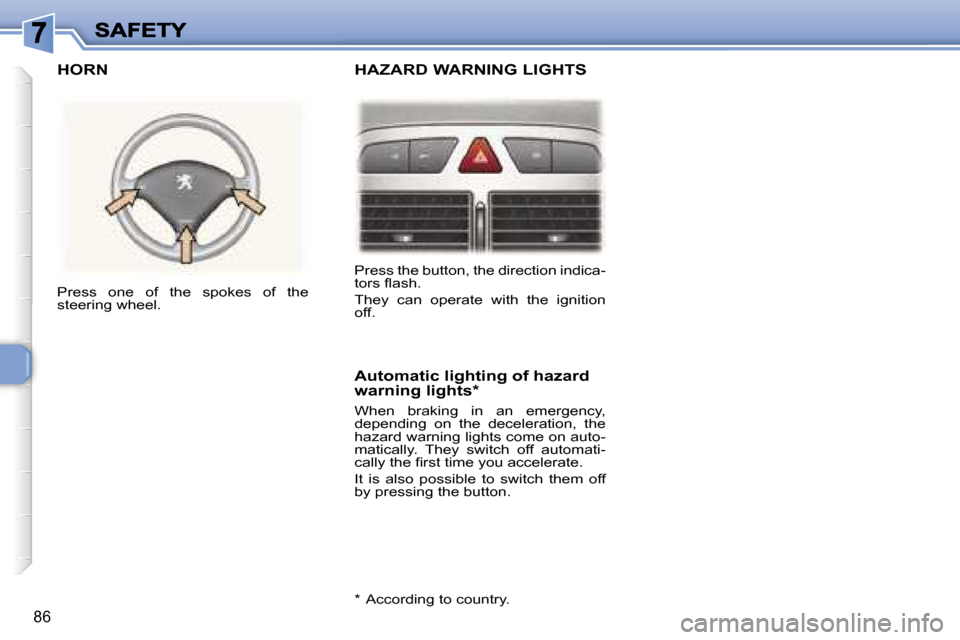

Press the button, the direction indica-tors flash.
They can operate with the ignition off.
Press one of the spokes of the steering wheel.
Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the deceleration, the hazard warning lights come on auto-matically. They switch off automati-cally the first time you accelerate.
It is also possible to switch them off by pressing the button.
* According to country.
HORN HAZARD WARNING LIGHTS
