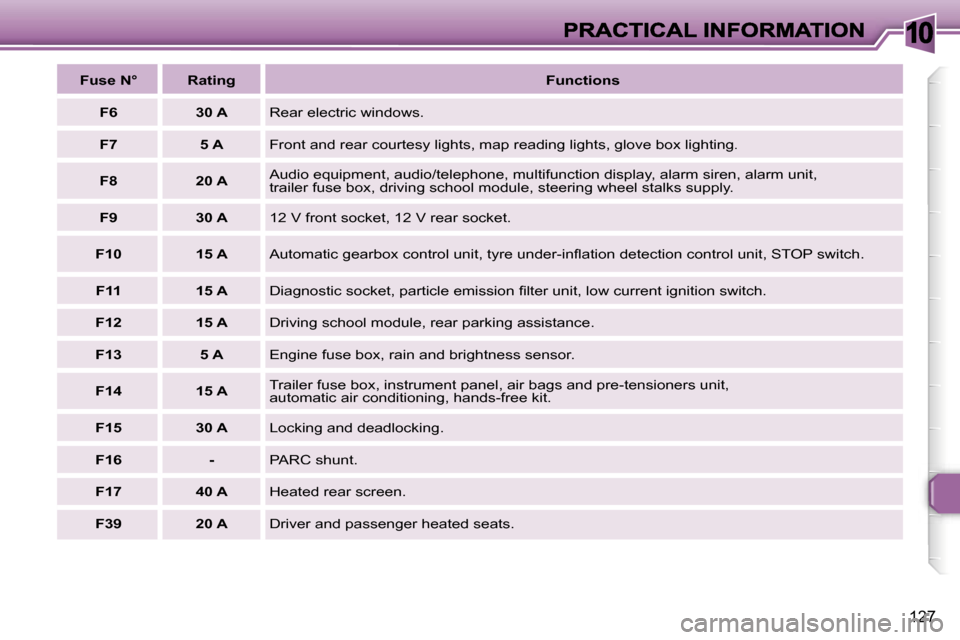

Fuse N°RatingFunctions
F630 ARear electric windows.
F75 AFront and rear courtesy lights, map reading lights, glove box lighting.
F820 AAudio equipment, audio/telephone, multifunction display, alarm siren, alarm unit, trailer fuse box, driving school module, steering wheel stalks sup ply.
F930 A12 V front socket, 12 V rear socket.
F1015 AAutomatic gearbox control unit, tyre under-inflation detection con trol unit, STOP switch.
F1115 ADiagnostic socket, particle emission filter unit, low current ignition switch.
F1215 ADriving school module, rear parking assistance.
F135 AEngine fuse box, rain and brightness sensor.
F1415 ATrailer fuse box, instrument panel, air bags and pre-tensioners u nit, automatic air conditioning, hands-free kit.
F1530 ALocking and deadlocking.
F16-PARC shunt.
F1740 AHeated rear screen.
F3920 ADriver and passenger heated seats.

10
131

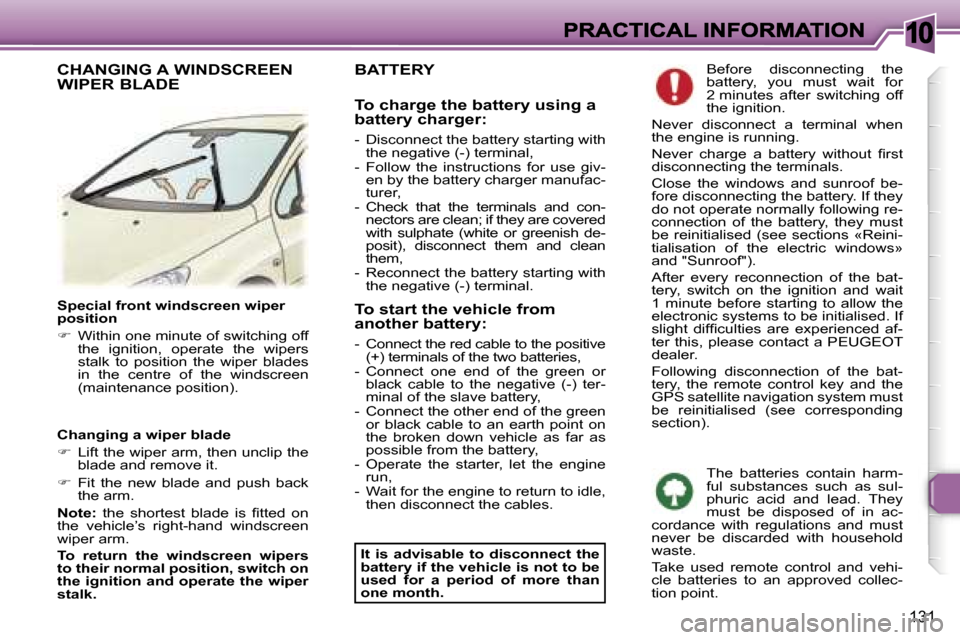

Special front windscreen wiper position
 Within one minute of switching off the ignition, operate the wipers stalk to position the wiper blades in the centre of the windscreen (maintenance position).
Changing a wiper blade
 Lift the wiper arm, then unclip the blade and remove it.
 Fit the new blade and push back the arm.
Note: the shortest blade is fitted on the vehicle’s right-hand windscreen wiper arm.
To return the windscreen wipers to their normal position, switch on the ignition and operate the wiper stalk.
BATTERY
To charge the battery using a battery charger:
- Disconnect the battery starting with the negative (-) terminal,- Follow the instructions for use giv-en by the battery charger manufac-turer,- Check that the terminals and con-nectors are clean; if they are covered with sulphate (white or greenish de-posit), disconnect them and clean them,- Reconnect the battery starting with the negative (-) terminal.
Before disconnecting the battery, you must wait for 2 minutes after switching off the ignition.
Never disconnect a terminal when the engine is running.
Never charge a battery without first disconnecting the terminals.
Close the windows and sunroof be-fore disconnecting the battery. If they do not operate normally following re-connection of the battery, they must be reinitialised (see sections «Reini-tialisation of the electric windows» and "Sunroof").
After every reconnection of the bat-tery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initialised. If slight difficulties are experienced af-ter this, please contact a PEUGEOT dealer.
Following disconnection of the bat-tery, the remote control key and the GPS satellite navigation system must be reinitialised (see corresponding section).
It is advisable to disconnect the battery if the vehicle is not to be used for a period of more than one month.
To start the vehicle from another battery:
- Connect the red cable to the positive (+) terminals of the two batteries,- Connect one end of the green or black cable to the negative (-) ter-minal of the slave battery,- Connect the other end of the green or black cable to an earth point on the broken down vehicle as far as possible from the battery,- Operate the starter, let the engine run,- Wait for the engine to return to idle, then disconnect the cables.
The batteries contain harm-ful substances such as sul-phuric acid and lead. They must be disposed of in ac-cordance with regulations and must never be discarded with household waste.
Take used remote control and vehi-cle batteries to an approved collec-tion point.
CHANGING A WINDSCREEN
WIPER BLADE

10
132

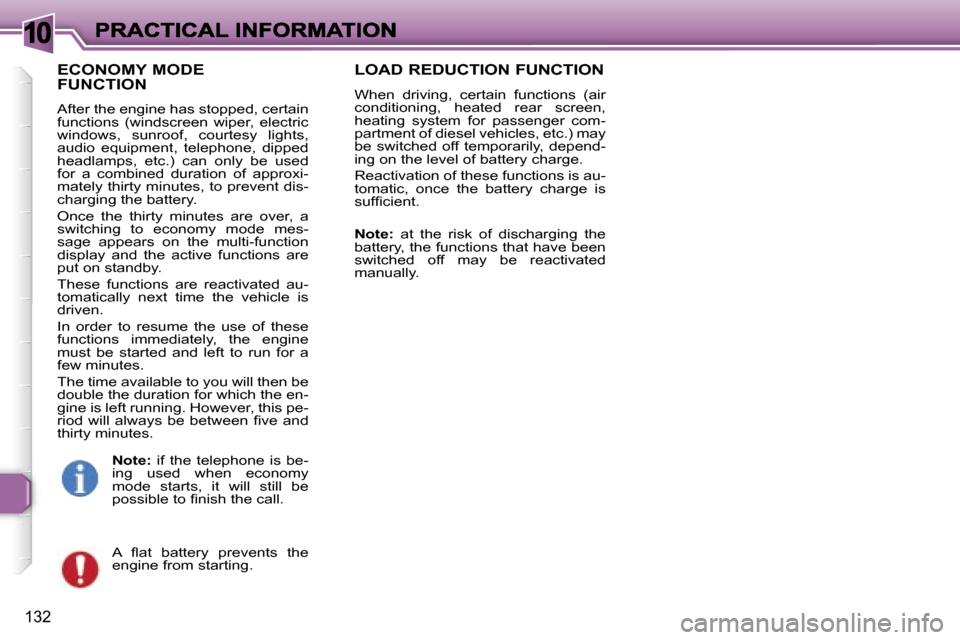

ECONOMY MODE
FUNCTION
After the engine has stopped, certain functions (windscreen wiper, electric windows, sunroof, courtesy lights, audio equipment, telephone, dipped headlamps, etc.) can only be used for a combined duration of approxi-mately thirty minutes, to prevent dis-charging the battery.
Once the thirty minutes are over, a switching to economy mode mes-sage appears on the multi-function display and the active functions areput on standby.
These functions are reactivated au-tomatically next time the vehicle is driven.
In order to resume the use of these functions immediately, the engine must be started and left to run for a few minutes.
The time available to you will then be double the duration for which the en-gine is left running. However, this pe-riod will always be between five and thirty minutes.
A flat battery prevents the engine from starting.
LOAD REDUCTION FUNCTION
When driving, certain functions (air conditioning, heated rear screen, heating system for passenger com-partment of diesel vehicles, etc.) may be switched off temporarily, depend-ing on the level of battery charge.
Reactivation of these functions is au-tomatic, once the battery charge is sufficient.
Note: at the risk of discharging the battery, the functions that have been switched off may be reactivated manually.
Note: if the telephone is be-ing used when economy mode starts, it will still be possible to finish the call.

10
133
Without lifting (4 wheels on the ground)
You must always use a tow bar.
The removable towing eye is inside the spare wheel.
Estate the removable towing eye is inside the right-hand boot trim.
From the front:
 Unclip the cover, by pressing the bottom part,
 Screw in the towing eye as far as it will go.
Lifting (2 wheels only on the ground)
It is preferable to raise the vehicle with a professional lifting device.
When towing with the engine switched off, there is no brak-ing or steering assistance.
TOWING YOUR
VEHICLE
From the rear:
 Unclip the top of the cover using a coin,
 Screw in the towing eye as far as it will go.
Special features of the automatic gearbox
When towing with four wheels on the ground, the following rules must be obeyed:
- lever in position N,- tow the vehicle at less than 30 mph (50 km/h) over a maximum distance of 30 miles (50 km).- do not add oil to the gearbox.

10
134

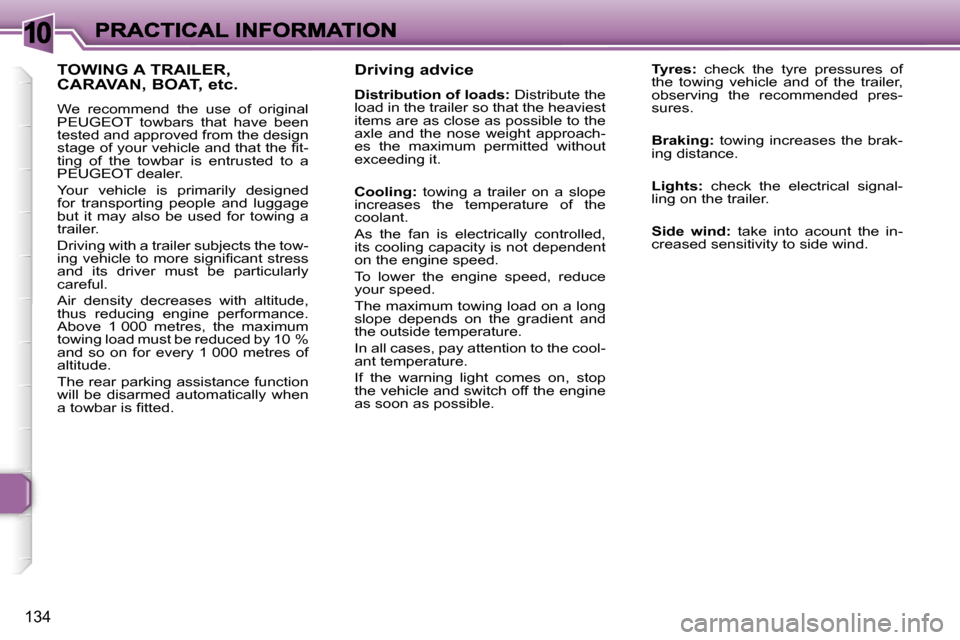

Driving advice
Distribution of loads: Distribute the load in the trailer so that the heaviest items are as close as possible to the axle and the nose weight approach-es the maximum permitted without exceeding it.
Cooling: towing a trailer on a slope increases the temperature of the coolant.
As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.
To lower the engine speed, reduce your speed.
The maximum towing load on a long slope depends on the gradient and the outside temperature.
In all cases, pay attention to the cool-ant temperature.
If the warning light comes on, stop the vehicle and switch off the engine as soon as possible.
Tyres: check the tyre pressures of the towing vehicle and of the trailer, observing the recommended pres-sures.
Braking: towing increases the brak-ing distance.
Lights: check the electrical signal-ling on the trailer.
Side wind: take into acount the in-creased sensitivity to side wind.
TOWING A TRAILER,
CARAVAN, BOAT, etc.
We recommend the use of original PEUGEOT towbars that have been tested and approved from the design stage of your vehicle and that the fit-ting of the towbar is entrusted to a PEUGEOT dealer.
Your vehicle is primarily designed for transporting people and luggage but it may also be used for towing a trailer.
Driving with a trailer subjects the tow-ing vehicle to more significant stress and its driver must be particularly careful.
Air density decreases with altitude, thus reducing engine performance. Above 1 000 metres, the maximum towing load must be reduced by 10 % and so on for every 1 000 metres of altitude.
The rear parking assistance function will be disarmed automatically when a towbar is fitted.

10
135

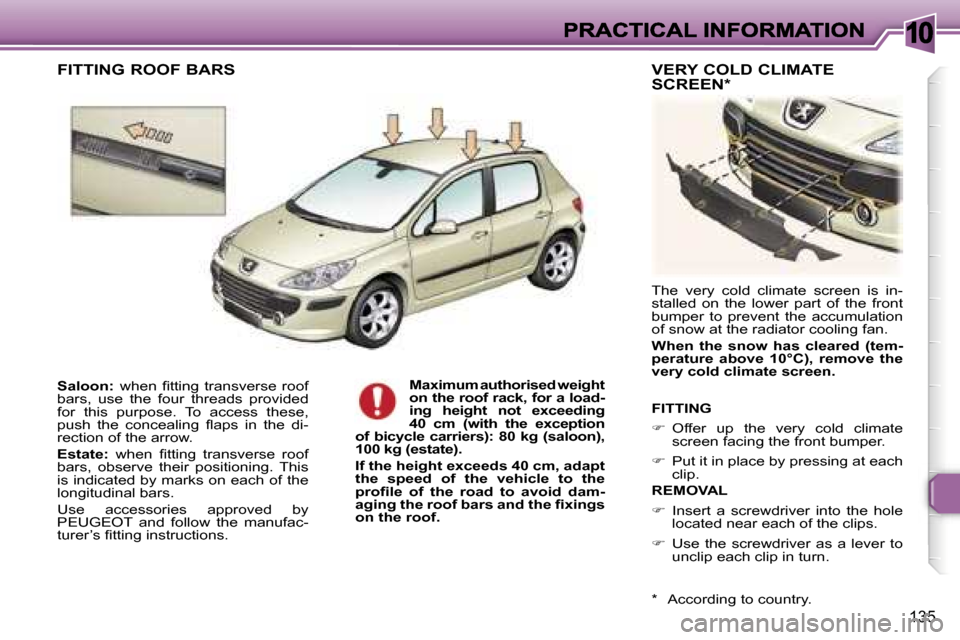

Saloon:when fitting transverse roof bars, use the four threads provided for this purpose. To access these, push the concealing flaps in the di-rection of the arrow.
Estate: when fitting transverse roof bars, observe their positioning. This is indicated by marks on each of the longitudinal bars.
Use accessories approved byPEUGEOT and follow the manufac-turer’s fitting instructions.
Maximum authorised weight on the roof rack, for a load-ing height not exceeding 40 cm (with the exception of bicycle carriers):80 kg(saloon), 100 kg (estate).
If the height exceeds 40 cm, adapt the speed of the vehicle to the profile of the road to avoid dam-aging the roof bars and the fixings on the roof.
FITTING ROOF BARSVERY COLD CLIMATE
SCREEN*
The very cold climate screen is in-stalled on the lower part of the front bumper to prevent the accumulation of snow at the radiator cooling fan.
When the snow has cleared (tem-perature above 10°C), remove the very cold climate screen.
FITTING
 Offer up the very cold climate screen facing the front bumper.
 Put it in place by pressing at each clip.
REMOVAL
 Insert a screwdriver into the hole located near each of the clips.
 Use the screwdriver as a lever to unclip each clip in turn.
* According to country.

10
136

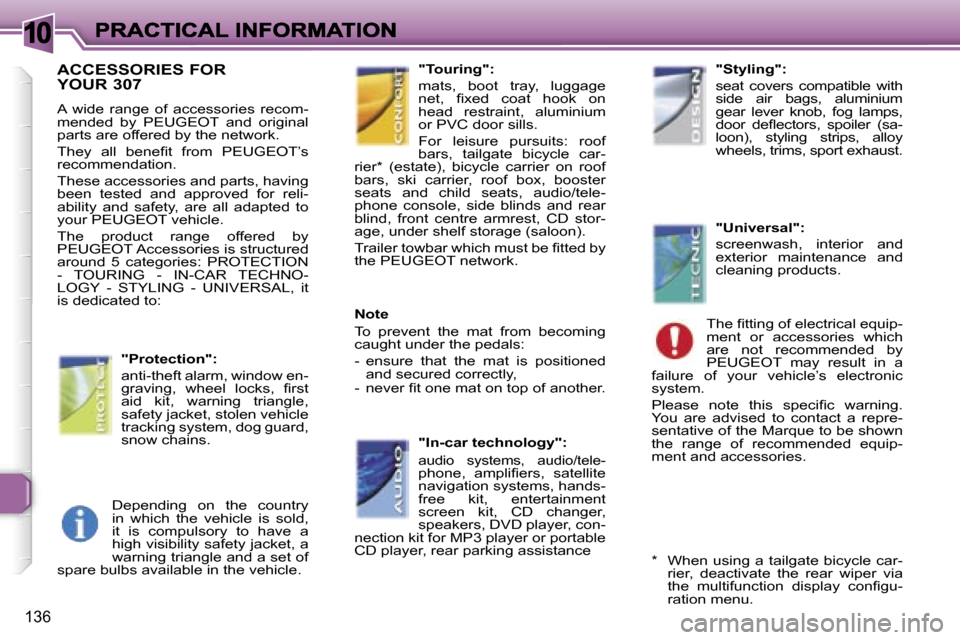

ACCESSORIES FOR
YOUR 307
A wide range of accessories recom-mended by PEUGEOT and original parts are offered by the network.
They all benefit from PEUGEOT’s recommendation.
These accessories and parts, having been tested and approved for reli-ability and safety, are all adapted to your PEUGEOT vehicle.
The product range offered byPEUGEOT Accessories is structured around 5 categories: PROTECTION - TOURING - IN-CAR TECHNO-LOGY - STYLING - UNIVERSAL, it is dedicated to:
"Touring":
mats, boot tray, luggage net, fixed coat hook on head restraint, aluminium or PVC door sills.
For leisure pursuits: roof bars, tailgate bicycle car-rier* (estate), bicycle carrier on roof bars, ski carrier, roof box, booster seats and child seats, audio/tele-phone console, side blinds and rear blind, front centre armrest, CD stor-age, under shelf storage (saloon).
Trailer towbar which must be fitted by the PEUGEOT network.
The fitting of electrical equip-ment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle’s electronic system.
Please note this specific warning. You are advised to contact a repre-sentative of the Marque to be shown the range of recommended equip-ment and accessories.
"Universal":
screenwash, interior and exterior maintenance and cleaning products.
"Protection":
anti-theft alarm, window en-graving, wheel locks, first aid kit, warning triangle, safety jacket, stolen vehicle tracking system, dog guard, snow chains."In-car technology":
audio systems, audio/tele-phone, amplifiers, satellite navigation systems, hands-free kit, entertainment screen kit, CD changer, speakers, DVD player, con-nection kit for MP3 player or portable CD player, rear parking assistance
"Styling":
seat covers compatible with side air bags, aluminium gear lever knob, fog lamps, door deflectors, spoiler (sa-loon), styling strips, alloy wheels, trims, sport exhaust.
* When using a tailgate bicycle car-rier, deactivate the rear wiper via the multifunction display configu-ration menu.
Note
To prevent the mat from becoming caught under the pedals:
- ensure that the mat is positioned and secured correctly,- never fit one mat on top of another.
Depending on the country in which the vehicle is sold, it is compulsory to have a high visibility safety jacket, a warning triangle and a set of spare bulbs available in the vehicle.
