2007 Peugeot 207 CC Dag Owner's Manual

!

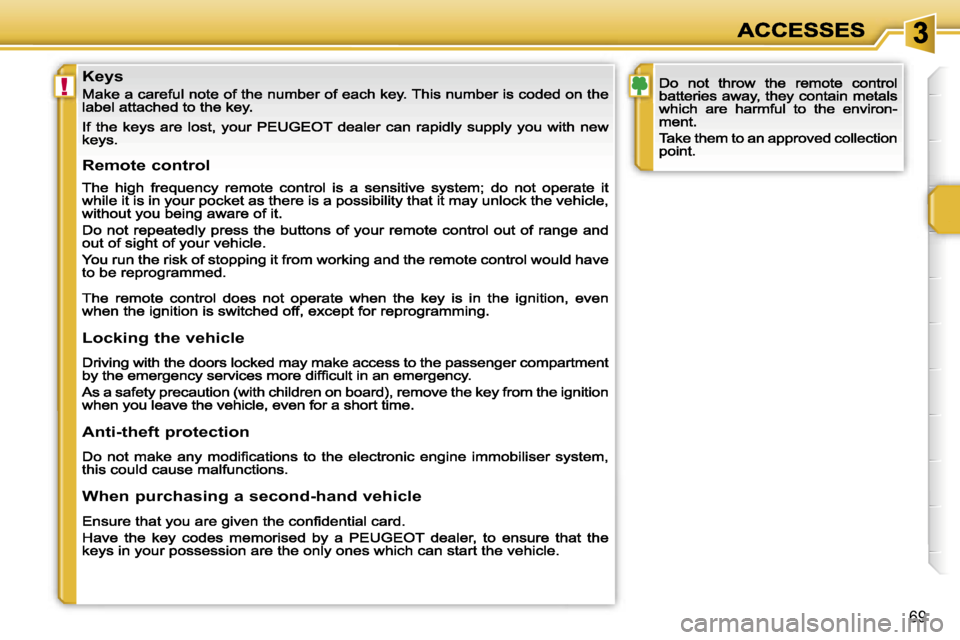

69
Keys
Remote control
Locking the vehicle
Anti-theft protection
When purchasing a second-hand vehicle

!
i
67

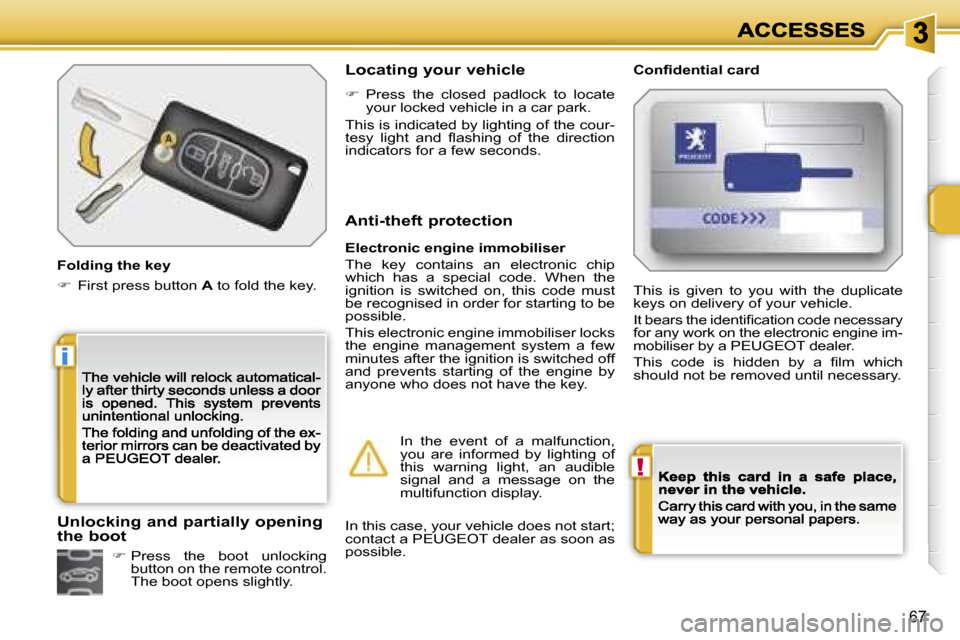

Folding the key
 First press button A to fold the key.
Locating your vehicleConfidential card
 Press the closed padlock to locate your locked vehicle in a car park.
This is indicated by lighting of the cour-tesy light and flashing of the direction indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
Anti-theft protection
This is given to you with the duplicate keys on delivery of your vehicle.
It bears the identification code necessary for any work on the electronic engine im-mobiliser by a PEUGEOT dealer.
This code is hidden by a film which should not be removed until necessary.
In the event of a malfunction, you are informed by lighting of this warning light, an audible signal and a message on the multifunction display.
In this case, your vehicle does not start; contact a PEUGEOT dealer as soon as possible. Press the boot unlocking button on the remote control. The boot opens slightly.
Unlocking and partially opening
the boot

i
68

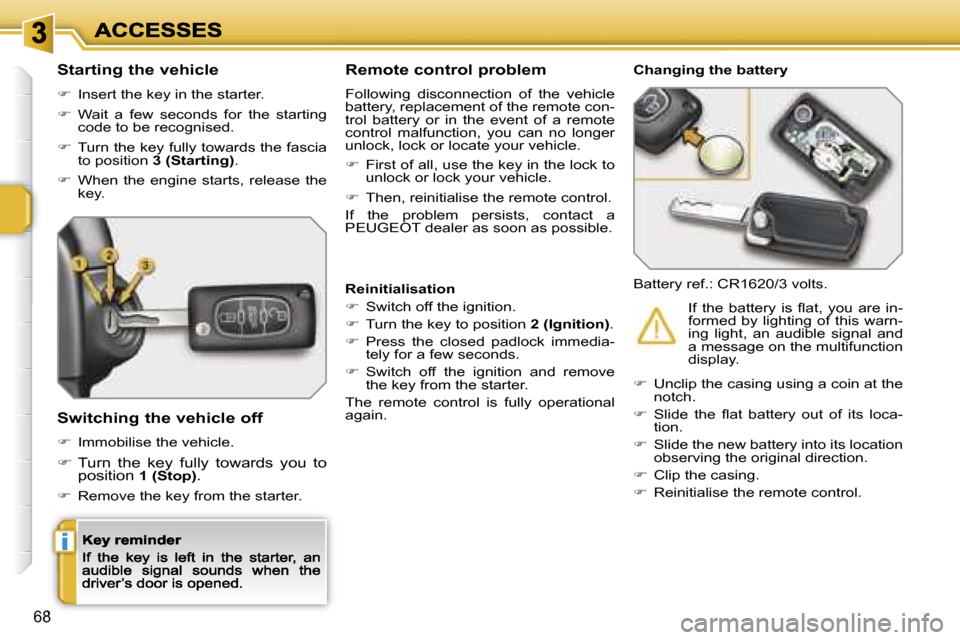

Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting code to be recognised.
 Turn the key fully towards the fascia to position 3 (Starting).
 When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote con-trol battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 First of all, use the key in the lock to unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immedia-tely for a few seconds.
 Switch off the ignition and remove the key from the starter.
The remote control is fully operational again.
 Unclip the casing using a coin at the notch.
 Slide the flat battery out of its loca-tion.
 Slide the new battery into its location observing the original direction.
 Clip the casing.
 Reinitialise the remote control.
If the battery is flat, you are in-formed by lighting of this warn-ing light, an audible signal and a message on the multifunction display.

!
69
Keys
Remote control
Locking the vehicle
Anti-theft protection
When purchasing a second-hand vehicle

i
68
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting code to be recognised.
 Turn the key fully towards the fascia to position 3 (Starting).
 When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote con-trol battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 First of all, use the key in the lock to unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immedia-tely for a few seconds.
 Switch off the ignition and remove the key from the starter.
The remote control is fully operational again.
 Unclip the casing using a coin at the notch.
 Slide the flat battery out of its loca-tion.
 Slide the new battery into its location observing the original direction.
 Clip the casing.
 Reinitialise the remote control.
If the battery is flat, you are in-formed by lighting of this warn-ing light, an audible signal and a message on the multifunction display.

!
i
70

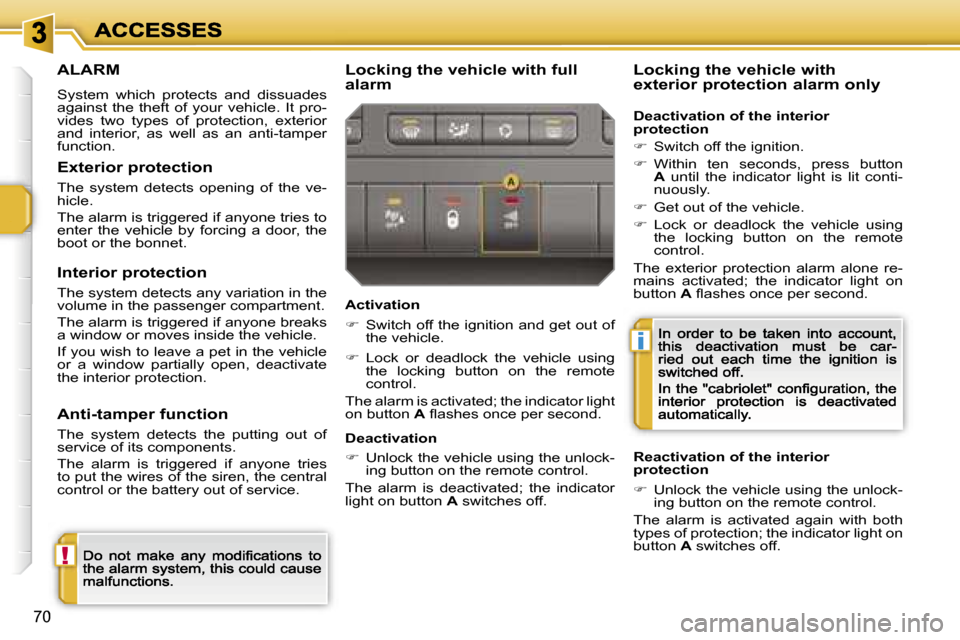

ALARM
System which protects and dissuades against the theft of your vehicle. It pro-vides two types of protection, exterior and interior, as well as an anti-tamper function.
Locking the vehicle with full alarm
Reactivation of the interior protection
 Unlock the vehicle using the unlock-ing button on the remote control.
The alarm is activated again with both types of protection; the indicator light on button A switches off.
Locking the vehicle with
exterior protection alarm only
Deactivation of the interior protection
 Switch off the ignition.
 Within ten seconds, press button A until the indicator light is lit conti-nuously.
 Get out of the vehicle.
 Lock or deadlock the vehicle using the locking button on the remote control.
The exterior protection alarm alone re-mains activated; the indicator light on button A flashes once per second.Activation
 Switch off the ignition and get out of the vehicle.
 Lock or deadlock the vehicle using the locking button on the remote control.
The alarm is activated; the indicator light on button A flashes once per second.
Exterior protection
The system detects opening of the ve-hicle.
The alarm is triggered if anyone tries to enter the vehicle by forcing a door, the boot or the bonnet.
Interior protection
The system detects any variation in the volume in the passenger compartment.
The alarm is triggered if anyone breaks a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle or a window partially open, deactivate the interior protection.
Anti-tamper function
The system detects the putting out of service of its components.
The alarm is triggered if anyone tries to put the wires of the siren, the central control or the battery out of service.
Deactivation
 Unlock the vehicle using the unlock-ing button on the remote control.
The alarm is deactivated; the indicator light on button A switches off.

!
71

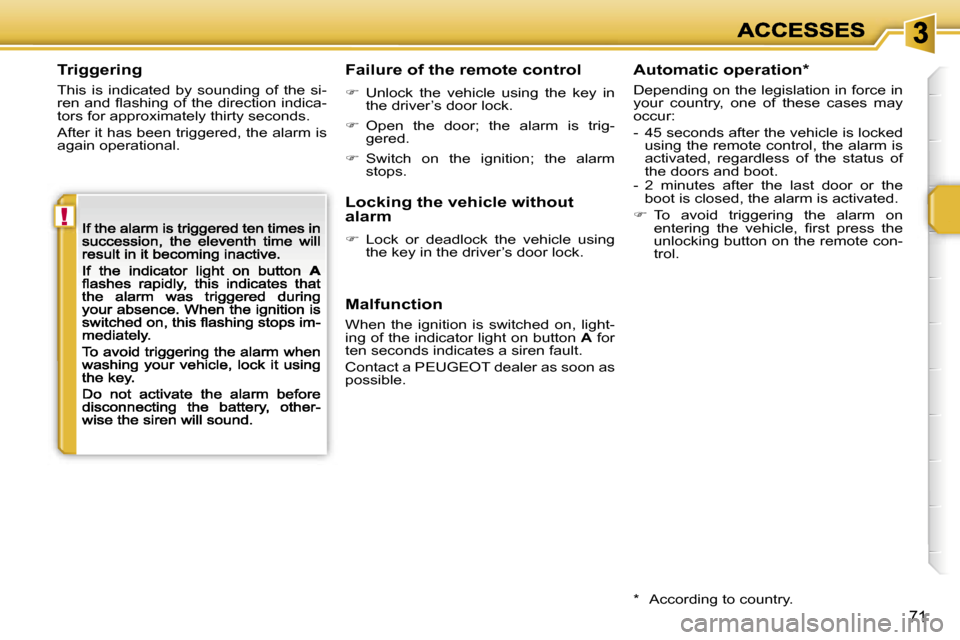

Triggering
This is indicated by sounding of the si-ren and flashing of the direction indica-tors for approximately thirty seconds.
After it has been triggered, the alarm is again operational.
Failure of the remote control
Unlock the vehicle using the key in the driver’s door lock.
 Open the door; the alarm is trig-gered.
 Switch on the ignition; the alarm stops.
* According to country.
Malfunction
When the ignition is switched on, light-ing of the indicator light on button A for ten seconds indicates a siren fault.
Contact a PEUGEOT dealer as soon as possible.
Locking the vehicle without alarm
Lock or deadlock the vehicle using the key in the driver’s door lock.
Automatic operation*
Depending on the legislation in force in your country, one of these cases may occur:
- 45 seconds after the vehicle is locked using the remote control, the alarm is activated, regardless of the status of the doors and boot.- 2 minutes after the last door or the boot is closed, the alarm is activated.
To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remote con-trol.

i
i
!
i
72

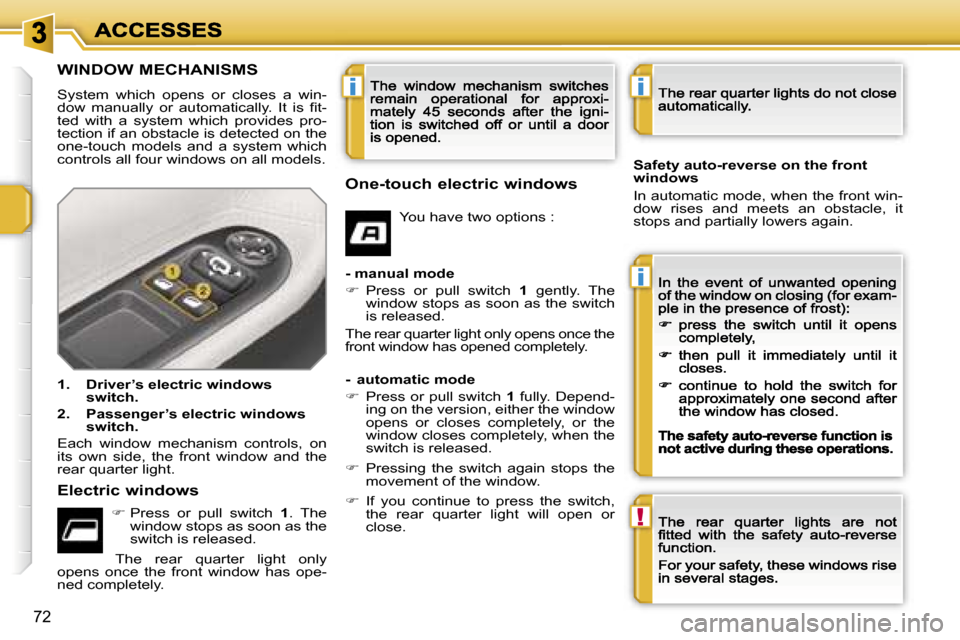

WINDOW MECHANISMS
System which opens or closes a win-dow manually or automatically. It is fit-ted with a system which provides pro-tection if an obstacle is detected on the one-touch models and a system which controls all four windows on all models.
1. Driver’s electric windows switch.
2. Passenger’selectric windows switch.
Each window mechanism controls, on its own side, the front window and the rear quarter light.
One-touch electric windows
Safety auto-reverse on the front windows
In automatic mode, when the front win-dow rises and meets an obstacle, it stops and partially lowers again.
Electric windows
 Press or pull switch 1. The window stops as soon as the switch is released.
The rear quarter light only opens once the front window has ope-ned completely.
You have two options :
- manual mode
 Press or pull switch 1 gently. The window stops as soon as the switch is released.
The rear quarter light only opens once the front window has opened completely.
- automatic mode
 Press or pull switch 1 fully. Depend-ing on the version,either the window opens or closes completely, or the window closes completely, when the switch is released.
 Pressing the switch again stops the movement of the window.
 If you continue to press the switch, the rear quarter light will open or close.
