2007 Peugeot 207 CC Dag Owner's Manual

!

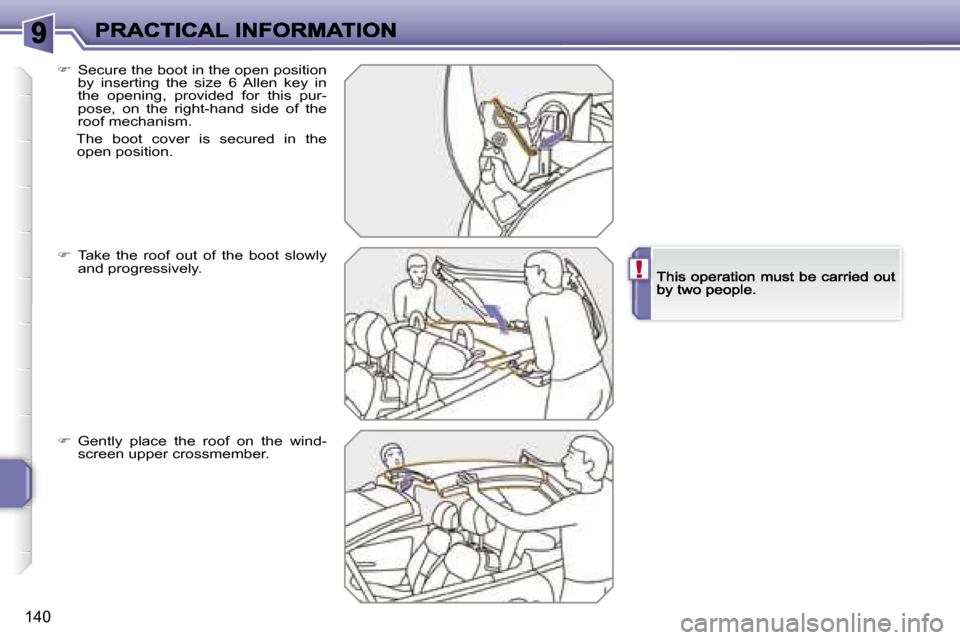

140
 Secure the boot in the open position by inserting the size 6 Allen key in the opening, provided for this pur-pose, on the right-hand side of the roof mechanism.
The boot cover is secured in the open position.
 Take the roof out of the boot slowly and progressively.
 Gently place the roof on the wind-screen upper crossmember.

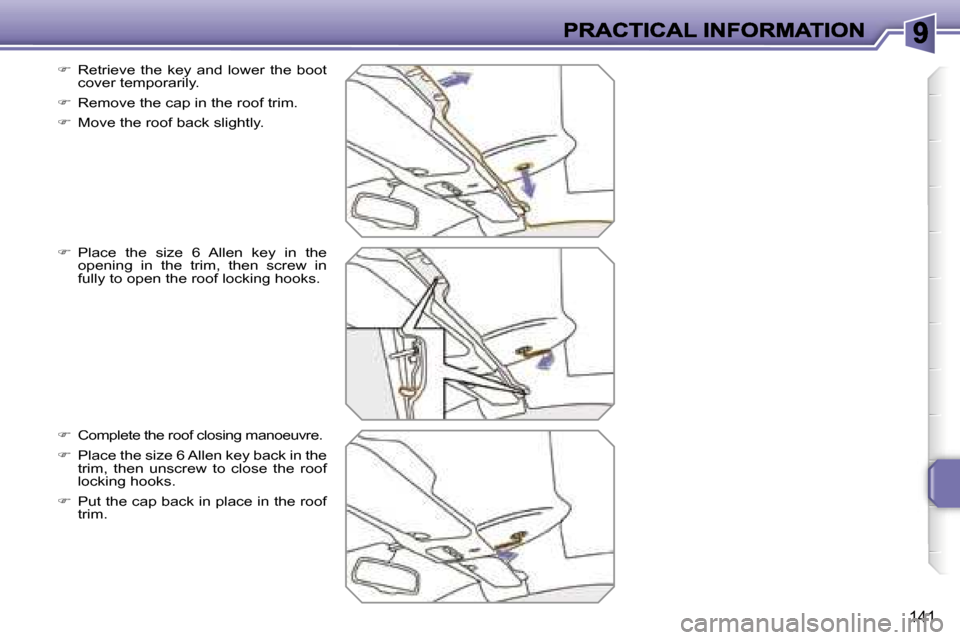

141
 Retrieve the key and lower the boot cover temporarily.
 Remove the cap in the roof trim.
 Move the roof back slightly.
 Place the size 6 Allen key in the opening in the trim, then screw in fully to open the roof locking hooks.
 Complete the roof closing manoeuvre.
 Place the size 6 Allen key back in the trim, then unscrew to close the roof locking hooks.
 Put the cap back in place in the roof trim.

!
i
!

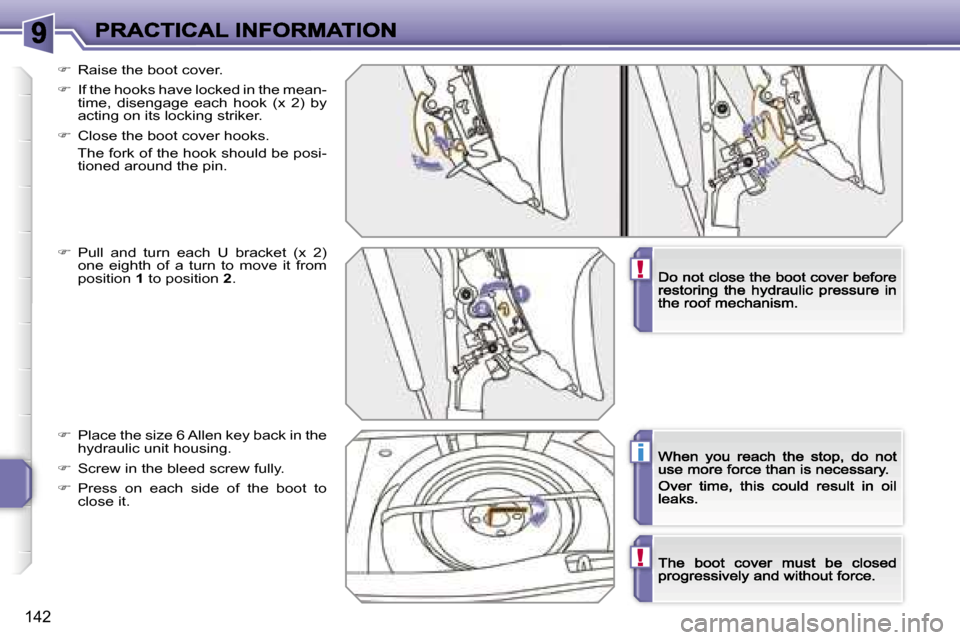

142
 Raise the boot cover.
 If the hooks have locked in the mean-time, disengage each hook (x 2) by acting on its locking striker.
 Close the boot cover hooks.
The fork of the hook should be posi-tioned around the pin.
 Place the size 6 Allen key back in the hydraulic unit housing.
 Screw in the bleed screw fully.
 Press on each side of the boot to close it.
 Pull and turn each U bracket (x 2) one eighth of a turn to move it from position 1 to position 2.

i
!
!
143
BOOT LUGGAGE CARRIER REAR HEAD RESTS*
A boot luggage carrier, designed specifically for your coupé-cabriolet, is available from your PEUGEOT dealer as an accessory.
Follow the manufacturer’s recommen-dations for fitting and use.
Observe the manufacturer’s recommen-dations regarding the fitting and use of the head rests.
End of the emergency procedure
 Store the tools in the glove box.
 Press the remote control locking button to lock the boot.
 Contact a PEUGEOT dealer to have the system checked.
* During the year.

i
!
!

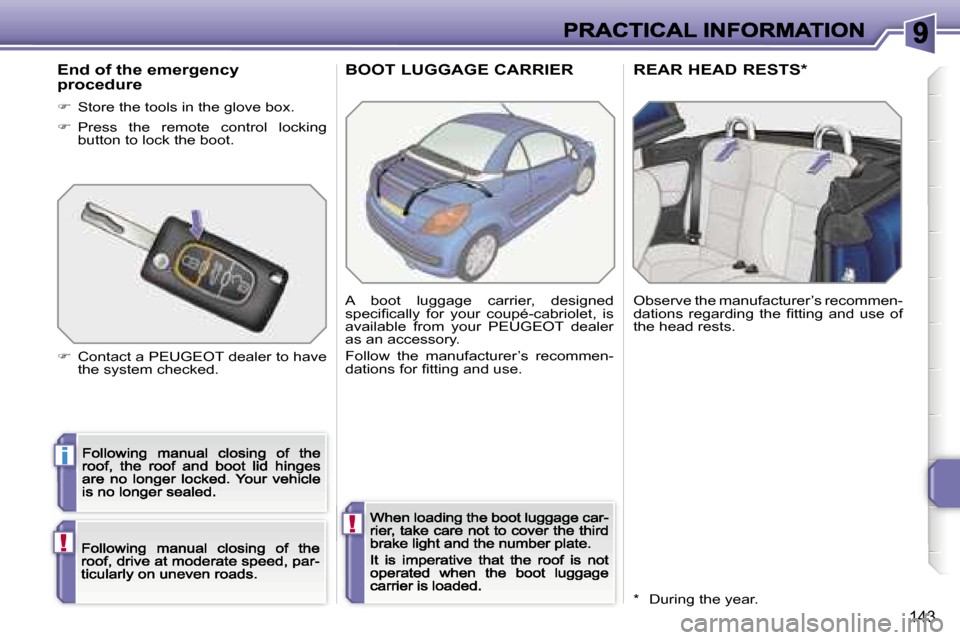

143
BOOT LUGGAGE CARRIER REAR HEAD RESTS*
A boot luggage carrier, designed specifically for your coupé-cabriolet, is available from your PEUGEOT dealer as an accessory.
Follow the manufacturer’s recommen-dations for fitting and use.
Observe the manufacturer’s recommen-dations regarding the fitting and use of the head rests.
End of the emergency procedure
 Store the tools in the glove box.
 Press the remote control locking button to lock the boot.
 Contact a PEUGEOT dealer to have the system checked.
* During the year.

!
i

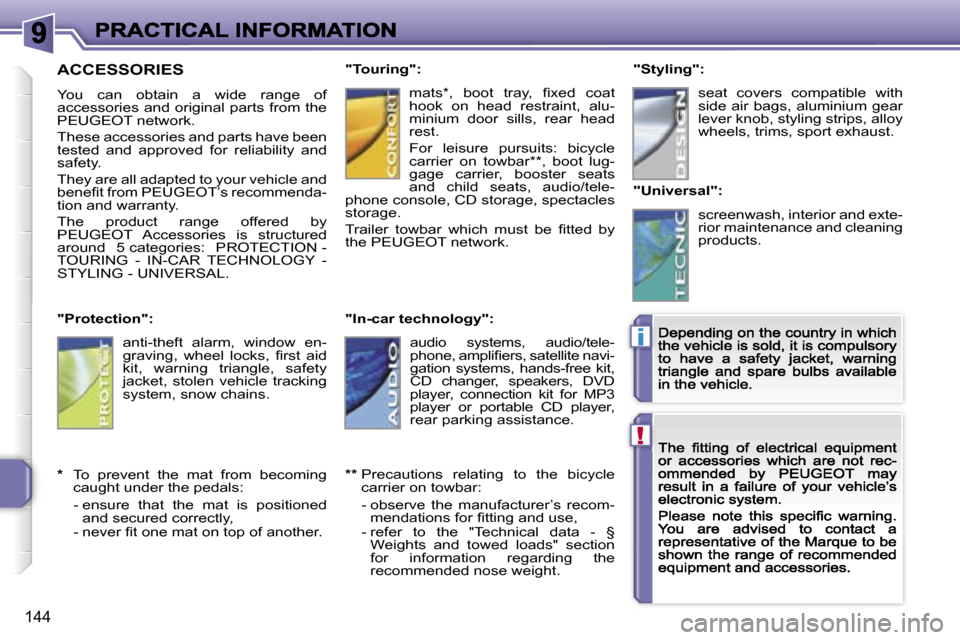

144
ACCESSORIES
You can obtain a wide range of accessories and original parts from the PEUGEOT network.
These accessories and parts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT’s recommenda-tion and warranty.
The product range offered by PEUGEOT Accessories is structured around 5 categories: PROTECTION - TOURING - IN-CAR TECHNOLOGY - STYLING - UNIVERSAL.
"Protection":
anti-theft alarm, window en-graving, wheel locks, first aid kit, warning triangle, safety jacket, stolen vehicle tracking system, snow chains.
"Touring":
mats*, boot tray, fixed coat hook on head restraint, alu-minium door sills, rear head rest.
For leisure pursuits: bicycle carrier on towbar**, boot lug-gage carrier, booster seats and child seats, audio/tele-phone console, CD storage, spectacles storage.
Trailer towbar which must be fitted by the PEUGEOT network.
"In-car technology":
audio systems, audio/tele-phone, amplifiers, satellite navi-gation systems, hands-free kit, CD changer, speakers, DVD player, connection kit for MP3 player or portable CD player, rear parking assistance.
"Styling":
seat covers compatible with side air bags, aluminium gear lever knob, styling strips, alloy wheels, trims, sport exhaust.
"Universal":
screenwash, interior and exte-rior maintenance and cleaning products.
* To prevent the mat from becoming caught under the pedals:
- ensure that the mat is positioned and secured correctly, - never fit one mat on top of another.
** Precautions relating to the bicycle carrier on towbar:
- observe the manufacturer’s recom-mendations for fitting and use, - refer to the "Technical data - § Weights and towed loads" section for information regarding the recommended nose weight.

10

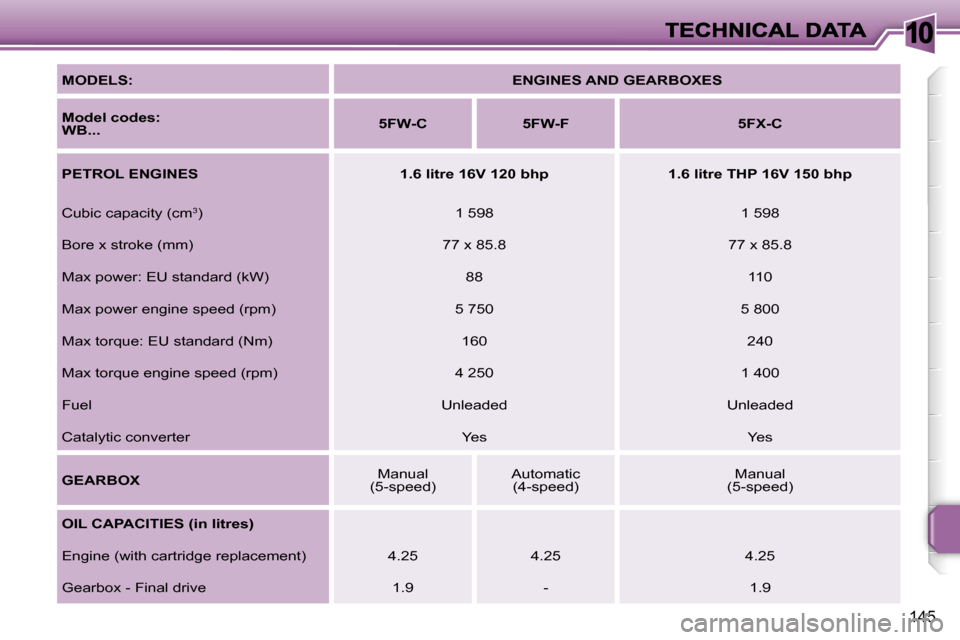

145
MODELS:ENGINES AND GEARBOXES
Model codes: WB... 5FW-C5FW-F5FX-C
PETROL ENGINES1.6 litre 16V 120 bhp1.6 litre THP 16V 150 bhp
Cubic capacity (cm3)1 5981 598
Bore x stroke (mm)77 x 85.877 x 85.8
Max power: EU standard (kW)88110
Max power engine speed (rpm)5 7505 800
Max torque: EU standard (Nm)160240
Max torque engine speed (rpm)4 2501 400
FuelUnleadedUnleaded
Catalytic converterYesYes
GEARBOXManual(5-speed)Automatic(4-speed)Manual(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement)4.254.254.25
Gearbox - Final drive1.9-1.9

10

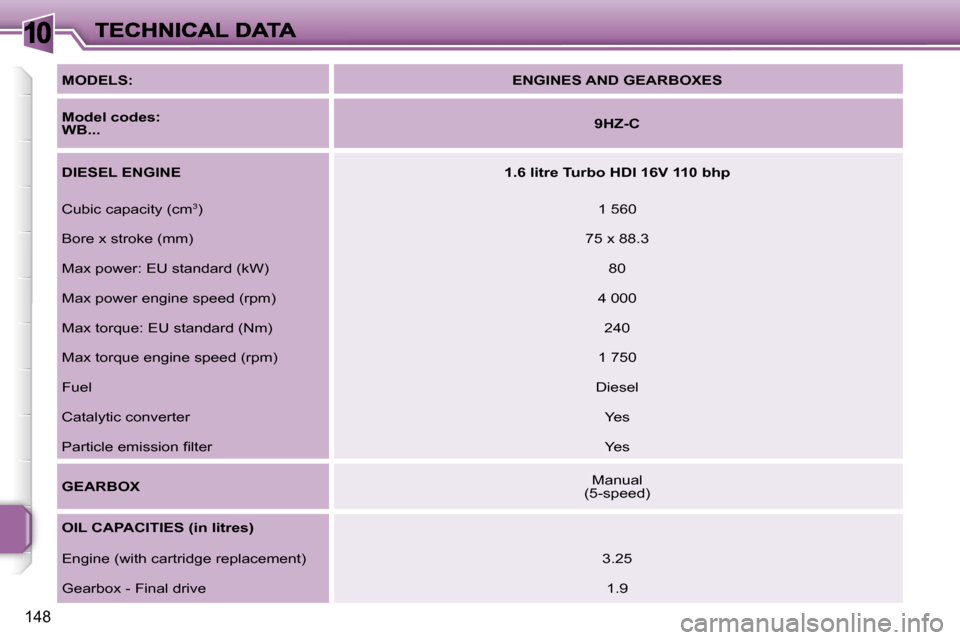

148
MODELS:ENGINES AND GEARBOXES
Model codes: WB... 9HZ-C
DIESEL ENGINE1.6 litre Turbo HDI 16V 110 bhp
Cubic capacity (cm3)1 560
Bore x stroke (mm)75 x 88.3
Max power: EU standard (kW)80
Max power engine speed (rpm)4 000
Max torque: EU standard (Nm)240
Max torque engine speed (rpm)1 750
FuelDiesel
Catalytic converterYes
Particle emission filterYes
GEARBOXManual(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement)3.25
Gearbox - Final drive1.9
