i
125

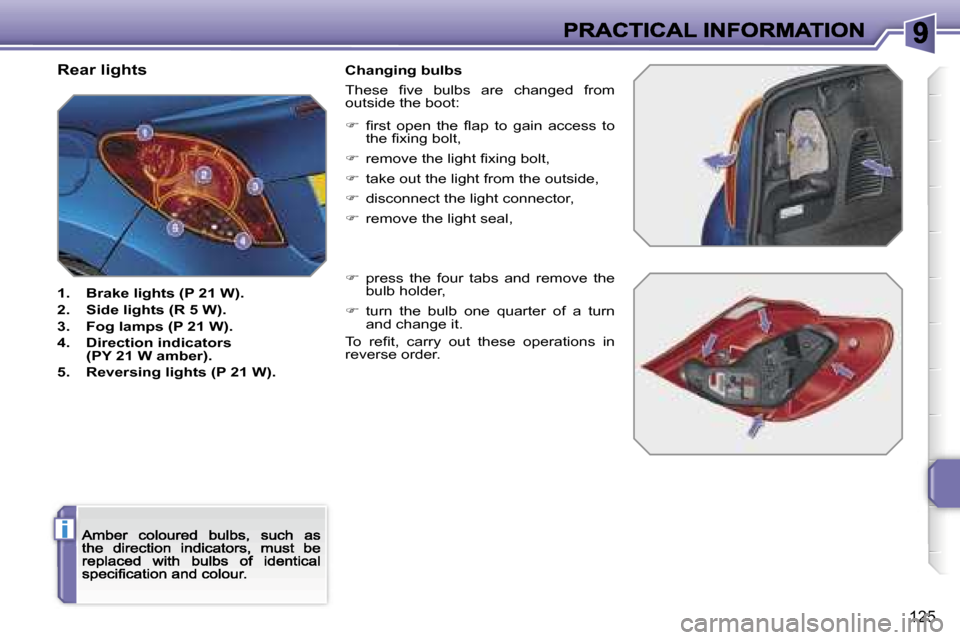

Rear lights
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Fog lamps (P 21 W).
4. Direction indicators (PY 21 W amber).
5. Reversing lights (P 21 W).
Changing bulbs
These five bulbs are changed from outside the boot:
 first open the flap to gain access to the fixing bolt,
 remove the light fixing bolt,
 take out the light from the outside,
 disconnect the light connector,
 remove the light seal,
 press the four tabs and remove the bulb holder,
 turn the bulb one quarter of a turn and change it.
To refit, carry out these operations in reverse order.

126

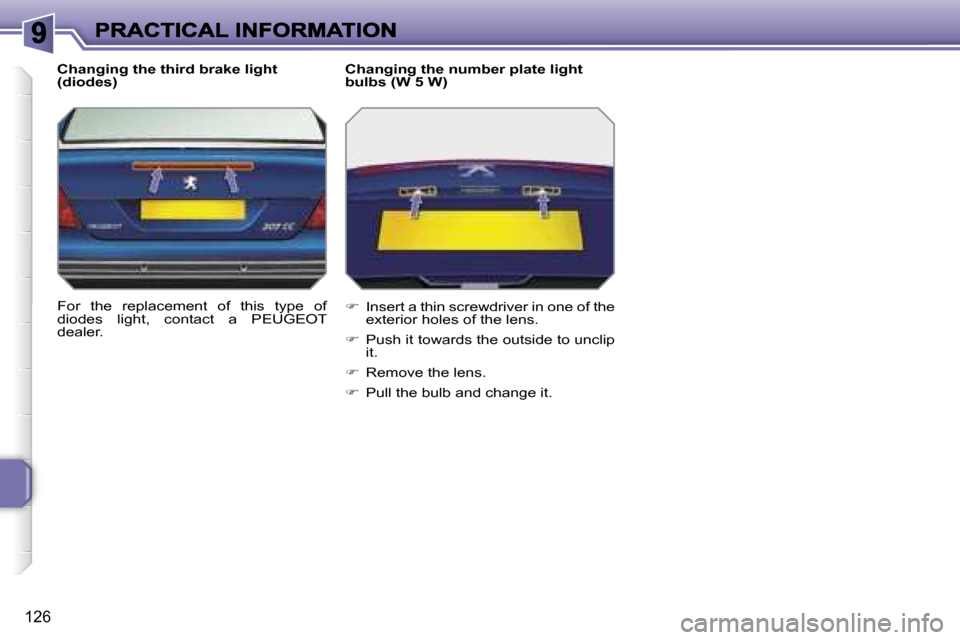

Changing the third brake light (diodes)
For the replacement of this type of diodes light, contact a PEUGEOT dealer.
Changing the number plate light bulbs (W 5 W)
 Insert a thin screwdriver in one of the exterior holes of the lens.
 Push it towards the outside to unclip it.
 Remove the lens.
 Pull the bulb and change it.

!
i
127

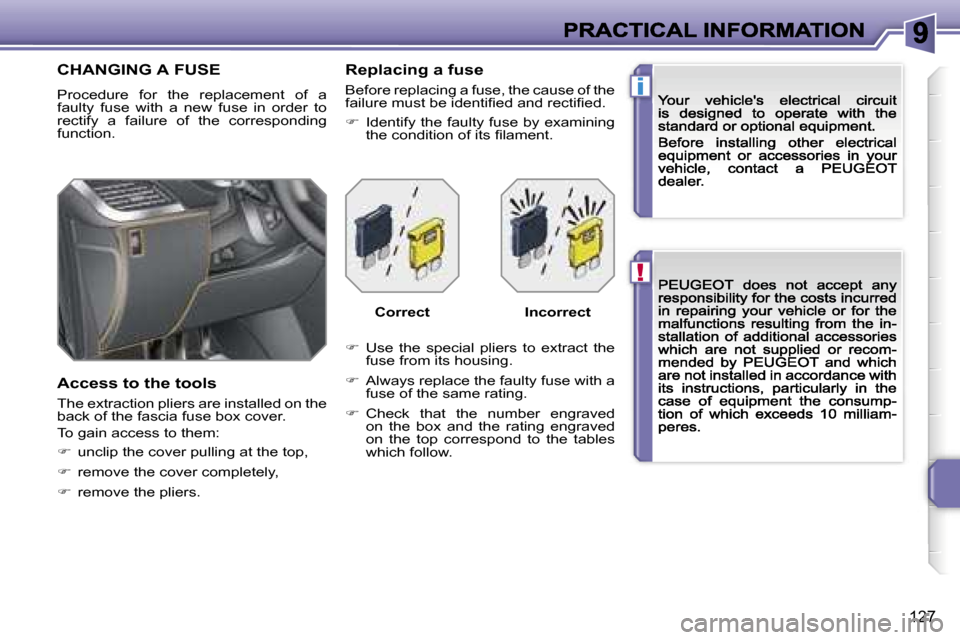

CHANGING A FUSE
Procedure for the replacement of a faulty fuse with a new fuse in order to rectify a failure of the corresponding function.
Access to the tools
The extraction pliers are installed on the back of the fascia fuse box cover.
To gain access to them:
 unclip the cover pulling at the top,
 remove the cover completely,
 remove the pliers.
Replacing a fuse
Before replacing a fuse, the cause of the failure must be identified and rectified.
 Identify the faulty fuse by examining the condition of its filament.
 Use the special pliers to extract the fuse from its housing.
 Always replace the faulty fuse with a fuse of the same rating.
 Check that the number engraved on the box and the rating engraved on the top correspond to the tables which follow.
CorrectIncorrect

128
Fascia fuses
The fuse box is placed in the lower part of the fascia (left-hand side).
Access to the fuses
 refer to the "Access to the tools" paragraph.
Fuse table
Fuse N°RatingFunctions
G3730 ARetractable roof unit supply.
G3820 AHi-Fi amplifier.
G3920 ADriver and passenger heated seats.
G4040 ATrailer fuse box supply.
Fuse N°RatingFunctions
F1-Not used.
F2-Not used.
F35 AAir bags and pre-tensioners control unit.
F410 A
Clutch pedal switch, diagnostic socket, electrochromatic interior mirror, air conditioning, steering wheel angle sensor, particle emission filter pump (Diesel).
F530 ARear electric windows, retractable roof.
F630 AFront electric windows, folding mirrors supply.
F75 AFront courtesy light, map reading lights, sun visor lighting, glove box lighting.

129

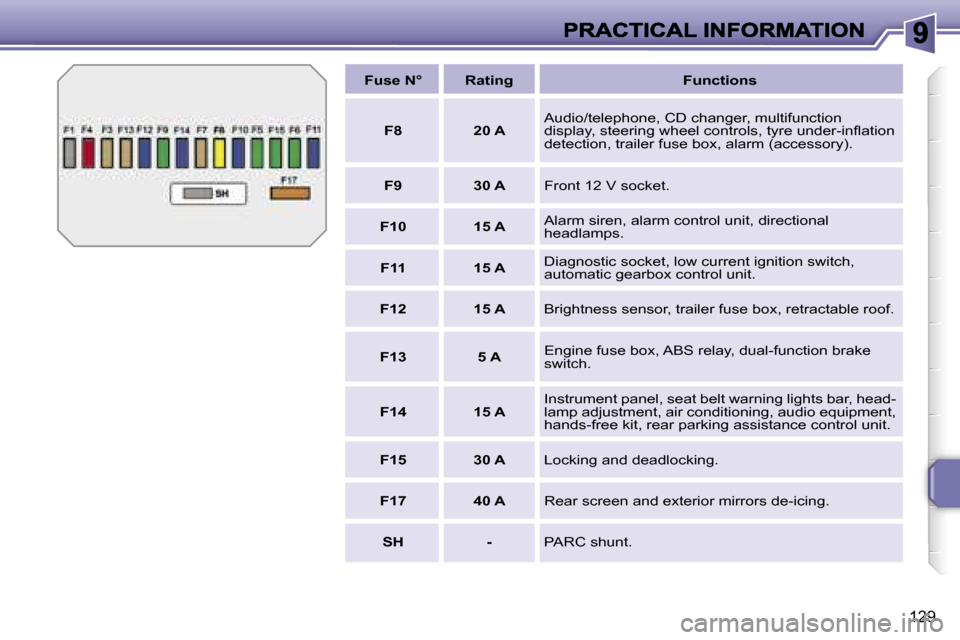

Fuse N°RatingFunctions
F820 AAudio/telephone, CD changer, multifunction display, steering wheel controls, tyre under-inflation detection, trailer fuse box, alarm (accessory).
F930 AFront 12 V socket.
F1015 AAlarm siren, alarm control unit, directional headlamps.
F1115 ADiagnostic socket, low current ignition switch, automatic gearbox control unit.
F1215 ABrightness sensor, trailer fuse box, retractable roof.
F135 AEngine fuse box, ABS relay, dual-function brake switch.
F1415 AInstrument panel, seat belt warning lights bar, head-lamp adjustment, air conditioning, audio equipment, hands-free kit, rear parking assistance control unit.
F1530 ALocking and deadlocking.
F1740 ARear screen and exterior mirrors de-icing.
SH-PARC shunt.

130

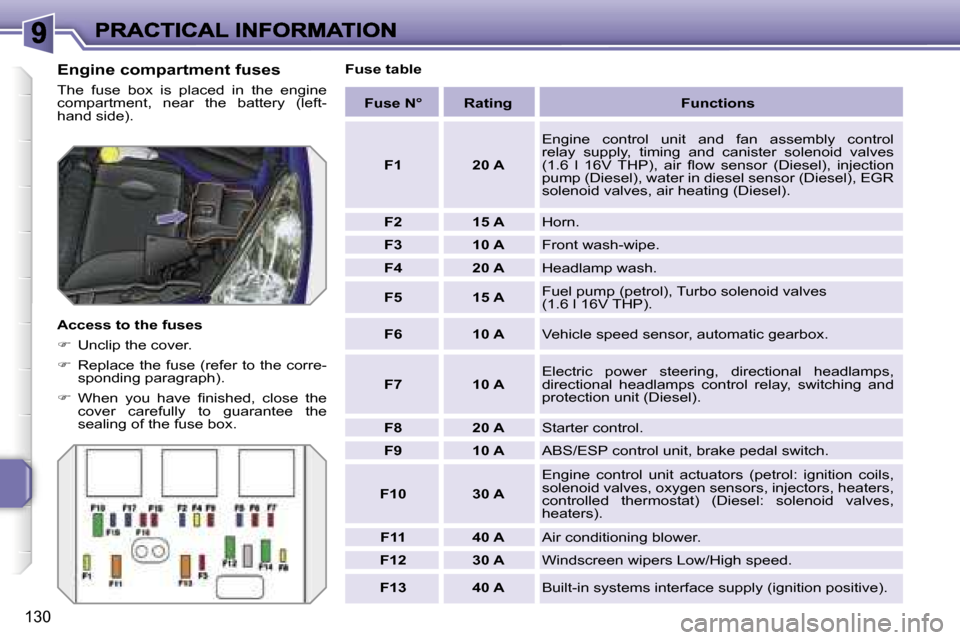

Engine compartment fuses
The fuse box is placed in the engine compartment, near the battery (left-hand side).
Access to the fuses
 Unclip the cover.
 Replace the fuse (refer to the corre-sponding paragraph).
 When you have finished, close the cover carefully to guarantee the sealing of the fuse box.
Fuse table
Fuse N°RatingFunctions
F120 A
Engine control unit and fan assembly control relay supply, timing and canister solenoid valves (1.6 l 16V THP), air flow sensor (Diesel), injection pump (Diesel), water in diesel sensor (Diesel), EGR solenoid valves, air heating (Diesel).
F215 AHorn.
F310 AFront wash-wipe.
F420 AHeadlamp wash.
F515 AFuel pump (petrol), Turbo solenoid valves (1.6 l 16V THP).
F610 AVehicle speed sensor, automatic gearbox.
F710 AElectric power steering, directional headlamps, directional headlamps control relay, switching and protection unit (Diesel).
F820 AStarter control.
F910 AABS/ESP control unit, brake pedal switch.
F1030 A
Engine control unit actuators (petrol: ignition coils, solenoid valves, oxygen sensors, injectors, heaters, controlled thermostat) (Diesel: solenoid valves, heaters).
F1140 AAir conditioning blower.
F1230 AWindscreen wipers Low/High speed.
F1340 ABuilt-in systems interface supply (ignition positive).

131

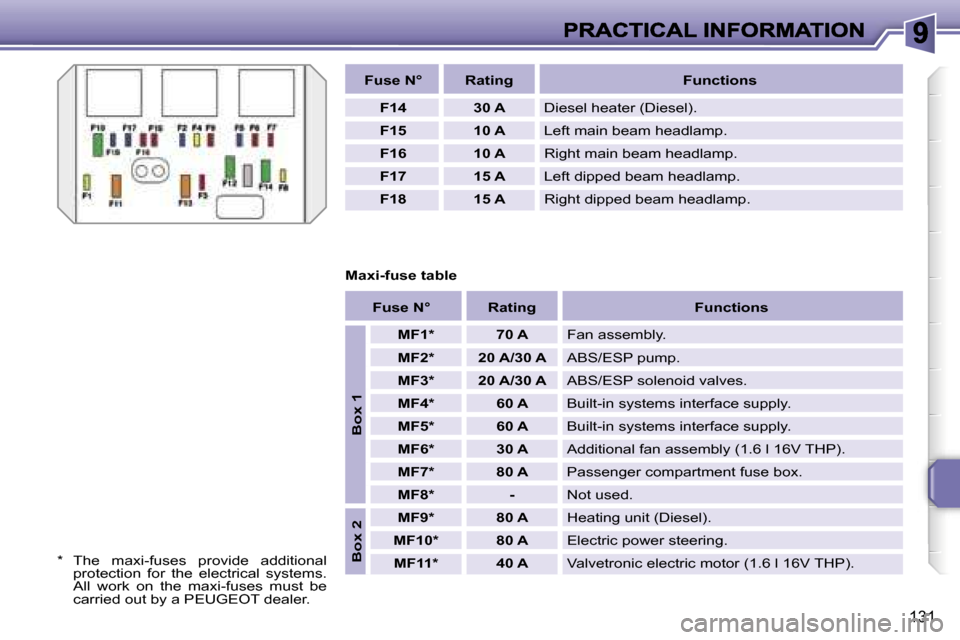

Fuse N°RatingFunctions
F1430 ADiesel heater (Diesel).
F1510 ALeft main beam headlamp.
F1610 ARight main beam headlamp.
F1715 ALeft dipped beam headlamp.
F1815 ARight dipped beam headlamp.
Maxi-fuse table
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer.
Fuse N°RatingFunctions
MF1*70 AFan assembly.
MF2*20 A/30 AABS/ESP pump.
MF3*20 A/30 AABS/ESP solenoid valves.
MF4*60 ABuilt-in systems interface supply.
MF5*60 ABuilt-in systems interface supply.
MF6*30 AAdditional fan assembly (1.6 l 16V THP).
MF7*80 APassenger compartment fuse box.
MF8*-Not used.
MF9*80 AHeating unit (Diesel).
MF10*80 AElectric power steering.
MF11*40 AValvetronic electric motor (1.6 l 16V THP).
Box 1
Box 2

132

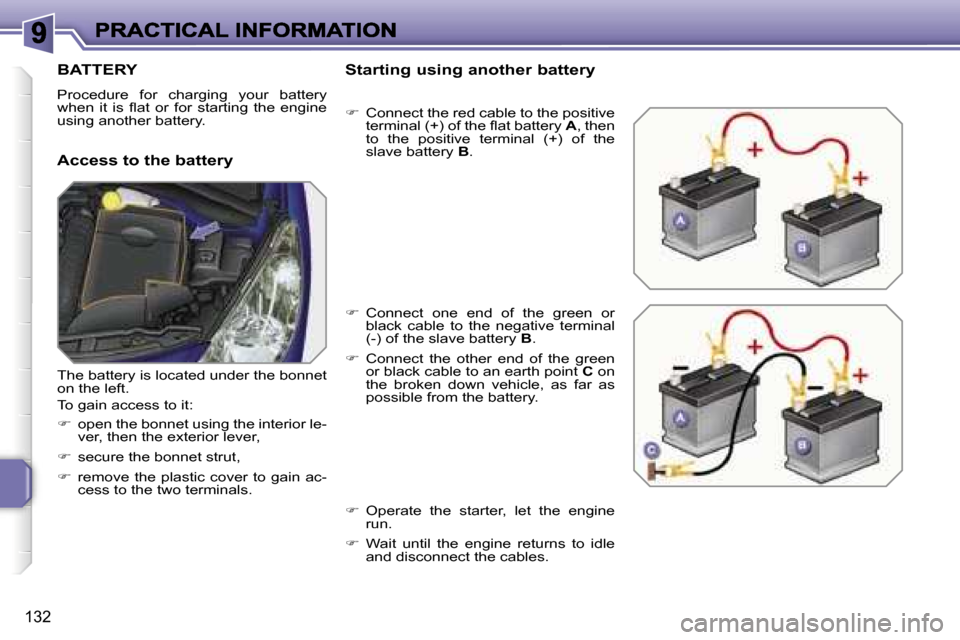

BATTERY
Procedure for charging your battery when it is flat or for starting the engine using another battery.
Access to the battery
Starting using another battery
 Connect the red cable to the positive terminal (+) of the flat battery A, then to the positive terminal (+) of the slave battery B.
 Connect one end of the green or black cable to the negative terminal (-) of the slave battery B.
 Connect the other end of the green or black cable to an earth point C on the broken down vehicle, as far as possible from the battery.
 Operate the starter, let the engine run.
 Wait until the engine returns to idle and disconnect the cables.
The battery is located under the bonnet on the left.
To gain access to it:
 open the bonnet using the interior le-ver, then the exterior lever,
 secure the bonnet strut,
 remove the plastic cover to gain ac-cess to the two terminals.
