2007 Peugeot 207 CC Dag Owner's Manual

54

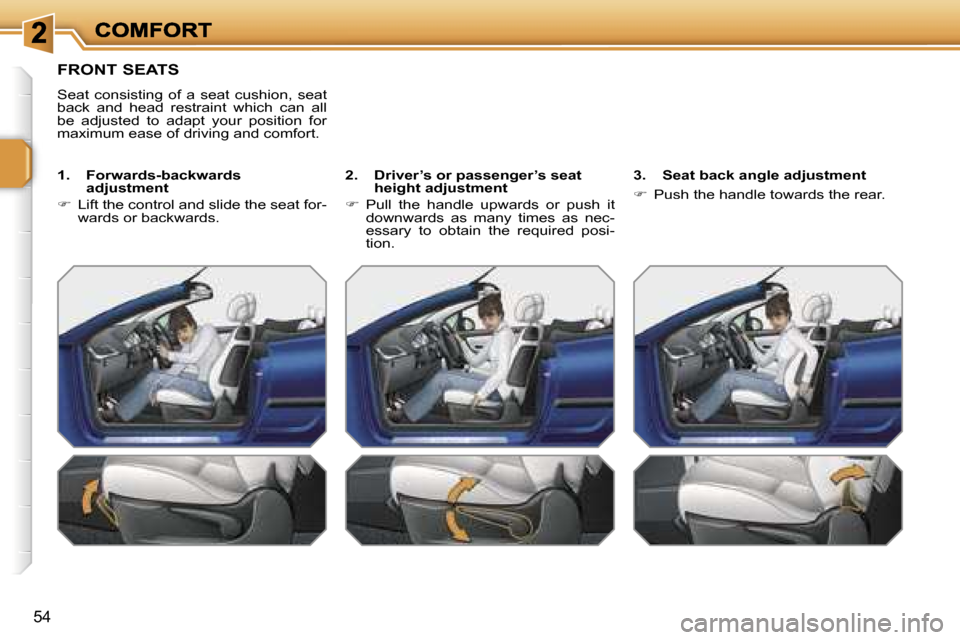

FRONT SEATS
Seat consisting of a seat cushion, seat back and head restraint which can all be adjusted to adapt your position for maximum ease of driving and comfort.
1. Forwards-backwards adjustment
 Lift the control and slide the seat for-wards or backwards.
2. Driver’s or passenger’s seat height adjustment
 Pull the handle upwards or push it downwards as many times as nec-essary to obtain the required posi-tion.
3.Seatback angle adjustment
 Push the handle towards the rear.

!
!
55

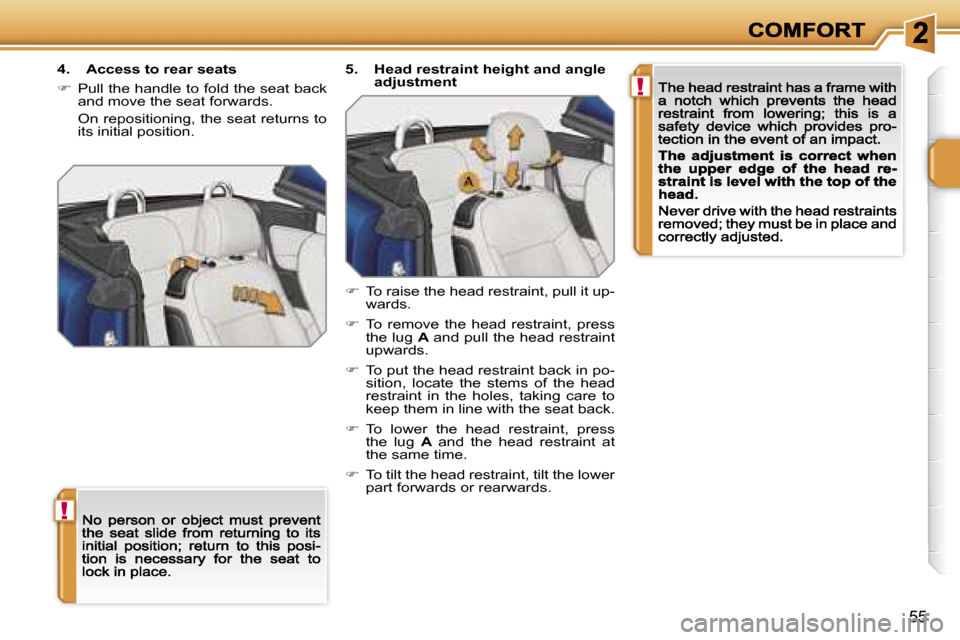

4. Access to rear seats
 Pull the handle to fold the seat back and move the seat forwards.
On repositioning, the seat returns to its initial position.
5. Head restraint height and angle adjustment
 To raise the head restraint, pull it up-wards.
 To remove the head restraint, press the lug A and pull the head restraint upwards.
 To put the head restraint back in po-sition, locate the stems of the head restraint in the holes, taking care to keep them in line with the seat back.
 To lower the head restraint, press the lug A and the head restraint at the same time.
 To tilt the head restraint, tilt the lower part forwards or rearwards.

!i!
56

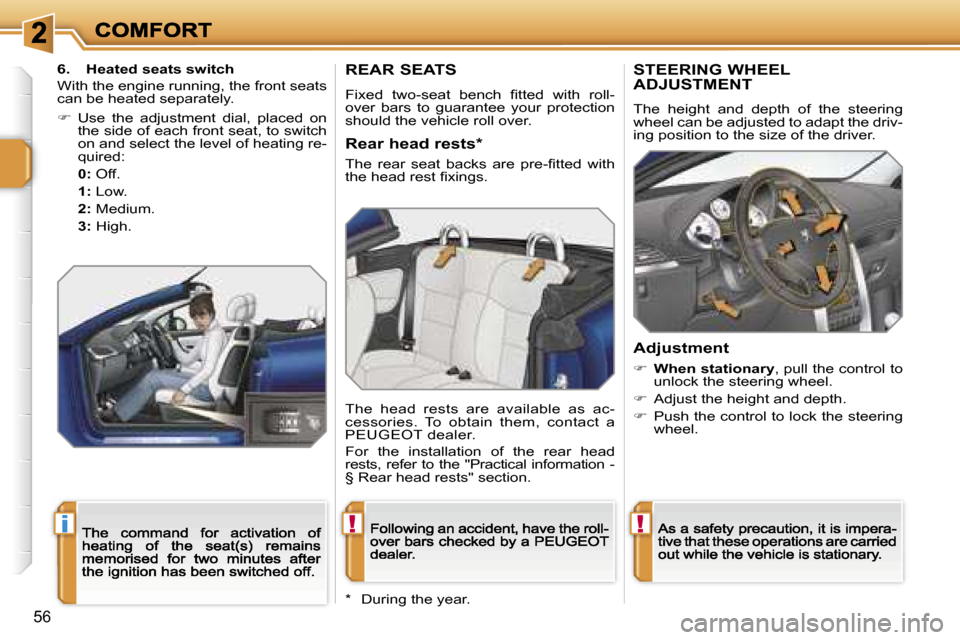

REAR SEATS
Fixed two-seat bench fitted with roll-over bars to guarantee your protection should the vehicle roll over.
Rear head rests*
The rear seat backs are pre-fitted with the head rest fixings.
The head rests are available as ac-cessories. To obtain them, contact a PEUGEOT dealer.
For the installation of the rear head rests, refer to the "Practical information - § Rear head rests" section.
6. Heated seats switch
With the engine running, the front seats can be heated separately.
 Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating re-quired:
0: Off.
1: Low.
2: Medium.
3: High.
STEERING WHEEL
ADJUSTMENT
The height and depth of the steering wheel can be adjusted to adapt the driv-ing position to the size of the driver.
Adjustment
When stationary, pull the control to unlock the steering wheel.
 Adjust the height and depth.
 Push the control to lock the steering wheel.
* During the year.

!i!
56
REAR SEATS
Fixed two-seat bench fitted with roll-over bars to guarantee your protection should the vehicle roll over.
Rear head rests*
The rear seat backs are pre-fitted with the head rest fixings.
The head rests are available as ac-cessories. To obtain them, contact a PEUGEOT dealer.
For the installation of the rear head rests, refer to the "Practical information - § Rear head rests" section.
6. Heated seats switch
With the engine running, the front seats can be heated separately.
 Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating re-quired:
0: Off.
1: Low.
2: Medium.
3: High.
STEERING WHEEL
ADJUSTMENT
The height and depth of the steering wheel can be adjusted to adapt the driv-ing position to the size of the driver.
Adjustment
When stationary, pull the control to unlock the steering wheel.
 Adjust the height and depth.
 Push the control to lock the steering wheel.
* During the year.

i
!
57

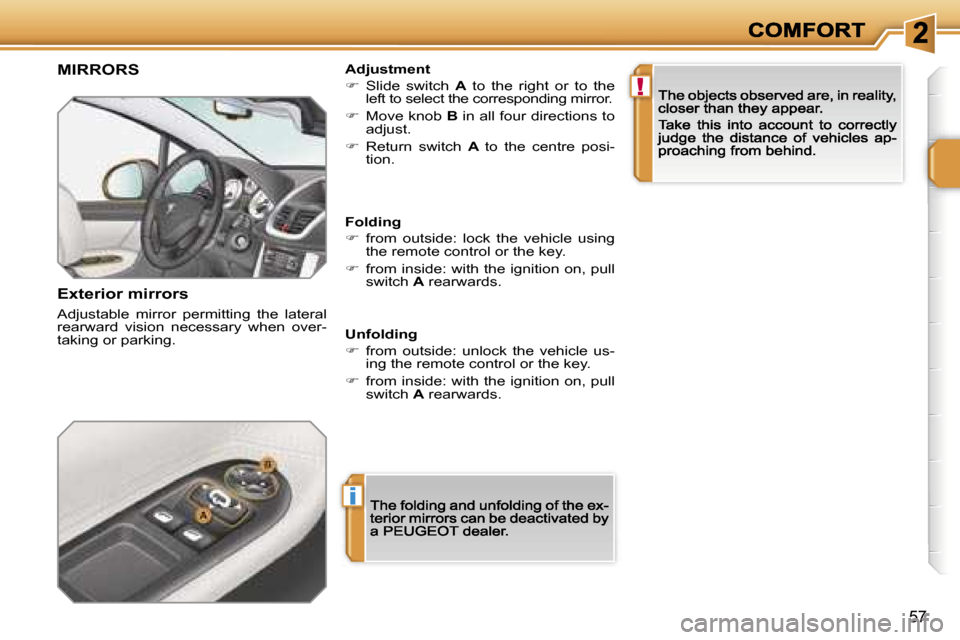

MIRRORS
Exterior mirrors
Adjustable mirror permitting the lateral rearward vision necessary when over-taking or parking.
Adjustment
 Slide switch A to the right or to the left to select the corresponding mirror.
 Move knob B in all four directions to adjust.
 Return switch A to the centre posi-tion.
Folding
 from outside: lock the vehicle using the remote control or the key.
 from inside: with the ignition on, pull switch A rearwards.
Unfolding
 from outside: unlock the vehicle us-ing the remote control or the key.
 from inside: with the ignition on, pull switch A rearwards.

!
i
58

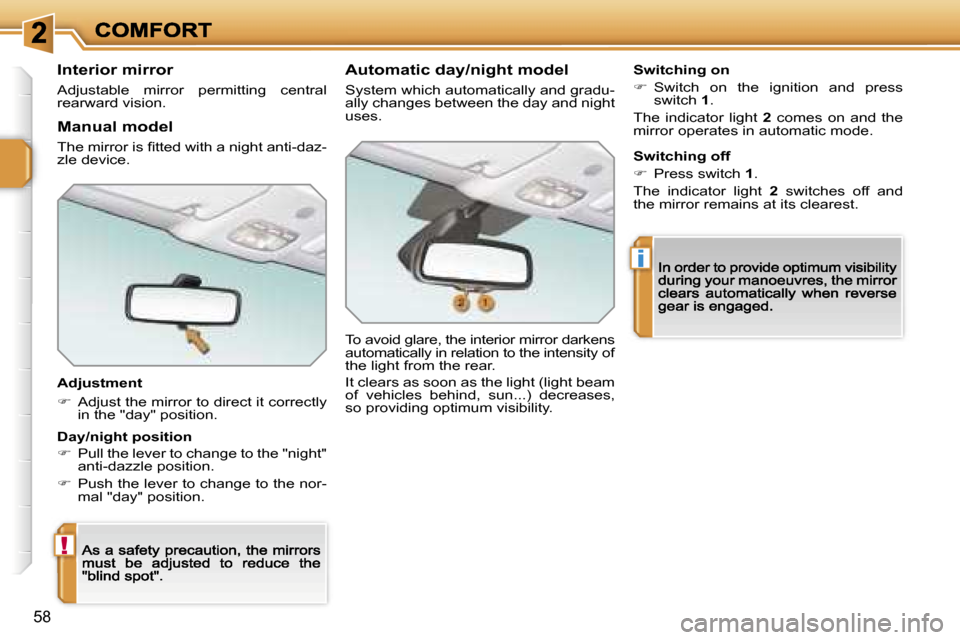

Interior mirror
Adjustable mirror permitting central rearward vision.
Adjustment
 Adjust the mirror to direct it correctly in the "day" position.
Automatic day/night model
System which automatically and gradu-ally changes between the day and night uses.
To avoid glare, the interior mirror darkens automatically in relation to the intensity of the light from the rear.
It clears as soon as the light (light beam of vehicles behind, sun...) decreases, so providing optimum visibility.
Switching on
 Switch on the ignition and press switch 1.
The indicator light 2 comes on and the mirror operates in automatic mode.Manual model
The mirror is fitted with a night anti-daz-zle device.
Day/night position
 Pull the lever to change to the "night" anti-dazzle position.
 Push the lever to change to the nor-mal "day" position.
Switching off
 Press switch 1.
The indicator light 2 switches off and the mirror remains at its clearest.

!
59

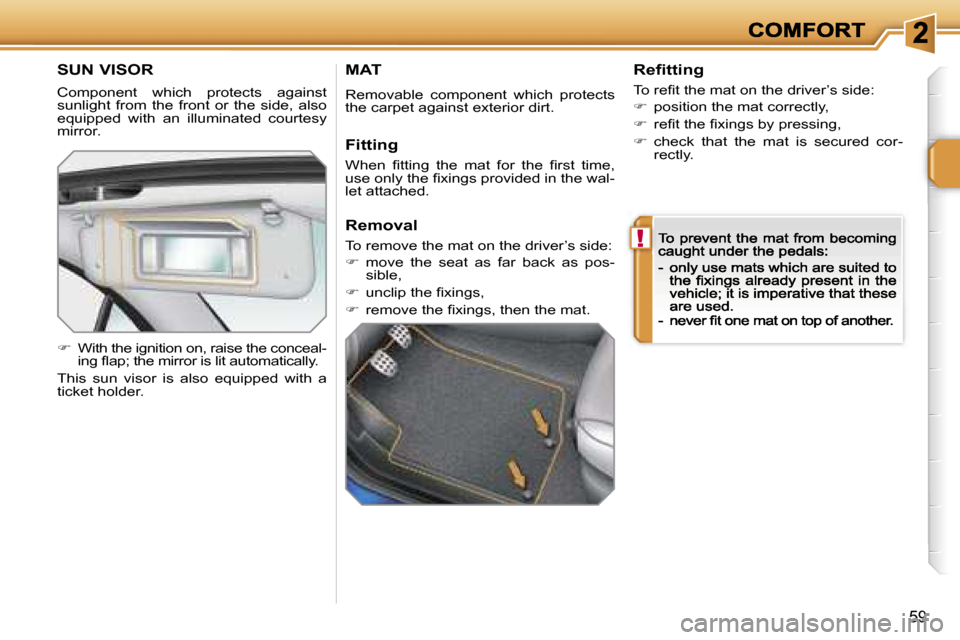

SUN VISOR
Component which protects against sunlight from the front or the side, also equipped with an illuminated courtesy mirror.
 With the ignition on, raise the conceal-ing flap; the mirror is lit automatically.
This sun visor is also equipped with a ticket holder.
MAT
Removable component which protects the carpet against exterior dirt.
Refitting
To refit the mat on the driver’s side:
 position the mat correctly,
 refit the fixings by pressing,
 check that the mat is secured cor-rectly.Fitting
When fitting the mat for the first time, use only the fixings provided in the wal-let attached.
Removal
To remove the mat on the driver’s side:
 move the seat as far back as pos-sible,
 unclip the fixings,
 remove the fixings, then the mat.

60

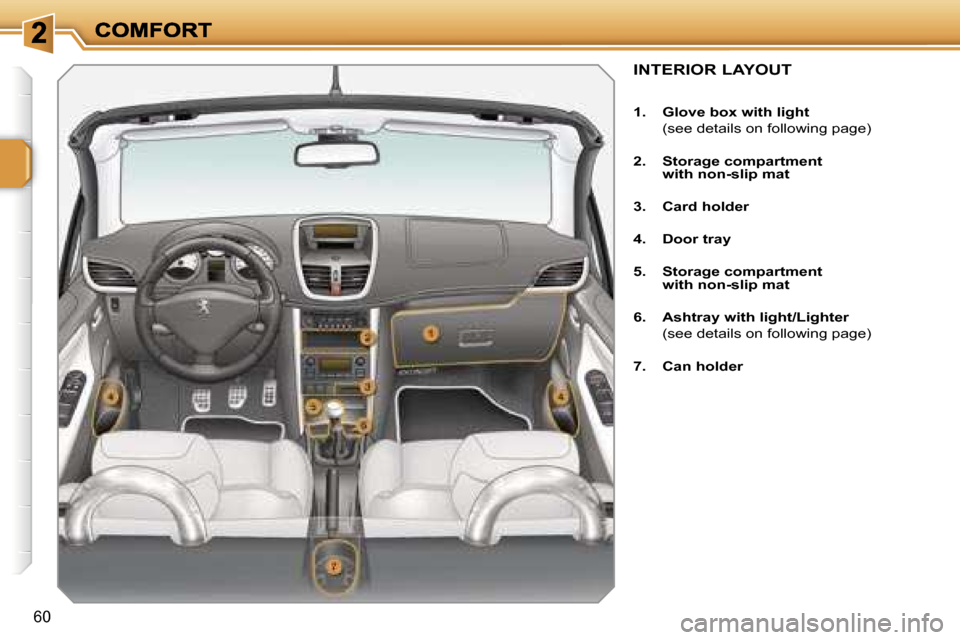

INTERIOR LAYOUT
1. Glove box with light
(see details on following page)
2. Storage compartment with non-slip mat
3. Card holder
4. Door tray
5. Storage compartment with non-slip mat
6. Ashtray with light/Lighter
(see details on following page)
7. Can holder
