EC-1054
< BASIC INSPECTION >[K9K]
INSPECTION AND ADJUSTMENT
- All the electrical loads are switched off.
- Air conditioning is switched off.
CAUSE
- The engine runs poorly at idle speed, possibly emits white smoke.
1.CHECK FUEL INJECTOR
Refer to EC-1141, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning fuel injector.
2.CHECK ENGINE COOLANT TEMPERATURE AND FUEL TEMPERATURE
1. Start engine let it idle speed.
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Check “FUEL TEMP” indication is above 60°C (140°F)
4. Check “F/FLOW CORR CYL1“, “F/FLOW CORR CYL2”, “F/FLOW CORR CYL3”, “F/FLOW CORR CYL4”
indication.
Are the reference value 0.3 - 1.9?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK INTERNAL FUEL TRANSFER PUMP
1. Turn ignition switch OFF.
2. Disconnect the return system connections at the fuel injectors and close off the return pipes so they are
leak-tight. While the engine is idling, check the return flow rate at the fuel injector. After 5 minutes the
return volume must be between 16 - 24 ml per fuel injector.
Is there more than 24 ml or less than 16 ml of return for each fuel injector?
Yes >> Replace malfunctioning fuel injector.
No >> INSPECTION END
4.CHECK COMPRESSION PRESSURE
Check compression pressure. Refer to EM-267, "
Inspection".
>> INSPECTION END
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000001162522
When replacing ECM, this procedure must be performed.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000001162523
1.PRECONDITIONING
Connect a CONSULT-III
Connect a battery charger
Electric load switch is OFF
Wait for the engine to cool [engine coolant temperature < 60°C (140°F and air temperature < 50°C (122°F)].
NOTE:
While the ECM is being programmed the cooling fan motors are triggered automatically.
>> GO TO 2.
2.SAVE ECM DATA
Turn ignition switch ON.
Perform “SAVE DATA FOR CPU REPLC” in WORK SUPPORT mode with CONSULT-III.
Page 2404 of 5883
![NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-1055
< BASIC INSPECTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
>> GO TO 3.
3.REPLACE ECM
Replace ECM.
>> GO TO 4.
4.WRITE ECM DATA
1. Turn ignition switch OFF, wait at lea NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-1055
< BASIC INSPECTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
>> GO TO 3.
3.REPLACE ECM
Replace ECM.
>> GO TO 4.
4.WRITE ECM DATA
1. Turn ignition switch OFF, wait at lea](/manual-img/5/57395/w960_57395-2403.png)
INSPECTION AND ADJUSTMENT
EC-1055
< BASIC INSPECTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
>> GO TO 3.
3.REPLACE ECM
Replace ECM.
>> GO TO 4.
4.WRITE ECM DATA
1. Turn ignition switch OFF, wait at least 30 seconds and then turn ON.
2. Perform “PRGRM REINITIALIZE” in WORK SUPPORT mode with CONSULT-III.
3. Perform “WRT DATA AFTR REPLC CPU” in WORK SUPPORT mode with CONSULT-III.
4. Perform initialization of NATS system and registration of all NATS ignition key IDs.
Refer to SEC-7, "
ECM RE-COMMUNICATING FUNCTION : Description" (with intelligent key system) or
SEC-83, "
ECM RE-COMMUNICATING FUNCTION : Description" (without intelligent key system).
5. Turn ignition switch OFF, wait at least 30 seconds and then turn ON.
6. Select “DATA MONITOR” mode in ECM with CONSULT-III.
7. Check that the “CODE PROGRAM” indication.
Which is displayed on CONSULT-III?
YES >> GO TO 6.
NO >> GO TO 5.
5.WRITE ECM DATA
1. Perform initialization of NATS system and registration of all NATS ignition key IDs.
Refer to SEC-7, "
ECM RE-COMMUNICATING FUNCTION : Description" (with intelligent key system) or
SEC-83, "
ECM RE-COMMUNICATING FUNCTION : Description" (without intelligent key system).
2. Turn ignition switch OFF, wait at least 30 seconds and then turn ON.
3. Select “DATA MONITOR” mode in ECM with CONSULT-III.
4. Check that the “CODE PROGRAM” indication.
Which is displayed on CONSULT-III?
YES >> GO TO 6.
NO >> Repeat above steps.
6.PERFORM VIN REGISTRATION
1. Start engine and warm it up to normal operating temperature.
NOTE:
The start-up phase may last up to 30 seconds.
2. Turn ignition switch OFF, wait at least 30 seconds and then turn ON.
3. Perform “VIN REGISTRATION” in WORK SUPPORT mode with CONSULT-III.
4. Follow the instruction of CONSULT-III display.
NOTE:
After replace ECM, stored DTC may appear on other control unit. Clear the malfunction memory of these
control unit.
>> END
EGR VOLUME CONTROL VALVE CLOSED POSITION LEARNING
EGR VOLUME CONTROL VALVE CLOSED POSITION LEARNING : Description
INFOID:0000000001162524
EGR Volume Control Valve Closed Position Learning is an operation to learn the fully closed position of the
EGR volume control valve by monitoring the EGR volume control valve control position sensor output signal.
EGR VOLUME CONTROL VALVE CLOSED POSITION LEARNING : Special Repair
Requirement
INFOID:0000000001162525
1.START
1. Turn ignition switch ON.
2. Perform “EGR ADAPTIVES” in WORK SUPPORT mode with CONSULT-III.
Page 2406 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ENGINE CONTROL SYSTEM
EC-1057
< FUNCTION DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
FUNCTION DIAGNOSIS
ENGINE CONTROL SYSTEM
System DiagramINFOID:0000000001162526
1. Mass air flow sensor 2. Inta NISSAN TIIDA 2007 Service Repair Manual ENGINE CONTROL SYSTEM
EC-1057
< FUNCTION DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
FUNCTION DIAGNOSIS
ENGINE CONTROL SYSTEM
System DiagramINFOID:0000000001162526
1. Mass air flow sensor 2. Inta](/manual-img/5/57395/w960_57395-2405.png)
ENGINE CONTROL SYSTEM
EC-1057
< FUNCTION DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
FUNCTION DIAGNOSIS
ENGINE CONTROL SYSTEM
System DiagramINFOID:0000000001162526

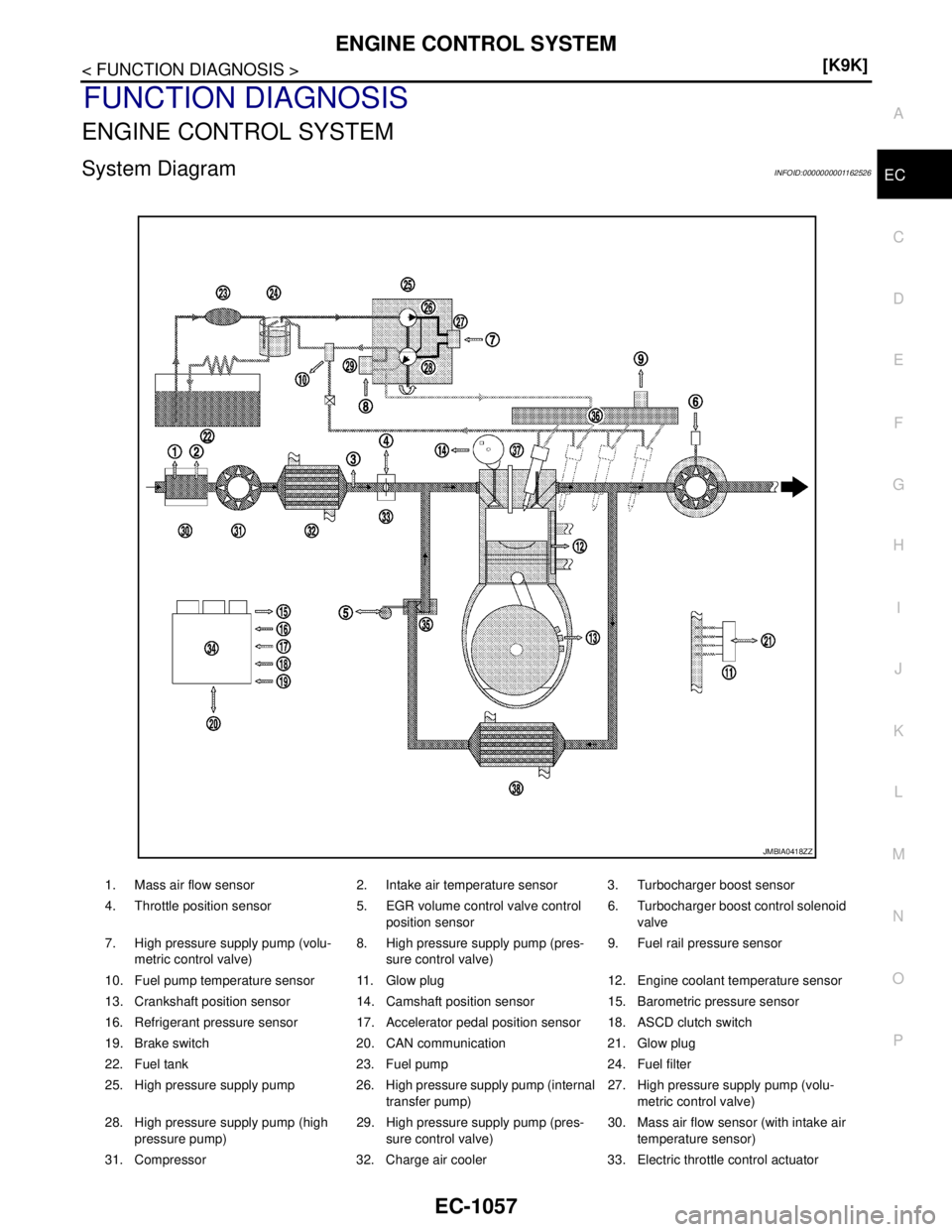

1. Mass air flow sensor 2. Intake air temperature sensor 3. Turbocharger boost sensor
4. Throttle position sensor 5. EGR volume control valve control
position sensor 6. Turbocharger boost control solenoid
valve
7. High pressure supply pump (volu-
metric control valve)8. High pressure supply pump (pres-
sure control valve)9. Fuel rail pressure sensor
10. Fuel pump temperature sensor 11. Glow plug 12. Engine coolant temperature sensor
13. Crankshaft position sensor 14. Camshaft position sensor 15. Barometric pressure sensor
16. Refrigerant pressure sensor 17. Accelerator pedal position sensor 18. ASCD clutch switch
19. Brake switch 20. CAN communication 21. Glow plug
22. Fuel tank 23. Fuel pump 24. Fuel filter
25. High pressure supply pump 26. High pressure supply pump (internal
transfer pump)27. High pressure supply pump (volu-
metric control valve)
28. High pressure supply pump (high
pressure pump)29. High pressure supply pump (pres-
sure control valve)30. Mass air flow sensor (with intake air
temperature sensor)
31. Compressor 32. Charge air cooler 33. Electric throttle control actuator
JMBIA0418ZZ
Page 2407 of 5883
EC-1058
< FUNCTION DIAGNOSIS >[K9K]
ENGINE CONTROL SYSTEM
System Description
INFOID:0000000001162527
ECM performs various controls such as fuel injection control and furl pressure control.

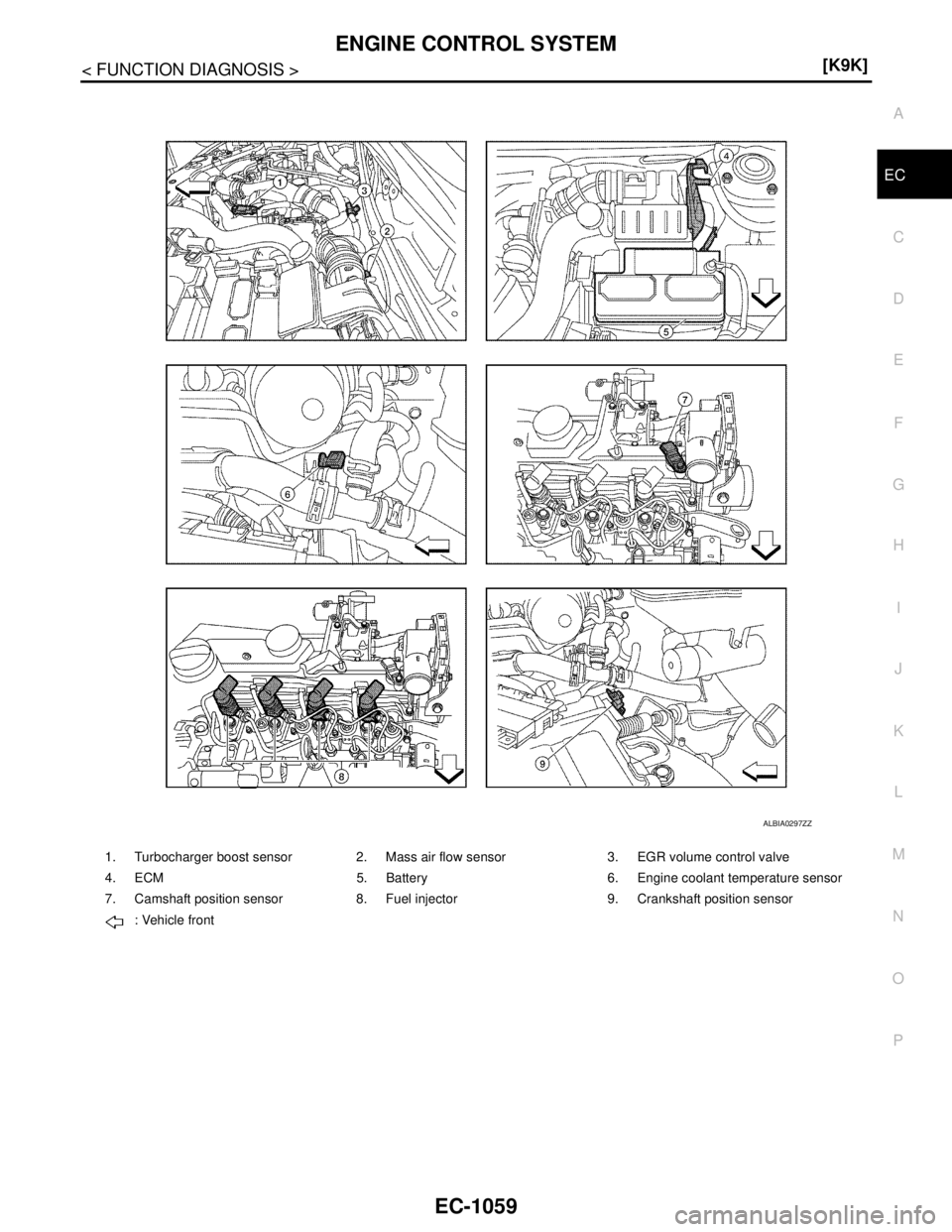

Component Parts LocationINFOID:0000000001162528
34. ECM 35. EGR volume control valve 36. Fuel rail
37. Fuel injector 38. EGR cooler

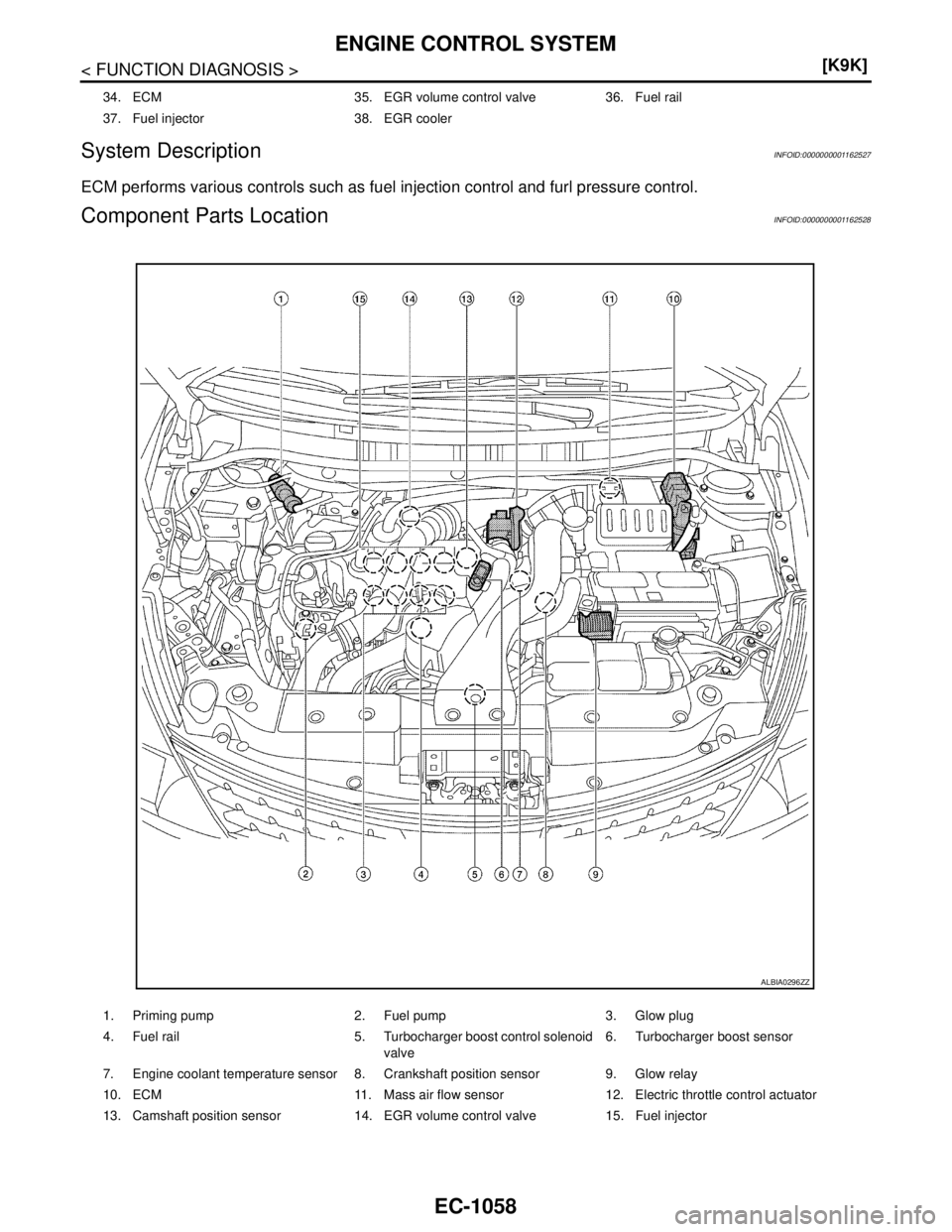

1. Priming pump 2. Fuel pump 3. Glow plug
