FRONT WIPER AND WASHER SYSTEM
WW-33
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 November2007 350Z

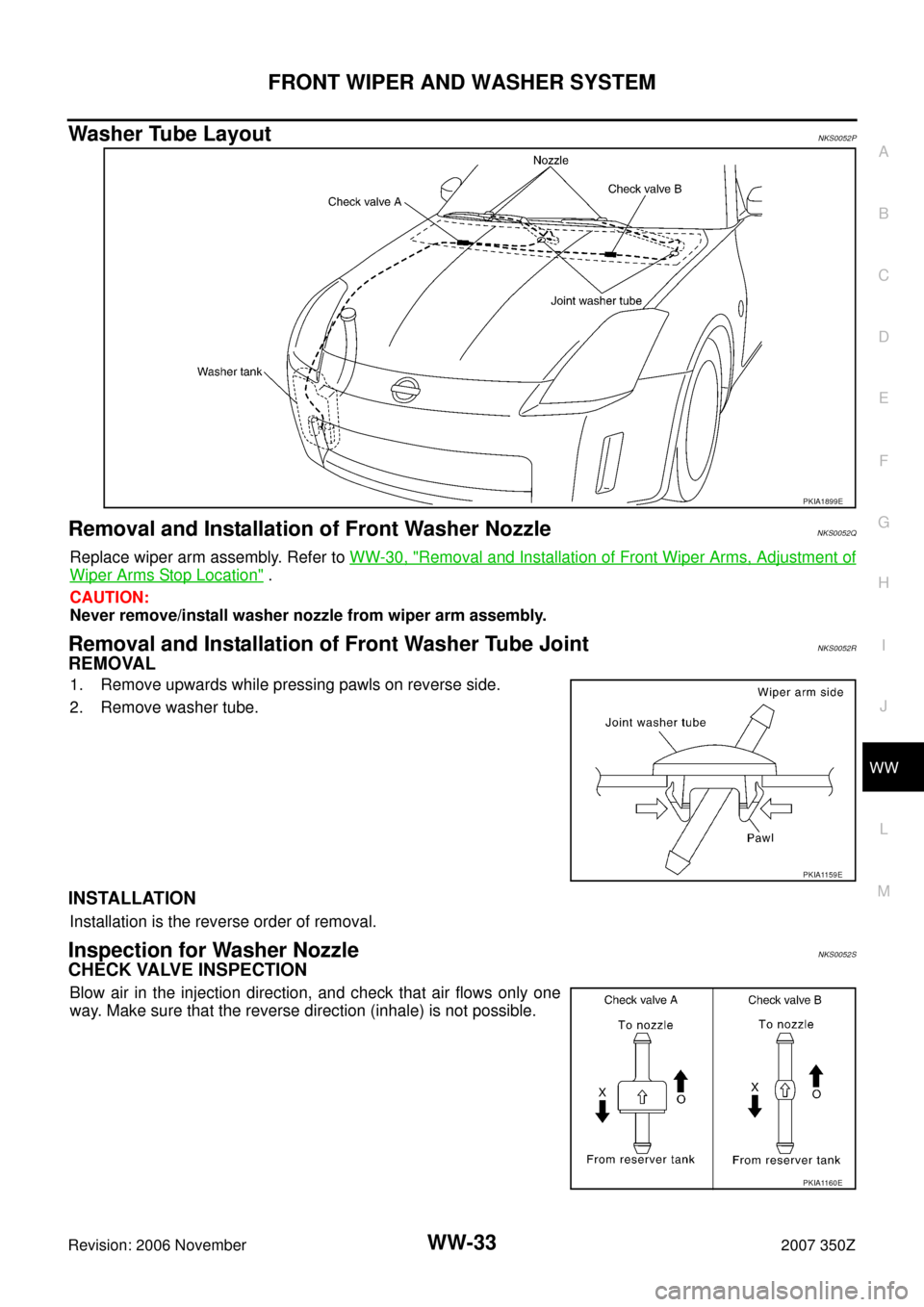

Washer Tube LayoutNKS0052P
Removal and Installation of Front Washer NozzleNKS0052Q
Replace wiper arm assembly. Refer to WW-30, "Removal and Installation of Front Wiper Arms, Adjustment of
Wiper Arms Stop Location" .
CAUTION:
Never remove/install washer nozzle from wiper arm assembly.
Removal and Installation of Front Washer Tube JointNKS0052R
REMOVAL
1. Remove upwards while pressing pawls on reverse side.
2. Remove washer tube.
INSTALLATION
Installation is the reverse order of removal.
Inspection for Washer NozzleNKS0052S
CHECK VALVE INSPECTION
Blow air in the injection direction, and check that air flows only one
way. Make sure that the reverse direction (inhale) is not possible.
PKIA1899E
PKIA1159E
PKIA1160E

WW-34
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 November2007 350Z
Inspection of Front Wiper and Washer Switch CircuitNKS0052T
Refer to LT- 9 2 , "Combination Switch Inspection" .
Removal and Installation of Front Wiper and Washer SwitchNKS0052U
REMOVAL
1. Remove steering column lower cover and combination meter.
Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
2. Disconnect wiper and washer switch connector.
3. Pull wiper and washer switch toward the passenger door while
pressing pawls in direction shown by the arrow ( ) in the figure,
and remove it from the base.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Washer TankNKS0052V
REMOVAL
1. Remove clip and pull out washer tank inlet.
2. Remove under cover.
3. Remove fender protector. Refer to EI-21, "
FENDER PROTEC-
TOR" .
4. Remove front bumper fascia. Refer to EI-14, "
FRONT
BUMPER" .
5. Disconnect washer pump connector.
6. Remove washer tank mounting bolt and nuts.
7. Remove washer tube, and remove washer tank from the vehicle.
PKIB4999E
PKIA1903E
PKIB1791E
PKIA3704E

FRONT WIPER AND WASHER SYSTEM
WW-35
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 November2007 350Z
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
After installation, add water up to the upper level of washer tank inlet, and check for water leaks.
Removal and Installation of Washer PumpNKS0052W
REMOVAL
1. Remove fender protector. Refer to EI-21, "FENDER PROTEC-
TOR" .
2. Disconnect washer pump connector and remove washer tube.
3. Pull out washer pump in direction shown by the arrow ( ) in the
figure. Remove washer pump from washer tank.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
When installing washer pump, there should be no packing twists, etc.Washer tank mounting bolt and nuts : 5.7 N·m (0.58 kg-m, 50 in-lb)
PKIA3705E

WW-36
REAR WIPER AND WASHER SYSTEM
Revision: 2006 November2007 350Z
REAR WIPER AND WASHER SYSTEMPFP:28710
Components Parts and Harness Connector LocationNKS0052X
System DescriptionNKS0052Y

Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input termi-
nals. Terminal combination status is read by BCM when switch is turned ON.

BCM (body control module) controls rear wiper ON and INT (intermittent) operation.
OUT LINE
Power is supplied at all times

through 40 A fusible link (letter F, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10 A fuse [No. 18, located in fuse block (J/B)]

to BCM terminal 42.
When ignition switch is in ON or START position, power is supplied

through 10 A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10 A fuse (No. 84, located in IPDM E/R)

through IPDM E/R terminal 44

to rear washer pump terminal 2.
Ground is supplied

to BCM terminal 52

through grounds M30 and M66,
PKIB2147E

REAR WIPER AND WASHER SYSTEM
WW-37
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 November2007 350Z

to combination switch terminal 12

through grounds M30 and M66.
Rear Wiper Operation
When wiper switch is in rear wiper ON position, BCM detect rear wiper ON signal by BCM wiper switch read-
ing function.
BCM operate rear wiper motor, power is supplied

through BCM terminal 70

to rear wiper motor 4.
Ground is supplied

to rear wiper motor terminal 1

through grounds B5, B6, D105 and T14.
With power and ground is supplied, rear wiper operates.
Intermittent Operation
The rear wiper motor operates wiper arms at low speed approximately every 7 seconds.
When wiper switch is in rear wiper INT position, BCM detect rear wiper INT signal by BCM wiper switch read-
ing function. (Refer to WW-7, "
COMBINATION SWITCH READING FUNCTION" )
BCM operate rear wiper motor, power is supplied

through BCM terminal 70

to rear wiper motor 4.
Ground is supplied

to rear wiper motor terminal 1

through grounds B5, B6, D105 and T14.
With power and ground is supplied, rear wiper operates at intermittent.
Auto Stop Operation
With rear wiper switch turned OFF, rear wiper motor will continue to operate until wiper arm reaches rear wiper
stopper.
Then wiper motor turns the other way and wiper arm moves once until wiper arm reaches stopper.
Washer Operation
When wiper switch is in rear wiper washer position, BCM detect rear wiper washer signal by BCM wiper switch
reading function (Refer to WW-7, "
COMBINATION SWITCH READING FUNCTION" ), and combination switch
(wiper switch) ground is supplied

to rear washer pump terminal 1

through combination switch terminal 13

to combination switch terminal 12

through grounds M30 and M66.
With ground is supplied, rear washer pump is operated.
When BCM detects that rear washer pump has operated for 0.4 seconds or longer, BCM operates rear wiper
motor low speed.
When BCM detects washer switch is OFF, low speed operation cycles approximately 3 times and then stops.
BCM WIPER SWITCH READING FUNCTION
Refer to WW-7, "COMBINATION SWITCH READING FUNCTION" .

WW-38
REAR WIPER AND WASHER SYSTEM
Revision: 2006 November2007 350Z

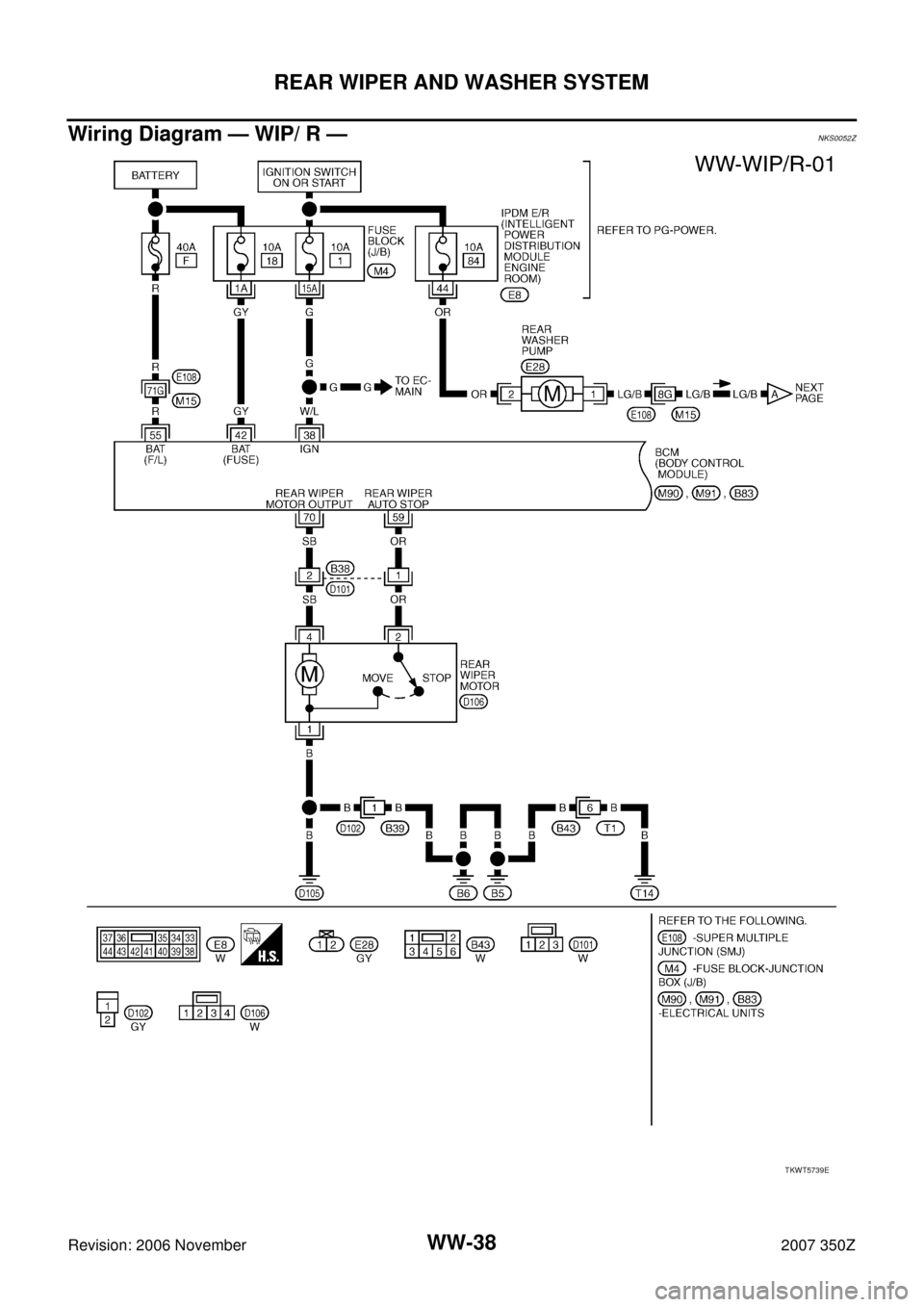

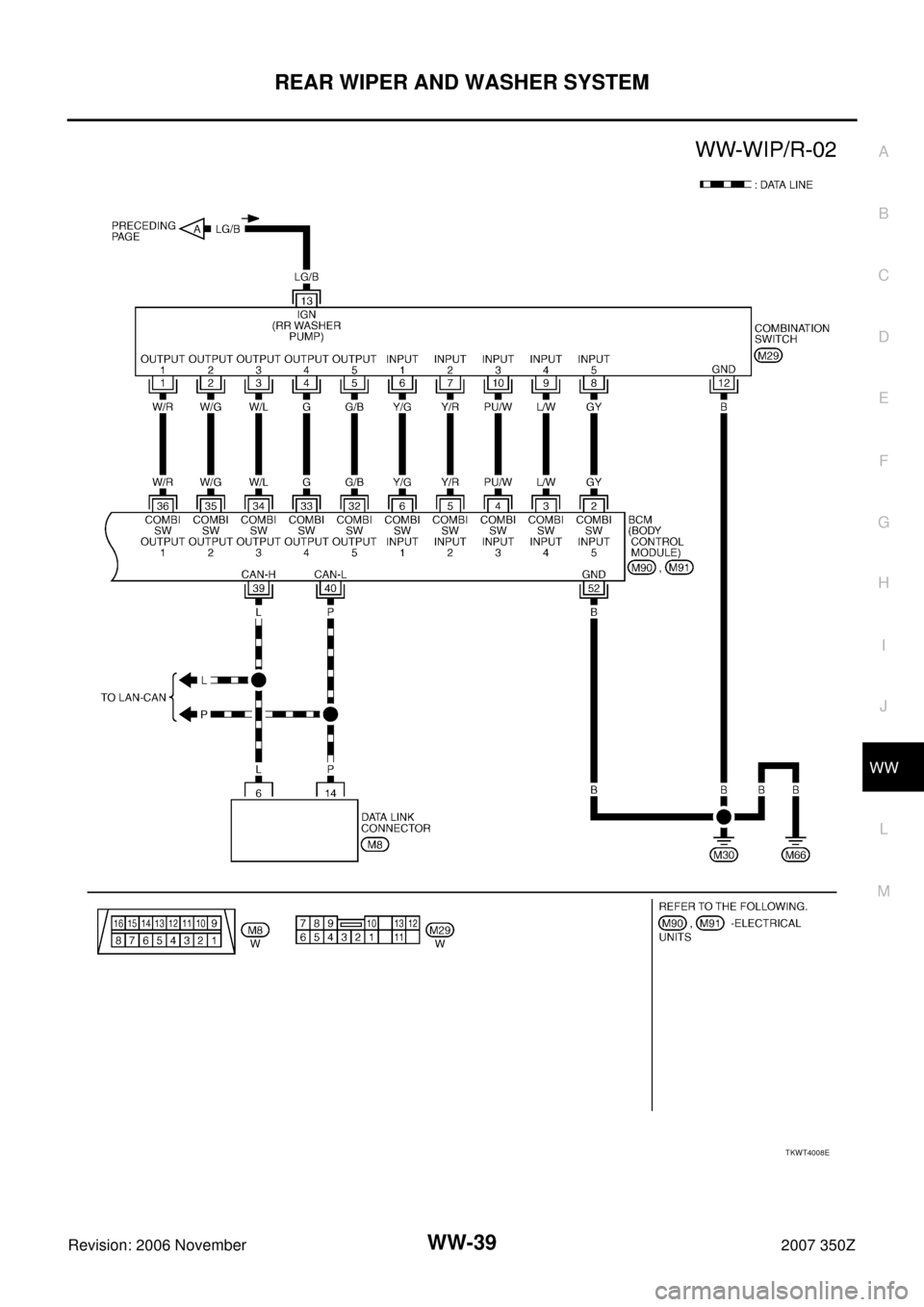

Wiring Diagram — WIP/ R —NKS0052Z
TKWT5739E

REAR WIPER AND WASHER SYSTEM
WW-39
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 November2007 350Z
TKWT4008E

WW-40
REAR WIPER AND WASHER SYSTEM
Revision: 2006 November2007 350Z
Terminals and Reference Values for BCMNKS00530
CAUTION:

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-III. Refer to WW-43, "
DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
5Y/RCombination
switch input 2ONLighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4)OFF Approx. 0 V
Rear washer switch
Approx. 1.0 V
Rear wiper switch ON
Approx. 0.8 v
6Y/GCombination
switch input 1ONLighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4)OFF Approx. 0 V
Rear wiper switch INT
Approx. 1.0 V
33 GCombination
switch output 4ONLighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4)OFF
Approx. 7.2 V
Rear wiper switch INT
Approx. 1.2 V
PKIB4959J
PKIB4955J
PKIB4959J
PKIB4960J
PKIB4958J
