2007 NISSAN 350Z Owner´s Manual

occupants.However, all of the information,
cautions and warnings in this manual still
apply and must be followed.The supplemen-
tal side air bags and curtain side-impact air bags
are designed to inflate in higher severity side
collisions on the side that the vehicle is im-
pacted, although they may inflate if the forces in
another type of collision are similar to those of a
higher severity side impact. They are designed to
inflate on the side where the vehicle is impacted.
They may not inflate in certain side collisions.
Vehicle damage (or lack of it) is not always an
indication of proper supplemental side air bag
and curtain side-impact air bag operation.
When the supplemental side air bag and curtain
side-impact air bag inflate, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicate
a fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
Supplemental side air bags, along with the use
of seat belts, help to cushion the impact force on
the chest of the front occupants. Curtain side-
impact air bags help to cushion the impact force
to the head of occupants. They can help save
lives and reduce serious injuries. However, an
inflating side air bag and curtain side-impact air
bag may cause abrasions or other injuries.Supplemental side air bags and curtain side-
impact air bags do not provide restraint to the
lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the supplemental side air
bag, and seated as far away as practical from the
door finishers and side roof rails. The side air
bags and curtain side-impact air bag inflate
quickly in order to help protect the front occu-
pants. Because of this, the force of the side air
bag and curtain side-impact air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against these air bag modules
during inflation. The side air bag and curtain
side-impact air bag will deflate quickly after the
collision is over.
The supplemental side air bags and curtain
side-impact air bags operate only when the
ignition switch is in the ONor START po-
sition.
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The air bag warning light
will turn off after about 7 seconds if the
systems are operational.
WARNING

Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such objects
may become dangerous projectiles
and cause injury if the side air bag
inflates.

Right after inflation, several side air
bag and curtain side-impact air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.

No unauthorized changes should be
made to any components or wiring of
the side air bag and curtain side-
impact air bag system. This is to pre-
vent accidental inflation of the side
air bag and curtain side-impact air
bag or damage to the side air bag
and curtain side-impact air bag sys-
tem.

Do not make unauthorized changes
1-40
Safety — Seats, seat belts and supplemental restraint system


07.2.9/Z33-D/V5.0


to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation of
the supplemental side air bag and
curtain side-impact air bag system.

Tampering with the supplemental
side air bag system may result in
serious personal injury. For example,
do not change the front seats by
placing material near the seatback or
by installing additional trim material,
such as seat covers, around the side
air bag.

Work around and on the side air bag
and curtain side-impact air bag sys-
tem should be done by a NISSAN
dealer. Installation of electrical
equipment should also be done by a
NISSAN dealer. The SRS wiring har-
nesses* should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de-
vices should not be used on the side
air bag system.
* The SRS wiring harness connectorsare yellow and orange for easy iden-
tification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain side-impact air bag system and guide the
buyer to the appropriate sections in this Owner’s
Manual.
Pre-tensioner seat belt system
WARNING

The pre-tensioner seat belt cannot be
reused after activation. It must be
replaced together with the retractor
and buckle as a unit.

If the vehicle becomes involved in a
frontal collision but the pre-tensioner
is not activated, be sure to have the
pre-tensioner system checked and, if
necessary, replaced by a NISSAN
dealer.

No unauthorized changes should be
made to any components or wiring of
the pre-tensioner seat belt system.This is to prevent accidental activa-
tion of the pre-tensioner seat belt or
damage to the pre-tensioner seat
belt operation. Tampering with the
pre-tensioner seat belt system may
result in serious personal injury.

Work around and on the pre-
tensioner system should be done by
a NISSAN dealer. Installation of elec-
trical equipment should also be done
by a NISSAN dealer. Unauthorized
electrical test equipment and probing
devices should not be used on the
pre-tensioner seat belt system.

If you need to dispose of the pre-
tensioner or scrap the vehicle, con-
tact a NISSAN dealer. Correct pre-
tensioner disposal procedures are
set forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.
The front seat pre-tensioner seat belt system
activates in conjunction with the front supple-
mental air bag systems. Working with the seat
Safety — Seats, seat belts and supplemental restraint system
1-41


07.2.9/Z33-D/V5.0


belt retractor, it helps tighten the seat belt when
the vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.
The pre-tensioner is encased with the seat belt’s
retractor. These seat belts are used the same as
conventional seat belts.
When the pre-tensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful and does not
indicate a fire. Care should be taken not to inhale
it as it may cause irritation and choking. Those
with a history of a breathing condition should get
fresh air promptly.
If any abnormality occurs in the pre-tensioner
seat belt system, the supplemental air bag warn-
ing light
will not come on, will flash inter-
mittently or will turn on for 7 seconds and remain
on after the ignition key has been turned to the
ON or START position. In this case, the pre-
tensioner seat belt may not function properly.
They must be checked and repaired. Take your
vehicle to a NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pre-tensioner seat
belt system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
SUPPLEMENTAL AIR BAG
WARNING LABELSWarning labels about the supplemental air bag
system are placed in the vehicle as shown in the
illustration.
SSS0206
1-42
Safety — Seats, seat belts and supplemental restraint system


07.2.9/Z33-D/V5.0


SUPPLEMENTAL AIR BAG
WARNING LIGHTThe supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the supplemental front air bag,
supplemental side air bag (if so equipped) and
curtain side-impact air bag (if so equipped for
Coupe models) systems, and pre-tensioner seat
belt. The circuits monitored by the air bag warn-
ing light are the diagnosis sensor unit, crash
zone sensor, satellite sensors, front air bag
modules, side air bag modules, curtain side-
impact air bag modules, pre-tensioner seat belt
and all related wiring.After turning the ignition key to the ON position,
the supplemental air bag warning light illumi-
nates. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag and curtain side-impact air bag systems,
and pre-tensioner seat belt need servicing:

The supplemental air bag warning light re-
mains on after approximately 7 seconds.

The supplemental air bag warning light
flashes intermittently.

The supplemental air bag warning light does
not come on at all.
Under these conditions, the supplemental front
air bags, supplemental side air bags, curtain
side-impact air bags and/or pre-tensioner seat
belt may not operate properly. They must be
checked and repaired. Take your vehicle to a
NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that thesupplemental front air bag, supplemen-
tal side air bag, curtain side-impact air
bag systems and/or pre-tensioner seat
belt systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.
Repair and replacement procedureThe supplemental front air bags, supplemental
side air bags (if so equipped), curtain side-
impact air bags (if so equipped for Coupe
models) and pre-tensioner seat belt are de-
signed to inflate on a one-time-only basis. As a
reminder, unless it is damaged, the supplemen-
tal air bag warning light will remain illuminated
after inflation has occurred. Repair and replace-
ment of these systems should be done only by a
NISSAN dealer.
When maintenance work is required on the
vehicle, the supplemental front air bags, side air
bags, curtain side-impact air bags, related parts
and pre-tensioner seat belt should be pointed
out to the person conducting the maintenance.
The ignition key should always be in the LOCK
position when working under the hood or inside
the vehicle.
SPA1097
Safety — Seats, seat belts and supplemental restraint system
1-43


07.2.9/Z33-D/V5.0


WARNING

Once a supplemental front air bag,
supplemental side air bag or curtain
side-impact air bag has inflated, the
air bag module will not function
again and must be replaced. Addi-
tionally, if any of the supplemental
front air bags inflate, the activated
pre-tensioner seat belts must also be
replaced. The air bag module and
pre-tensioner seat belt system
should be replaced by a NISSAN
dealer. The air bag module and pre-
tensioner seat belt system cannot be
repaired.

The supplemental front air bag and
side air bag, curtain side-impact air
bag systems and pre-tensioner seat
belt system should be inspected by a
NISSAN dealer if there is any damage
to the front end or side portion of the
vehicle.

If you need to dispose of these
supplemental systems or scrap the
vehicle, contact a NISSAN dealer.Correct disposal procedures are set
forth in the appropriate NISSAN Ser-
vice Manual. Incorrect disposal pro-
cedures could cause personal injury.1-44
Safety — Seats, seat belts and supplemental restraint system


07.2.9/Z33-D/V5.0


MEMO
Safety — Seats, seat belts and supplemental restraint system
1-45


07.2.9/Z33-D/V5.0


2 Instruments and controlsInstrument panel ................................................................... 2-2
Meters and gauges .............................................................. 2-3
Speedometer and odometer ........................................ 2-4
Tachometer ....................................................................... 2-5
Engine coolant temperature gauge ............................ 2-5
Fuel gauge ........................................................................ 2-6
Engine oil pressure gauge ........................................... 2-7
Volt meter ......................................................................... 2-8
Trip computer .................................................................. 2-8
Warning/indicator lights and audible reminders ........ 2-11
Checking bulbs ............................................................. 2-11
Warning lights ............................................................... 2-11
Indicator lights ............................................................... 2-15
Audible reminders ........................................................ 2-17
Security systems ................................................................ 2-18
Vehicle security system .............................................. 2-18
NISSAN Vehicle Immobilizer System ...................... 2-19
Windshield wiper and washer switch ........................... 2-21
Rear window wiper and washer switch
(Coupe models) .................................................................. 2-22
Rear window and outside mirror defroster switch .... 2-23
Headlight and turn signal switch ................................... 2-24
Xenon headlights .......................................................... 2-24
Headlight switch ........................................................... 2-24Daytime running light system (Canada only) ........ 2-25
Turn signal switch ........................................................ 2-26
Instrument brightness control ................................... 2-26
Hazard warning flasher switch ....................................... 2-27
Horn ....................................................................................... 2-27
Heated seats (if so equipped) ........................................ 2-28
Vehicle Dynamic Control (VDC) off switch
(if so equipped) .................................................................. 2-29
Traction Control System (TCS) off switch
(if so equipped) .................................................................. 2-29
Clock ..................................................................................... 2-30
Adjusting the time ........................................................ 2-30
Power outlet ........................................................................ 2-31
Storage ................................................................................. 2-32
Instrument pocket (except for navigation system
equipped models) ........................................................ 2-32
Sunglasses holder (Coupe models) ........................ 2-32
Cargo net......................................................................... 2-33
Cup holders ................................................................... 2-33
Console box .................................................................. 2-35
Rear floor box ................................................................ 2-35
Rear parcel box ............................................................ 2-37
Stowing golf bags ......................................................... 2-37
Coat hook (Coupe models) ........................................ 2-38


07.2.9/Z33-D/V5.0

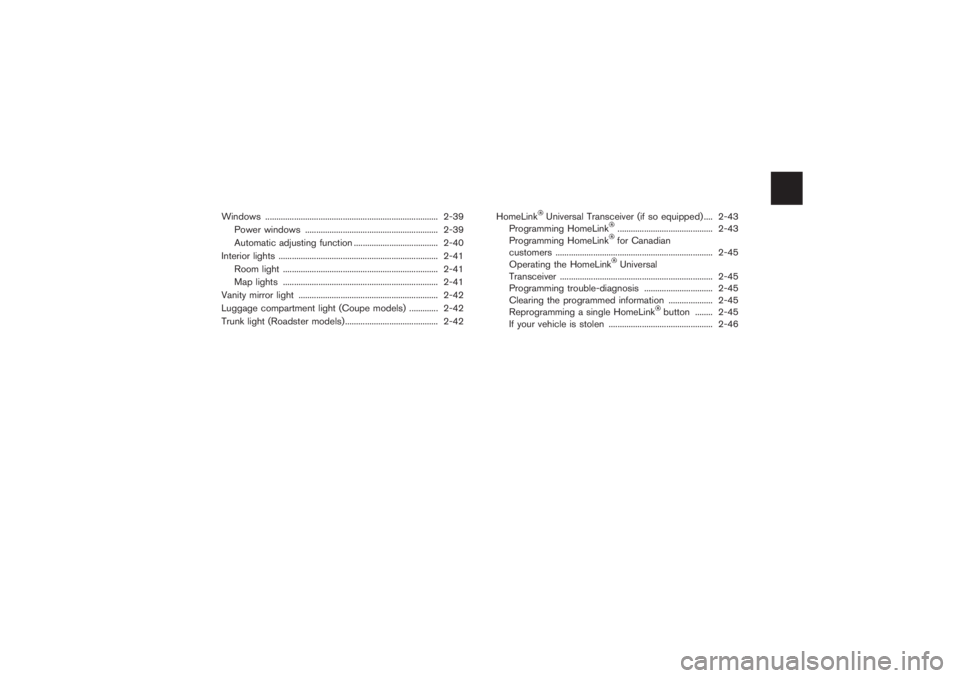

Windows .............................................................................. 2-39
Power windows ............................................................ 2-39
Automatic adjusting function ...................................... 2-40
Interior lights ........................................................................ 2-41
Room light ...................................................................... 2-41
Map lights ...................................................................... 2-41
Vanity mirror light ............................................................... 2-42
Luggage compartment light (Coupe models) ............. 2-42
Trunk light (Roadster models).......................................... 2-42HomeLink
Universal Transceiver (if so equipped) .... 2-43
Programming HomeLink
........................................... 2-43
Programming HomeLinkfor Canadian
customers ....................................................................... 2-45
Operating the HomeLinkUniversal
Transceiver ..................................................................... 2-45
Programming trouble-diagnosis ............................... 2-45
Clearing the programmed information .................... 2-45
Reprogramming a single HomeLink
button ........ 2-45
If your vehicle is stolen ............................................... 2-46


07.2.9/Z33-D/V5.0
