2007 NISSAN 350Z Owner´s Manual

reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
possibly degraded vehicle handling
characteristics and/or interference
with the brake discs/drums. Such in-
terference can lead to decreased
braking efficiency and/or early brake
pad/shoe wear.

When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain
on after the 1 minute. Contact your
NISSAN dealer as soon as possible
for tire replacement and/or system
resetting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not install a deformed wheel or
tire even if it has been repaired. Suchwheels or tires could have structural
damage and could fail without warn-
ing.

The use of retread tire is not recom-
mended.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
the front wheels on the vehicle could lead to
transmission damage.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information booklet.
Care of wheels
Wash the wheels when washing the vehicle
to maintain their appearance.

Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.

Do not use abrasive cleaners when washing
the wheels.

Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.

NISSAN recommends that the road wheels
be waxed to protect against road salt in areas
where it is used during winter.Spare tire (T-type spare tire)Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
CAUTION

The T-type spare tire should be used
for emergency use only. It should be
replaced by the standard tire at the
first opportunity.
8-38
Maintenance and do-it-yourself


07.2.9/Z33-D/V5.0


Drive carefully while the T-type spare
tire is installed.
Avoid sharp turns and abrupt braking
while driving.

Periodically check the T-type spare
tire inflation pressure, and always
keep it at 60 psi (420 kPa, 4.2 bar).

Do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).

Do not use tire chains on a T-type
spare tire. Tire chains will not fit
properly on the T-type spare tire and
may cause damage to the vehicle.

Tire tread of the T-type spare tire will
wear at a faster rate than the stan-
dard tire. Replace the T-type spare
tire as soon as the tread wear indica-
tors appear.

Because the T-type spare tire is
smaller than the original tire, ground
clearance is reduced. To avoid dam-
age to the vehicle, do not drive over
obstacles. Also, do not drive the ve-
hicle through an automatic car washsince it may get caught.

Do not use the T-type spare tire on
other vehicles.

Do not use more than one T-type
spare tire at the same time.

Do not tow a trailer while the T-type
spare tire is installed.
Maintenance and do-it-yourself
8-39


07.2.9/Z33-D/V5.0


MEMO8-40
Maintenance and do-it-yourself


07.2.9/Z33-D/V5.0


9 Technical and consumer informationCapacities and recommended fuel/lubricants .............. 9-2
Fuel recommendation .................................................... 9-3
Engine oil and oil filter recommendation .................. 9-5
Air conditioner system refrigerant and lubricant
recommendations ........................................................... 9-6
Specifications ........................................................................ 9-7
Engine ................................................................................. 9-7
Wheels and tires .............................................................. 9-8
Dimensions and weights ............................................... 9-8
When traveling or registering your vehicle in another
country ..................................................................................... 9-9
Vehicle identification ............................................................ 9-9
Vehicle identification number (VIN) plate ................. 9-9
Vehicle identification number (chassis number) ..... 9-9
Engine serial number ................................................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ................ 9-10
Emission control information label ........................... 9-10
Tire and loading information label ............................ 9-11
Air conditioner specification label ............................ 9-11
Installing front license plate ............................................. 9-12Vehicle loading information ............................................. 9-13
Terms ............................................................................... 9-13
Vehicle load capacity.................................................... 9-14
Loading tips .................................................................... 9-16
Measurement of weights ............................................. 9-16
Towing a trailer ................................................................... 9-17
Maximum load limits .................................................... 9-17
Towing safety ................................................................ 9-18
Flat towing............................................................................. 9-21
Automatic transmission ................................................ 9-22
Manual transmission ..................................................... 9-22
Uniform tire quality grading ............................................. 9-22
Emission control system warranty ................................. 9-23
Reporting safety defects (US only) ............................... 9-23
Readiness for inspection/maintenance (I/M) test
(US only) .............................................................................. 9-24
Event data recorders ......................................................... 9-25
Owner’s Manual/Service Manual order information ... 9-25
In the event of a collision ........................................... 9-26


07.2.9/Z33-D/V5.0


The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended
specifications US
measureImp
measureLiter
Fuel 20 gal 16-5/8 gal 76 Unleaded premium gasoline with an octane rating of at least 91 AKI (RON 96)*1
Engine oil (Drain and refill)*2
With oil filter change 5-1/8 qt 4-3/8 qt 4.9

Engine oil with API Certification Mark*3

Viscosity SAE 5W-30
Without oil filter change 4-7/8 qt 4 qt 4.6
Cooling system
With reservoir 9-1/2 qt 7-7/8 qt 9.0
50% Genuine NISSAN Long Life Antifreeze/Coolant or equivalent
50% Demineralized or distilled water
Reservoir 7/8 qt 3/4 qt 0.8
Automatic transmission fluid — — — Genuine NISSAN Matic J ATF*4
Manual transmission gear oil — — —Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or API GL-4, Viscosity
SAE 75W-85 or 75W-90
Differential gear oil — — —Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5, Viscosity SAE
80W-90*5
Power steering fluid (PSF)
Refill to the proper fluid level according to the instructions in
the “8. Maintenance and do-it-yourself” section.Genuine NISSAN PSF or equivalent*6
Brake and clutch fluidGenuine NISSAN Super Heavy Duty Brake Fluid*7 or equivalent DOT 3
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*8
Air conditioning system lubricants — — — NISSAN A/C System Oil Type S or exact equivalent
Windshield washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Anti-freeze or equivalent
*1: For additional information, see “Fuel recommendation” later in this section.
*2: For additional information, see “Engine oil” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*3: For additional information, see “Engine oil and oil filter recommendation” later in this section.
*4:Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and automatic transmission
durability, and may damage the automatic transmission, which is not covered by the NISSAN new vehicle limited warranty.
*5: For hot areas, viscosity SAE 90 is suitable for ambient temperatures above 32°F (0°C).
*6: DEXRON
TMVI or equivalent ATF may also be used. For Canada, NISSAN Automatic Transmission Fluid (ATF) is available.
*7: Available in mainland US through a NISSAN dealer.
*8: For additional information, see “Vehicle identification” in this section for air conditioner specification label.
CAPACITIES AND
RECOMMENDED FUEL/
LUBRICANTS9-2
Technical and consumer information


07.2.9/Z33-D/V5.0

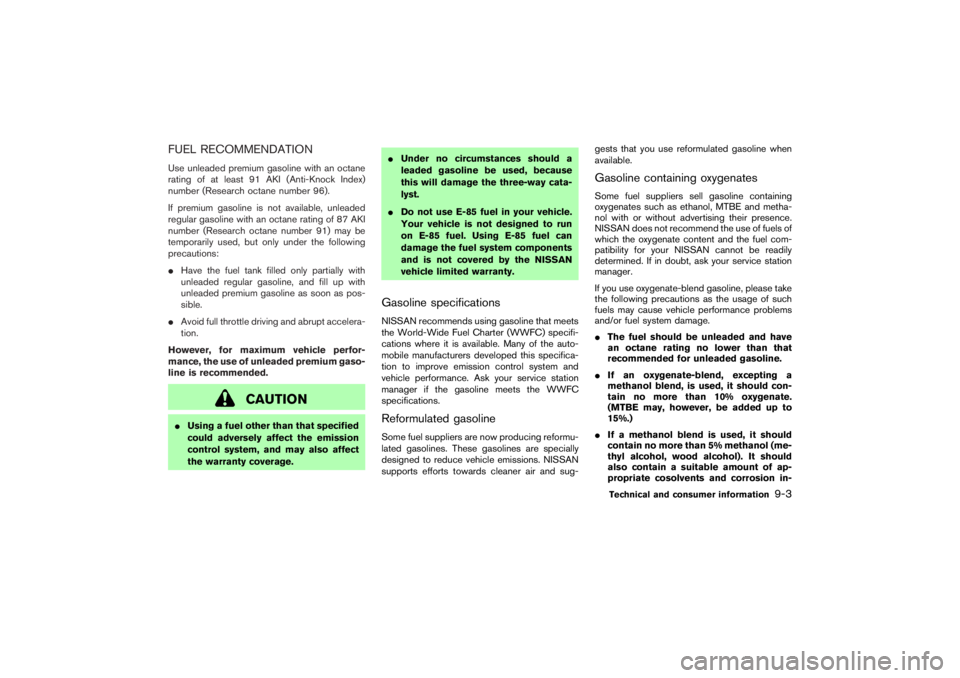

FUEL RECOMMENDATIONUse unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:

Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.

Avoid full throttle driving and abrupt accelera-
tion.
However, for maximum vehicle perfor-
mance, the use of unleaded premium gaso-
line is recommended.
CAUTION

Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect
the warranty coverage.
Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way cata-
lyst.

Do not use E-85 fuel in your vehicle.
Your vehicle is not designed to run
on E-85 fuel. Using E-85 fuel can
damage the fuel system components
and is not covered by the NISSAN
vehicle limited warranty.
Gasoline specificationsNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifi-
cations where it is available. Many of the auto-
mobile manufacturers developed this specifica-
tion to improve emission control system and
vehicle performance. Ask your service station
manager if the gasoline meets the WWFC
specifications.Reformulated gasolineSome fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-gests that you use reformulated gasoline when
available.
Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels of
which the oxygenate content and the fuel com-
patibility for your NISSAN cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.

The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.

If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

If a methanol blend is used, it should
contain no more than 5% methanol (me-
thyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
Technical and consumer information
9-3


07.2.9/Z33-D/V5.0


hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or ve-
hicle performance problems. At this
time, sufficient data is not available to
ensure that all methanol blends are
suitable for use in NISSAN vehicles.
If any undesirable driveability problems such as
engine stalling and hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.
E-85 fuelE-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispensing
pumps to be identified by a small, square, or-
ange and black label with the common abbre-
viation or the appropriate percentage for that
region.
Aftermarket fuel additivesNISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel in-
jector cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvents or similar ingredients that can be harm-
ful to the fuel system and engine.Octane rating tipsUsing unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the above stated
octane rating, or if you hear steady spark
knock while holding a steady speed on
level roads, have your dealer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which NISSAN
is not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are en-
countered, have your vehicle checked at aNISSAN dealer or other competent service fa-
cility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
9-4
Technical and consumer information


07.2.9/Z33-D/V5.0


1
API certification mark
2
API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oilIt is essential to choose the correct grade,
quality and viscosity engine oil to ensure satis-
factory engine life and performance. See “Ca-
pacities and recommended fuel/lubricants” ear-
lier in this section. NISSAN recommends the use
of an energy conserving oil in order to improve
fuel economy.Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifi-
cation mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additivesNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosityThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.Selecting the correct oil filterYour new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When
replacing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals”.Change intervalsThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new NISSAN vehicle limited warranties.
Your engine was filled with a high quality engine
STI0505
Technical and consumer information
9-5


07.2.9/Z33-D/V5.0
