2007 NISSAN 350Z Owner´s Manual

Roadster models:
1. Spare tire — Turn the retainer counterclock-
wise to remove.
2. Jack — Unfasten the belt and lift the jack up
to remove.
3. Jacking tools — They are in the tool bag.
Jacking up the vehicle and removing
the damaged tire
WARNING

Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.

Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles. The jack is de-
signed for lifting only your vehicle
during a tire change.

Use the correct jack up points. Never
use any other part of the vehicle for
jack support.

Never jack up the vehicle more than
necessary.

Never use blocks on or under the
jack.

Do not start or run the engine while
vehicle is on the jack, as it may causethe vehicle to move. This is especially
true for vehicles with limited slip dif-
ferentials.

Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the caution label attached to
the jack body and the following instruc-
tions.
SCE0491
Roadster models
6-4
In case of emergency


07.2.9/Z33-D/V5.0


1. Place the jack directly under the jack-up point
as illustrated above so that top of the jack
contacts the vehicle at the jack up point.
Align the jack head between the two notches
in the front or the rear as shown. Also fit the
groove of the jack head between the notches
as shown.The jack should be used on level firm
ground.
2. Loosen each wheel nut one or two turns by
turning counterclockwise with the wheel nut
wrench.Do not remove the wheel nuts
until the tire is off the ground.
3. Carefully raise the vehicle until the tire clears
the ground. To lift the vehicle, securely hold
the jack lever and rod with both hands as
shown above. Remove the wheel nuts, and
then remove the tire.
SCE0410A
Jack-up point
CE1092-A
In case of emergency
6-5


07.2.9/Z33-D/V5.0


Installing the spare tireThe spare tire is designed for emergency
use. See specific instructions under the
heading “Wheels and tires” in the “8. Main-
tenance and do-it-yourself” section.
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the wheel on and tighten the
wheel nuts finger tight. When replacing a
front tire, make sure the hole in the spare tire
wheel is aligned with the pin on the brake
rotor.
3. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the sequence
illustrated (
1
-5) until they are tight.
4. Lower the vehicle slowly until the tire touches
the ground. Then, with the wheel nut wrench,
tighten the wheel nuts securely in the se-
quence as illustrated. Lower the vehicle com-
pletely.
WARNING

Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.

Do not use oil or grease on the wheel
studs or nuts. This could cause the
nuts to become loose.

Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
As soon as possible tighten the wheel nuts
to the specified torque with a torque
wrench.Wheel nut tightening torque:
80 ft-lb (108 N⋅m)
The wheel nuts must be kept tightened to
specification at all times. It is recom-
mended that wheel nuts be tightened to
specification at each lubrication interval.
Adjust tire pressure to the COLD pressure.
COLD pressure:
After vehicle has been parked for three
hours or more or driven less than 1 mile
(1.6 km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to
the driver’s side center pillar.
For models equipped with the tire
pressure monitoring system (TPMS):
After adjusting tire pressure to the COLD tire
pressure, the display of the tire pressure infor-
mation may show higher pressure than the
COLD tire pressure after the vehicle has been
driven more than 1 mile (1.6 km). This is because
the tire pressurizes as the tire temperature rises.
This does not indicate a system malfunction.
Stowing the damaged tire and toolsSecurely store the spare tire and jacking equip-
ment in the vehicle.
SCE0039
6-6
In case of emergency


07.2.9/Z33-D/V5.0


WARNING

Always make sure that the spare tire
and jacking equipment are properly
secured after use. Such items can
become dangerous projectiles in an
accident or sudden stop.

The spare tire is designed for emer-
gency use. See specific instructions
under the heading “Wheels and tires”
in the “8. Maintenance and do-it-
yourself” section of this manual.To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING

If done incorrectly, jump starting can
lead to a battery explosion, resulting
in severe injury or death. It could also
damage your vehicle.

Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.

Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is a
corrosive sulfuric acid solution which
can cause severe burns. If the fluid
should come into contact with any-
thing, immediately flush the con-
tacted area with water.

Keep battery out of the reach of chil-
dren.

The booster battery must be rated at12 volts. Use of an improperly rated
battery can damage your vehicle.

Whenever working on or near a bat-
tery, always wear suitable eye protec-
tors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jew-
elry. Do not lean over the battery
when jump starting.

Do not attempt to jump start a frozen
battery. It could explode and cause
serious injury.JUMP STARTING
In case of emergency
6-7


07.2.9/Z33-D/V5.0


WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.
1. If the booster battery is in another vehicle,
position the two vehicles to bring their bat-
teries into close proximity to each other.
Do not allow the two vehicles to touch.
2. Apply parking brake. Move the selector leverto the P (Park) position (automatic transmis-
sion models) or move the shift lever to the N
(Neutral) position (manual transmission mod-
els). Switch off all unnecessary electrical
systems (light, heater, air conditioner, etc.).
3. Remove vent caps on the battery (if so
equipped). Cover the battery with an old
cloth to reduce explosion hazard.
4. Connect jumper cables in the sequence as
illustrated. (
1
-4)
CAUTION

Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (for example, strut mounting
bolt, etc. — not to the battery).

Make sure that the jumper cables do
not touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.
5. Start the engine of the other vehicle and let it
run for a few minutes.
6. Keep the engine speed of the other vehicle at
about 2,000 rpm, and start your engine in the
normal manner.
CAUTION
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, turn the key
off and wait 3 to 4 seconds before trying
again.
SCE0664
6-8
In case of emergency


07.2.9/Z33-D/V5.0

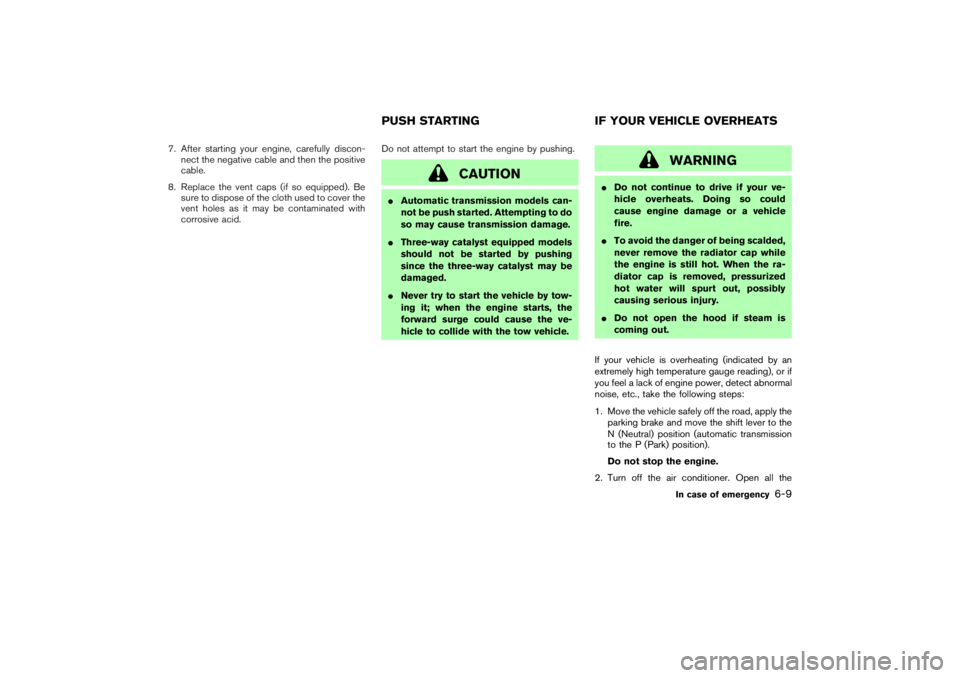

7. After starting your engine, carefully discon-
nect the negative cable and then the positive
cable.
8. Replace the vent caps (if so equipped). Be
sure to dispose of the cloth used to cover the
vent holes as it may be contaminated with
corrosive acid.Do not attempt to start the engine by pushing.
CAUTION

Automatic transmission models can-
not be push started. Attempting to do
so may cause transmission damage.

Three-way catalyst equipped models
should not be started by pushing
since the three-way catalyst may be
damaged.

Never try to start the vehicle by tow-
ing it; when the engine starts, the
forward surge could cause the ve-
hicle to collide with the tow vehicle.
WARNING

Do not continue to drive if your ve-
hicle overheats. Doing so could
cause engine damage or a vehicle
fire.

To avoid the danger of being scalded,
never remove the radiator cap while
the engine is still hot. When the ra-
diator cap is removed, pressurized
hot water will spurt out, possibly
causing serious injury.

Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or if
you feel a lack of engine power, detect abnormal
noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the
parking brake and move the shift lever to the
N (Neutral) position (automatic transmission
to the P (Park) position).
Do not stop the engine.
2. Turn off the air conditioner. Open all the
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency
6-9


07.2.9/Z33-D/V5.0


windows, and move the temperature control
to maximum hot and the fan control to high
speed.
3. If engine overheating is caused by climbing a
long hill on a hot day, run the engine at a fast
idle (approximately 1,500 rpm) until the tem-
perature gauge indication returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. (If steam or coolant
is escaping, turn off the engine.) Do not open
the hood further until no steam or coolant can
be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check if the cooling fan is running.
The radiator hoses and radiator should not
leak water.
If coolant is leaking or the cooling fan does
not run, stop the engine.
WARNING

Be careful not to allow your hands,
hair, jewelry or clothing to come into
contact with, or get caught in, engine
belts or the engine cooling fan.

The engine cooling fan can start at
any time when the coolant tempera-
ture is high.
7. After the engine cools down, check the cool-
ant level in the reservoir tank with the engine
running. Add coolant to the reservoir tank if
necessary. Have your vehicle repaired at a
NISSAN dealer.When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from a NISSAN dealer. Local service
operators are generally familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental damage
to your vehicle, NISSAN recommends having a
service operator tow your vehicle. It is advisable
to have the service operator carefully read the
following precautions.
WARNING

Never ride in a vehicle that is being
towed.

Never get under your vehicle after it
has been lifted by a tow truck.
CAUTION

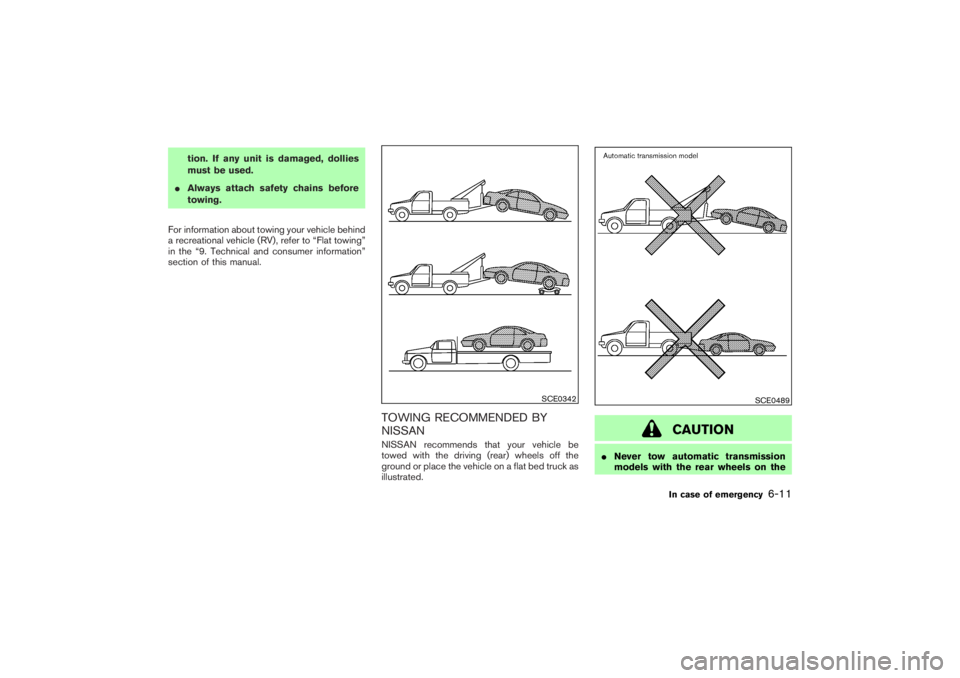

When towing, make sure that the
transmission, axles, steering system
and powertrain are in working condi-TOWING YOUR VEHICLE
6-10
In case of emergency


07.2.9/Z33-D/V5.0


tion. If any unit is damaged, dollies
must be used.

Always attach safety chains before
towing.
For information about towing your vehicle behind
a recreational vehicle (RV), refer to “Flat towing”
in the “9. Technical and consumer information”
section of this manual.
TOWING RECOMMENDED BY
NISSANNISSAN recommends that your vehicle be
towed with the driving (rear) wheels off the
ground or place the vehicle on a flat bed truck as
illustrated.
CAUTION

Never tow automatic transmission
models with the rear wheels on the
SCE0342
SCE0489
In case of emergency
6-11


07.2.9/Z33-D/V5.0
