2007 NISSAN 350Z Owner´s Manual

MEMO4-46
Display screen, heater, air conditioner and audio systems


07.2.9/Z33-D/V5.0


5 Starting and drivingPrecautions when starting and driving ............................ 5-2
Exhaust gas (Carbon monoxide) ................................. 5-2
Three-way catalyst .......................................................... 5-3
Tire pressure monitoring system (TPMS) ................. 5-3
Avoiding collision and rollover ..................................... 5-5
Drinking alcohol/drugs and driving ............................ 5-6
Ignition switch ....................................................................... 5-6
Automatic transmission ................................................. 5-7
Manual transmission ....................................................... 5-7
Key positions ................................................................... 5-8
NISSAN Vehicle Immobilizer System ........................ 5-8
Before starting the engine ................................................. 5-9
Starting the engine ............................................................... 5-9
Driving the vehicle ............................................................. 5-10
Automatic transmission ............................................... 5-10
Manual transmission .................................................... 5-13
Parking brake ...................................................................... 5-15
Cruise control (if so equipped) ...................................... 5-16
Precautions on cruise control ................................... 5-16
Cruise control operations ........................................... 5-17Break-in schedule .............................................................. 5-18
Increasing fuel economy .................................................. 5-18
Parking/parking on hills .................................................... 5-19
Power steering .................................................................... 5-20
Brake system ....................................................................... 5-21
Braking precautions ..................................................... 5-21
Anti-lock Braking System (ABS) ............................... 5-21
Traction Control System (TCS) (if so equipped) ...... 5-23
Vehicle Dynamic Control (VDC) system
(if so equipped) .................................................................. 5-23
Cold weather driving ......................................................... 5-25
Freeing a frozen door lock ......................................... 5-25
Anti-freeze ...................................................................... 5-25
Battery ............................................................................. 5-25
Draining of coolant water ........................................... 5-25
Tire equipment .............................................................. 5-25
Special winter equipment .......................................... 5-26
Driving on snow or ice ................................................ 5-26
Engine block heater (if so equipped) ....................... 5-26


07.2.9/Z33-D/V5.0

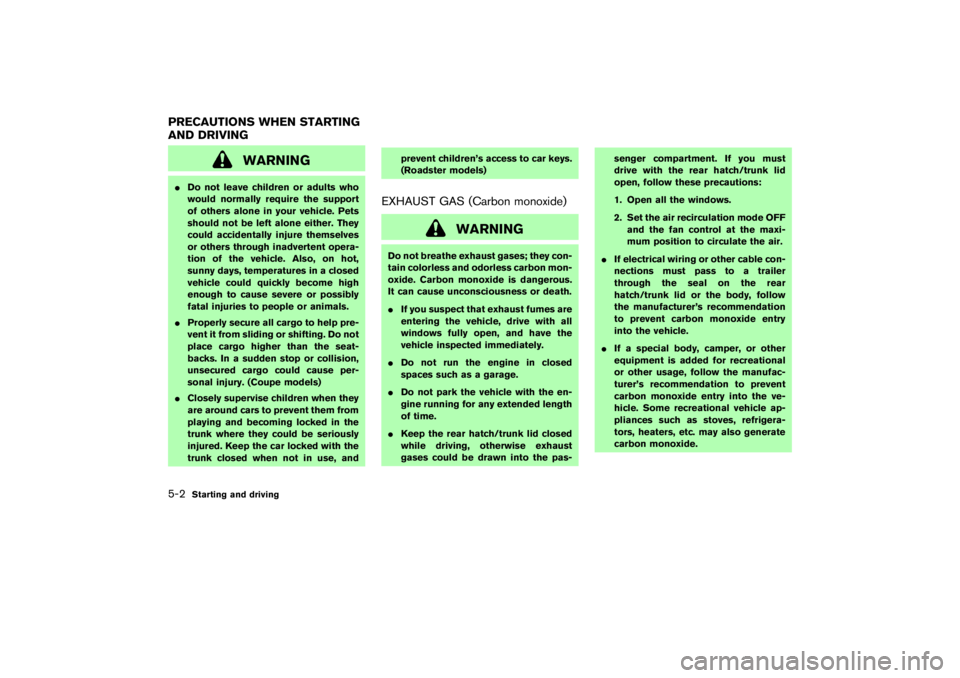

WARNING

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury. (Coupe models)

Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked with the
trunk closed when not in use, andprevent children’s access to car keys.
(Roadster models)
EXHAUST GAS (Carbon monoxide)
WARNING
Do not breathe exhaust gases; they con-
tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous.
It can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

Do not run the engine in closed
spaces such as a garage.

Do not park the vehicle with the en-
gine running for any extended length
of time.

Keep the rear hatch/trunk lid closed
while driving, otherwise exhaust
gases could be drawn into the pas-senger compartment. If you must
drive with the rear hatch/trunk lid
open, follow these precautions:
1. Open all the windows.
2. Set the air recirculation mode OFF
and the fan control at the maxi-
mum position to circulate the air.

If electrical wiring or other cable con-
nections must pass to a trailer
through the seal on the rear
hatch/trunk lid or the body, follow
the manufacturer’s recommendation
to prevent carbon monoxide entry
into the vehicle.

If a special body, camper, or other
equipment is added for recreational
or other usage, follow the manufac-
turer’s recommendation to prevent
carbon monoxide entry into the ve-
hicle. Some recreational vehicle ap-
pliances such as stoves, refrigera-
tors, heaters, etc. may also generate
carbon monoxide.
PRECAUTIONS WHEN STARTING
AND DRIVING5-2
Starting and driving


07.2.9/Z33-D/V5.0

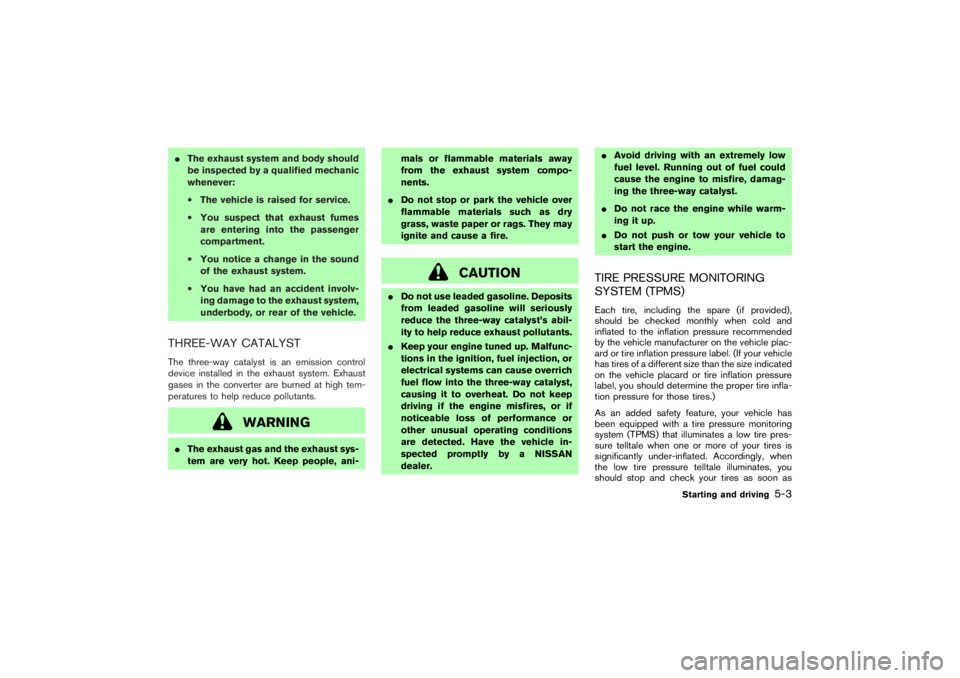

The exhaust system and body should
be inspected by a qualified mechanic
whenever:
•The vehicle is raised for service.
•You suspect that exhaust fumes
are entering into the passenger
compartment.
•You notice a change in the sound
of the exhaust system.
•You have had an accident involv-
ing damage to the exhaust system,
underbody, or rear of the vehicle.THREE-WAY CATALYSTThe three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the converter are burned at high tem-
peratures to help reduce pollutants.
WARNING

The exhaust gas and the exhaust sys-
tem are very hot. Keep people, ani-mals or flammable materials away
from the exhaust system compo-
nents.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline will seriously
reduce the three-way catalyst’s abil-
ity to help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly by a NISSAN
dealer.
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three-way catalyst.

Do not race the engine while warm-
ing it up.

Do not push or tow your vehicle to
start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle plac-
ard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure
label, you should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
Starting and driving
5-3


07.2.9/Z33-D/V5.0


possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indica-
tor is illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after
replacing one or more tires or wheels on yourvehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS to con-
tinue to function properly.
Additional information
The TPMS does not monitor the tire pressure
of the spare tire.

The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).

The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and
the outside temperature. Low outside tem-
perature can lower the temperature of the air
inside the tire which can cause a lower tire
inflation pressure. This may cause the low tire
pressure warning light to illuminate. If the
warning light illuminates in low ambient tem-perature, check the tire pressure for all four
tires.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “Tire pressure monitoring
system (TPMS)” in the “6. In case of emergency”
section.
WARNING

If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If you
have a flat tire, replace it with a spare
tire as soon as possible. (See “Flat
5-4
Starting and driving


07.2.9/Z33-D/V5.0


tire” in the “6. In case of emergency”
section for changing a flat tire.)

When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain
on after the 1 minute. Contact your
NISSAN dealer as soon as possible
for tire replacement and/or system
resetting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CAUTION
Do not place metalized film or any metal
parts (antenna, etc.) on the windows.This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:

Facilities or electric devices using similar
radio frequencies are near the vehicle.

If a transmitter set to similar frequencies is
being used in or near the vehicle.

If a computer (or similar equipment) or a
DC/AC converter is being used in or near the
vehicle.
FCC Notice:
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this devicemust accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle.As
with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways.Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness). Always
wear your seat belt as outlined in the “1. Safety
— Seats, seat belts and supplemental restraint
Starting and driving
5-5


07.2.9/Z33-D/V5.0


system” section and also instruct your passen-
gers to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers.In a rollover crash, an
unbelted or improperly belted person is
significantly more likely to be injured or
killed than a person properly wearing a
seat belt.DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alco-
hol or drugs. Alcohol in the bloodstream
reduces coordination, delays reaction
time and impairs judgement. Driving af-
ter drinking alcohol increases the likeli-
hood of being involved in an accident
injuring yourself and others. Addition-
ally, if you are injured in an accident,
alcohol can increase the severity of the
injury.
NISSAN is committed to safe driving. You must
not drive under the influence of alcohol. Every
year thousands of people are injured or killed inalcohol related accidents. Although the local
laws vary on what is considered to be legally
intoxicated, the fact is that alcohol affects all
people differently and most people underesti-
mate the effects of alcohol.
Remember, drinking and driving don’t mix! And
that is true for drugs, too (over the counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired by
alcohol, drugs, or some other physical condition.
WARNING
Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock. This may cause the
driver to lose control of the vehicle and
could result in serious vehicle damage
or personal injury.IGNITION SWITCH
5-6
Starting and driving


07.2.9/Z33-D/V5.0


AUTOMATIC TRANSMISSIONThe ignition lock is designed so the key cannot
be turned to the LOCK position and removed
until the selector lever is moved to the P (Park)
position.
When removing the key from the ignition switch,
make sure the selector lever is in the P (Park)
position.
If the selector lever is not returned to the P (Park)
position, the key cannot be moved to the LOCK
position.
When the key cannot be turned to the LOCK
position, proceed as follows to remove the key:1. Move the selector lever into the P (Park)
position.
2. Turn the ignition key slightly toward the ON
direction.
3. Turn the key to the LOCK position.
4. Remove the key.
If the key is removed from the ignition switch, the
selector lever cannot be moved from P (Park)
position.The selector lever can be moved if
the ignition switch is in the ONposition
and the foot brake pedal is depressed.
There is an OFF position
1
in between the
LOCK and ACC positions. The OFF position is
indicated by a “1” on the key cylinder. When the
ignition switch is in the OFF position, the steer-
ing wheel is not locked.
In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn counterclock-
wise from the straight up position.
To lock the steering wheel, turn the key to
the LOCK position. Remove the key. To
unlock the steering wheel, insert the key
and turn it gently while rotating the steer-
ing wheel slightly right and left.
MANUAL TRANSMISSIONThe ignition switch includes a device that helps
prevent accidental removal of the key while
driving.
The key can only be removed when the ignition
switch is in the LOCK position.
To turn the ignition switch to the LOCK position
from the ACC or ON position, turn the key to the
OFF position, push the key in, then turn the key
to the LOCK position.
There is an OFF position
1
in between the
LOCK and ACC positions. The OFF position is
indicated by a “1” on the key cylinder.
SSD0392
SSD0503
Starting and driving
5-7


07.2.9/Z33-D/V5.0
