DTC P0137, P0157 HO2S2
EC-289
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

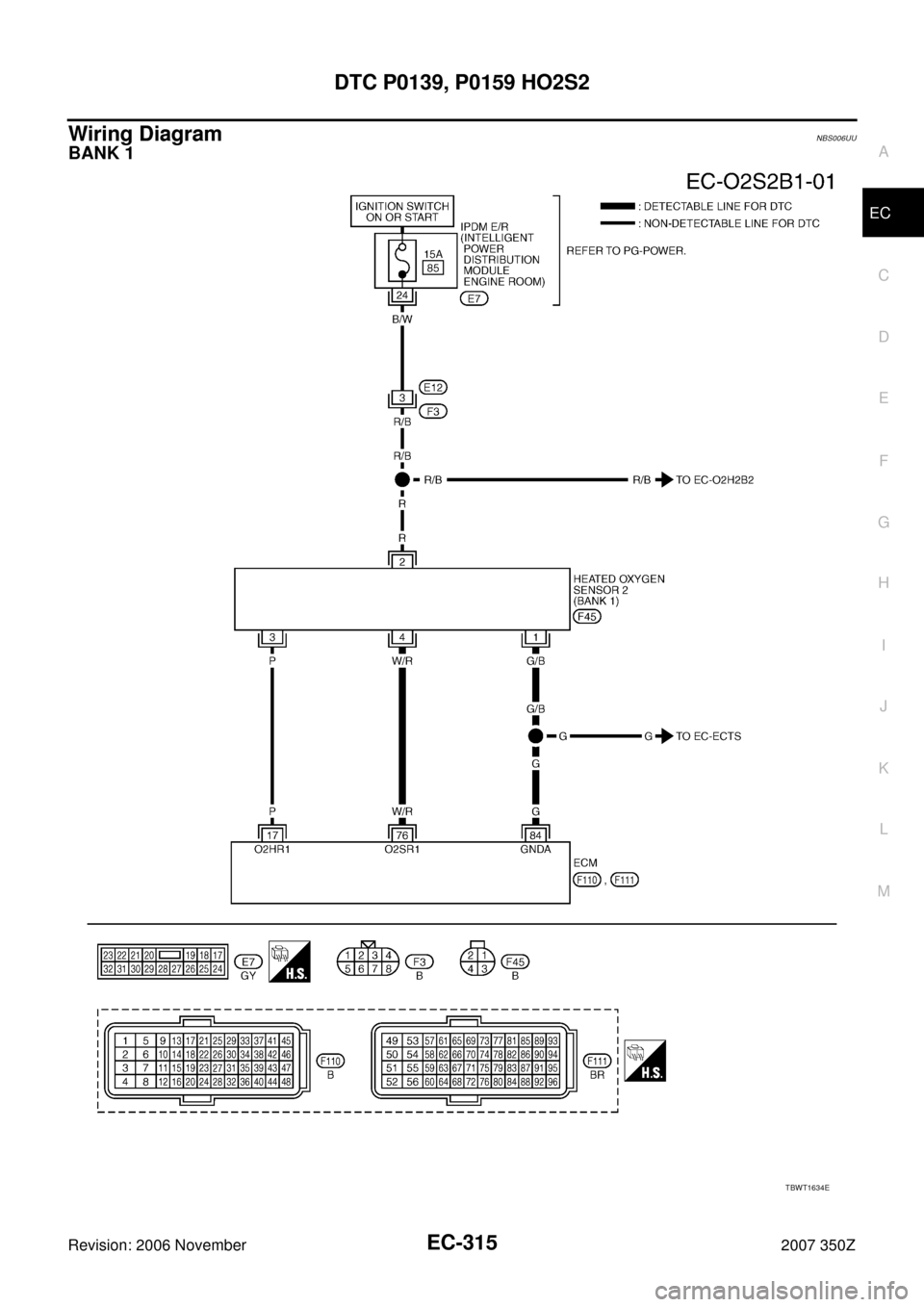

Wiring DiagramNBS000D1
BANK 1
TBWT1634E

DTC P0137, P0157 HO2S2
EC-295
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
3. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect heated oxygen sensor 2 harness connector.
4. Check harness continuity between HO2S2 terminal 1 and ECM terminal 84.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
2. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. Heated oxygen sensor 2 (bank 2) 2. Heated oxygen sensor 2 (bank 2)
harness connector3. Heated oxygen sensor 2 (bank 1)
4. Heated oxygen sensor 2 (bank 1)
harness connector
:Vehicle front
Continuity should exist.
PBIB3502E
DTCTe r m i n a l s
Bank
ECM Sensor
P0137 76 4 1
P0157 80 4 2
Continuity should exist.
DTCTe r m i n a l s
Bank
ECM Sensor
P0137 76 4 1
P0157 80 4 2
Continuity should not exist.

DTC P0138, P0158 HO2S2
EC-301
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Wiring DiagramNBS006UT
BANK 1
TBWT1634E

EC-306
DTC P0138, P0158 HO2S2
Revision: 2006 November2007 350Z
2. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect heated oxygen sensor 2 harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between HO2S2 terminal 1 and ECM terminal 84.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
2. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. Heated oxygen sensor 2 (bank 2) 2. Heated oxygen sensor 2 (bank 2)
harness connector3. Heated oxygen sensor 2 (bank 1)
4. Heated oxygen sensor 2 (bank 1)
harness connector
:Vehicle front
Continuity should exist.
PBIB3502E
DTCTerminals
Bank
ECM Sensor
P0138 76 4 1
P0158 80 4 2
Continuity should exist.
DTCTerminals
Bank
ECM Sensor
P0138 76 4 1
P0158 80 4 2
Continuity should not exist.

EC-310
DTC P0138, P0158 HO2S2
Revision: 2006 November2007 350Z
3. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between HO2S2 terminal 1 and ECM terminal 84.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
2. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. Heated oxygen sensor 2 (bank 2) 2. Heated oxygen sensor 2 (bank 2)
harness connector3. Heated oxygen sensor 2 (bank 1)
4. Heated oxygen sensor 2 (bank 1)
harness connector
:Vehicle front
Continuity should exist.
PBIB3502E
DTCTerminals
Bank
ECM Sensor
P0138 76 4 1
P0158 80 4 2
Continuity should exist.
DTCTerminals
Bank
ECM Sensor
P0138 76 4 1
P0158 80 4 2
Continuity should not exist.

DTC P0139, P0159 HO2S2
EC-315
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Wiring DiagramNBS006UU
BANK 1
TBWT1634E

DTC P0139, P0159 HO2S2
EC-321
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
3. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between HO2S2 terminal 1 and ECM terminal 84.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
2. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. Heated oxygen sensor 2 (bank 2) 2. Heated oxygen sensor 2 (bank 2)
harness connector3. Heated oxygen sensor 2 (bank 1)
4. Heated oxygen sensor 2 (bank 1)
harness connector
:Vehicle front
Continuity should exist.
PBIB3502E
DTCTe r m i n a l s
Bank
ECM Sensor
P0139 76 4 1
P0159 80 4 2
Continuity should exist.
DTCTe r m i n a l s
Bank
ECM Sensor
P0139 76 4 1
P0159 80 4 2
Continuity should not exist.

EC-326
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 November2007 350Z

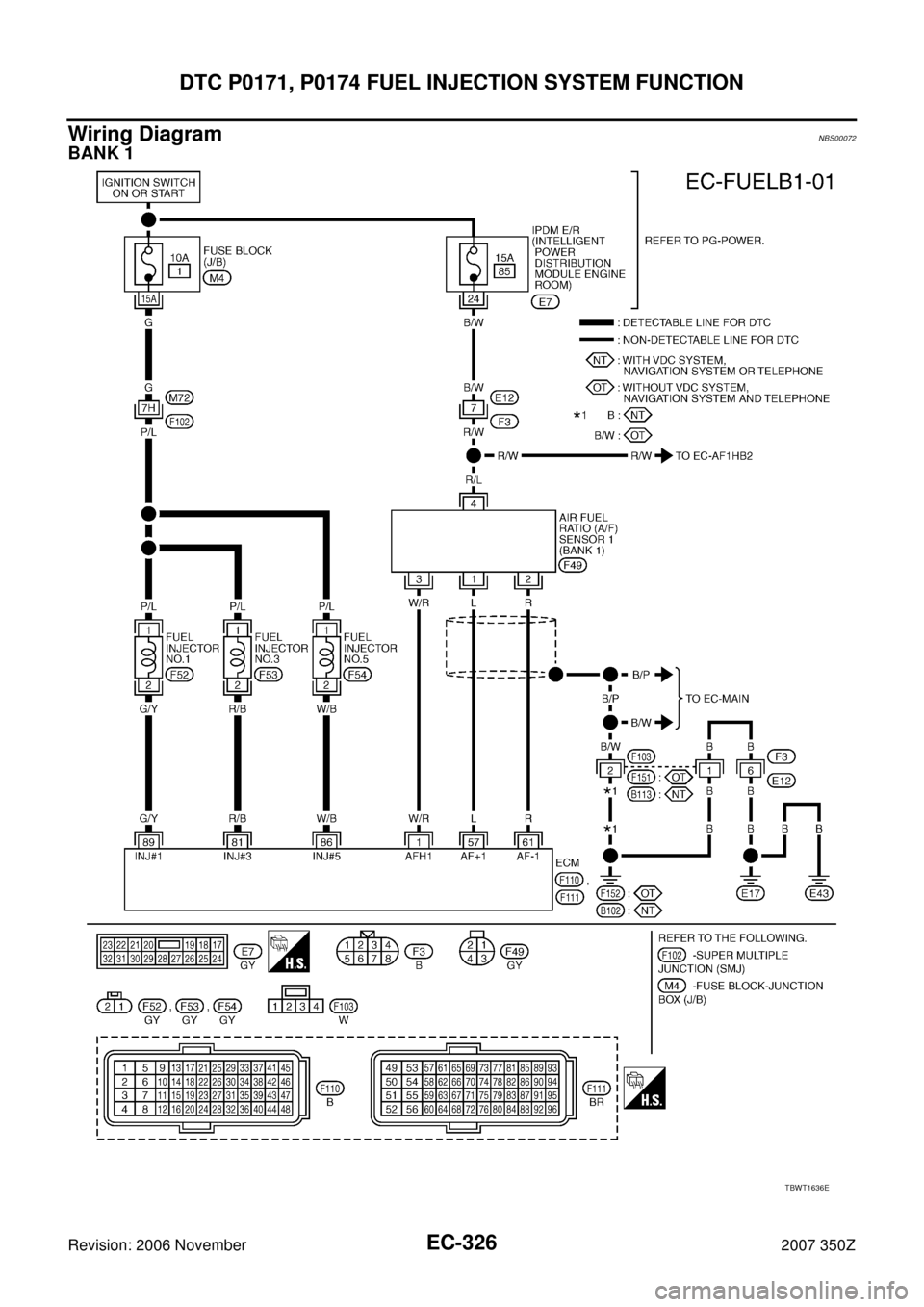

Wiring DiagramNBS00072
BANK 1
TBWT1636E
