EC-164
DTC P0014 P0024 EVT CONTROL
Revision: 2006 November2007 350Z
12. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
For Wiring Diagram, refer to EC-388
for crankshaft position sensor (POS) and EC-397 for camshaft position
sensor (PHASE).
>>INSPECTION END
Component InspectionNBS0004H
EXHAUST VALVE TIMING CONTROL MAGNET RETARDER
1. Disconnect exhaust valve timing control magnet retarder harness connector.
2. Check resistance between exhaust valve timing control magnet
retarder terminals 1 and 2.
3. If NG, replace exhaust valve timing control magnet retarder and
go to the next step.
4. Perform EC-76, "
Exhaust Valve Timing Control Learning" .
Removal and InstallationNBS0004I
EXHAUST VALVE TIMING CONTROL MAGNET RETARDER
Refer to EM-44, "FRONT TIMING CHAIN CASE" . Resistance: 9.0 - 11.0Ω [at 20°C (68°F)]
PBIB3469E

EC-166
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 November2007 350Z
Wiring DiagramNBS000BA
BANK 1
TBWT1617E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-171
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check voltage between air fuel ratio sensor (A/F) sensor 1 ter-
minal 4 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E12, F3

15A fuse

Harness for open or short between air fuel ratio (A/F) sensor 1 and fuse
>> Repair or replace harness or connectors.
4. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 1 (bank 1) or 5 (bank 2) and air fuel ratio (A/F) sensor 1
terminal 3.
Refer to Wiring Diagram.
4. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. A/F sensor 1 (bank 1) harness con-
nector2. A/F sensor 1 (bank 2) harness con-
nector
:Ve h ic le f o rn t
Voltage: Battery voltage
PBIB3516E
PBIB3308E
Continuity should exist.

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
EC-175
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

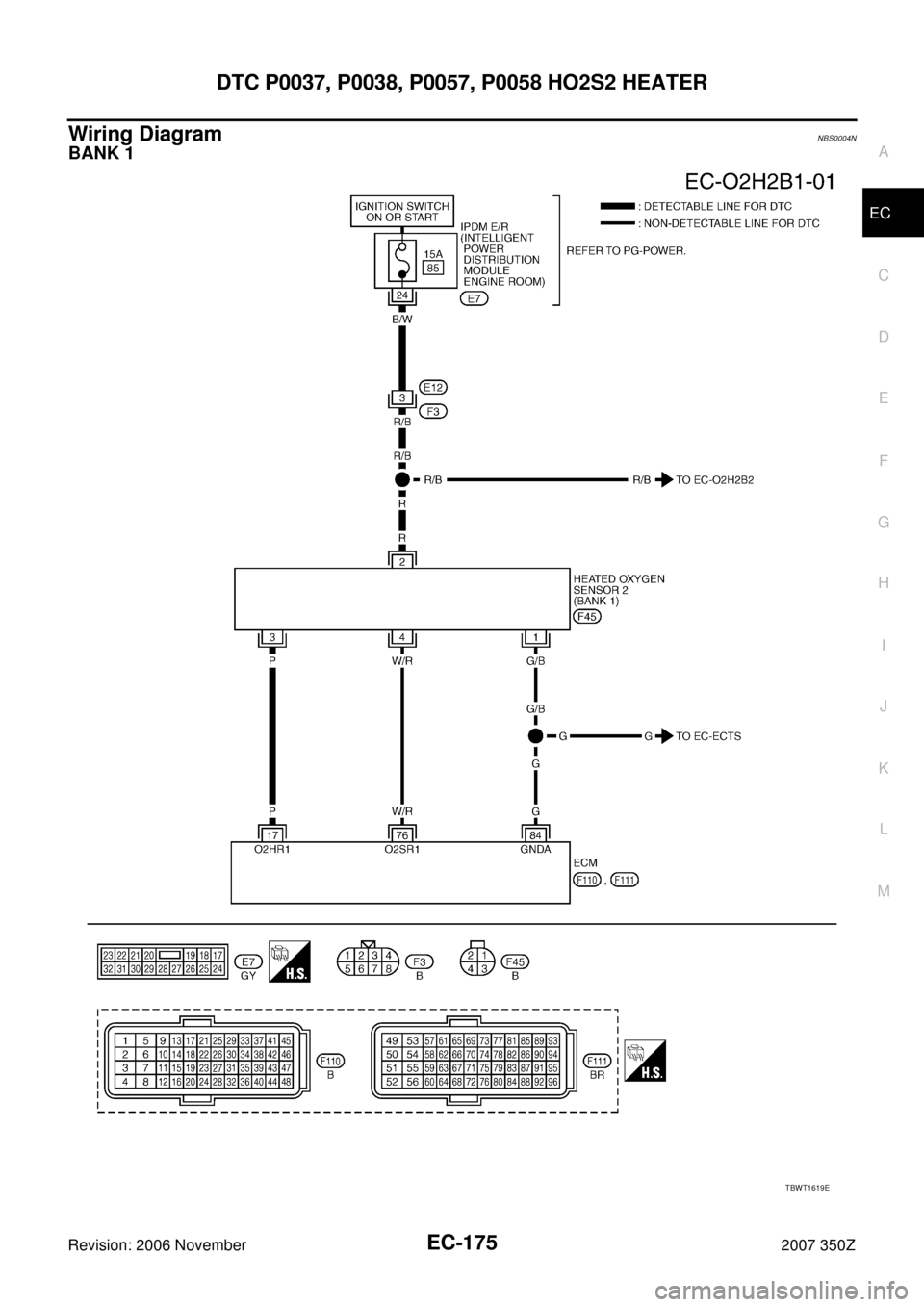

Wiring DiagramNBS0004N
BANK 1
TBWT1619E

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
EC-181
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
4. CHECK HO2S2 HEATER OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK HEATED OXYGEN SENSOR 2 HEATER
Refer to EC-181, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning heated oxygen sensor 2.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS0004P
HEATED OXYGEN SENSOR 2 HEATER
1. Check resistance between HO2S2 terminals as follows.
2. If NG, replace heated oxygen sensor 2.
CAUTION:

Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard sur-
face such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system
threads using Oxygen Sensor Thread Cleaner tool J-43897-
18 or J-43897-12 and approved anti-seize lubricant.
DTCTe r m i n a l s
Bank
ECM Sensor
P0037, P0038 17 3 1
P0057, P0058 33 3 2
Continuity should exist.
Terminal No. Resistance
2 and 3 3.4 - 4.4 Ω [at 25°C (77°F)]
1 and 2, 3, 4
∞ Ω
(Continuity should not exist)
4 and 1, 2, 3
PBIB3310E

EC-184
DTC P0075, P0081 IVT CONTROL SOLENOID VALVE
Revision: 2006 November2007 350Z

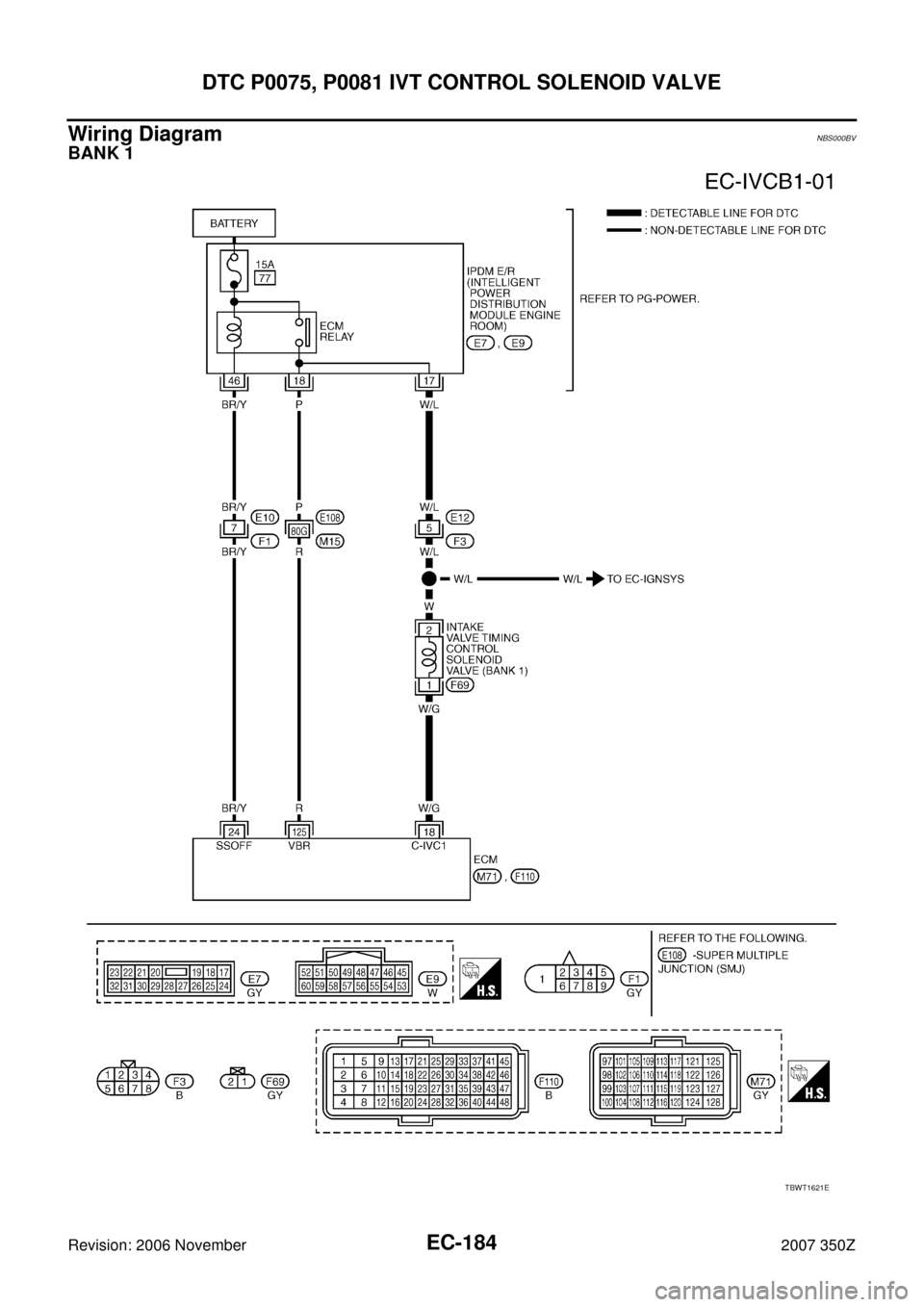

Wiring DiagramNBS000BV
BANK 1
TBWT1621E

EC-188
DTC P0075, P0081 IVT CONTROL SOLENOID VALVE
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS000BW
1. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid
valve terminal 2 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E12, F3

Harness for open or short between intake valve timing control solenoid valve and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 18 (bank 1) or 29 (bank 2) and intake valve timing con-
trol solenoid valve terminal 1. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. Exhaust valve timing control magnet
retarder (bank 1) harness connector2. Intake valve timing control solenoid
valve (bank 1) harness connector3. Intake valve timing control solenoid
valve (bank 2) harness connector
4. Exhaust valve timing control magnet
retarder (bank 2) harness connector
Voltage: Battery voltage
PBIB3508E
PBIB0192E
Continuity should exist.

DTC P0078 P0084 EVT CONTROL MAGNET RETARDER
EC-191
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Wiring DiagramNBS0004V
BANK 1
TBWT1623E
