2007 NISSAN 350Z diagram

DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
EC-331
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect corresponding A/F sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-79, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-80, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
1. A/F sensor 1 harness connector
(bank 1)2. A/Fsensor 1 harness connector
(bank 2)
:Vehicle front
A/F sensor 1 terminal ECM terminal
Bank 1157
261
Bank 2165
266
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
157165
261266
Continuity should not exist.
PBIB3516E
At idling: Approximately 350 kPa (3.57 kg/cm2 , 51 psi)

EC-336
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 November2007 350Z

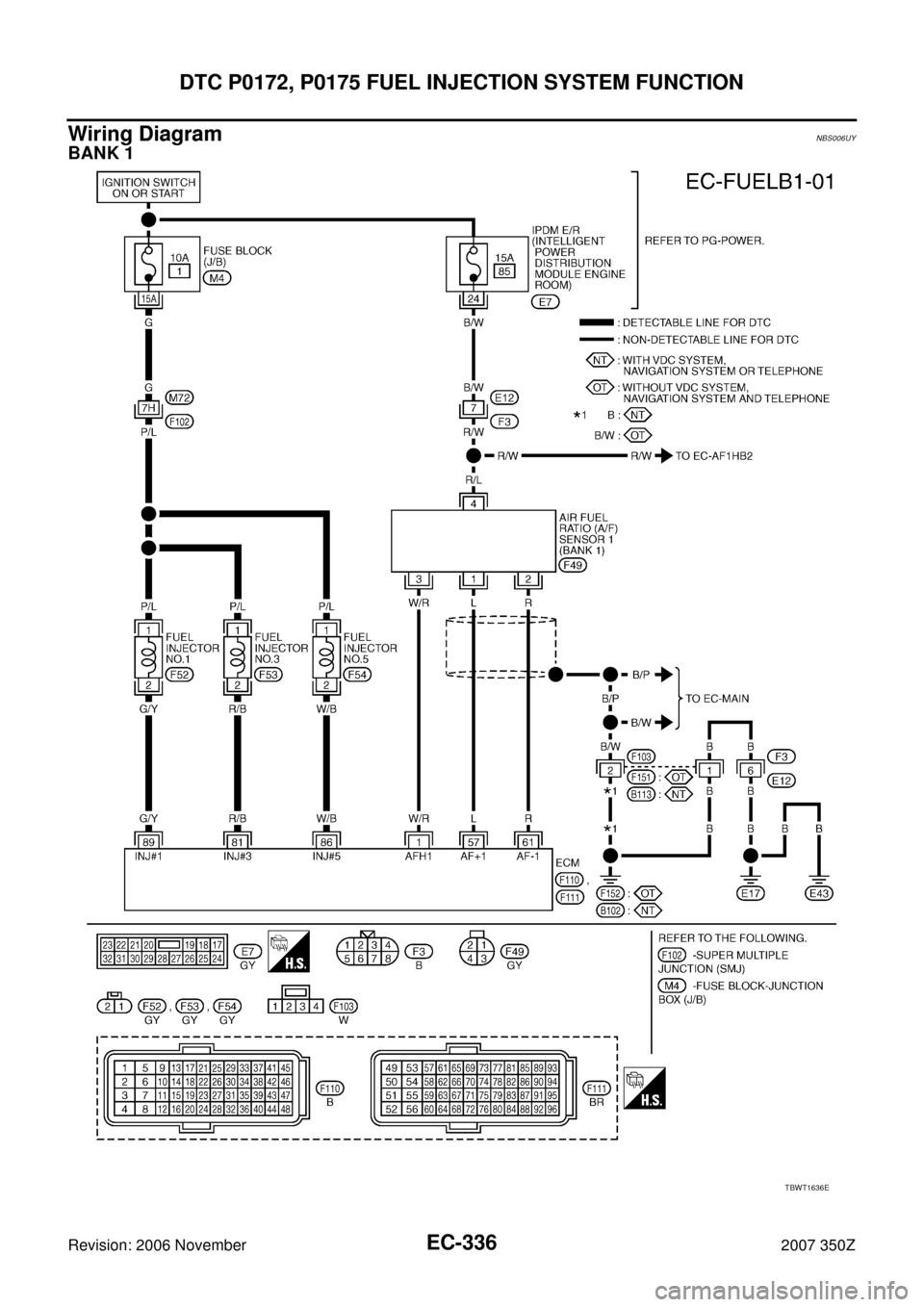

Wiring DiagramNBS006UY
BANK 1
TBWT1636E

DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-341
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect corresponding A/F sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-79, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-80, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
1. A/F sensor 1 harness connector
(bank 1)2. A/F sensor 1 harness connector
(bank 2)
:Vehicle front
Bank 1A/F sensor 1 terminal ECM terminal
157
261
Bank 2165
266
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
157165
261266
Continuity should not exist.
PBIB3516E
At idling: Approximately 350 kPa (3.57 kg/cm2 , 51 psi)

DTC P0181 FTT SENSOR
EC-345
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Wiring DiagramNBS0007B
TBWT1640E

EC-346
DTC P0181 FTT SENSOR
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS0007C
1. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-47, "
SELF-DIAGNOSTIC RESULTS" .
OK or NG
OK >> GO TO 2.
NG >> Go to DI-19, "
Fuel Level Sensor Signal Inspection" .
2. CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector.
2. Turn ignition switch ON.
3. Check voltage between “fuel level sensor unit and fuel pump”
terminal 4 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B1, M12

Harness for open or short between ECM and “fuel level sensor unit and fuel pump”
>> Repair open circuit or short to ground or short to power in harness or connector.
4. CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector M49.
3. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 5 and “unified meter and
A/C amp.” terminal 36. Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
PBIB1665E
Voltage: Approximately 5V
PBIB0932E
Continuity should exist.

DTC P0182, P0183 FTT SENSOR
EC-349
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Wiring DiagramNBS0007I
TBWT1640E

EC-350
DTC P0182, P0183 FTT SENSOR
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS0007J
1. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-47, "
SELF-DIAGNOSTIC RESULTS" .
OK or NG
OK >> GO TO 2.
NG >> Go to DI-19, "
Fuel Level Sensor Signal Inspection" .
2. CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector.
2. Turn ignition switch ON.
3. Check voltage between “fuel level sensor unit and fuel pump”
terminal 4 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B1, M12

Harness for open or short between ECM and “fuel level sensor unit and fuel pump”
>> Repair open circuit or short to ground or short to power in harness or connector.
4. CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector M49.
3. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 5 and “unified meter and
A/C amp.” terminal 36. Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
PBIB1665E
Voltage: Approximately 5V
PBIB0932E
Continuity should exist.

EC-354
DTC P0196 EOT SENSOR
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS006TN
1. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK ENGINE OIL TEMPERATURE SENSOR
Refer to EC-355, "
Component Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Replace engine oil temperature sensor.
3. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
Refer to EC-357, "
Wiring Diagram" .
>>INSPECTION END
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E
