DTC P0014 P0024 EVT CONTROL
EC-163
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

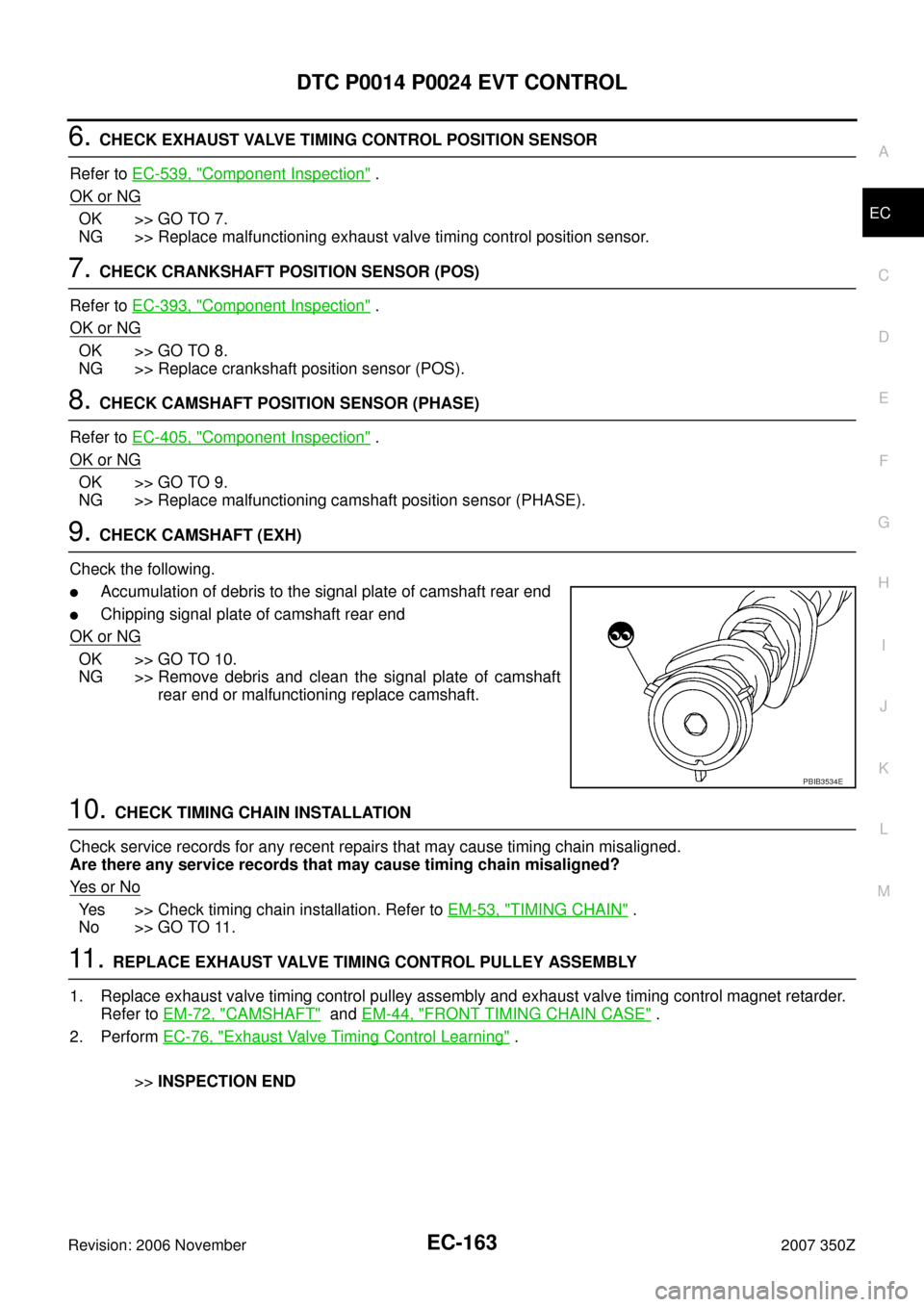

6. CHECK EXHAUST VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-539, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning exhaust valve timing control position sensor.
7. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-393, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace crankshaft position sensor (POS).
8. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-405, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace malfunctioning camshaft position sensor (PHASE).
9. CHECK CAMSHAFT (EXH)
Check the following.

Accumulation of debris to the signal plate of camshaft rear end

Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 10.
NG >> Remove debris and clean the signal plate of camshaft
rear end or malfunctioning replace camshaft.
10. CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
Ye s o r N o
Yes >> Check timing chain installation. Refer to EM-53, "TIMING CHAIN" .
No >> GO TO 11.
11 . REPLACE EXHAUST VALVE TIMING CONTROL PULLEY ASSEMBLY
1. Replace exhaust valve timing control pulley assembly and exhaust valve timing control magnet retarder.
Refer to EM-72, "
CAMSHAFT" and EM-44, "FRONT TIMING CHAIN CASE" .
2. Perform EC-76, "
Exhaust Valve Timing Control Learning" .
>>INSPECTION END
PBIB3534E

EC-164
DTC P0014 P0024 EVT CONTROL
Revision: 2006 November2007 350Z

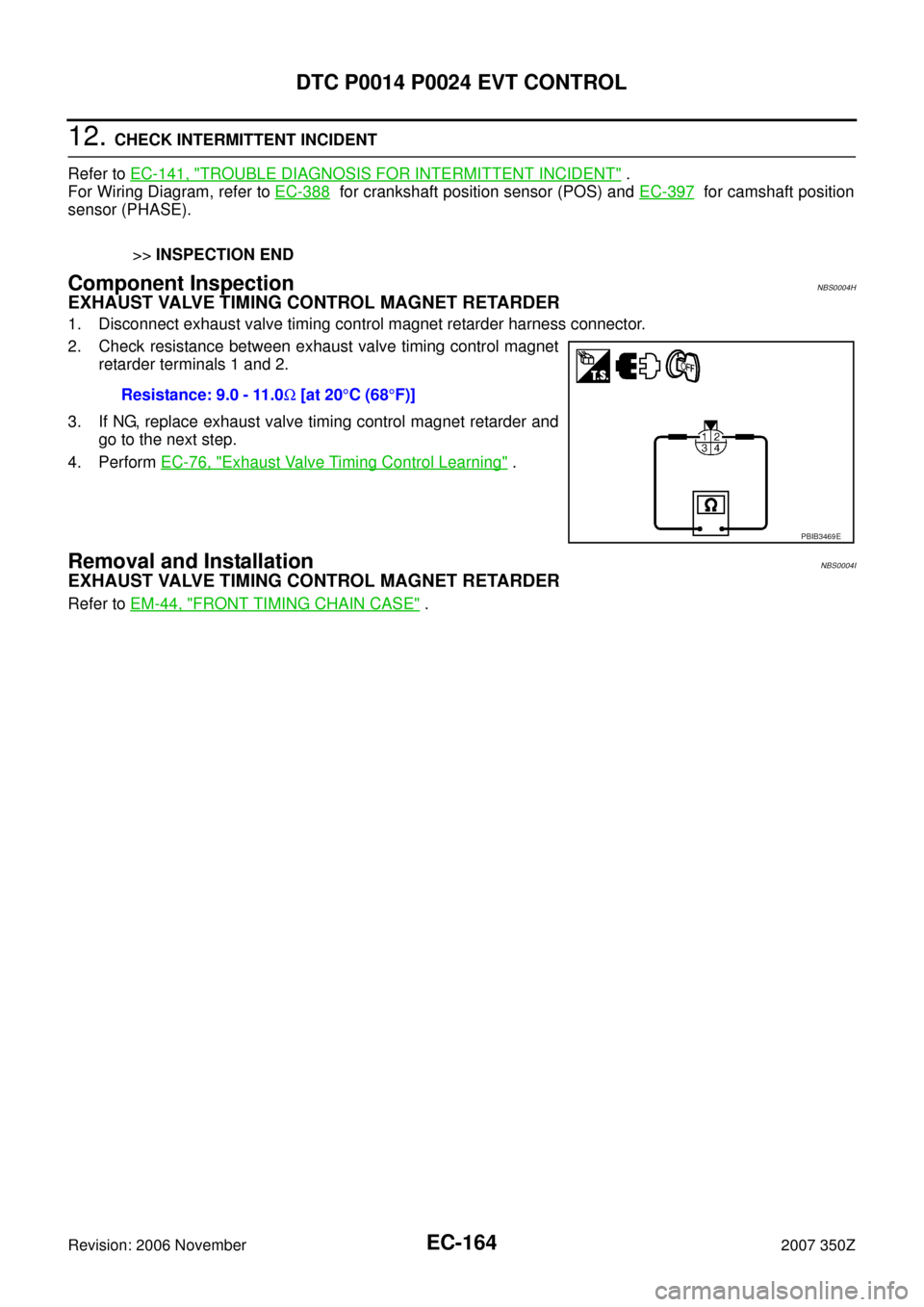

12. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
For Wiring Diagram, refer to EC-388
for crankshaft position sensor (POS) and EC-397 for camshaft position
sensor (PHASE).
>>INSPECTION END
Component InspectionNBS0004H
EXHAUST VALVE TIMING CONTROL MAGNET RETARDER
1. Disconnect exhaust valve timing control magnet retarder harness connector.
2. Check resistance between exhaust valve timing control magnet
retarder terminals 1 and 2.
3. If NG, replace exhaust valve timing control magnet retarder and
go to the next step.
4. Perform EC-76, "
Exhaust Valve Timing Control Learning" .
Removal and InstallationNBS0004I
EXHAUST VALVE TIMING CONTROL MAGNET RETARDER
Refer to EM-44, "FRONT TIMING CHAIN CASE" . Resistance: 9.0 - 11.0Ω [at 20°C (68°F)]
PBIB3469E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-165
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATERPFP:22693
DescriptionNBS000B6
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
CONSULT-III Reference Value in Data Monitor ModeNBS000B7
Specification data are reference values.
On Board Diagnosis LogicNBS000B8
DTC Confirmation ProcedureNBS000B9
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-III
1. Start engine and let it idle for at least 10 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-170, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III” above.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speedAir fuel ratio (A/F)
sensor 1 heater
controlAir fuel ratio (A/F) sensor 1 heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR(B1)
A/F S1 HTR(B2)

Engine: After warming up, idle the engine
(More than 140 seconds after starting engine)4 - 100%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0031
0031
(Bank 1)Air fuel ratio (A/F) sensor
1 heater control circuit
low inputThe current amperage in the air fuel ratio (A/F)
sensor 1 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the A/F sensor 1 heater.)

Harness or connectors
(The A/F sensor 1 heater circuit is
open or shorted.)

Air fuel ratio (A/F) sensor 1 heater P0051
0051
(Bank 2)
P0032
0032
(Bank 1)Air fuel ratio (A/F) sensor
1 heater control circuit
high inputThe current amperage in the air fuel ratio (A/F)
sensor 1 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the A/F sensor 1 heater.)

Harness or connectors
(The A/F sensor 1 heater circuit is
shorted.)

Air fuel ratio (A/F) sensor 1 heater P0052
0052
(Bank 2)

EC-166
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 November2007 350Z

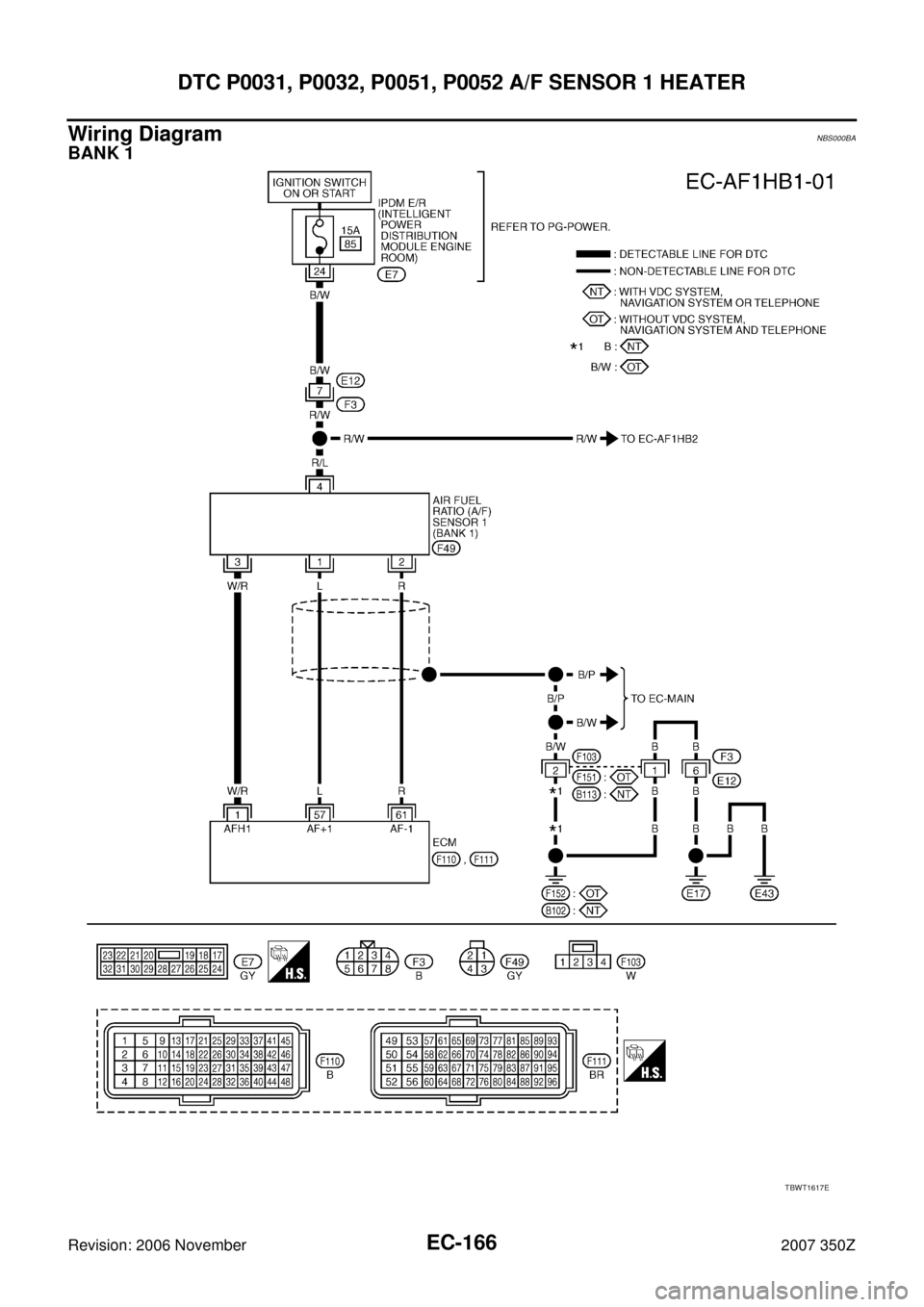

Wiring DiagramNBS000BA
BANK 1
TBWT1617E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-167
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1W/RA/F sensor 1 heater
(bank 1)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8V
57 L A/F sensor 1 (bank 1)[Ignition switch: ON]2.2V
61 R A/F sensor 1 (bank 1)[Ignition switch: ON]

Warm-up condition

Engine speed: 2,000 rpm1.8V
Output voltage varies with air
fuel ratio.
PBIB3538E

EC-168
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 November2007 350Z
BANK 2
TBWT1618E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-169
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
5GY/LA/F sensor 1 heater
(bank 2)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8
65 PU A/F sensor 1 (bank 2)[Ignition switch: ON]2.2V
66 LG A/F sensor 1 (bank 2)[Ignition switch: ON]

Warm-up condition

Engine speed: 2,000 rpm1.8V
Output voltage varies with air
fuel ratio.
PBIB3538E

EC-170
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS000BB

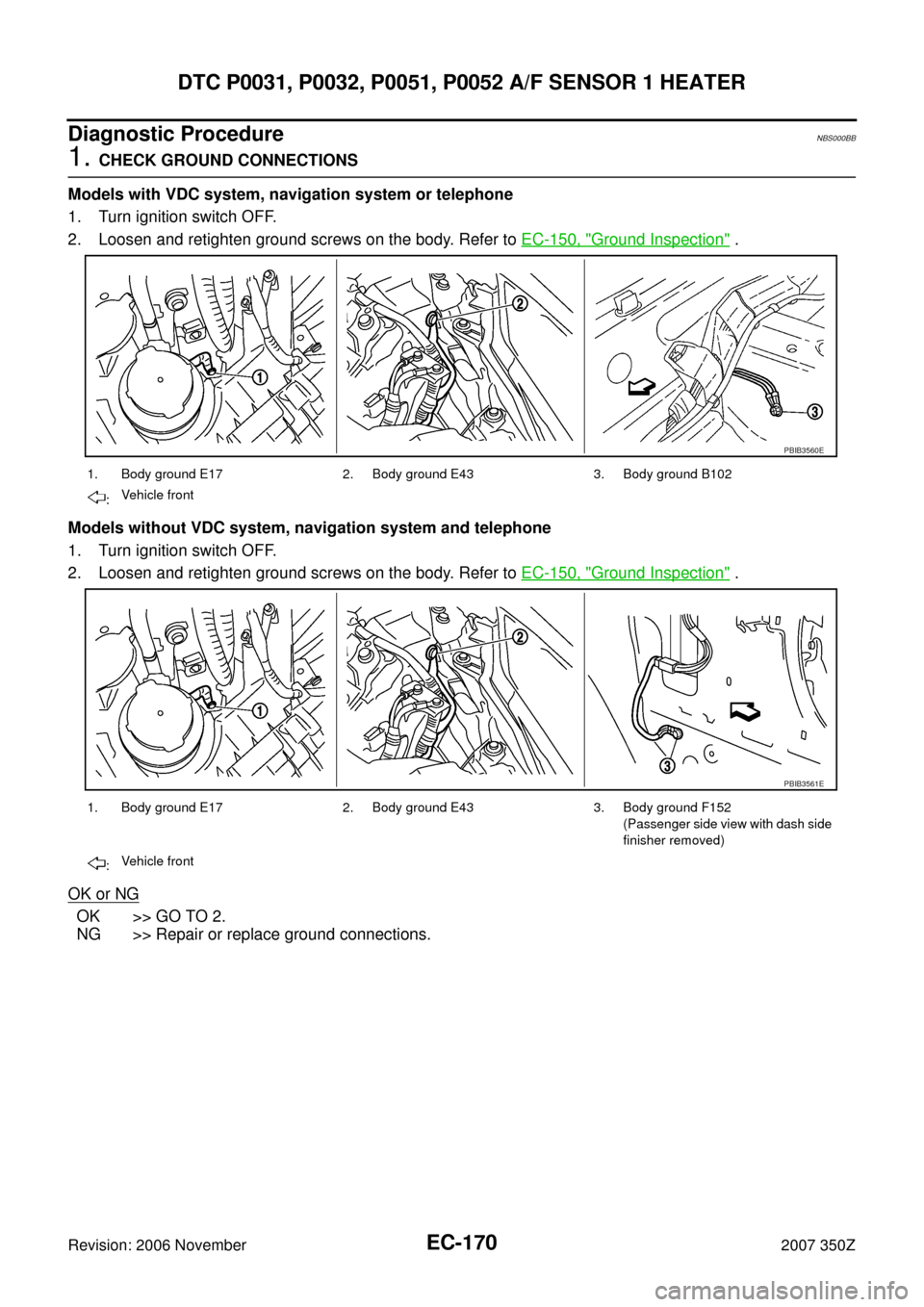

1. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E
