2007 NISSAN 350Z sensor

DTC P0101, P010B MAF SENSOR
EC-197
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
DTC P0101, P010B MAF SENSORPFP:22680
Component DescriptionNBS0004Z
The mass air flow sensor (1) is placed in the stream of intake air. It
measures the intake flow rate by measuring a part of the entire
intake flow. The mass air flow sensor controls the temperature of the
hot wire is to a certain amount. The heat generated by the hot wire is
reduced as the intake air flows around it. The more air, the greater
the heat loss.
Therefore, the electric current supplied to hot wire is changed to
maintain the temperature of the hot wire as air flow increases. The
ECM detects the air flow by means of this current change.
CONSULT-III Reference Value in Data Monitor ModeNBS00050
Specification data are reference values.
On Board Diagnosis LogicNBS00051
PBIA9559J
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1
See EC-132, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
MAS A/F SE-B2
CAL/LD VALUE

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No loadIdle 5% - 35%
2,500 rpm 5% - 35%
MASS AIRFLOW

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No loadIdle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0101
0101
(Bank 1)
Mass air flow sensor cir-
cuit range/performance
problemA)A high voltage from the sensor is sent to ECM
under light load driving condition.

Harness or connectors
(The sensor circuit is open or
shorted.)

Mass air flow sensor

EVAP control system pressure
sensor

Intake air temperature sensor
P010B
010B
(Bank 2)B)A low voltage from the sensor is sent to ECM
under heavy load driving condition.

Harness or connectors
(The sensor circuit is open or
shorted.)

Intake air leaks

Mass air flow sensor

EVAP control system pressure
sensor

Intake air temperature sensor

EC-198
DTC P0101, P010B MAF SENSOR
Revision: 2006 November2007 350Z
DTC Confirmation ProcedureNBS00052
Perform PROCEDURE FOR MALFUNCTION A first.
If the DTC cannot be confirmed, perform PROCEDURE FOR MALFUNCTION B.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
NOTE:
If engine will not start or stops soon, wait at least 10 seconds with engine stopped (Ignition switch ON) instead
of running engine at idle speed.
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Run engine for at least 10 seconds at idle speed.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to EC-203, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-III” above.
PROCEDURE FOR MALFUNCTION B
CAUTION:
Always drive vehicle at a safe speed.
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
If engine cannot be started, go to EC-203, "
Diagnostic Procedure" .
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Check the voltage of “MAS A/F SE-B1” and “MAS A/F SE-B2”
with “DATA MONITOR”.
4. Increases engine speed to about 4,000 rpm.
5. Monitor the linear voltage rise in response to engine speed
increases.
If NG, go to EC-203, "
Diagnostic Procedure" .
If OK, go to following step.
6. Maintain the following conditions for at least 10 consecutive sec-
onds.
7. Check 1st trip DTC.
8. If 1st trip DTC is detected, go to EC-203, "
Diagnostic Procedure"
.
Overall Function CheckNBS00053
PROCEDURE FOR MALFUNCTION B
Use this procedure to check the overall function of the mass air flow sensor circuit. During this check, a 1st trip
DTC might not be confirmed.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Select Service $01 with GST.
ENG SPEED More than 2,000 rpm
THRTL SEN 1 More than 3V
THRTL SEN 2 More than 3V
Shift lever Suitable position
Driving locationDriving vehicle uphill (Increased engine load) will help
maintain the driving conditions required for this test.
PBIB3457E

DTC P0101, P010B MAF SENSOR
EC-199
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

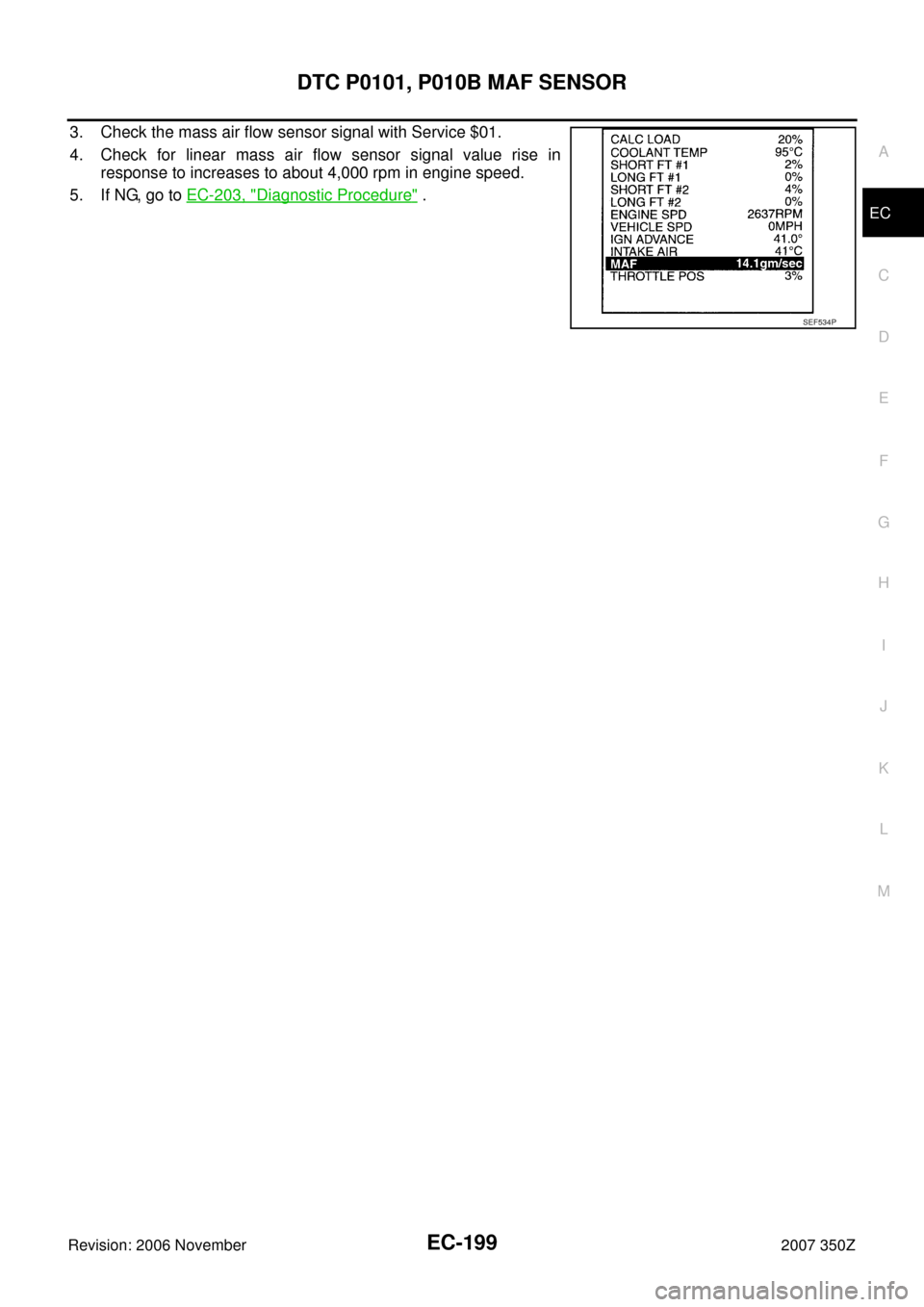

3. Check the mass air flow sensor signal with Service $01.
4. Check for linear mass air flow sensor signal value rise in
response to increases to about 4,000 rpm in engine speed.
5. If NG, go to EC-203, "
Diagnostic Procedure" .
SEF534P

EC-200
DTC P0101, P010B MAF SENSOR
Revision: 2006 November2007 350Z

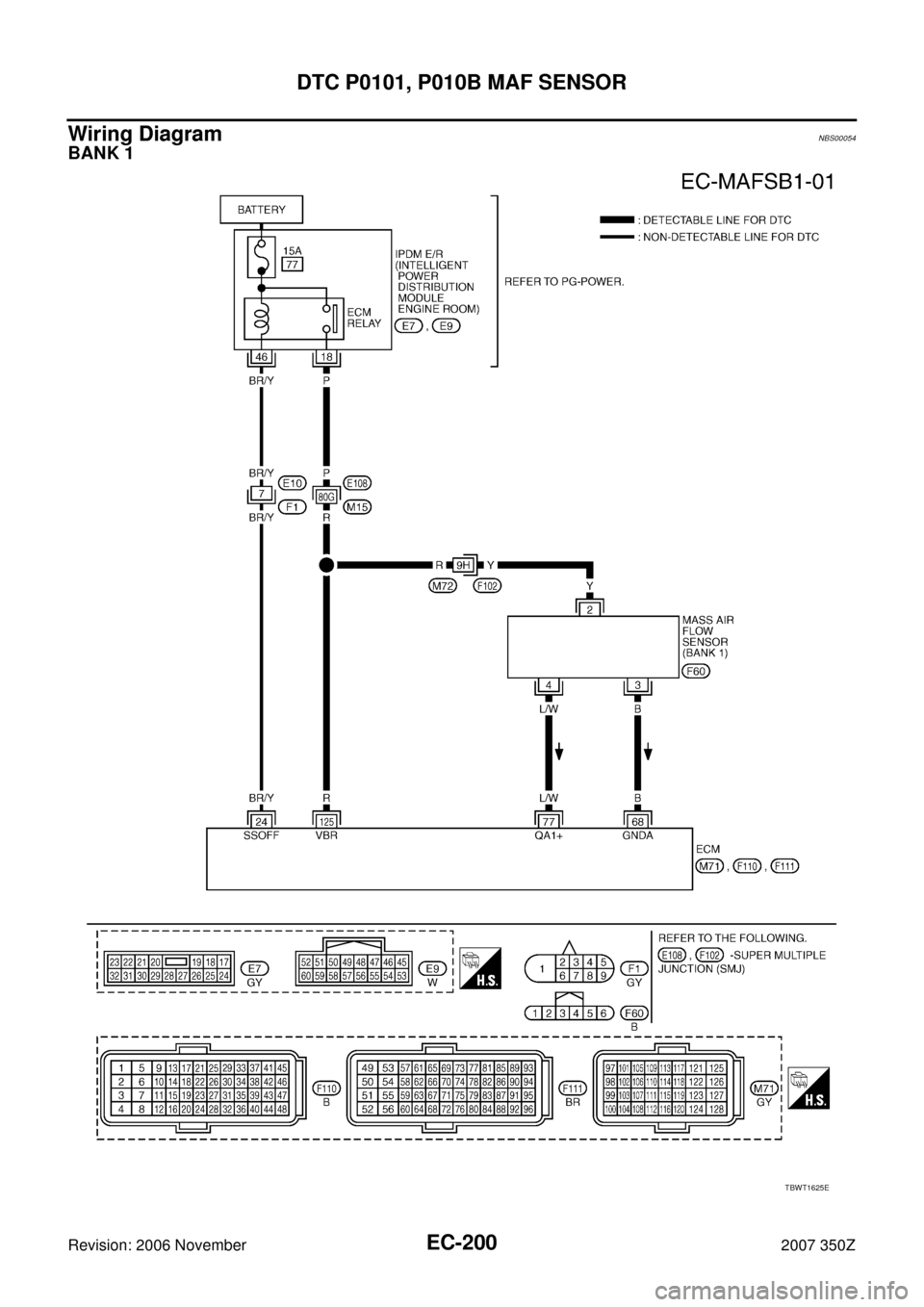

Wiring DiagramNBS00054
BANK 1
TBWT1625E

DTC P0101, P010B MAF SENSOR
EC-201
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 BR/YECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
68 BSensor ground
[Mass air flow sensor
(bank1), Intake air tempera-
ture sensor (bank 1)][Engine is running]

Warm-up condition

Idle speed0V
77 L/WMass air flow sensor
(bank1)[Engine is running]

Warm-up condition

Idle speed0.8 - 1.1V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm1.4 - 1.7V
125 R Power supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)

EC-202
DTC P0101, P010B MAF SENSOR
Revision: 2006 November2007 350Z

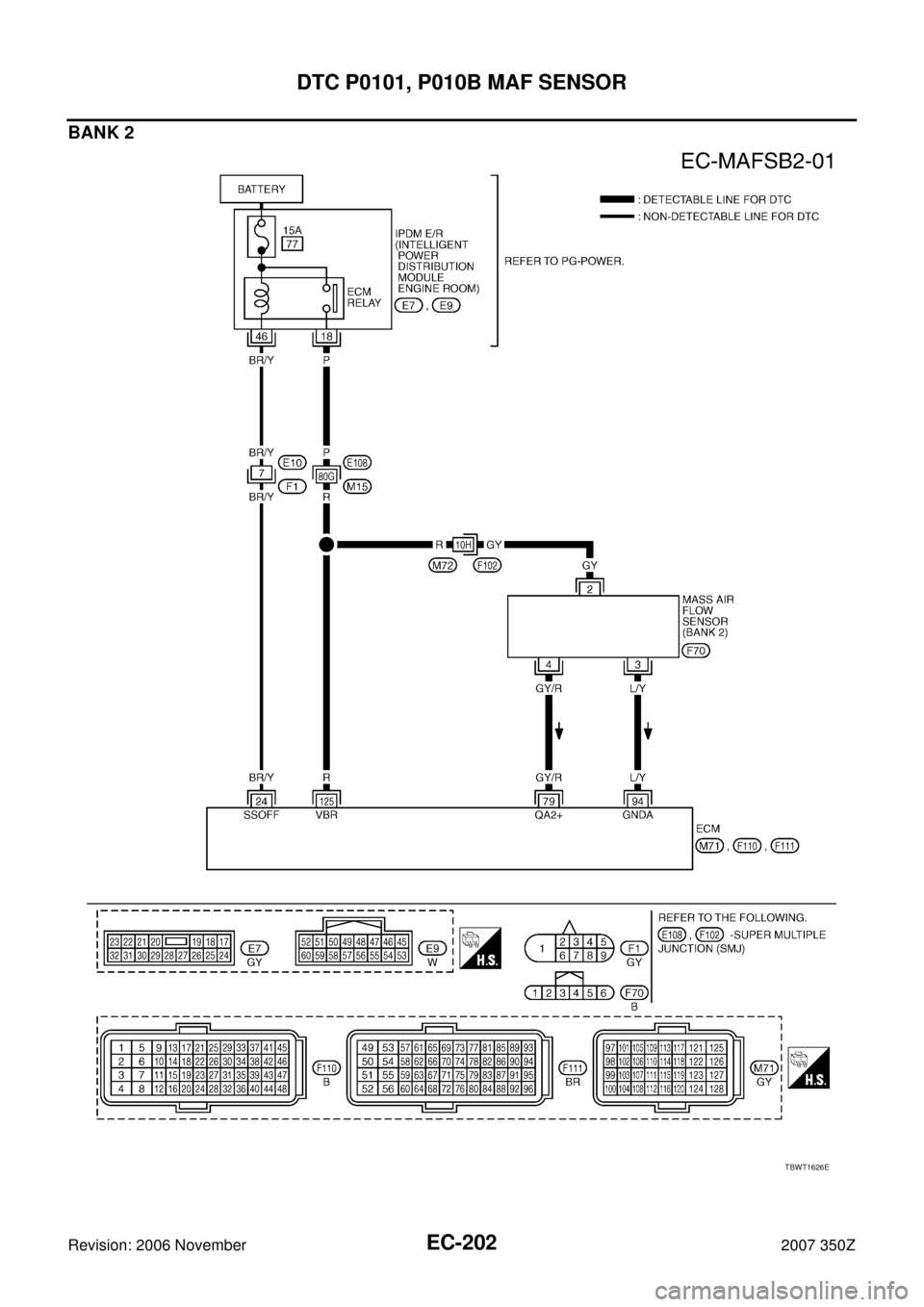

BANK 2
TBWT1626E

DTC P0101, P010B MAF SENSOR
EC-203
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS00055
1. INSPECTION START
Which malfunction (A or B) is duplicated?
A or B
A>>GO TO 3.
B>>GO TO 2.
2. CHECK INTAKE SYSTEM
Check the following for connection.

Air duct

Va c u u m h o s e s

Intake air passage between air duct and intake manifold
OK or NG
OK >> GO TO 3.
NG >> Reconnect the parts.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 BR/YECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
79 GY/RMass air flow sensor
(bank2)[Engine is running]

Warm-up condition

Idle speed0.8 - 1.1V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm1.4 - 1.7V
94 L/YSensor ground
[Mass air flow sensor (bank
2)][Engine is running]

Warm-up condition

Idle speed0V
125 R Power supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)

EC-204
DTC P0101, P010B MAF SENSOR
Revision: 2006 November2007 350Z

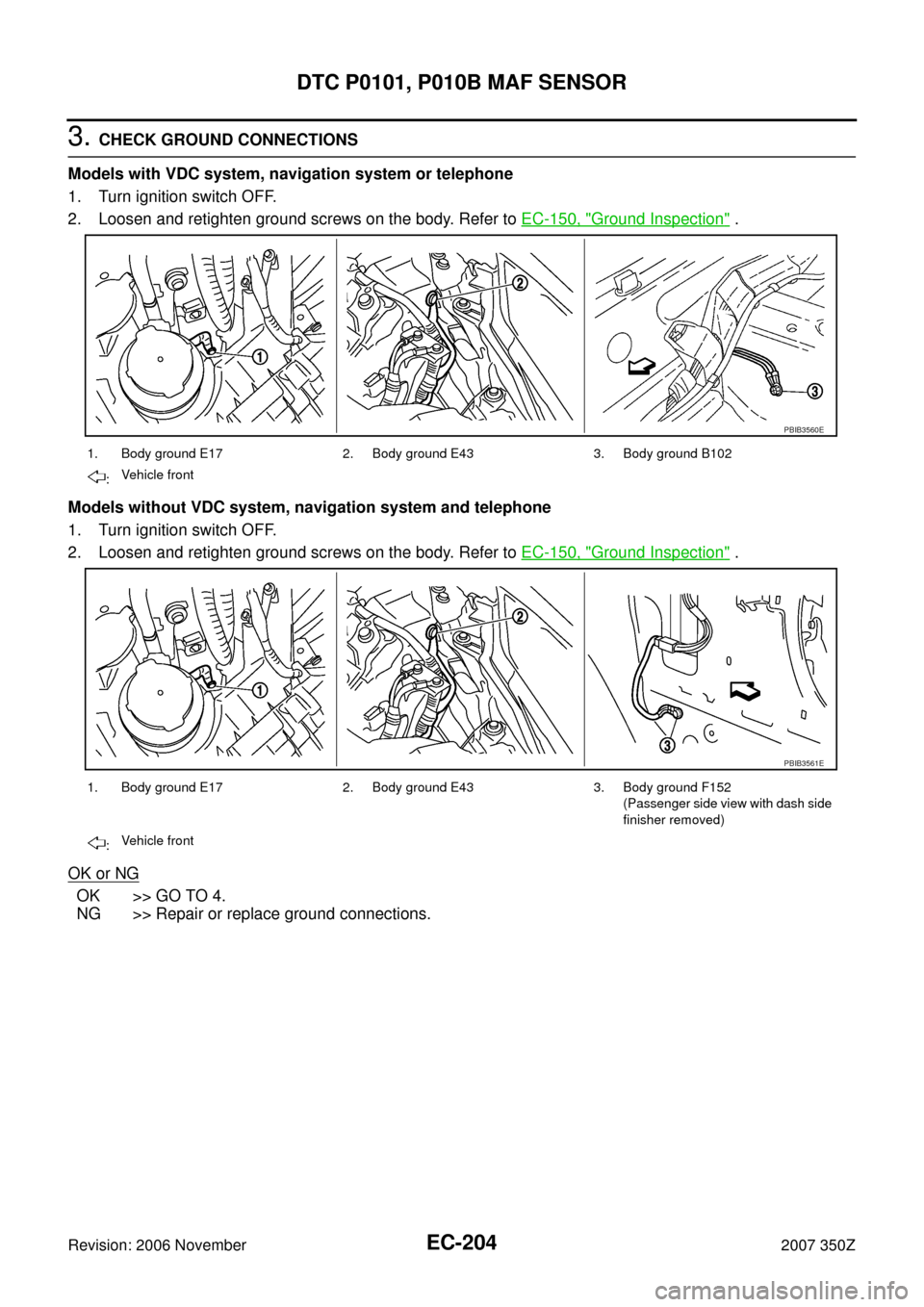

3. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace ground connections.
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E
