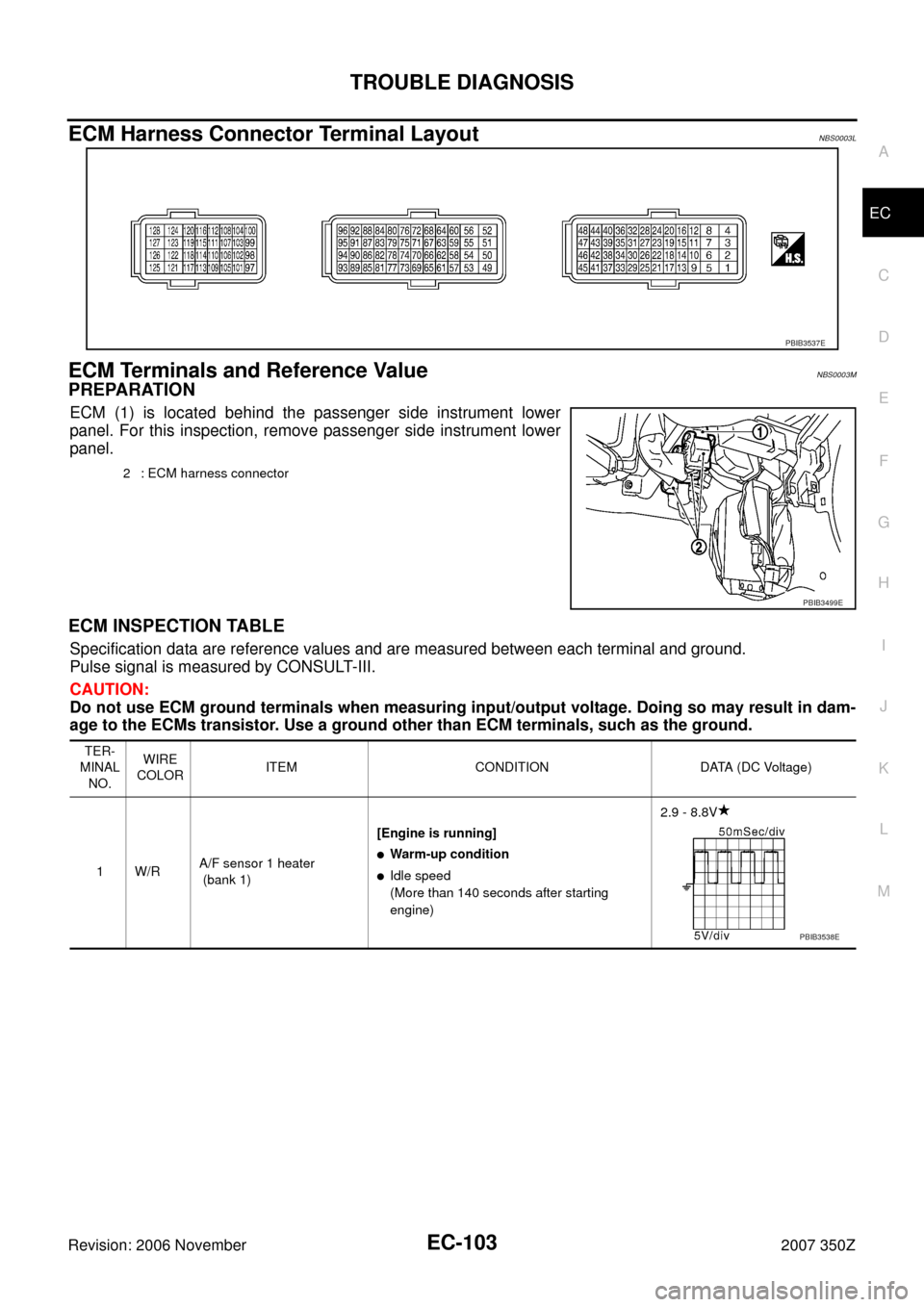

ECM Harness Connector Terminal LayoutNBS0003L
ECM Terminals and Reference ValueNBS0003M
PREPARATION
ECM (1) is located behind the passenger side instrument lower
panel. For this inspection, remove passenger side instrument lower
panel.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIB3537E
2 : ECM harness connector
PBIB3499E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

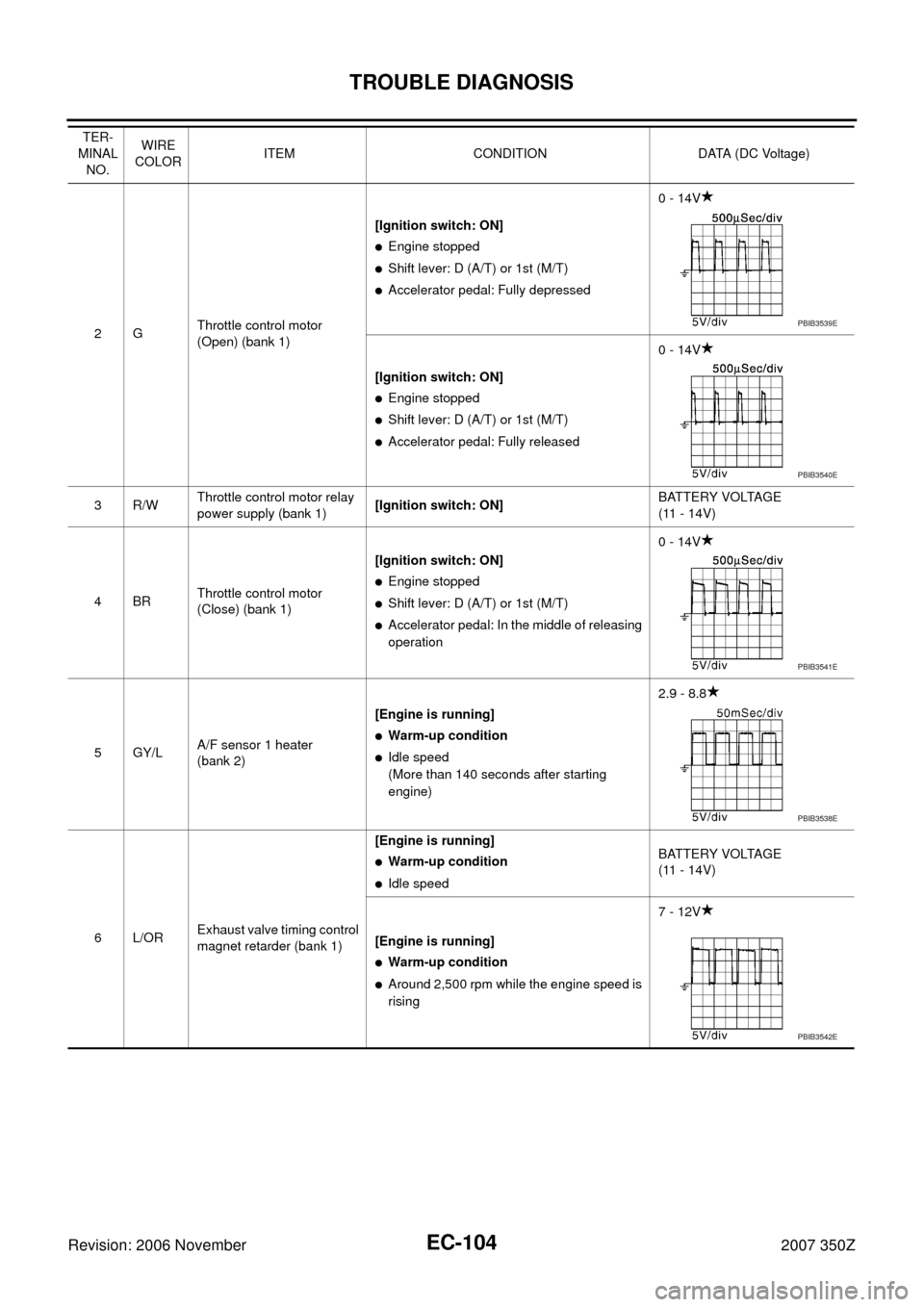

1W/RA/F sensor 1 heater
(bank 1)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8V
PBIB3538E

EC-104
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
2GThrottle control motor
(Open) (bank 1)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressed0 - 14V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully released0 - 14V
3R/WThrottle control motor relay
power supply (bank 1)[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4BRThrottle control motor
(Close) (bank 1)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: In the middle of releasing
operation0 - 14V
5GY/LA/F sensor 1 heater
(bank 2)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8
6 L/ORExhaust valve timing control
magnet retarder (bank 1)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Around 2,500 rpm while the engine speed is
rising7 - 12V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB3539E
PBIB3540E
PBIB3541E
PBIB3538E
PBIB3542E

TROUBLE DIAGNOSIS
EC-105
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
7Y/RExhaust valve timing control
magnet retarder (bank 2)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Around 2,500 rpm while the engine speed is
rising7 - 12V

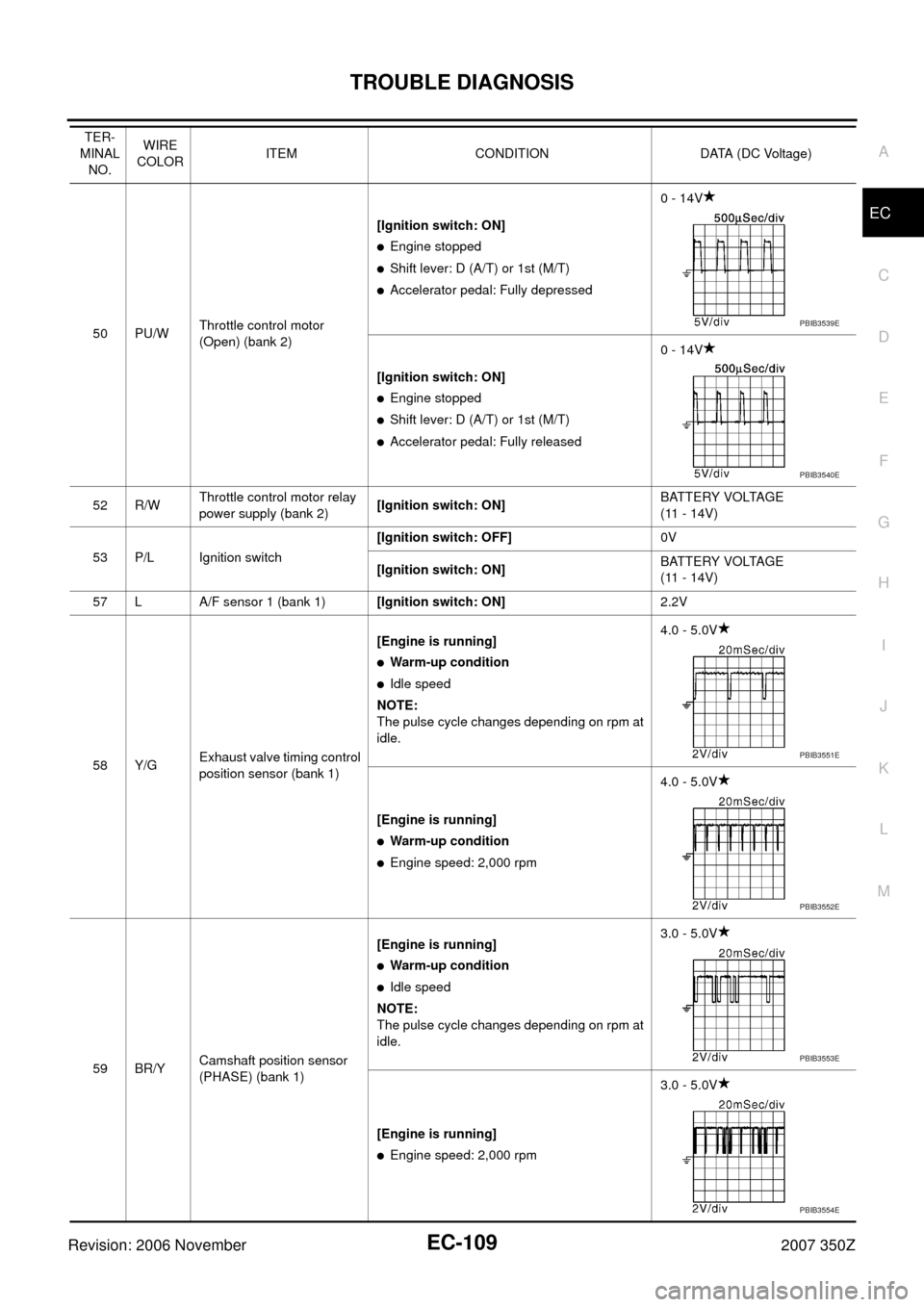

8 B/P ECM ground[Engine is running]

Idle speedBody ground
11
12
15
16
19
20GY
LG/R
PU
G/B
L/R
Y/BIgnition signal No. 4
Ignition signal No. 3
Ignition signal No. 5
Ignition signal No. 2
Ignition signal No. 6
Ignition signal No. 1[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 0.2V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm0.1 - 0.4V
17 PHeated oxygen sensor 2
heater (bank 1)[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load.0 - 14V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
18 W/GIntake valve timing control
solenoid valve (bank 1)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm7 - 12V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB3542E
PBIB3543E
PBIB3544E
PBIB3545E
PBIB3546E

TROUBLE DIAGNOSIS
EC-107
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

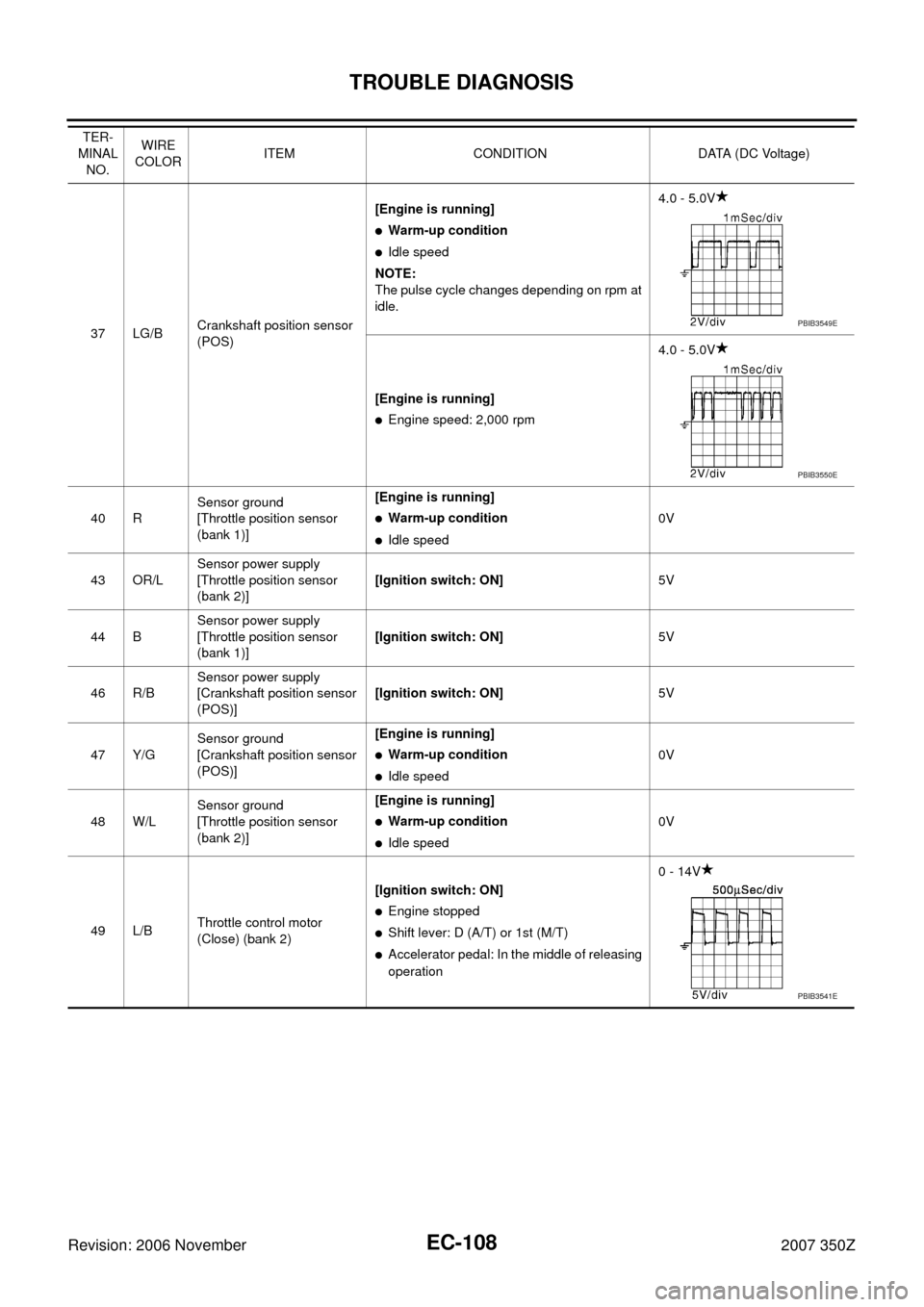

30 YThrottle position sensor 1
(bank 1)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully releasedMore than 0.36V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressedLess than 4.75V
31 L/GThrottle position sensor 1
(bank 2)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully releasedMore than 0.36V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressedLess than 4.75V
33 PU/WHeated oxygen sensor 2
heater (bank 2)[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load.0 - 14V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
34 LThrottle position sensor 2
(bank 1)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully releasedLess than 4.75V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressedMore than 0.36V
35 L/YThrottle position sensor 2
(bank 2)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully releasedLess than 4.75V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressedMore than 0.36V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB3545E

EC-108
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

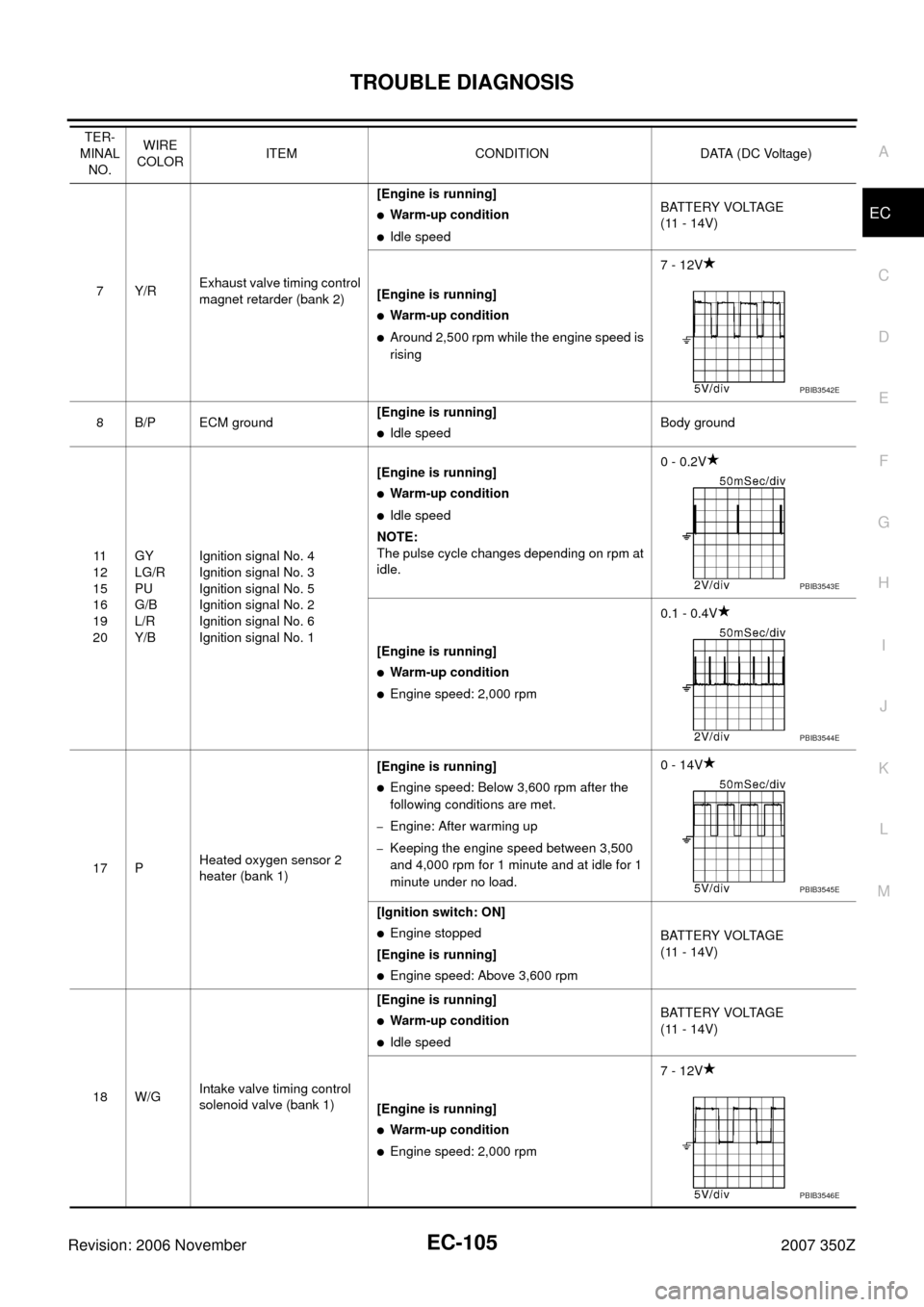

37 LG/BCrankshaft position sensor
(POS)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.4.0 - 5.0V
[Engine is running]

Engine speed: 2,000 rpm4.0 - 5.0V
40 RSensor ground
[Throttle position sensor
(bank 1)][Engine is running]

Warm-up condition

Idle speed0V
43 OR/LSensor power supply
[Throttle position sensor
(bank 2)][Ignition switch: ON]5V
44 BSensor power supply
[Throttle position sensor
(bank 1)][Ignition switch: ON]5V
46 R/BSensor power supply
[Crankshaft position sensor
(POS)][Ignition switch: ON]5V
47 Y/GSensor ground
[Crankshaft position sensor
(POS)][Engine is running]

Warm-up condition

Idle speed0V
48 W/LSensor ground
[Throttle position sensor
(bank 2)][Engine is running]

Warm-up condition

Idle speed0V
49 L/BThrottle control motor
(Close) (bank 2)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: In the middle of releasing
operation0 - 14V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB3549E
PBIB3550E
PBIB3541E

TROUBLE DIAGNOSIS
EC-109
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

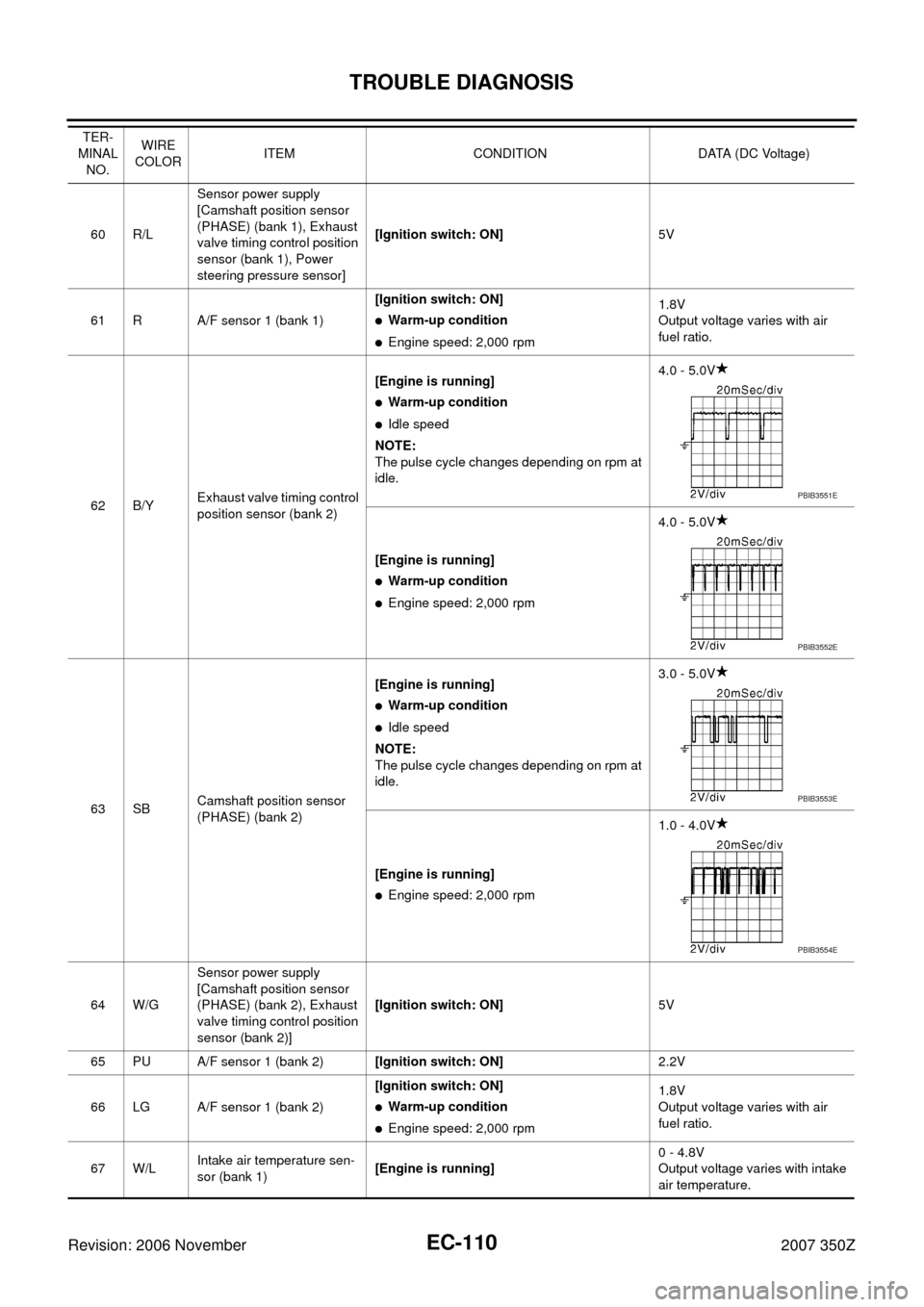

50 PU/WThrottle control motor
(Open) (bank 2)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressed0 - 14V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully released0 - 14V
52 R/WThrottle control motor relay
power supply (bank 2)[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
53 P/L Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
57 L A/F sensor 1 (bank 1)[Ignition switch: ON]2.2V
58 Y/GExhaust valve timing control
position sensor (bank 1)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.4.0 - 5.0V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm4.0 - 5.0V
59 BR/YCamshaft position sensor
(PHASE) (bank 1)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.3.0 - 5.0V
[Engine is running]

Engine speed: 2,000 rpm3.0 - 5.0V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB3539E
PBIB3540E
PBIB3551E
PBIB3552E
PBIB3553E
PBIB3554E

EC-110
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
60 R/LSensor power supply
[Camshaft position sensor
(PHASE) (bank 1), Exhaust
valve timing control position
sensor (bank 1), Power
steering pressure sensor][Ignition switch: ON]5V
61 R A/F sensor 1 (bank 1)[Ignition switch: ON]

Warm-up condition

Engine speed: 2,000 rpm1.8V
Output voltage varies with air
fuel ratio.
62 B/YExhaust valve timing control
position sensor (bank 2)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.4.0 - 5.0V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm4.0 - 5.0V
63 SBCamshaft position sensor
(PHASE) (bank 2)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.3.0 - 5.0V
[Engine is running]

Engine speed: 2,000 rpm1.0 - 4.0V
64 W/GSensor power supply
[Camshaft position sensor
(PHASE) (bank 2), Exhaust
valve timing control position
sensor (bank 2)][Ignition switch: ON]5V
65 PU A/F sensor 1 (bank 2)[Ignition switch: ON]2.2V
66 LG A/F sensor 1 (bank 2)[Ignition switch: ON]

Warm-up condition

Engine speed: 2,000 rpm1.8V
Output voltage varies with air
fuel ratio.
67 W/LIntake air temperature sen-
sor (bank 1)[Engine is running]0 - 4.8V
Output voltage varies with intake
air temperature. TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB3551E
PBIB3552E
PBIB3553E
PBIB3554E

TROUBLE DIAGNOSIS
EC-111
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z68 BSensor ground
[Mass air flow sensor
(bank1), Intake air tempera-
ture sensor (bank 1)][Engine is running]
Warm-up condition

Idle speed0V
69 W Knock sensor (bank 2)[Engine is running]

Idle speed2.5V*
71 Y/BEngine coolant temperature
sensor[Engine is running]0 - 4.8V
Output voltage varies with
engine coolant temperature.
72 —Sensor ground
[Knock sensor (bank 1),
Knock sensor (bank 2)][Engine is running]

Warm-up condition

Idle speedApproximately 0V
73 W Knock sensor (bank 1)[Engine is running]

Idle speed2.5V*
76 W/RHeated oxygen sensor 2
(bank 1)[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load.0 - 1.0V
77 L/WMass air flow sensor
(bank1)[Engine is running]

Warm-up condition

Idle speed0.8 - 1.1V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm1.4 - 1.7V
78 G/WEngine oil temperature sen-
sor[Engine is running]0 - 4.8V
Output voltage varies with
engine oil temperature.
79 GY/RMass air flow sensor
(bank2)[Engine is running]

Warm-up condition

Idle speed0.8 - 1.1V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm1.4 - 1.7V
80 R/YHeated oxygen sensor 2
(bank 2)[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load.0 - 1.0V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
