2007 NISSAN 350Z sensor

TROUBLE DIAGNOSIS
AT-93
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
Judgment Self-diagnosis Code
If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.
Erase Self-diagnosis

In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is
stored into the control unit as necessary during use by the user. This memory is not erased no matter how
many times the ignition switch is turned ON and OFF.

However, this information is erased by turning ignition switch OFF after performing self-diagnostics or by
erasing the memory using the CONSULT-III.
No. Malfunctioning item No. Malfunctioning item
1 Revolution sensor AT-108
12 A/T interlock AT- 1 4 1
2 Direct clutch solenoid valve AT-14913 A/T 1st engine braking AT- 1 4 3
3 Torque converter clutch solenoid valve AT- 1 2 514 Start signal AT- 9 7
4 Line pressure solenoid valve AT- 1 2 915 Accelerator pedal position sensor AT- 1 3 1
5 Input clutch solenoid valve AT- 1 4 516 Engine speed signal AT- 11 3
6 Front brake solenoid valve AT- 1 4 717 CAN communication line AT- 9 4
7 Low coast brake solenoid valve AT- 1 5 3 , AT-15518 1st gear function AT- 11 5
8 High and low reverse clutch solenoid valve AT- 1 5 119 2nd gear function AT- 11 7
9 PNP switch AT-10220 3rd gear function AT- 11 9
10 A/T fluid temperature sensor AT- 1 3 421 4th gear function AT-121
11 Turbine revolution sensor AT- 1 0 622 5th gear function AT-123
SCIA8153E

AT-100
DTC P0615 START SIGNAL CIRCUIT
Revision: 2006 November2007 350Z
3. CHECK TERMINAL CORD ASSEMBLY
1. Remove control valve with TCM. Refer to AT- 2 1 5 , "
Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect A/T assembly harness connector and TCM connector.
3. Check continuity between A/T assembly harness connector ter-
minal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Replace open circuit or short to ground and short to
power in harness or connectors.
4. DETECT MALFUNCTIONING ITEM
Check the following.

Starter relay, Refer to SC-8, "STARTING SYSTEM" .

IPDM E/R, Refer to PG-16, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)" .
OK or NG
OK >> Replace control valve with TCM. Refer to AT- 2 1 5 , "Control Valve with TCM and A/T Fluid Temper-
ature Sensor 2" .
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT- 9 7 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item Connector Terminal Continuity
A/T assembly harness connector F6 9
Ye s
TCM connector F502 8
SCIA5440E

DTC P0700 TCM
AT-101
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
DTC P0700 TCMPFP:31036
DescriptionNCS0002T
The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The
TCM controls A/T.
On Board Diagnosis LogicNCS0002U

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0700 TCM” with CONSULT-III is detected when TCM is malfunctioning.
Possible CauseNCS0002V
TCM.
DTC Confirmation ProcedureNCS0002W
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION”
with CONSULT-III.
3. Touch “START”.
4. Start engine.
5. Run engine for at least 2 consecutive seconds at idle speed.
6. If DTC is detected, go to AT- 1 0 1 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Diagnostic ProcedureNCS0002X
1. CHECK DTC
With CONSULT-III
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-III.
3. Touch “ERASE”.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Perform AT- 1 0 1 , "
DTC Confirmation Procedure" .
Is the
“TCM” displayed again?
YES >> Replace control valve with TCM. Refer to AT- 2 1 5 , "Control Valve with TCM and A/T Fluid Temper-
ature Sensor 2" .
NO >>INSPECTION END

DTC P0705 PARK/NEUTRAL POSITION SWITCH
AT-105
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

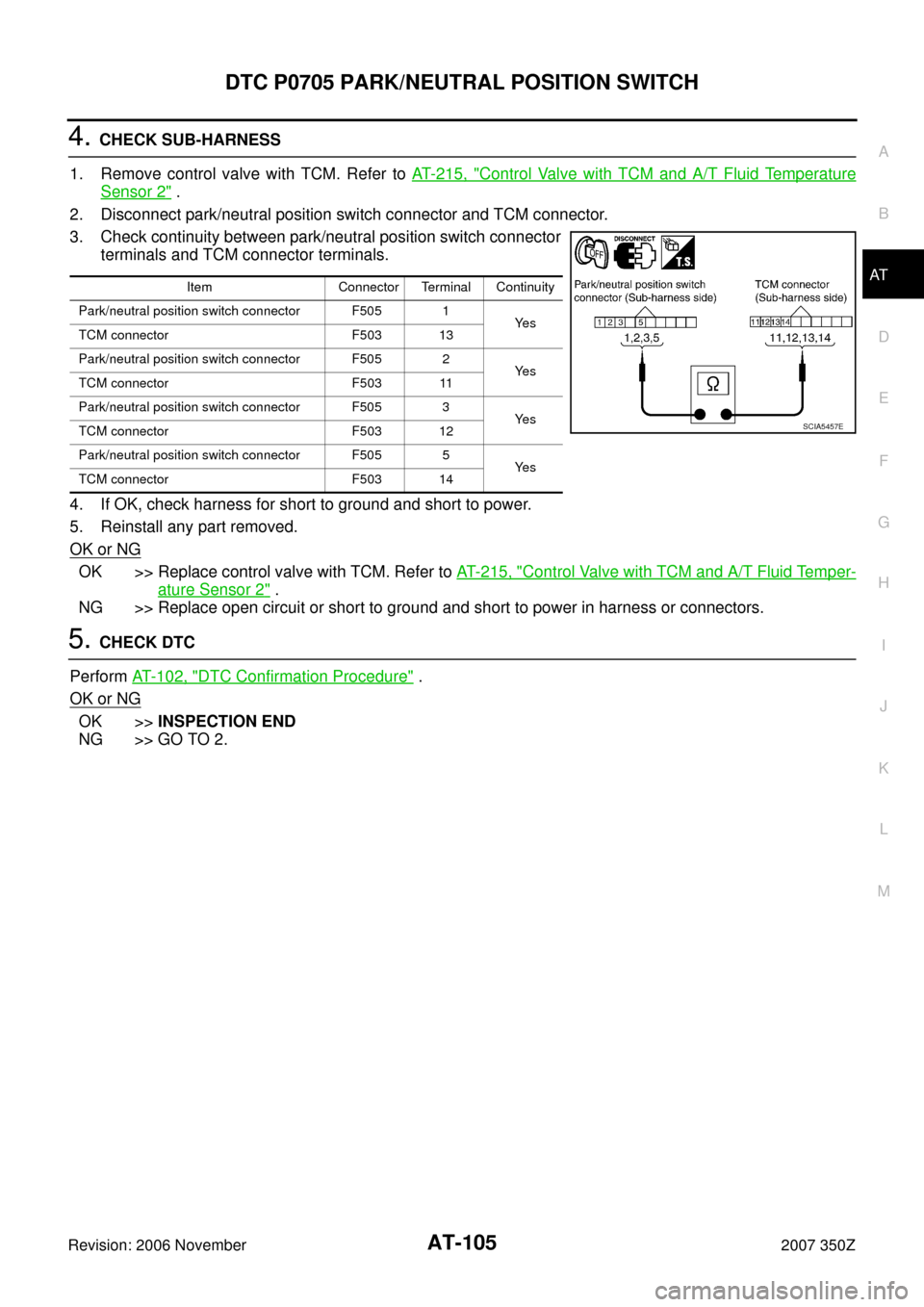

4. CHECK SUB-HARNESS
1. Remove control valve with TCM. Refer to AT- 2 1 5 , "
Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect park/neutral position switch connector and TCM connector.
3. Check continuity between park/neutral position switch connector
terminals and TCM connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> Replace control valve with TCM. Refer to AT- 2 1 5 , "Control Valve with TCM and A/T Fluid Temper-
ature Sensor 2" .
NG >> Replace open circuit or short to ground and short to power in harness or connectors.
5. CHECK DTC
Perform AT- 1 0 2 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item Connector Terminal Continuity
Park/neutral position switch connector F505 1
Ye s
TCM connector F503 13
Park/neutral position switch connector F505 2
Ye s
TCM connector F503 11
Park/neutral position switch connector F505 3
Ye s
TCM connector F503 12
Park/neutral position switch connector F505 5
Ye s
TCM connector F503 14
SCIA5457E

AT-106
DTC P0717 TURBINE REVOLUTION SENSOR
Revision: 2006 November2007 350Z
DTC P0717 TURBINE REVOLUTION SENSORPFP:31935
DescriptionNCS0019V
The turbine revolution sensor detects input shaft rpm (revolutions per minute). It is located on the input side of
the A/T. Monitors revolution of sensor 1 and sensor 2 for non-standard conditions.
CONSULT-III Reference ValueNCS0019W
On Board Diagnosis LogicNCS0019X

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0717 TURBINE REV S/CIRC” with CONSULT-III or 11th judgment flicker with-
out CONSULT-III is detected under the following conditions.
–When TCM does not receive the proper voltage signal from the sensor.
–When TCM detects an irregularity only at position of 4th gear for turbine revolution sensor 2.
Possible CauseNCS0019Y

Harness or connectors
(Sensor circuit is open or shorted.)

Turbine revolution sensor 1 and/or 2
DTC Confirmation ProcedureNCS0019Z
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III
and check monitor “VHCL/S SE-A/T”, “ACCELE POSI”, “ENGINE SPEED”, “SLCT LVR POSI” and
“GEAR”.
3. Touch “START”.
4. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL/S SE-A/T: 40 km/h (25 MPH) or more
ACCELE POSI: More than 0.5/8
ENGINE SPEED: 1,500 rpm or more
SLCT LVR POSI: “D” position
GEAR (Turbine revolution sensor 1): “4” or “5” position
GEAR (Turbine revolution sensor 2): All positions
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
5. If DTC is detected, go to AT- 1 0 7 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value
TURBINE REV During driving (lock-up ON) Approximately matches the engine speed.

DTC P0717 TURBINE REVOLUTION SENSOR
AT-107
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
Diagnostic ProcedureNCS001A0
1. CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Vehicle start and read out the value of “TURBINE REV”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 6 2 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace control valve with TCM. Refer to AT- 2 1 5 , "Control Valve with TCM and A/T Fluid Temper-
ature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform AT- 1 0 6 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
TURBINE REVDuring driving
(lock-up ON)Approximately matches the engine speed.

AT-108
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Revision: 2006 November2007 350Z
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionNCS00035
The revolution sensor detects the revolution of the parking gear and emits a pulse signal. The pulse signal is
sent to the TCM which converts it into vehicle speed.
CONSULT-III Reference ValueNCS00036
On Board Diagnosis LogicNCS00037

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0720 VEH SPD SEN/CIR AT” with CONSULT-III or 1st judgment flicker without
CONSULT-III is detected under the following conditions.
–When TCM does not receive the proper voltage signal from the sensor.
–After ignition switch is turned ON, irregular signal input from vehicle speed sensor MTR before the vehicle
starts moving.
Possible CauseNCS00038

Harness or connectors
(Sensor circuit is open or shorted.)

Revolution sensor

Vehicle speed sensor MTR
DTC Confirmation ProcedureNCS00039
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Touch “START”.
4. Drive vehicle and check for an increase of “VHCL/S SE-A/T” value in response to “VHCL/S SE-MTR”
value.
If the check result is NG, go to AT- 111 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
5. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III
and check monitor “VHCL/S SE-A/T”, “ACCELE POSI”, “ENGINE SPEED” and “SLCT LVR POSI”.
6. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL/S SE-A/T: 30 km/h (19 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to AT- 111 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
7. Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Item name Condition Display value
VHCL/S SE-A/T During driving Approximately matches the speedometer reading.

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-109
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
8. If DTC is detected, go to AT- 111 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
