35. Straighten terminal clip to free revolution sensor harness.
36. Remove bolts (A), (B) and (C) from control valve with TCM.

: Front
37. Remove control valve with TCM from transmission case.
CAUTION:
When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.
38. Remove A/T fluid temperature sensor 2 with bracket from con-
trol valve with TCM.
39. Remove bracket from A/T fluid temperature sensor 2.
SCIA7526E
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA8077E
SCIA5260E
SCIA5301E
SCIA5264E

DISASSEMBLY
AT-265
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

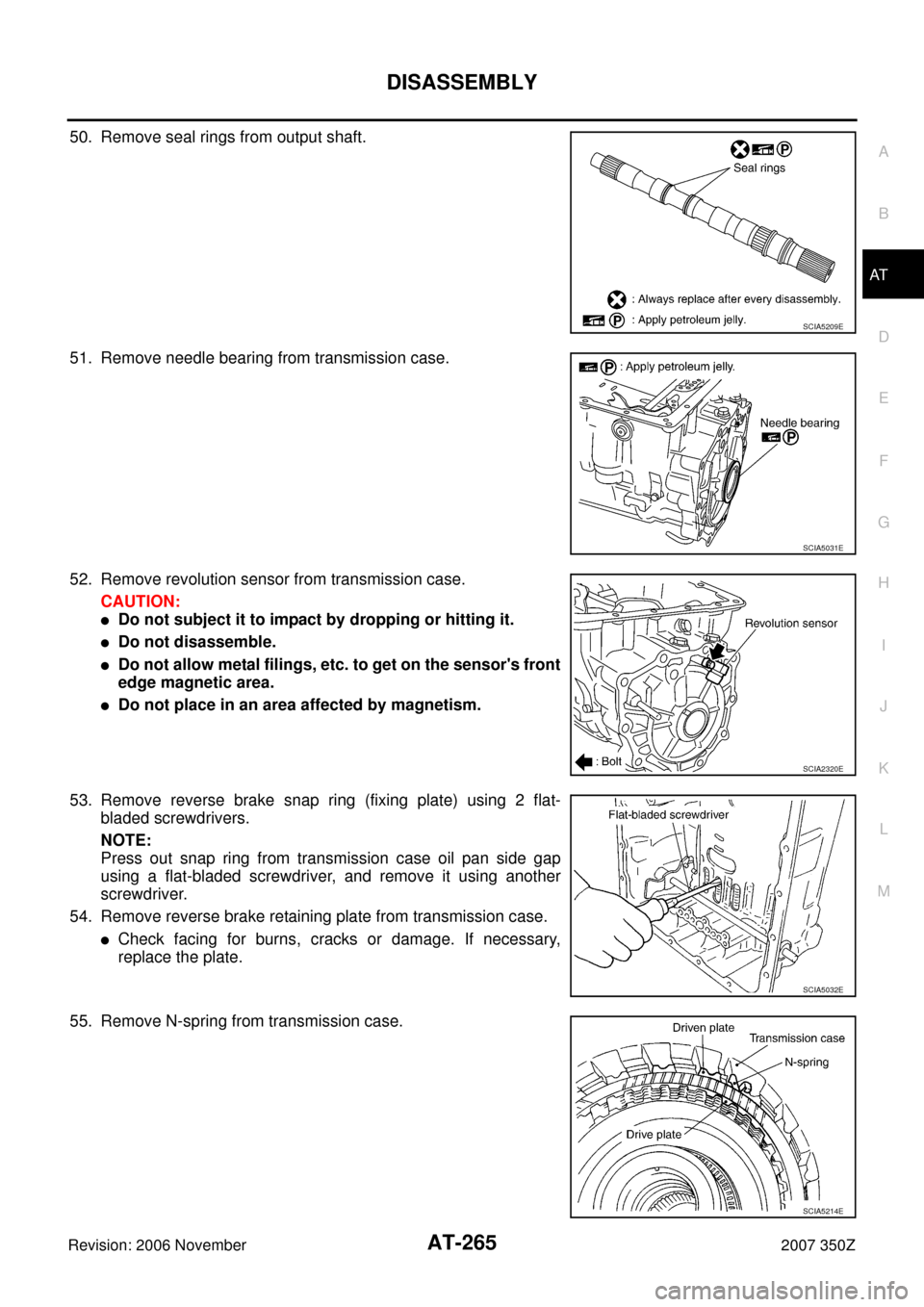

50. Remove seal rings from output shaft.
51. Remove needle bearing from transmission case.
52. Remove revolution sensor from transmission case.
CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

Do not place in an area affected by magnetism.
53. Remove reverse brake snap ring (fixing plate) using 2 flat-
bladed screwdrivers.
NOTE:
Press out snap ring from transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using another
screwdriver.
54. Remove reverse brake retaining plate from transmission case.

Check facing for burns, cracks or damage. If necessary,
replace the plate.
55. Remove N-spring from transmission case.
SCIA5209E
SCIA5031E
SCIA2320E
SCIA5032E
SCIA5214E

ASSEMBLY
AT-295
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

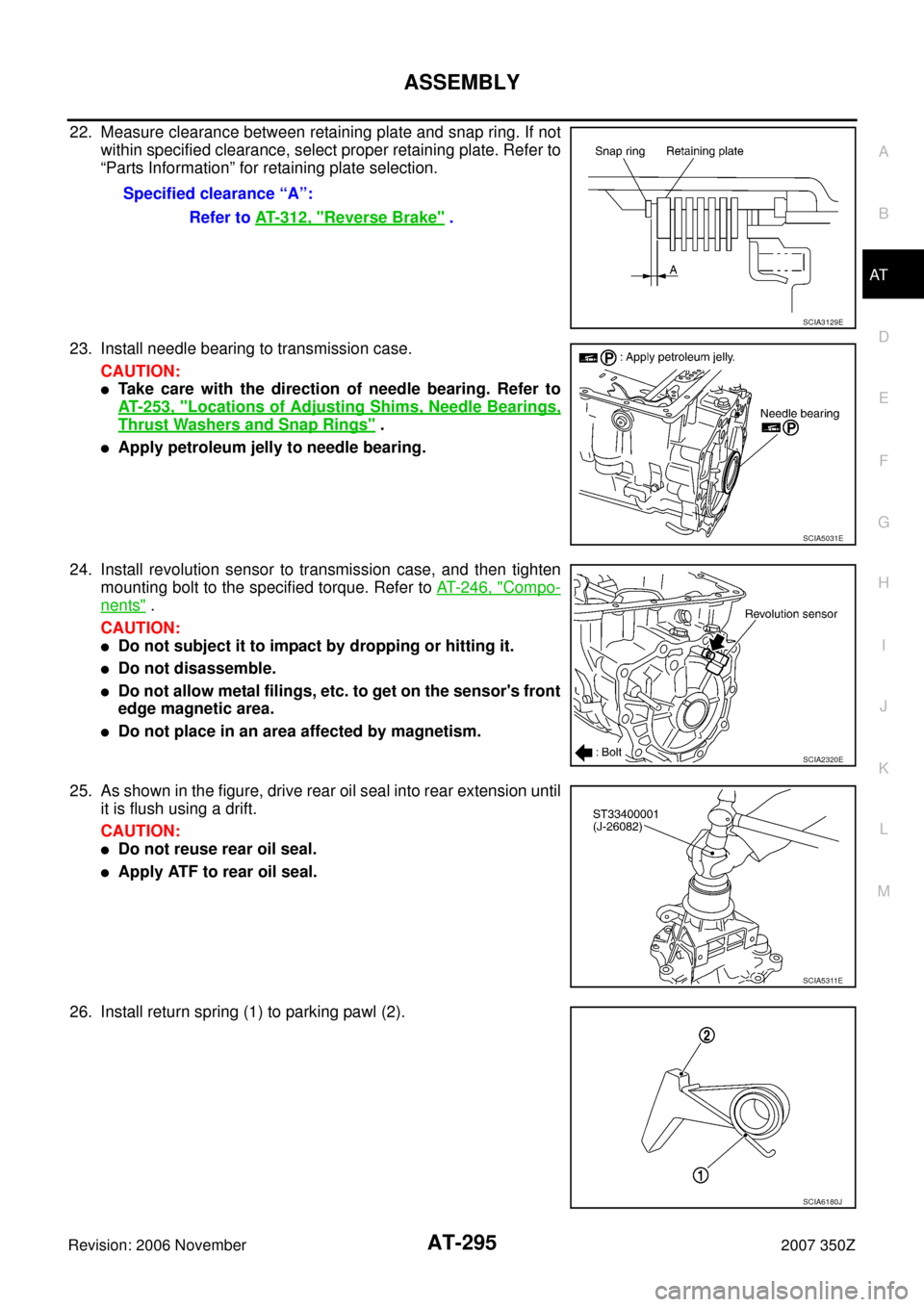

22. Measure clearance between retaining plate and snap ring. If not
within specified clearance, select proper retaining plate. Refer to
“Parts Information” for retaining plate selection.
23. Install needle bearing to transmission case.
CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
24. Install revolution sensor to transmission case, and then tighten
mounting bolt to the specified torque. Refer to AT- 2 4 6 , "
Compo-
nents" .
CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

Do not place in an area affected by magnetism.
25. As shown in the figure, drive rear oil seal into rear extension until
it is flush using a drift.
CAUTION:

Do not reuse rear oil seal.

Apply ATF to rear oil seal.
26. Install return spring (1) to parking pawl (2).Specified clearance “A”:
Refer to AT- 3 1 2 , "
Reverse Brake" .
SCIA3129E
SCIA5031E
SCIA2320E
SCIA5311E
SCIA6180J

AT-306
ASSEMBLY
Revision: 2006 November2007 350Z

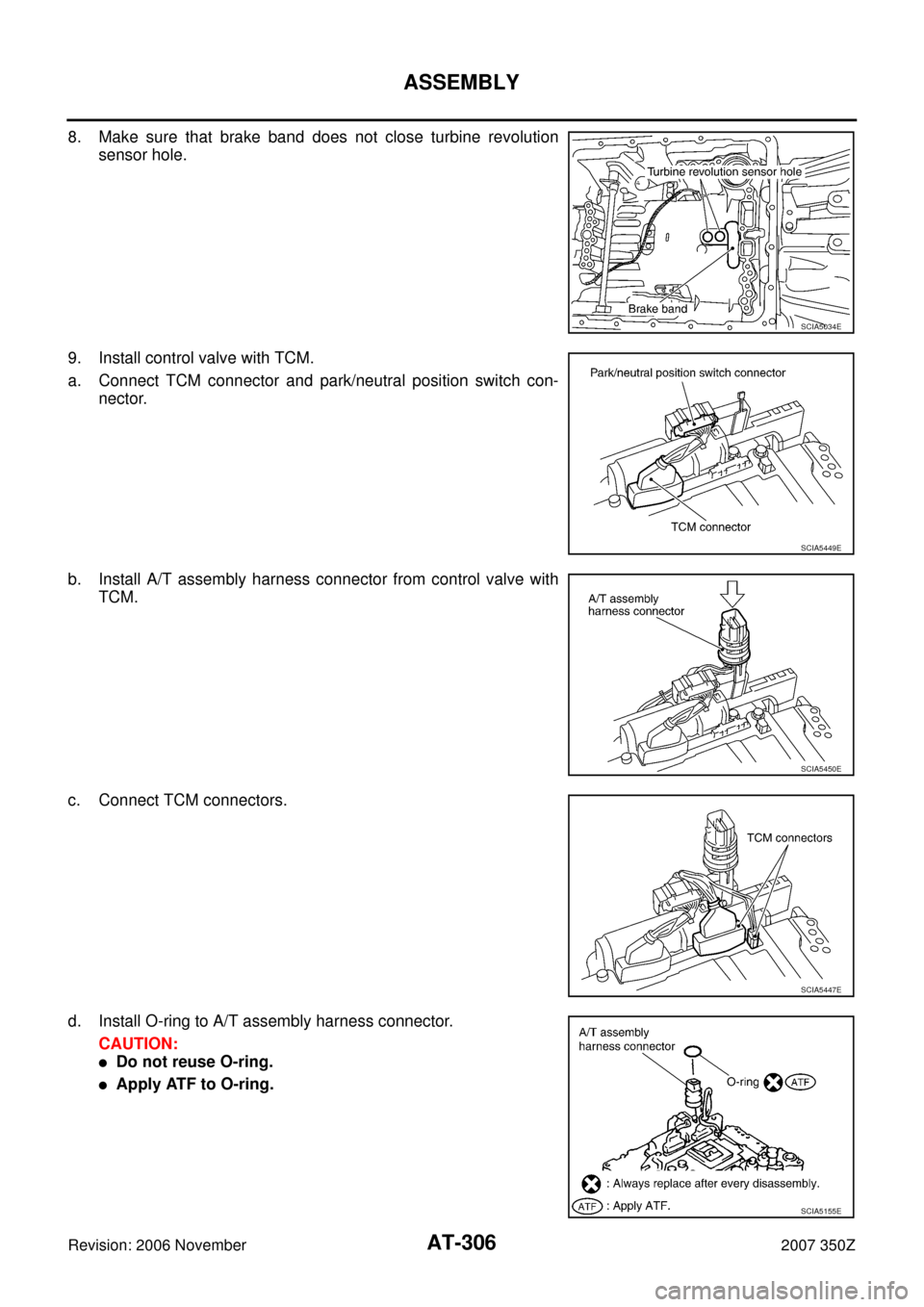

8. Make sure that brake band does not close turbine revolution
sensor hole.
9. Install control valve with TCM.
a. Connect TCM connector and park/neutral position switch con-
nector.
b. Install A/T assembly harness connector from control valve with
TCM.
c. Connect TCM connectors.
d. Install O-ring to A/T assembly harness connector.
CAUTION:

Do not reuse O-ring.

Apply ATF to O-ring.
SCIA5034E
SCIA5449E
SCIA5450E
SCIA5447E
SCIA5155E

ASSEMBLY
AT-307
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

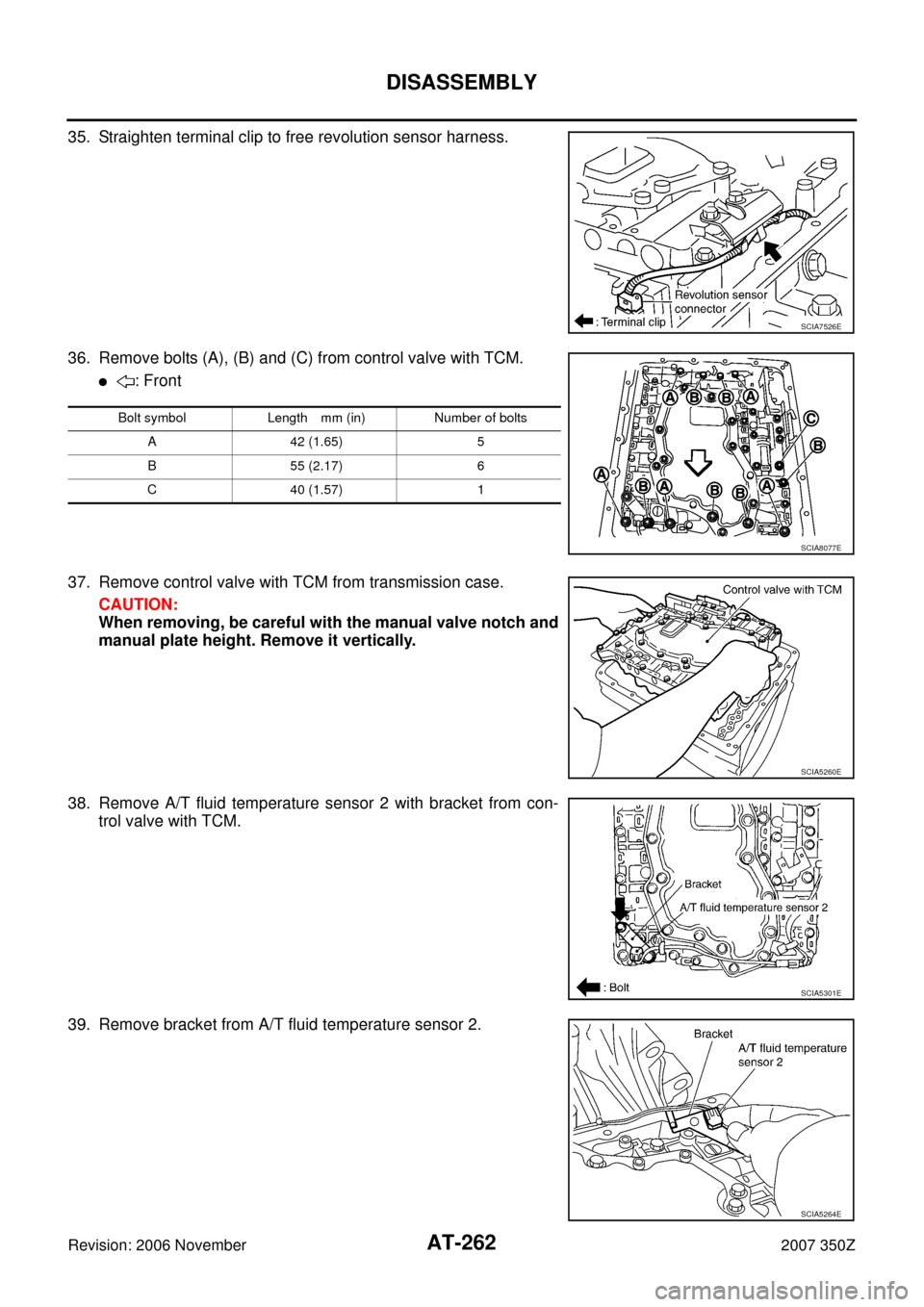

e. Install A/T fluid temperature sensor 2 to bracket.
f. Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM, and then tighten mounting bolt to the specified
torque. Refer to AT- 2 4 6 , "
Components" .
CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve with
TCM.
g. Install control valve with TCM in transmission case.
CAUTION:

Make sure that turbine revolution sensor securely installs
turbine revolution sensor hole.

Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.

Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.

Assemble it so that manual valve cutout is engaged with
manual plate projection.
SCIA5264E
SCIA5301E
SCIA5034E
SCIA5035E

AT-308
ASSEMBLY
Revision: 2006 November2007 350Z

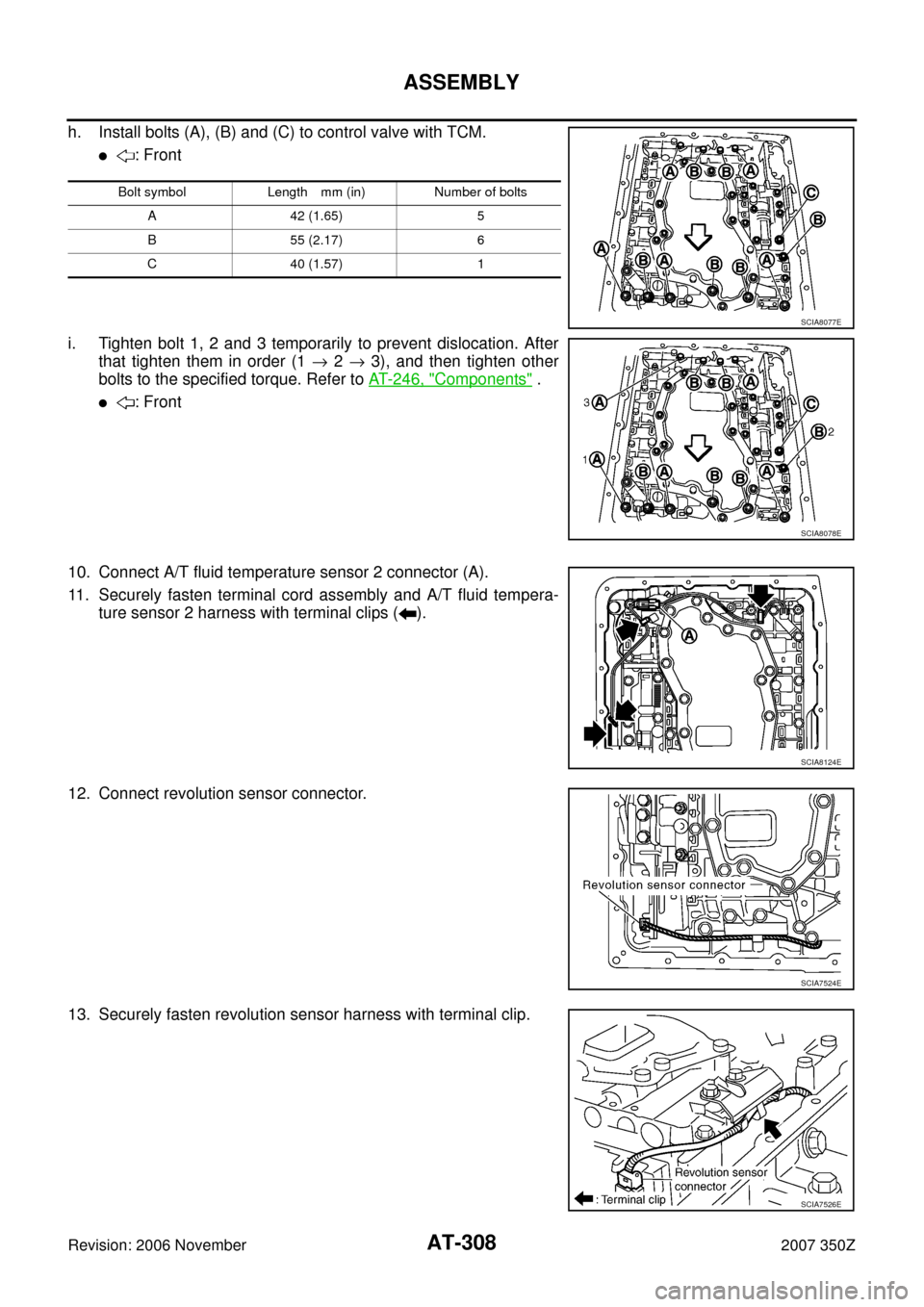

h. Install bolts (A), (B) and (C) to control valve with TCM.

: Front
i. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1 → 2 → 3), and then tighten other
bolts to the specified torque. Refer to AT- 2 4 6 , "
Components" .

: Front
10. Connect A/T fluid temperature sensor 2 connector (A).
11. Securely fasten terminal cord assembly and A/T fluid tempera-
ture sensor 2 harness with terminal clips ( ).
12. Connect revolution sensor connector.
13. Securely fasten revolution sensor harness with terminal clip.
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA8077E
SCIA8078E
SCIA8124E
SCIA7524E
SCIA7526E

AT-312
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
A/T Fluid Temperature SensorNCS0009Q
Turbine Revolution SensorNCS0009R
Vehicle Speed Sensor A/T (Revolution Sensor)NCS0009S
Reverse BrakeNCS0009T
Total End PlayNCS0009U
Name Condition CONSULT-III “DATA MONITOR” (Approx.) Resistance (Approx.)
A/T fluid temperature sensor 10°C (32°F) 3.3 V 15 kΩ
20°C (68°F) 2.7 V 6.5 kΩ
80°C (176°F) 0.9 V 0.9 kΩ
A/T fluid temperature sensor 20°C (32°F) 3.3 V 10 kΩ
20°C (68°F) 2.5V 4kΩ
80°C (176°F) 0.7 V 0.5 kΩ
Name Condition Data (Approx.)
Turbine revolution sensor 1When running at 50 km/h (31 MPH) in 4th speed with the closed throttle
position signal OFF.
1.3 kHz
Turbine revolution sensor 2When moving at 20 km/h (12 MPH) in 1st speed with the closed throttle posi-
tion signal OFF.
Name Condition Data (Approx.)
Revolution sensor When moving at 20 km/h (12 MPH). 185 Hz
Model code number98X5B
Number of drive plates6
Number of driven plates6
Clearance mm (in) Standard 0.7 – 1.1 (0.028 – 0.043)
Total end play mm (in) 0.25 – 0.55 (0.0098 – 0.0217)
