TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 November2007 350Z
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 1 5 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 4 9 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 5 9 ,
"Symptom Chart" (Symptom No. 49).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 5 8 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 3 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 5 9 ,
"Symptom Chart" (Symptom No. 49).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-201
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
A/T Does Not Shift: 2nd Gear → 1st GearNCS0008Q
SYMPTOM:
When shifted from M2 to M1 position in manual mode, does not downshift from 2nd to 1st gear.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 9 2 , "Diagnostic Procedure
Without CONSULT-III" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to AT- 8 6 , "SELF-DIAGNOSTIC RESULT MODE" , AT- 9 3 ,
"Judgment Self-diagnosis Code" .
NO >> GO TO 2.
2. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 2 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
3. CHECK A/T POSITION
Check A/T position. Refer to AT- 2 0 6 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust A/T position. Refer to AT- 2 0 6 , "
Adjustment of A/T Position" .
4. MANUAL MODE SWITCH
Check manual mode switch. Refer to AT- 1 5 7 , "
DTC P1815 MANUAL MODE SWITCH" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 1 5 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 4 9 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 5 9 ,
"Symptom Chart" (Symptom No. 50).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 5 8 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-203
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 1 5 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 4 9 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 5 9 ,
"Symptom Chart" (Symptom No. 58).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 5 8 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 3 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 5 9 ,
"Symptom Chart" (Symptom No. 58).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.

ON-VEHICLE SERVICE
AT-215
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
ON-VEHICLE SERVICEPFP:00000
Control Valve with TCM and A/T Fluid Temperature Sensor 2NCS00092
COMPONENTS

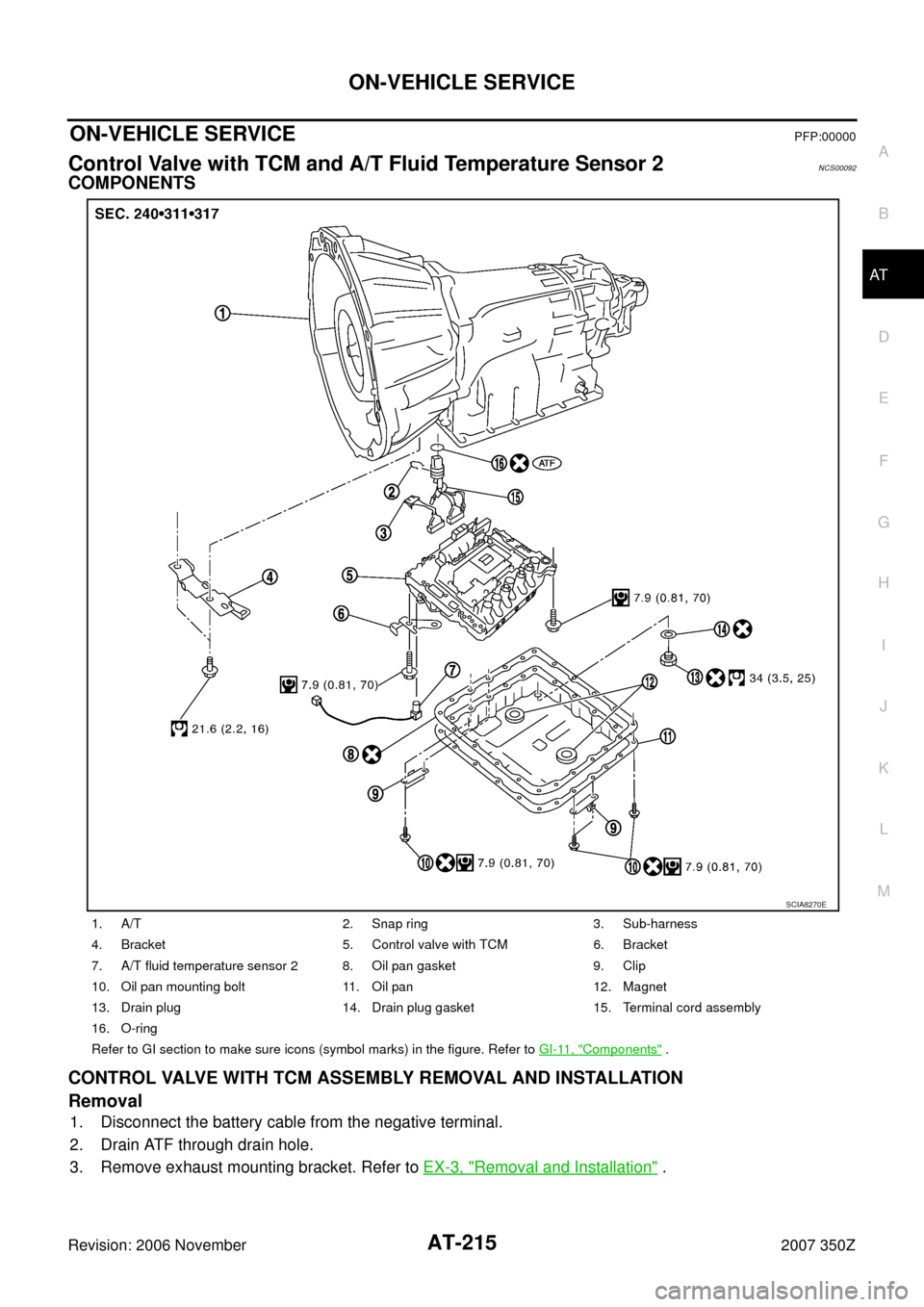

CONTROL VALVE WITH TCM ASSEMBLY REMOVAL AND INSTALLATION
Removal
1. Disconnect the battery cable from the negative terminal.
2. Drain ATF through drain hole.
3. Remove exhaust mounting bracket. Refer to EX-3, "
Removal and Installation" .
1. A/T 2. Snap ring 3. Sub-harness
4. Bracket 5. Control valve with TCM 6. Bracket
7. A/T fluid temperature sensor 2 8. Oil pan gasket 9. Clip
10. Oil pan mounting bolt 11. Oil pan 12. Magnet
13. Drain plug 14. Drain plug gasket 15. Terminal cord assembly
16. O-ring
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
SCIA8270E

AT-216
ON-VEHICLE SERVICE
Revision: 2006 November2007 350Z
4. Disconnect heated oxygen sensor 2 harness connectors (A).

: Vehicle front

: Bolt
5. Remove heated oxygen sensor 2 harness (B) from clips (1).
6. Remove bracket (2) from transmission assembly.
7. Disconnect A/T assembly harness connector.
8. Remove snap ring from A/T assembly harness connector.
9. Push A/T assembly harness connector.
CAUTION:
Be careful not to damage connector.
10. Remove clips (1), oil pan (2) and oil pan gasket.

: Vehicle front

: Oil pan mounting bolt

Drain bolt (3)
11. Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to AT- 1 4 , "
A/T Fluid Cooler Cleaning".
SCIA8269E
SCIA5021E
SCIA5022E
SCIA8117E
SCIA5199E

ON-VEHICLE SERVICE
AT-217
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

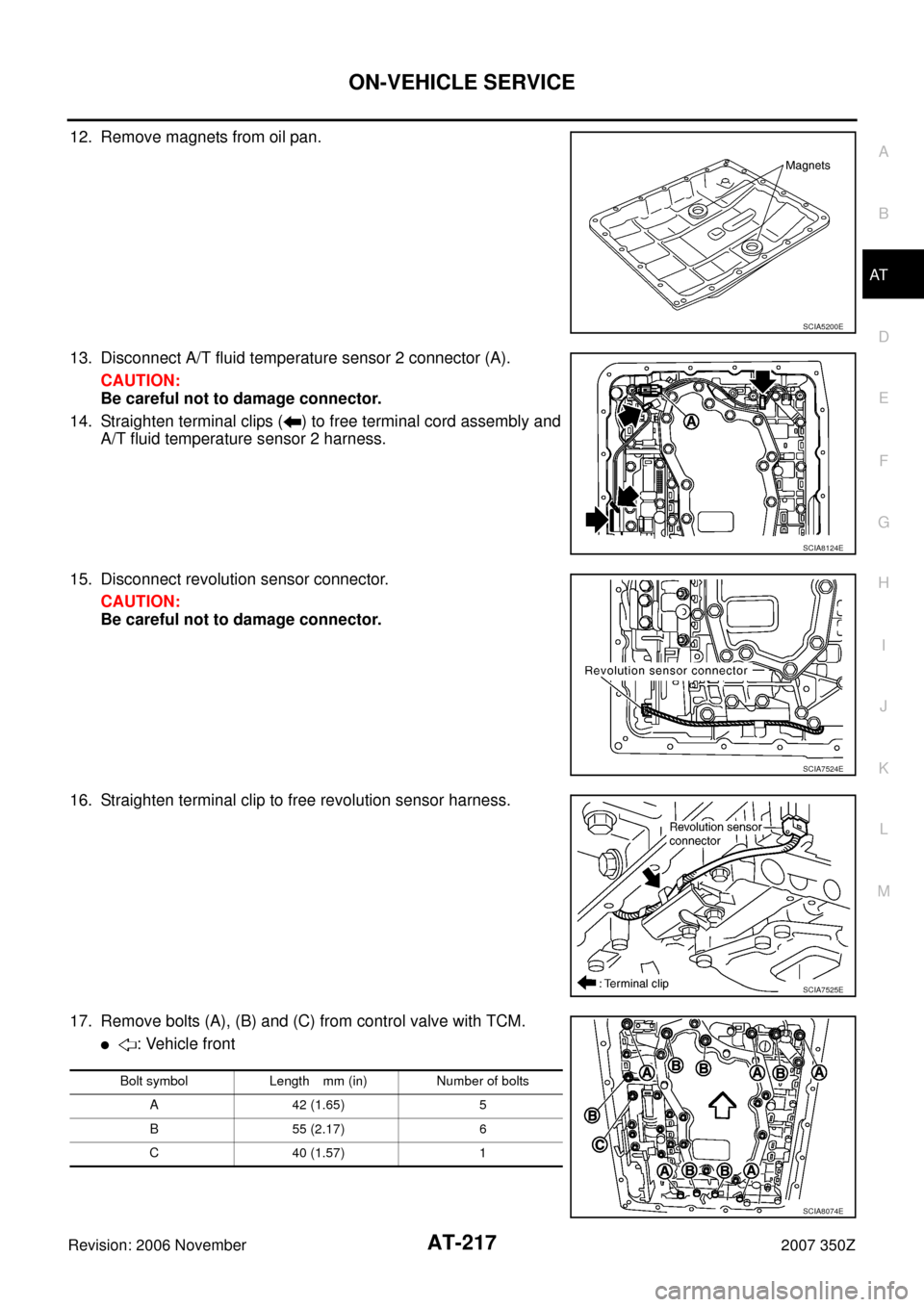

12. Remove magnets from oil pan.
13. Disconnect A/T fluid temperature sensor 2 connector (A).
CAUTION:
Be careful not to damage connector.
14. Straighten terminal clips ( ) to free terminal cord assembly and
A/T fluid temperature sensor 2 harness.
15. Disconnect revolution sensor connector.
CAUTION:
Be careful not to damage connector.
16. Straighten terminal clip to free revolution sensor harness.
17. Remove bolts (A), (B) and (C) from control valve with TCM.

: Vehicle front
SCIA5200E
SCIA8124E
SCIA7524E
SCIA7525E
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA8074E

AT-218
ON-VEHICLE SERVICE
Revision: 2006 November2007 350Z
18. Remove control valve with TCM from transmission case.
CAUTION:
When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.
19. Remove A/T fluid temperature sensor 2 with bracket from con-
trol valve with TCM.
20. Remove bracket from A/T fluid temperature sensor 2.
21. Remove O-ring from A/T assembly harness connector.
22. Disconnect TCM connectors.
CAUTION:
Be careful not to damage connectors.
SCIA5142E
SCIA5301E
SCIA5264E
SCIA5155E
SCIA5447E

AT-220
ON-VEHICLE SERVICE
Revision: 2006 November2007 350Z
3. Connect TCM connectors.
4. Install O-ring in A/T assembly harness connector.
CAUTION:

Do not reuse O-ring.

Apply ATF to O-ring.
5. Install A/T fluid temperature sensor 2 to bracket.
6. Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM, and then tighten A/T fluid temperature sensor 2
bolt to the specified torque. Refer to AT- 2 1 5 , "
COMPONENTS" .
CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve with
TCM.

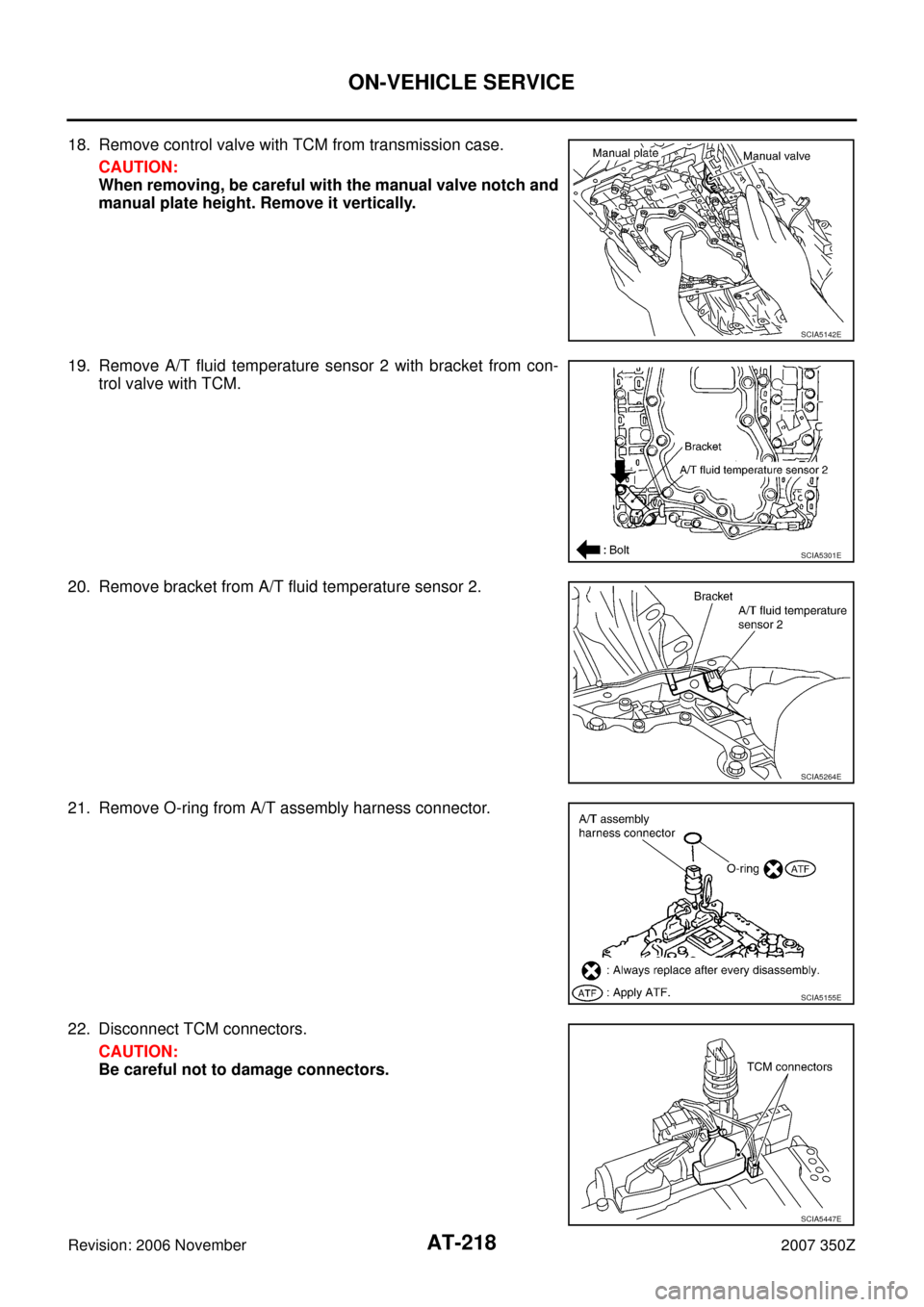

7. Install control valve with TCM in transmission case.
