2007 NISSAN 350Z sensor

AT-2Revision: 2006 November2007 350Z Possible Cause .....................................................102
DTC Confirmation Procedure ...............................102
Wiring Diagram — AT — PNP/SW .......................103
Diagnostic Procedure ...........................................104
DTC P0717 TURBINE REVOLUTION SENSOR ....106
Description ............................................................106
CONSULT-III Reference Value .............................106
On Board Diagnosis Logic ....................................106
Possible Cause .....................................................106
DTC Confirmation Procedure ...............................106
Diagnostic Procedure ...........................................107
DTC P0720 VEHICLE SPEED SENSOR A/T (REV-
OLUTION SENSOR) ...............................................108
Description ............................................................108
CONSULT-III Reference Value .............................108
On Board Diagnosis Logic ....................................108
Possible Cause .....................................................108
DTC Confirmation Procedure ...............................108
Wiring Diagram — AT — VSSA/T .........................110
Diagnostic Procedure ............................................111
DTC P0725 ENGINE SPEED SIGNAL ...................113
Description ............................................................113
CONSULT-III Reference Value .............................113
On Board Diagnosis Logic ....................................113
Possible Cause .....................................................113
DTC Confirmation Procedure ...............................113
Diagnostic Procedure ...........................................114
DTC P0731 A/T 1ST GEAR FUNCTION .................115
Description ............................................................115
On Board Diagnosis Logic ....................................115
Possible Cause .....................................................115
DTC Confirmation Procedure ...............................115
Diagnostic Procedure ...........................................116
DTC P0732 A/T 2ND GEAR FUNCTION ................117
Description ............................................................117
On Board Diagnosis Logic ....................................117
Possible Cause .....................................................117
DTC Confirmation Procedure ...............................117
Diagnostic Procedure ...........................................118
DTC P0733 A/T 3RD GEAR FUNCTION ................119
Description ............................................................119
On Board Diagnosis Logic ....................................119
Possible Cause .....................................................119
DTC Confirmation Procedure ...............................119
Diagnostic Procedure ...........................................120
DTC P0734 A/T 4TH GEAR FUNCTION ................121
Description ............................................................121
On Board Diagnosis Logic ....................................121
Possible Cause .....................................................121
DTC Confirmation Procedure ...............................121
Diagnostic Procedure ...........................................122
DTC P0735 A/T 5TH GEAR FUNCTION ................123
Description ............................................................123
On Board Diagnosis Logic ....................................123
Possible Cause .....................................................123
DTC Confirmation Procedure ...............................123
Diagnostic Procedure ...........................................124
DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE .................................................125Description ............................................................125
CONSULT-III Reference Value ..............................125
On Board Diagnosis Logic ....................................125
Possible Cause .....................................................125
DTC Confirmation Procedure ................................125
Diagnostic Procedure ............................................126
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP) .127
Description ............................................................127
CONSULT-III Reference Value ..............................127
On Board Diagnosis Logic ....................................127
Possible Cause .....................................................127
DTC Confirmation Procedure ................................127
Diagnostic Procedure ............................................128
DTC P0745 LINE PRESSURE SOLENOID VALVE .129
Description ............................................................129
CONSULT-III Reference Value ..............................129
On Board Diagnosis Logic ....................................129
Possible Cause .....................................................129
DTC Confirmation Procedure ................................129
Diagnostic Procedure ............................................130
DTC P1705 THROTTLE POSITION SENSOR ........131
Description ............................................................131
CONSULT-III Reference Value ..............................131
On Board Diagnosis Logic ....................................131
Possible Cause .....................................................131
DTC Confirmation Procedure ................................131
Diagnostic Procedure ............................................132
DTC P1710 A/T FLUID TEMPERATURE SENSOR
CIRCUIT ..................................................................134
Description ............................................................134
CONSULT-III Reference Value ..............................134
On Board Diagnosis Logic ....................................134
Possible Cause .....................................................134
DTC Confirmation Procedure ................................134
Wiring Diagram — AT — FTS ...............................135
Diagnostic Procedure ............................................136
Component Inspection ..........................................138
DTC P1721 VEHICLE SPEED SENSOR MTR .......139
Description ............................................................139
CONSULT-III Reference Value ..............................139
On Board Diagnosis Logic ....................................139
Possible Cause .....................................................139
DTC Confirmation Procedure ................................139
Diagnostic Procedure ............................................140
DTC P1730 A/T INTERLOCK .................................141
Description ............................................................141
On Board Diagnosis Logic ....................................141
Possible Cause .....................................................141
DTC Confirmation Procedure ................................141
Judgment of A/T Interlock .....................................141
Diagnostic Procedure ............................................142
DTC P1731 A/T 1ST ENGINE BRAKING ...............143
Description ............................................................143
CONSULT-III Reference Value ..............................143
On Board Diagnosis Logic ....................................143
Possible Cause .....................................................143
DTC Confirmation Procedure ................................143
Diagnostic Procedure ............................................144
DTC P1752 INPUT CLUTCH SOLENOID VALVE ..145

AT-3
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z Description ........................................................... 145
CONSULT-III Reference Value ............................. 145
On Board Diagnosis Logic ................................... 145
Possible Cause .................................................... 145
DTC Confirmation Procedure ............................... 145
Diagnostic Procedure ........................................... 146
DTC P1757 FRONT BRAKE SOLENOID VALVE .. 147
Description ........................................................... 147
CONSULT-III Reference Value ............................. 147
On Board Diagnosis Logic ................................... 147
Possible Cause .................................................... 147
DTC Confirmation Procedure ............................... 147
Diagnostic Procedure ........................................... 148
DTC P1762 DIRECT CLUTCH SOLENOID VALVE . 149
Description ........................................................... 149
CONSULT-III Reference Value ............................. 149
On Board Diagnosis Logic ................................... 149
Possible Cause .................................................... 149
DTC Confirmation Procedure ............................... 149
Diagnostic Procedure ........................................... 150
DTC P1767 HIGH AND LOW REVERSE CLUTCH
SOLENOID VALVE ................................................. 151
Description ........................................................... 151
CONSULT-III Reference Value ............................. 151
On Board Diagnosis Logic ................................... 151
Possible Cause .................................................... 151
DTC Confirmation Procedure ............................... 151
Diagnostic Procedure ........................................... 152
DTC P1772 LOW COAST BRAKE SOLENOID
VALVE ..................................................................... 153
Description ........................................................... 153
CONSULT-III Reference Value ............................. 153
On Board Diagnosis Logic ................................... 153
Possible Cause .................................................... 153
DTC Confirmation Procedure ............................... 153
Diagnostic Procedure ........................................... 154
DTC P1774 LOW COAST BRAKE SOLENOID
VALVE FUNCTION ................................................. 155
Description ........................................................... 155
CONSULT-III Reference Value ............................. 155
On Board Diagnosis Logic ................................... 155
Possible Cause .................................................... 155
DTC Confirmation Procedure ............................... 155
Diagnostic Procedure ........................................... 156
DTC P1815 MANUAL MODE SWITCH .................. 157
Description ........................................................... 157
CONSULT-III Reference Value in Data Monitor
Mode .................................................................... 157
On Board Diagnosis Logic ................................... 157
Possible Cause .................................................... 157
DTC Confirmation Procedure ............................... 157
Wiring Diagram — AT — MMSW ......................... 158
Diagnostic Procedure ........................................... 160
Component Inspection ......................................... 161
MAIN POWER SUPPLY AND GROUND CIRCUIT . 162
Wiring Diagram — AT — MAIN ............................ 162
Diagnostic Procedure ........................................... 163
CLOSED THROTTLE POSITION AND WIDE OPEN
THROTTLE POSITION CIRCUIT ........................... 166CONSULT-III Reference Value .............................166
Diagnostic Procedure ...........................................166
BRAKE SIGNAL CIRCUIT ......................................167
CONSULT-III Reference Value .............................167
Diagnostic Procedure ...........................................167
A/T INDICATOR CIRCUIT .......................................168
Description ............................................................168
CONSULT-III Reference Value .............................168
Diagnostic Procedure ...........................................168
TROUBLE DIAGNOSIS FOR SYMPTOMS ............169
Wiring Diagram — AT — NONDTC ......................169
A/T Check Indicator Lamp Does Not Come On ....172
Engine Cannot Be Started in “P” or “N” Position ..173
In “P” Position, Vehicle Moves When Pushed ......173
In “N” Position, Vehicle Moves ..............................174
Large Shock (“N” to “D” Position) .........................175
Vehicle Does Not Creep Backward in “R” Position .177
Vehicle Does Not Creep Forward in “D” Position . 179
Vehicle Cannot Be Started from D
1 ......................181
A/T Does Not Shift: D
1 → D2 ................................183
A/T Does Not Shift: D
2 → D3 ................................185
A/T Does Not Shift: D
3 → D4 ................................187
A/T Does Not Shift: D
4 → D5 ................................189
A/T Does Not Lock-up ..........................................191
A/T Does Not Hold Lock-up Condition ..................193
Lock-up Is Not Released ......................................194
Engine Speed Does Not Return to Idle ................195
Cannot Be Changed to Manual Mode ..................196
A/T Does Not Shift: 5th Gear → 4th Gear ............196
A/T Does Not Shift: 4th Gear → 3rd Gear ............198
A/T Does Not Shift: 3rd Gear → 2nd Gear ...........199
A/T Does Not Shift: 2nd Gear → 1st Gear ...........201
Vehicle Does Not Decelerate by Engine Brake ....202
SHIFT CONTROL SYSTEM ....................................204
Control Device Removal and Installation ..............204
Control Rod Removal and Installation ..................205
Adjustment of A/T Position ...................................206
Checking of A/T Position ......................................206
A/T SHIFT LOCK SYSTEM ....................................207
Description ............................................................207
Shift Lock System Electrical Parts Location .........207
Wiring Diagram — AT — SHIFT ...........................208
Diagnostic Procedure ...........................................209
KEY INTERLOCK CABLE ......................................212
Components .........................................................212
Removal and Installation ......................................213
ON-VEHICLE SERVICE ..........................................215
Control Valve with TCM and A/T Fluid Temperature
Sensor 2 ...............................................................215
Parking Components ............................................227
Rear Oil Seal ........................................................234
Revolution Sensor ................................................235
AIR BREATHER HOSE ..........................................241
Removal and Installation ......................................241
TRANSMISSION ASSEMBLY ................................242
Removal and Installation ......................................242
OVERHAUL ............................................................246
Components .........................................................246

AT-4Revision: 2006 November2007 350Z Oil Channel ...........................................................252
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings ..........................253
DISASSEMBLY .......................................................255
Disassembly .........................................................255
REPAIR FOR COMPONENT PARTS ......................271
Oil Pump ...............................................................271
Front Sun Gear, 3rd One-way Clutch ...................274
Front Carrier, Input Clutch, Rear Internal Gear ....276
Mid Sun Gear, Rear Sun Gear, High and Low
Reverse Clutch Hub .............................................281
High and Low Reverse Clutch ..............................286
Direct Clutch .........................................................288
ASSEMBLY .............................................................290Assembly (1) .........................................................290
Adjustment ............................................................302
Assembly (2) .........................................................304
SERVICE DATA AND SPECIFICATIONS (SDS) ....311
General Specifications ..........................................311
Vehicle Speed at Which Gear Shifting Occurs ......311
Vehicle Speed at Which Lock-up Occurs/Releases .311
Stall Speed ............................................................311
Line Pressure ........................................................311
A/T Fluid Temperature Sensor ..............................312
Turbine Revolution Sensor ....................................312
Vehicle Speed Sensor A/T (Revolution Sensor) ...312
Reverse Brake ......................................................312
Total End Play .......................................................312

PRECAUTIONS
AT-7
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NCS00019
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Battery ServiceNCS0001A
Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.
Precautions for On Board Diagnostic (OBD) System of A/T and EngineNCS0001B
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:

Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative termi-
nal before any repair or inspection work. The open/short circuit of related switches, sensors, sole-
noid valves, etc. Will cause the MIL to light up.

Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. May cause the MIL to light up due to a short circuit.

Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.

Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.

A/T CONTROL SYSTEM
AT-29
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
TCM FunctionNCS0001M
The function of the TCM is to:

Receive input signals sent from various switches and sensors.

Determine required line pressure, shifting point, lock-up operation, and engine brake operation.

Send required output signals to the respective solenoids.
CONTROL SYSTEM OUTLINE
The A/T senses vehicle operating conditions through various sensors or signals. It always controls the opti-
mum shift position and reduces shifting and lock-up shocks.
CONTROL SYSTEM DIAGRAM
SENSORS (or SIGNALS)

TCM

ACTUATORS
PNP switch
Accelerator pedal position signal
Closed throttle position signal
Wide open throttle position signal
Engine speed signal
A/T fluid temperature sensor
Revolution sensor
Vehicle speed signal
Manual mode switch signal
Stop lamp switch signal
Turbine revolution sensor
ATF pressure switchShift control
Line pressure control
Lock-up control
Engine brake control
Timing control
Fail-safe control
Self-diagnosis
CONSULT-III communication line
Duet-EA control
CAN systemInput clutch solenoid valve
Direct clutch solenoid valve
Front brake solenoid valve
High and low reverse clutch
solenoid valve
Low coast brake solenoid valve
Torque converter clutch sole-
noid valve
Line pressure solenoid valve
A/T CHECK indicator lamp
Starter relay
Back-up lamp relay
SCIA8327E

AT-30
A/T CONTROL SYSTEM
Revision: 2006 November2007 350Z
CAN CommunicationNCS0001N
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. For details, refer to LAN-48,
"CAN System Specification Chart" .
Input/Output Signal of TCMNCS0001O

*1: Spare for vehicle speed sensor A/T (revolution sensor)

*2: Spare for accelerator pedal position signal

*3: If these input and output signals are different, the TCM triggers the fail-safe function.

*4: Used as a condition for starting self-diagnostics; if self-diagnostics are not started, it is judged that there is some kind of error.

*5: Input by CAN communications

*6: Output by CAN communicationsControl itemLine
pressure
controlVehicle
speed
controlShift
controlLock-up
controlEngine
brake
controlFail-safe
function
(*3)
Self-diag-
nostics
function
InputAccelerator pedal position signal
(*5)XXXXX X X
Vehicle speed sensor A/T
(revolution sensor)XXXXX X X
Vehicle speed sensor MTR
(*1)(*5)X
Closed throttle position signal
(*5)X(*2)XX X
X(*4)
Wide open throttle position signal(*5)X
X(*4)
Turbine revolution sensor 1 X X X X X
Turbine revolution sensor 2
(for 4th speed only)XXXXX
Engine speed signals
(*5)XXXXX X X
Stop lamp switch signal
(*5)XXX
X(*4)
A/T fluid temperature sensors 1, 2 X X X X X X
ASCDOperation signal
(*5)XXX
Overdrive cancel sig-
nal
(*5)X
OutputDirect clutch solenoid X X X X
Input clutch solenoid X X X X
High and low reverse clutch solenoid X X X X
Front brake solenoid X X X X
Low coast brake solenoid
(ATF pressure switch 2)XX X X X
Line pressure solenoid X X X X X X X
TCC solenoid X X X
Self-diagnostics table
(*6)X
Starter relayXX

AT-32
A/T CONTROL SYSTEM
Revision: 2006 November2007 350Z

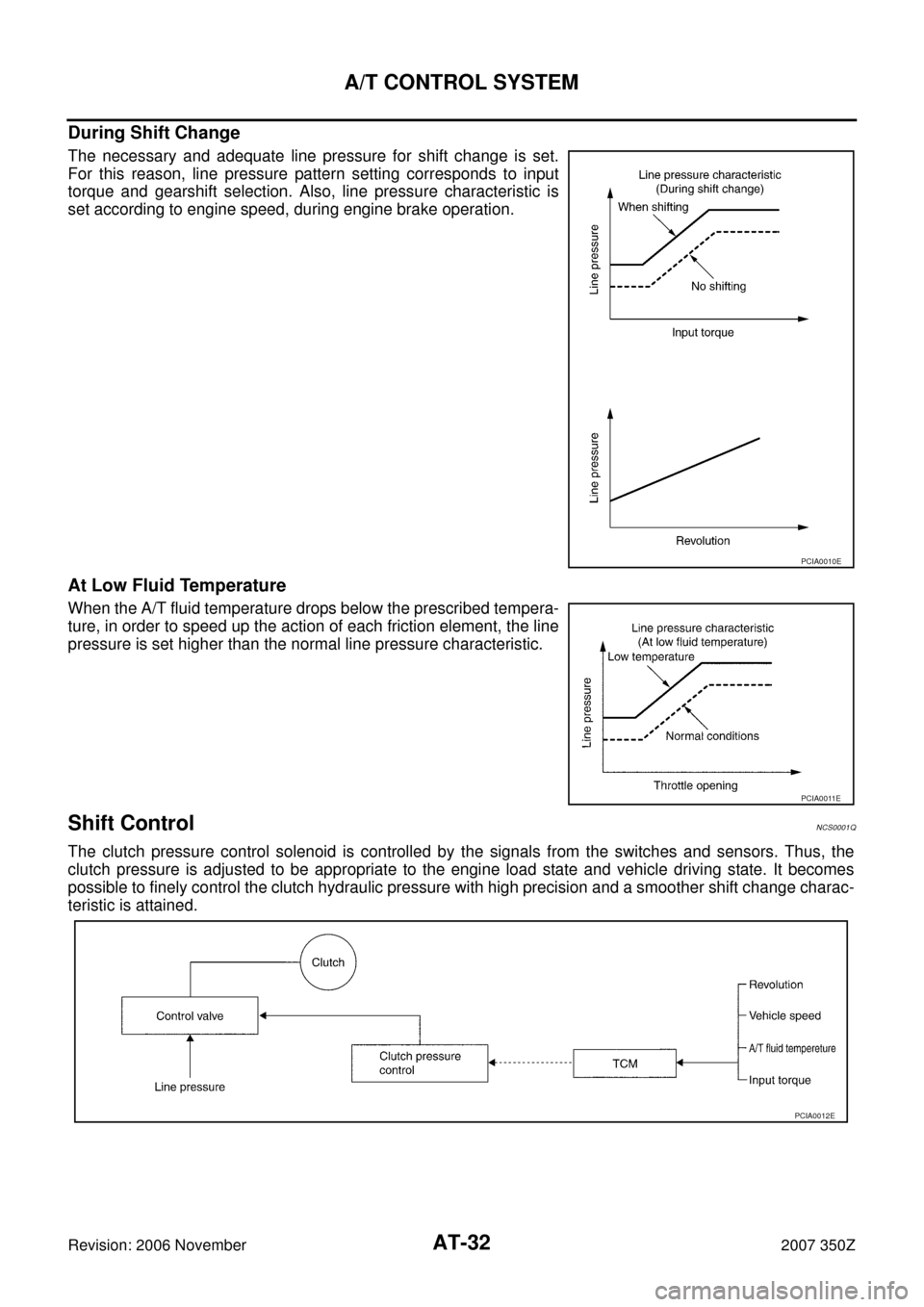

During Shift Change
The necessary and adequate line pressure for shift change is set.
For this reason, line pressure pattern setting corresponds to input
torque and gearshift selection. Also, line pressure characteristic is
set according to engine speed, during engine brake operation.
At Low Fluid Temperature
When the A/T fluid temperature drops below the prescribed tempera-
ture, in order to speed up the action of each friction element, the line
pressure is set higher than the normal line pressure characteristic.
Shift ControlNCS0001Q
The clutch pressure control solenoid is controlled by the signals from the switches and sensors. Thus, the
clutch pressure is adjusted to be appropriate to the engine load state and vehicle driving state. It becomes
possible to finely control the clutch hydraulic pressure with high precision and a smoother shift change charac-
teristic is attained.
PCIA0010E
PCIA0011E
PCIA0012E

ON BOARD DIAGNOSTIC (OBD) SYSTEM
AT-37
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionNCS0001U
The A/T system has two self-diagnostic systems.
The first is the emission-related on board diagnostic system (OBD-II) performed by the TCM in combination
with the ECM. The malfunction is indicated by the MIL (malfunction indicator lamp) and is stored as a DTC in
the ECM memory but not the TCM memory.
The second is the TCM original self-diagnosis indicated by the A/T CHECK indicator lamp. The malfunction is
stored in the TCM memory. The detected items are overlapped with OBD-II self-diagnostic items. For detail,
refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
OBD-II Function for A/T SystemNCS0001V
The ECM provides emission-related on board diagnostic (OBD-II) functions for the A/T system. One function
is to receive a signal from the TCM used with OBD-related parts of the A/T system. The signal is sent to the
ECM when a malfunction occurs in the corresponding OBD-related part. The other function is to indicate a
diagnostic result by means of the MIL (malfunction indicator lamp) on the instrument panel. Sensors, switches
and solenoid valves are used as sensing elements.
The MIL automatically illuminates in “One or Two Trip Detection Logic” when a malfunction is sensed in rela-
tion to A/T system parts.
One or Two Trip Detection Logic of OBD-IINCS0001W
ONE TRIP DETECTION LOGIC
If a malfunction is sensed during the first test drive, the MIL will illuminate and the malfunction will be stored in
the ECM memory as a DTC. The TCM is not provided with such a memory function.
TWO TRIP DETECTION LOGIC
When a malfunction is sensed during the first test drive, it is stored in the ECM memory as a 1st trip DTC
(diagnostic trouble code) or 1st trip freeze frame data. At this point, the MIL will not illuminate. — 1st trip
If the same malfunction as that experienced during the first test drive is sensed during the second test drive,
the MIL will illuminate. — 2nd trip
The “Trip” in the “One or Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation.
OBD-II Diagnostic Trouble Code (DTC)NCS0001X
HOW TO READ DTC AND 1ST TRIP DTC
DTC and 1st trip DTC can be read by the following methods.
( with CONSULT-III or GST) CONSULT-III or GST (Generic Scan Tool) Examples: P0705, P0720 etc.
These DTC are prescribed by SAE J2012.
(CONSULT-III also displays the malfunctioning component or system.)

1st trip DTC No. is the same as DTC No.

Output of the diagnostic trouble code indicates that the indicated circuit has a malfunction. How-
ever, in case of the Mode II and GST, they do not indicate whether the malfunction is still occurring
or occurred in the past and returned to normal.
CONSULT-III can identify them as shown below, therefore, CONSULT-III (if available) is recom-
mended.
Freeze Frame Data and 1st Trip Freeze Frame Data
The ECM has a memory function, which stores the driving condition such as fuel system status, calculated
load value, engine coolant temperature, short term fuel trim, long term fuel trim, engine speed and vehicle
speed at the moment the ECM detects a malfunction.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data,
and the data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-III
or GST. The 1st trip freeze frame data can only be displayed on the CONSULT-III screen, not on the GST. For
detail, refer to EC-116, "
CONSULT-III Function (ENGINE)" .
Only one set of freeze frame data (either 1st trip freeze frame data of freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
