2007 MERCEDES-BENZ E63AMG WAGON Owner's Manual

448 Practical hintsReplacing wiper blades
Placing front wiper arms in vertical po-sitionWiper blades in vertical positionVehicles with SmartKey
Turn SmartKey to starter switch
position1 (
page 37).

Turn combination switch to wiper
settingu (
page 57).

With wiper arms in the vertical position,
turn SmartKey in starter switch to
position0.

Remove SmartKey from starter switch.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status0) before replacing a wiper blade.
Otherwise, the wiper motor could suddenly
turn on and cause injury.Warning!
G
Wiper blades are components that are sub-
ject to wear and tear. Change the wiper
blades twice a year, preferably in the spring
and fall. Otherwise the windows will not be
properly wiped. As a result, you may not be
able to observe surrounding traffic condi-
tions and could cause an accident.
!
To avoid damage to the hood:


The wiper arms should only be folded for-
ward when in the vertical position.


Never open the hood when the wiper arm is
folded forward.
!
Hold on to the wiper when folding the wiper
arm back. If released, the force of the impact
from the tensioning spring could crack the wind-
shield.
Do not allow the wiper arms to contact the wind-
shield glass without a wiper blade inserted.
Make sure the wiper blades are properly in-
stalled. Improperly installed wiper blades may
cause windshield damage.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Center.

449 Practical hints
Replacing wiper blades
Vehicles with KEYLESS-GO*
Turn off the engine (
page 64).
With the driver’s door closed, the start-
er switch is now in position1.

Turn combination switch to wiper
settingII (
page 57).

With wiper arms in the vertical position,
open the driver’s door.
The starter switch is set to position0,
same as SmartKey removed from start-
er switch.

Turn combination switch to wiper
setting0 (
page 57).
Removing front wiper blades
Fold the wiper arm forward until it
snaps into place.

Turn the wiper blade at a right angle to
wiper arm.

Slide the wiper blade sideways out of
the retainer.
Installing front wiper blades
Slide the wiper blade onto wiper arm
until it locks in place.

Rotate the wiper blade into position
parallel to the wiper arm.

Fold the wiper arm backward to rest on
the windshield. Make sure you hold on
to the wiper when folding the wiper arm
back.
Removing rear wiper blade
!
Do not pull on the wiper blade inserts. They
could tear.
!
Hold on to the wiper when folding the wiper
arm back. If released, the force of the impact
from the tensioning spring could crack the rear
window.
Do not allow the wiper arms to contact the rear
window glass without a wiper blade inserted.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Center.
Make sure the wiper blades are properly in-
stalled. Improperly installed wiper blades may
cause rear window damage.


450 Practical hintsReplacing wiper blades
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0
(page 39).

Fold the wiper arm away from the vehi-
cle until it engages.
1Wiper blade
2Tab
3Attachment
4Removing

Turn the wiper blade1 at a right angle
to wiper arm.

Press tab2 down and push wiper
blade1 downward in direction of
arrow4.

Remove wiper blade1.
Installing rear wiper blade
1Wiper blade
2Tab
3Attachment
4Installing

Slide the wiper blade1 into
attachment3 in direction of
arrow4.

Let tab2 latch into attachment3
until it locks in place.

Check if the wiper blade is securely fas-
tened.

Fold the wiper arm back towards the
vehicle to rest on the rear windshield.
Make sure you hold on to the wiper arm
when folding it back.
!
Do not pull on the wiper blade inserts. They
could tear.


451 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.

Turn on the hazard warning flasher
(page 148).

Turn the steering wheel so that the
front wheels are in a straight ahead po-
sition.

Set the parking brake (
page 62).

Move the gear selector lever toP.
Vehicles with SmartKey:

Turn off the engine (
page 63).

Remove the SmartKey from the starter
switch.Vehicles with SmartKey with
KEYLESS-GO*:

Turn off the engine by pressing the
KEYLESS-GO* start/stop button on the
gear selector lever once (
page 64).

Open the driver’s door (this puts the ig-
nition in position0, same as with the
SmartKey removed from the starter
switch). The driver’s door then can be
closed again.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Sealing tires with TIREFIT
E 63 AMG vehicles with foldable third row
seat are equipped with TIREFIT.
Small tire punctures, particularly those in
the tread, can be sealed with TIREFIT.
TIREFIT can be used in ambient tempera-
tures down to -4°F (-20°C).
i
Open door only when conditions are safe to
do so.
Warning!
G
Keep TIREFIT away from sparks, open flame
or heat source.
Do not smoke.

452 Practical hintsFlat tire
Foreign objects (e.g. screws or nails)
should not be removed from the tire.

Take TIREFIT, the sticker, and the elec-
tric air pump out of the cargo compart-
ment.

Attach the sticker where it will be easily
seen by the driver on the instrument
cluster.1TIREFIT container
2Flap
3Notch
4Electrical plug
5Air hose
6Flange

Open flap2 on the electric air pump.

Pull plug4 and air hose5 out of the
pump housing.

Screw the air pump’s air hose5 onto
flange6 of the TIREFIT container.
Warning!
G
TIREFIT is a limited repair device. TIREFIT
cannot be used for cuts or punctures larger
than approximately 0.16 in (4 mm) and tire
damage caused by driving with extremely
low tire inflation pressure, or on a flat tire, or
a damaged wheel.
Do not drive the vehicle under such circum-
stances.
Contact your nearest Mercedes-Benz
Center for assistance or call Roadside
Assistance.
Warning!
G
Take care not to allow the contents of
TIREFIT to come in contact with hair, eyes or
clothing. TIREFIT is harmful if inhaled, swal-
lowed or absorbed through the skin - causes
skin, eye and respiratory irritation.
Any contact with eyes or skin should be
flushed immediately with plenty of water.
If clothing comes in contact with TIREFIT,
change clothing as soon as possible.
In case of allergic reaction or rash, consult a
physician immediately.Warning!
G
Keep TIREFIT out of reach of children.
If swallowed, rinse mouth immediately with
plenty of water and drink plenty of water.
Do not induce vomiting!
Consult a physician immediately.
Keep away from open flame or heat source.
i
If sealant has leaked out, let it dry. You can
then peel it off.

453 Practical hints
Flat tire

Stick TIREFIT container1 upside
down into notch3 of the electric air
pump.
7Tire valve
8Electric air pump switch
9Air hose with pressure gauge and vent
screw
aFiller hose

Unscrew the valve cap from tire
valve7.

Screw filler hosea onto tire valve7.

Insert electrical plug4 into the vehi-
cle cigarette lighter socket
(page 286).

Turn the SmartKey in the starter switch
to position1 (
page 37).
or

Press the KEYLESS-GO* start/stop
button (
page 39) on the gear selec-
tor lever once. Do not depress brake
pedal.

PressI on electric air pump switch8.
The electric air pump should now
switch on and inflate the tire.After 5 minutes, the pressure gauge must
display at least 26 psi (1.8 bar). The air
hose can become hot during inflation.
Please exercise appropriate caution.

If this tire inflation pressure is not at-
tained, turn off the electric air pump,
detach the filler hose from the tire
valve, and drive vehicle back and forth
very slowly approximately 30 ft (10 m).
This serves to better distribute the
TIREFIT sealant material inside the tire.

Unscrew the air pump’s air hose5
from flange6 of the TIREFIT contain-
er.

Screw air hose5onto tire valve7.

Inflate the tire again.
Warning!
G
Observe safety instructions on air pump la-
bel.
!
Do not operate the electric air pump longer
than 8 minutes without interruption. Otherwise it
may overheat.
You may operate the air pump again after it has
cooled off.


454 Practical hintsFlat tire
After attaining a tire inflation pressure
of 26 psi (1.8 bar), press0 on electric
air pump switch8.
The electric air pump should now be
switched off.

Turn the SmartKey in the ignition to
position0 (
page 37).
or

Press the KEYLESS-GO* start/stop
button (
page 39) on the gear selec-
tor lever twice. Do not depress brake
pedal.

Detach the electric air pump.
The air hose may still be hot. Please ex-
ercise appropriate caution.

Place the electric air pump back in the
cargo compartment.

Close the cargo compartment.

Drive away immediately.
The TIREFIT sealant will distribute itself
evenly inside the tire.

After driving vehicle for an initial
10 minutes, check tire inflation pres-
sure using the pressure gauge on the
air pump.
Warning!
G
If a tire inflation pressure of 26 psi (1.8 bar)
is not attained, tire is too severely damaged
for TIREFIT to provide a reliable tire repair.
In this case, TIREFIT cannot properly seal
the tire.
Do not drive the vehicle.
Contact the nearest Mercedes-Benz Center
or call Roadside Assistance.
Warning!
G
Do not exceed vehicle speed of
50 mph (80 km/h). A TIREFIT repair is not
designed to operate at higher speeds.
The sticker must be attached on the instru-
ment cluster where it will be easily seen by
the driver.
Vehicle handling characteristics may
change. Adapt your driving accordingly.

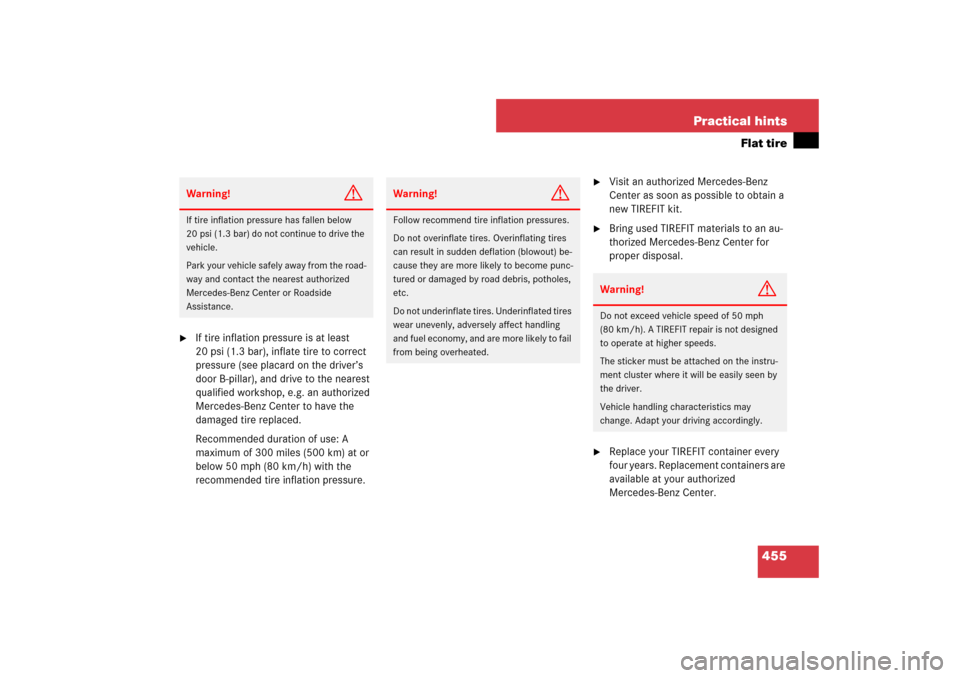

455 Practical hints
Flat tire

If tire inflation pressure is at least
20 psi (1.3 bar), inflate tire to correct
pressure (see placard on the driver’s
door B-pillar), and drive to the nearest
qualified workshop, e.g. an authorized
Mercedes-Benz Center to have the
damaged tire replaced.
Recommended duration of use: A
maximum of 300 miles (500 km) at or
below 50 mph (80 km/h) with the
recommended tire inflation pressure.

Visit an authorized Mercedes-Benz
Center as soon as possible to obtain a
new TIREFIT kit.

Bring used TIREFIT materials to an au-
thorized Mercedes-Benz Center for
proper disposal.

Replace your TIREFIT container every
four years. Replacement containers are
available at your authorized
Mercedes-Benz Center.
Warning!
G
If tire inflation pressure has fallen below
20 psi (1.3 bar) do not continue to drive the
vehicle.
Park your vehicle safely away from the road-
way and contact the nearest authorized
Mercedes-Benz Center or Roadside
Assistance.
Warning!
G
Follow recommend tire inflation pressures.
Do not overinflate tires. Overinflating tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Warning!
G
Do not exceed vehicle speed of 50 mph
(80 km/h). A TIREFIT repair is not designed
to operate at higher speeds.
The sticker must be attached on the instru-
ment cluster where it will be easily seen by
the driver.
Vehicle handling characteristics may
change. Adapt your driving accordingly.
