2007 MERCEDES-BENZ E63AMG WAGON Owner's Manual

96 Safety and SecurityPanic alarm1Â button
Activating
Press and hold button1 for at least
1 second.
An audible alarm and flashing exterior
lamps will operate briefly.
Deactivating
Press button1 again.
or

Insert the SmartKey or the SmartKey
with KEYLESS-GO* in the starter
switch.
or

Press the KEYLESS-GO* start/stop
button.
The SmartKey with KEYLESS-GO* must
be inside the vehicle.
i
USA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

97 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


Adaptive Brake


BAS (B
rake A
ssist S
ystem)


EBP (E
lectronic B
rake P
roportioning)


ESP
® (E
lectronic S
tability P
rogram)


4MATIC (Four Wheel Electronic
Traction System)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of
approximately 5 mph (8 km/h) indepen-
dent of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
The - indicator lamp in the instrument
cluster comes on when you switch on the
ignition. It goes out when the engine is run-
ning.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP
®, Adaptive Brake, and
4MATIC cannot reduce this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
i
In winter operation, the maximum
effectiveness of the ABS, the BAS, the EBP, the
ESP®, and 4MATIC is only achieved with winter
tires (page 363), or snow chains as required.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

98 Safety and SecurityDriving safety systemsBraking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.
Keep firm and steady pressure on the
brake pedal while experiencing the
pulsation.
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
The pulsating brake pedal can be an indica-
tion of hazardous road conditions and
functions as a reminder to take extra care
while driving.Emergency brake maneuver

Keep continuous full pressure on the
brake pedal.
For more information, see the “Practical
hints” section (
page 378).
Warning!
G
When the ABS is malfunctioning, the BAS
and the ESP
® are also switched off.
When the ABS is malfunctioning, the wheels
may lock during hard braking, reducing
steering capability and extending the brak-
ing distance.
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction af-
forded. The ABS cannot prevent accidents,
including those resulting from excessive
speed in turns, following another vehicle too
closely, or hydroplaning. Only a safe, atten-
tive, and skillful driver can prevent acci-
dents. The capabilities of an ABS equipped
vehicle must never be exploited in a reck-
less or dangerous manner which could jeop-
ardize the user’s safety or the safety of
others.

99 Safety and Security
Driving safety systems
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing the braking distance.
Apply continuous full braking pressure
until the emergency braking situation is
over.
The ABS will prevent the wheels from
locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
Adaptive Brake
Adaptive Brake provides a high level of
braking safety as well as increased braking
comfort.
Important notes on using the brake
system

Following extended periods of only mi-
nor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This im-
proves the grip of the brake pads.
Warning!
G
If the BAS is malfunctioning, the brake sys-
tem is still functioning normally, but without
the additional brake boost available that
BAS would normally provide in an emergen-
cy braking maneuver. Therefore, the braking
distance may increase.
Warning!
G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that
afforded by the condition of the vehicle
brakes and tires or the traction afforded.
The BAS cannot prevent accidents, includ-
ing those resulting from excessive speed in
turns, following another vehicle too closely,
or hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of a BAS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.
Warning!
G
Make sure not to endanger any other road
users when carrying out these braking ma-
neuvers.

100 Safety and SecurityDriving safety systems

After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks and help prevent corro-
sion.


On long and steep grades, shift to a
lower gear (gear range 1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes fast-
er.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be in-
stalled on your vehicle. Brake pads not
approved by Mercedes-Benz may im-
pair the safety of your vehicle.
EBP
The Electronic Brake Proportioning (EBP)
enhances braking effectiveness by allow-
ing the rear brakes to supply a greater pro-
portion of the braking effort in straight line
breaking without a loss of vehicle stability.
ESP
®
The Electronic Stability Program (ESP
®) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP
® recognizes when a wheel is spin-
ning or if the vehicle starts to skid. By ap-
plying the brakes to the appropriate wheel
and by limiting engine output, the ESP
®
works to stabilize the vehicle. The ESP® is
especially useful while driving off and on
wet or slippery road surfaces. The ESP®
also stabilizes the vehicle during braking
maneuvers.
The ESP
® warning lamp v in the
instrument cluster flashes when the ESP
®
is engaged.
The ESP
® warning lamp v in the
instrument cluster comes on when you
switch on the ignition. It goes out when the
engine is running.
Warning!
G
When the EBP is malfunctioning, the ABS,
BAS, and ESP
® are also switched off.
If the EBP is malfunctioning, the brake sys-
tem will still function with full brake boost.
However, the rear wheels could lock up dur-
ing emergency braking situations, for exam-
ple. You could lose control of the vehicle and
cause an accident. Adapt your driving style
to the changed driving characteristics.

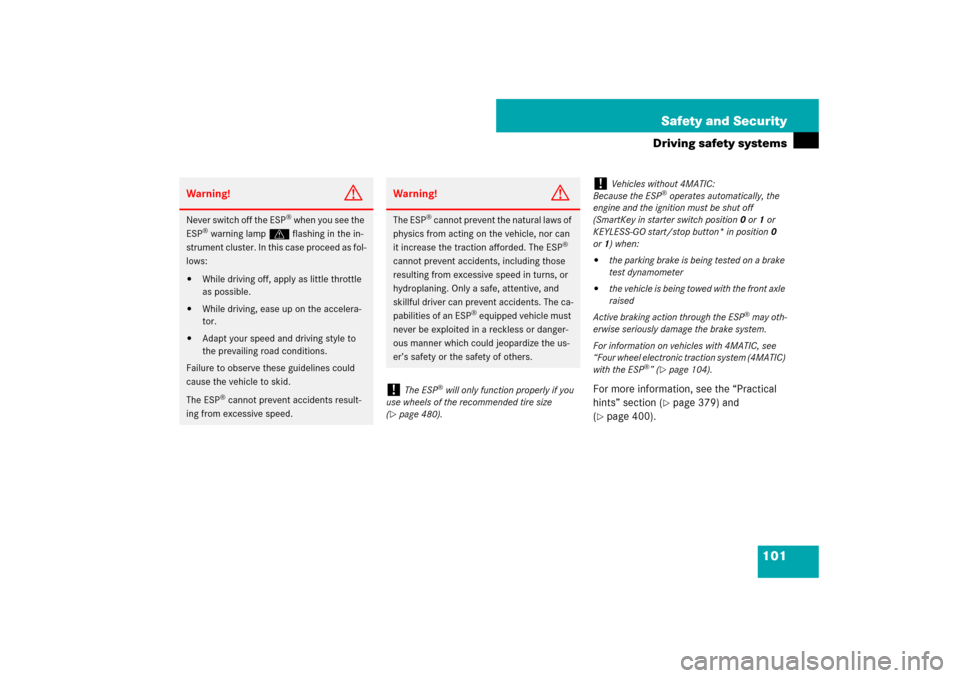

101 Safety and Security
Driving safety systems
For more information, see the “Practical
hints” section (
page 379) and
(
page 400).
Warning!
G
Never switch off the ESP
® when you see the
ESP
® warning lamp v flashing in the in-
s t r u m e n t c l u s t e r . I n t h i s c a s e p r o c e e d a s f o l -
lows:


While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP
® cannot prevent accidents result-
ing from excessive speed.
Warning!
G
The ESP
® cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
®
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP
® equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.
!
The ESP
® will only function properly if you
use wheels of the recommended tire size
(
page 480).
!
Vehicles without 4MATIC:
Because the ESP
® operates automatically, the
engine and the ignition must be shut off
(SmartKey in starter switch position0 or1 or
KEYLESS-GO start/stop button* in position0
or1) when:


the parking brake is being tested on a brake
test dynamometer


the vehicle is being towed with the front axle
raised
Active braking action through the ESP
® may oth-
erwise seriously damage the brake system.
For information on vehicles with 4MATIC, see
“Four wheel electronic traction system (4MATIC)
with the ESP
®” (page 104).

102 Safety and SecurityDriving safety systemsSwitching off the ESP
®
Switching off the ESP
®
(except E 63 AMG)
To improve the vehicle’s traction, switch
off the ESP
® in driving situations where it
would be advantageous to have drive
wheels spin and thus cut into surfaces for
better grip such as:


when driving with snow chains


in deep snow


in sand or gravelWhen you switch off the ESP
®


the ESP
® does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the traction control will still apply the
brakes to a spinning wheel


the ESP
® continues to operate when
you are braking


you cannot activate the cruise control
or the Distronic*


the cruise control or Distronic* switch
off if currently activatedThe switch is located on the center con-
sole.
1ESP
® switch

With the engine running, press ESP
®
switch1 until the ESP
® warning
lampv in the instrument cluster
comes on.
The ESP
® is switched off.
Warning!
G
The ESP
® should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in driving
maneuvers.
Do not switch off the ESP
® when a spare
wheel is mounted.
Warning!
G
Switch on the ESP
® immediately if the afore-
mentioned circumstances do not apply any-
more. Otherwise the ESP
® will not stabilize
the vehicle when it is starting to skid or a
wheel is spinning.
i
When the ESP
® is switched off and one or
more drive wheels are spinning, the ESP
® warn-
ing lamp v in the instrument cluster flashes.
However, the ESP
® will then not stabilize the ve-
hicle.

103 Safety and Security
Driving safety systems
Switching off the ESP
® (E 63 AMG only)When you switch off the ESP
®


the ESP
® does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin


the traction control will still apply the
brakes to a spinning wheel


the ESP
® operates while you are brak-
ing


you cannot activate the cruise control
or the Distronic*


the cruise control or Distronic* switch
off if currently activated
Warning!
G
When the ESP
® warning lamp v is
illuminated continuously, the ESP
® is
switched off or is not operational due to a
malfunction. Vehicle stability in standard
driving maneuvers is reduced.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!
Avoid spinning of a drive wheel for an ex-
tended period with the ESP
® switched off. This
may cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz
Limited Warranty.
Warning!
G
The ESP
® should not be switched off during
normal driving. Disabling of the system will
result in the following:


no restriction to engine torque


loss of system supported traction
control
“ESP® O F F ” i s d e s i g n e d f or driving on closed
tracks when the vehicle’s natural oversteer
and understeer characteristics are desired
and requires a highly skilled and experi-
enced driver able to handle these critical
driving situations.
You could lose control of your vehicle and
cause an accident.
Please be aware of these limits when you
switch off the ESP
®.
Do not switch off the ESP
® when a spare
wheel is mounted.
i
When the ESP
® is switched off and one or
more drive wheels are spinning, the ESP
® warn-
ing lamp v in the instrument cluster flashes.
However, the ESP
® will then not stabilize the ve-
hicle.
