CAUTION
(With Tire Pressure Monitoring
System)
When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.
NOTE
(With Tire Pressure Monitoring System)lWhen tires with steel wire reinforcement in
the sidewalls are used, the system may not
function correctly even with a genuine
wheel.
Refer to System Error Activation on page
5-31.
lBe sure to install the tire pressure sensors
whenever tires or wheels are replaced.
Refer to Tires and Wheels on page 5-31.
If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace it before the band is
across the entire tread.NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. Regarding the manufacturing week and
year is indicated with 4 digit.
Refer to The tire labeling on page 9-23.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (4.2
kgf/cm
2or bar, 60 psi).
Maintenance and Care
Owner Maintenance
8-35
CX-9_8V83-EA-06I_Edition3 Page417
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I

Black plate (418,1)
CAUTION
ØDon't use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
ØThe temporary spare tire has a
tread life of less than 5,000 km
(3,000 miles). The tread life may
be shorter depending on driving
conditions.
ØThe temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 8-34).
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. Regarding the manufacturing week and
year is indicated with 4 digit.
Refer to The tire labeling on page 9-23.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring
System
ØLimited-Slip Differential System
Ø(With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-31.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
8-36
Maintenance and Care
Owner Maintenance
CX-9_8V83-EA-06I_Edition3 Page418
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I

Black plate (419,1)
Light Bulbs
Headlights (Low beam) Headlights (High beam)
High-mount brake lightFog lights
Front turn signal lightsSide turn signal lights
Courtesy lights
Some models.
License plate lights
Brake lights/TaillightsTaillights Overhead light/Map lights (Front)
Vanity mirror lights Overhead light (Center) Overhead light (Rear)
Front side marker lights
Rear turn signal lights
Rear side marker lights Reverse lights
Luggage
compartment light
Maintenance and Care
Owner Maintenance
8-37
CX-9_8V83-EA-06I_Edition3 Page419
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I

Black plate (420,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
High-beam bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood.3. Turn the cover counterclockwise and
remove it.
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
5. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
6. Install the new bulb in the reverse order
of removal.
8-38
Maintenance and Care
Owner Maintenance
CX-9_8V83-EA-06I_Edition3 Page420
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I

Black plate (421,1)
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
1. Make sure the headlight switch is off.
2. Lift the hood.
3. Remove the attachment bolts and the
coolant reservoir before replacing the
light bulb.
4. Turn the cover counterclockwise and
remove it.
5. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-39
CX-9_8V83-EA-06I_Edition3 Page421
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I

Black plate (422,1)
8. Install the coolant reservoir. If you are
unsure of how tight the bolts should be,
have them inspected at an Authorized
Mazda Dealer.
Bolt tightening torque
N·m (kgf·m, ft·lbf)6.9―11.8
(0.7―1.2, 5.1―8.7)
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Front side marker lights, Front turn
signal lights
1. Make sure the headlight switch is off.
2. Lift the hood.
3. Remove the attachment bolts and the
coolant reservoir before replacing the
light bulb.
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.Front side marker lights
Front turn signal lights
6. Install the new bulb in the reverse order
of removal.
7. Install the coolant reservoir. If you are
unsure of how tight the bolts should be,
have them inspected at an Authorized
Mazda Dealer.
Bolt tightening torque
N·m (kgf·m, ft·lbf)6.9―11.8
(0.7―1.2, 5.1―8.7)
Fog lightsí
1. Make sure the headlight switch is off.
2. Turn the screws counterclockwise and
remove them.
8-40
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8V83-EA-06I_Edition3 Page422
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I

Black plate (423,1)
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then remove the mudguard.
Removal
Installation
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
5. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of removal.NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Side turn signal lightsí, Brake lights,
Taillights (Rear combination light side),
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
Rear turn signal lights/Rear side-
marker light
1. Turn the bolts counterclockwise and
remove them.
Maintenance and Care
Owner Maintenance
8-41íSome models. CX-9_8V83-EA-06I_Edition3 Page423
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I

Black plate (424,1)

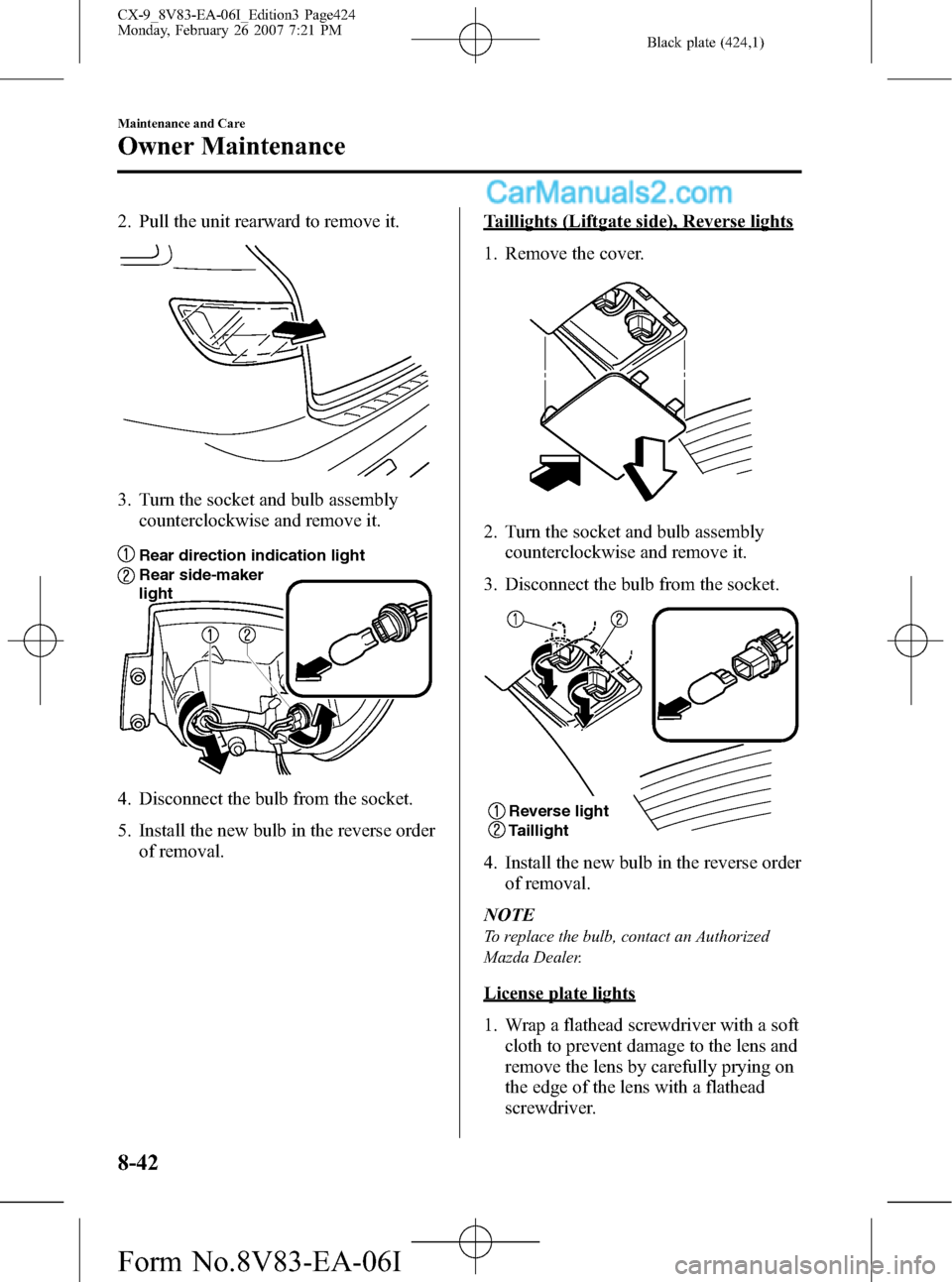

2. Pull the unit rearward to remove it.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
Rear side-maker
light
Rear direction indication light
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Taillights (Liftgate side), Reverse lights
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse light
Taillight
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
8-42
Maintenance and Care
Owner Maintenance
CX-9_8V83-EA-06I_Edition3 Page424
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I
