2007 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (225,1)
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
Driving Your Mazda
Switches and Controls
5-63
CX-9_8V83-EA-06I_Edition3 Page225
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (226,1)
5-64
CX-9_8V83-EA-06I_Edition3 Page226
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (227,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System .......................... 6-2
Operating Tips .................................... 6-2
Vent Operation (Front) ........................ 6-4
Fully Automatic Type ......................... 6-6
Vent Operation (Rear) ....................... 6-12
Control Panel (Rear) ......................... 6-14
Audio System ......................................... 6-17
Antenna ............................................. 6-17
Operating Tips for Audio System ..... 6-17
Audio Set .......................................... 6-27
Audio Control Switch Operation (Steering
Wheel) ............................................... 6-46
Auxiliary Input (AUX mode) ............ 6-48
Safety Certification ........................... 6-50
Rear Entertainment System ................. 6-51
Rear Entertainment System
í............ 6-51
Part Names ........................................ 6-60
Before Operation ............................... 6-63
Sound Output .................................... 6-69
Rear Entertainment System
Functions ........................................... 6-73
DVD video, DVD audio, Video CD, Audio
CD and MP3/WMA CD Playback (Disc
Mode) ................................................ 6-74
Auxiliary Input (AUX mode) ............ 6-88
Language Code List .......................... 6-92
Country Code List ............................. 6-94
Error Message ................................... 6-98
Symptoms and Actions ................... 6-100Bluetooth Hands-Free ......................... 6-103
Bluetooth Hands-Free
í.................. 6-103
Basic Bluetooth Hands-Free
Operation ........................................ 6-106
Convenient Use of the Hands-Free
System ............................................. 6-109
Hands-Free Telephone Setting ........ 6-113
When the Bluetooth Hands-Free cannot be
used ................................................. 6-118
Safety Certification ......................... 6-119
Interior Equipment ............................. 6-120
Sunvisors ......................................... 6-120
Interior Lights ................................. 6-121
Information Display ........................ 6-123
Cup Holder ...................................... 6-125
Bottle Holder ................................... 6-127
Storage Compartments .................... 6-127
Accessory Sockets .......................... 6-131
Power Outlet
í................................ 6-132
6-1íSome models.
CX-9_8V83-EA-06I_Edition3 Page227
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

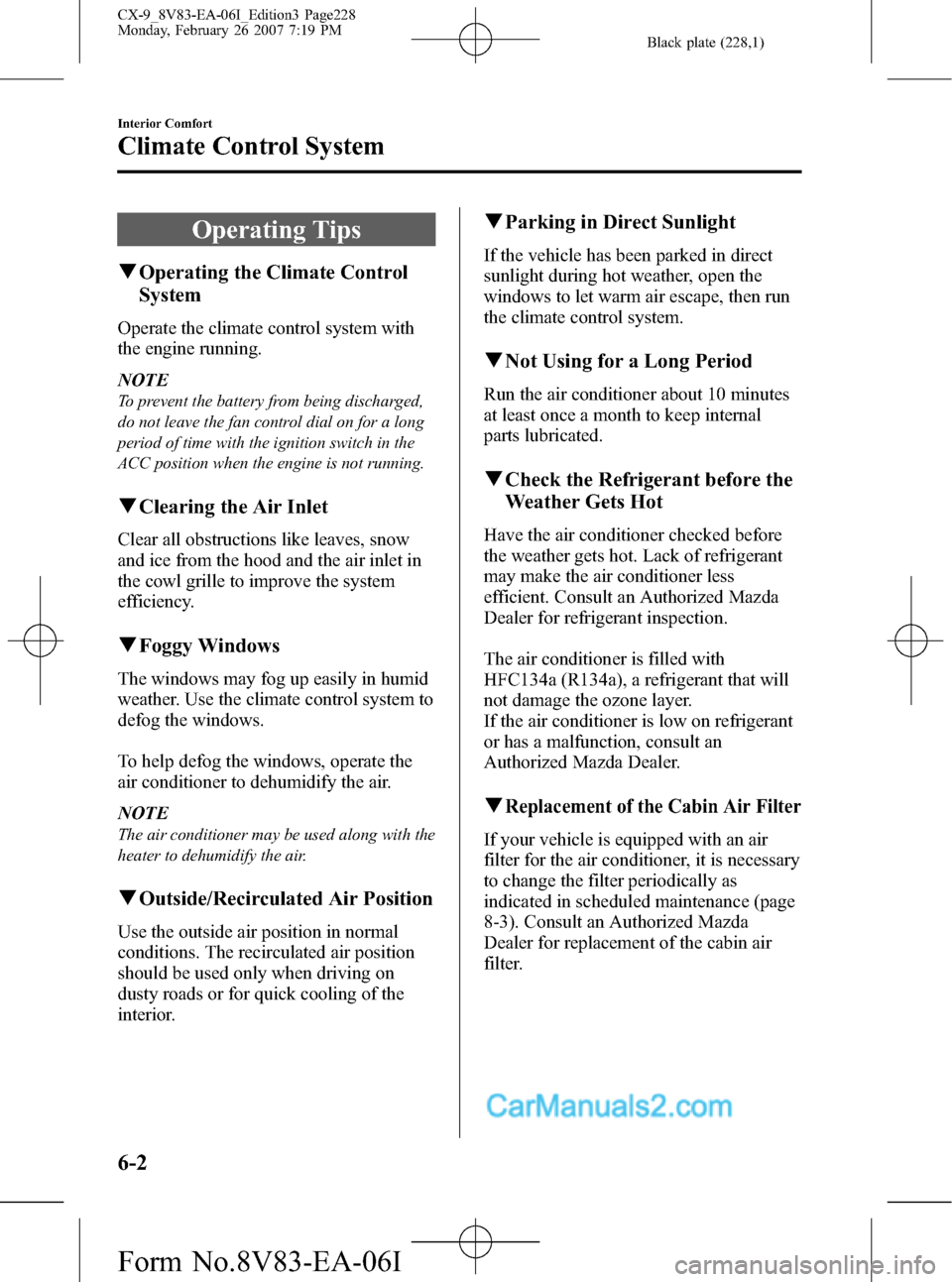

Black plate (228,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switch in the
ACC position when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
CX-9_8V83-EA-06I_Edition3 Page228
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (229,1)
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and the temperature of
direct sunlight. It then sets temperatures
inside the passenger compartment
accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the automatic air
conditioner will not operate properly.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-3
CX-9_8V83-EA-06I_Edition3 Page229
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (230,1)
Vent Operation (Front)
Open
Close
qAdjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
Opening/closing vents
The two outside vents can be opened and closed with wheel.
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.
6-4
Interior Comfort
Climate Control System
CX-9_8V83-EA-06I_Edition3 Page230
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (231,1)
qSelecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents
Defroster and Floor Vents
Defroster Vents
Interior Comfort
Climate Control System
6-5
CX-9_8V83-EA-06I_Edition3 Page231
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (232,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Temperature setting display(driver)Ambient temperature /Temperature
setting display(front passenger)
Mode selector display
Airflow display A/C
DUALAU TO
Air intake display
Information display
Front passenger temperature control dial
Windshield defroster switchFan control dial Driver temperature control dial
Air intake selector OFF switch AUTO switch
Mode selector
switchA/C switch
DUAL switch
OUTSIDE (Ambient
temperature) switch
6-6
Interior Comfort
Climate Control System
CX-9_8V83-EA-06I_Edition3 Page232
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I
