2007 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (353,1)
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
accessories.
Push and release to open.
Interior Comfort
Interior Equipment
6-127
CX-9_8V83-EA-06I_Edition3 Page353
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (354,1)
qCoin Box
To open, press the release catch down and
pull the lid downward.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
qCenter Console
To open, push the button.
qArmrest Boxí
To open, pull the release catch.
qCargo Securing Loops
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
6-128
Interior Comfort
íSome models.
Interior Equipment
CX-9_8V83-EA-06I_Edition3 Page354
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (355,1)
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
qCargo Sub-Compartment
Center cargo sub-compartment
1. Lift the trunk board.
2. Secure the trunk board using the straps
on the third-row seatbacks.
Side cargo sub-compartment
Pull the compartment's strap to open the
cover.
Some models.
qShopping Bag Hook
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Interior Comfort
Interior Equipment
6-129
CX-9_8V83-EA-06I_Edition3 Page355
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (356,1)
Shopping bag hook
(tensile strength:3 kg
(6.6 lb))
qLuggage Compartment
Golf bags can be carried in the luggage
compartment.
To carry two golf bags, use the following
procedure:
1. Put one golf bag in the luggage
compartment with its top pointing to
the left.
2. Put the other golf bag on top of the first
bag with its top pointing to the right.
NOTElSome golf bags cannot fit depending on
their size.
lGolf bags up to nine inches in diameter can
be carried.
6-130
Interior Comfort
Interior Equipment
CX-9_8V83-EA-06I_Edition3 Page356
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (357,1)

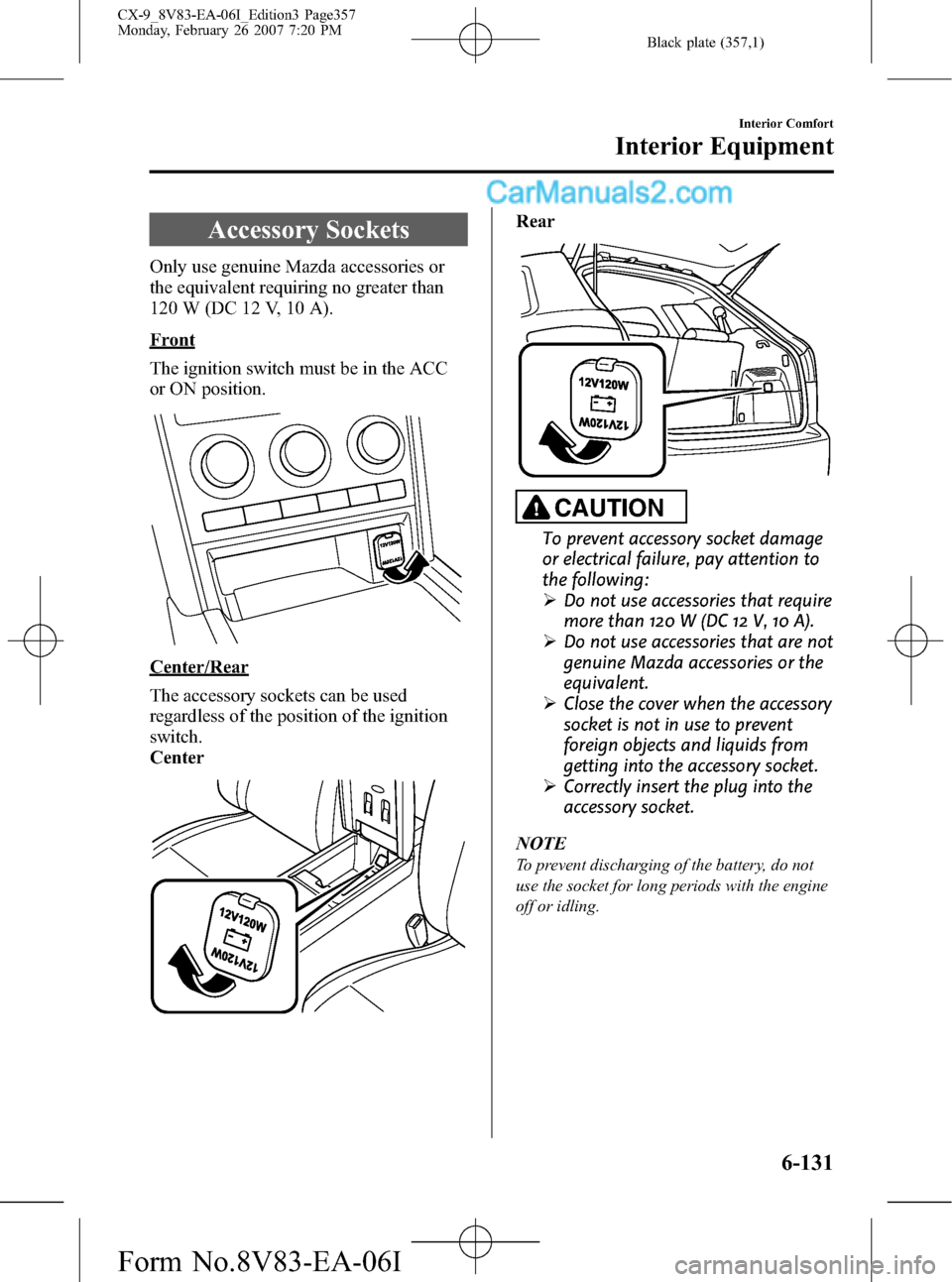

Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition switch must be in the ACC
or ON position.
Center/Rear
The accessory sockets can be used
regardless of the position of the ignition
switch.
Center
Rear
CAUTION
To prevent accessory socket damage
or electrical failure, pay attention to
the following:
ØDo not use accessories that require
more than 120 W (DC 12 V, 10 A).
ØDo not use accessories that are not
genuine Mazda accessories or the
equivalent.
ØClose the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
ØCorrectly insert the plug into the
accessory socket.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-131
CX-9_8V83-EA-06I_Edition3 Page357
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (358,1)
Power Outletí
The power outlet is positioned as shown
in the figure.
For more details, refer to
“Auxiliary terminals and power outlet”
(page 6-88).
6-132
Interior Comfort
íSome models.
Interior Equipment
CX-9_8V83-EA-06I_Edition3 Page358
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (359,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-8
Overheating ................................................................................. 7-14
Overheating ............................................................................. 7-14
Emergency Starting .................................................................... 7-16
Starting a Flooded Engine ....................................................... 7-16
Jump-Starting .......................................................................... 7-17
Push-Starting ........................................................................... 7-19
Emergency Towing ..................................................................... 7-20
Towing Description ................................................................. 7-20
Tiedown Hooks ....................................................................... 7-21
Recreational Towing ............................................................... 7-23
7-1
CX-9_8V83-EA-06I_Edition3 Page359
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (360,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
CX-9_8V83-EA-06I_Edition3 Page360
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I
