Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate.
Locking, unlocking the doors and the
liftgate
The operational range for locking/
unlocking the doors is an area of up to 80
cm (2.6 ft) from the center of the front
door handles.
The operational range for locking/
unlocking the liftgate is an area of up to
80 cm (2.6 ft) from the center of the
liftgate.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are too
close to the windows, door handles, or liftgate.
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area except for the luggage compartment.
Interior transmitter
Operational range
NOTElThe luggage compartment is out of the
operational range, however, starting the
engine may be possible.
lThe engine may not start if the advanced
key is placed in the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
lStarting the engine may be possible even if
the advanced key is outside of the vehicle
and extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and the advanced
key is not in the vehicle, the vehicle will not
restart after it is shut off and the ignition
switch is turned to the lock position.
lIf the advanced key is detected within
operational range, the operation indicator
light located in the instrument cluster
flashes momentarily.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
CX-9_8V83-EA-06I_Edition3 Page89
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (90,1)
qLocking, Unlocking with Request
Switch
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors or the liftgate while the
advanced key is being carried.
Front doors
Request switch
Liftgate
Request switch
To lock
To lock the doors and the liftgate, press
the request switch. A beep sound will be
heard once and the hazard warning lights
will flash once.NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that the doors and the liftgate are
locked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-55).
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that the doors and the liftgate are
unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-55).
Front passenger door/liftgate request
switch
To unlock the doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8V83-EA-06I_Edition3 Page90
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (91,1)
NOTElThe request switch on the driver's door can
be used to close the power windows and the
moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-39)
Opening/Closing the Moonroof (page 3-46)
lConfirm that all doors and the liftgate are
securely locked.
lAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lA beep sound is heard for confirmation
when the doors and the liftgate are locked/
unlocked using the request switch. If your
prefer, the beep sound can be turned off
(page 3-19).
lThe setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the request
switch (page 3-19).
(Auto-lock function)
A beep sound is heard when all doors and
the liftgate are closed while the advanced
key is being carried. All doors and the
liftgate are locked automatically after about
3 seconds when the advanced key is out of
the operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all doors
and the liftgate are locked automatically
after about 30 seconds.)
If you are out of the operational range
before the doors and the liftgate are
completely closed or another advanced key
is left in the vehicle, the auto-lock function
will not work. Always make sure that all
doors and the liftgate are closed and locked
before leaving the vehicle.
lAfter unlocking doors and the liftgate by
pressing the request switch, all doors and
the liftgate will automatically lock if any of
the following operations are not performed
within about 30 seconds. If your vehicle has
a theft-deterrent system, the hazard
warning lights will flash for confirmation.
lA door or the liftgate is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pushed.
qStarting the Engine
Ignition switch positions
Without a traditional key, some of the
ignition switch functions are different.
Start knob
LOCK (Released)
The steering wheel locks to help protect
against theft.
LOCK (Depressed)
The ignition switch can be turned to the
ACC position when the KEY indicator
light (green) illuminates in the instrument
cluster.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
CX-9_8V83-EA-06I_Edition3 Page91
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (92,1)
WARNING
Before leaving the driver's seat, always
put the key or start knob to LOCK
position, set the parking brake and
make sure the shift lever is in P:
Intentionally placing the key or start
knob into LOCK position is much
more important where you will not
be removing the key to leave the
vehicle and because leaving it in
other positions will disable some of
the vehicle security systems and run
the battery down.
Leaving the driver's seat without
putting the ignition switch in LOCK
position, setting the parking brake
and the shift lever is in P is
dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
NOTE
lIf turning the ignition switch is difficult,
jiggle the steering wheel from side to side.
lThe ignition switch cannot be turned from
the ACC position to the LOCK position
when the shift lever is not in P.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
NOTE
The Advanced Keyless Entry System does not
function in the ACC position, and the doors
will not lock/unlock using the transmitter or
request switches even if the advanced key is
carried away from the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-37).NOTE
When the ignition switch is turned to the ON
position, the sound of the fuel pump motor
operating near the fuel tank can be heard. This
does not indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-37).
Starting the engine
NOTE
lEngine-starting is controlled by the spark
ignition system.
This system meets all Canadian
Interference-Causing Equipment Standard
requirements regulating the impulse
electrical field strength of radio noise.
lThe advanced key must be carried because
the advanced key carries an immobilizer
chip that must communicate with the engine
controls at short range.
lWhen starting the engine, be sure the start
knob is securely attached before trying to
operate it. If the knob becomes detached
from the ignition switch, re-attach it by
pushing it on to the ignition switch.
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8V83-EA-06I_Edition3 Page92
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (93,1)
1. Make sure the advanced key is being
carried.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.
5. Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
The starter will not operate if the shift lever is
not in P or N.
6. Push the start knob slowly all the way
in.
7. Verify that the KEY indicator light
(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine using the Advanced Keyless
System. You may have to use the
auxiliary key instead (page 3-20).
NOTE
In the following cases, the KEY warning light
(red) illuminates and the engine will not start.
lThe advanced key battery is dead.lThe advanced key is out of operational
range.
lThe advanced key is placed in areas where
it is difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer similar to
the advanced key is in the operational
range.
8. Turn the ignition switch to the ACC
position while pushing the start knob
in.
9. Turn the ignition switch from the ACC
position to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
CAUTION
Don't try the starter for more than 10
seconds at a time. If the engine stalls
or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
10. After starting the engine, let it idle for
about 10 seconds.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
CX-9_8V83-EA-06I_Edition3 Page93
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (94,1)
NOTElIn extremely cold weather, below_
18° C
(0° F), or after the vehicle has not been
driven in several days, let the engine warm
up without operating the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
Turning off the engine
1. Move the shift lever to the P position.
2. Turn the ignition switch from the ON
position to the ACC position.
NOTE
When the engine is turned off and the ignition
switch it turned from the ACC position to the
LOCK position, the KEY indicator light
(green) flashes in the instrument cluster for
about 30 seconds if the battery power of the
advanced key is low. Replace the battery with a
new one.
Refer to Battery Replacement (page 3-6).
3. Push in the start knob from the ACC
position and turn it to the LOCK
position.
CAUTION
When leaving the vehicle, make sure
the ignition switch is turned to the
LOCK position.NOTE
lWhen turning the ignition switch to the
LOCK position, the ignition switch has to
be pushed in from the ACC position and
turned. Without being pushed in, the
ignition switch stops at the ACC position
and the vehicle battery may be discharged
if the ignition switch is left in the ACC
position. When leaving the vehicle, make
sure the ignition switch is turned to the
LOCK position.
lIf the vehicle is left with the ignition switch
not in the LOCK position, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-16).
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8V83-EA-06I_Edition3 Page94
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (95,1)
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional key
buttons to remotely lock and unlock the
doors and the liftgate, and opens the
power windows and the moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
ignition switch is not in the LOCK position
or the start knob is pushed in.
lWith the start knob installed in the LOCK
position, the system is fully operational. If
the ignition switch is not in the LOCK
position or the start knob is pushed in, the
system does not operate.
lAll doors and the liftgate cannot be locked
by pressing the lock button while any door
or the liftgate is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).

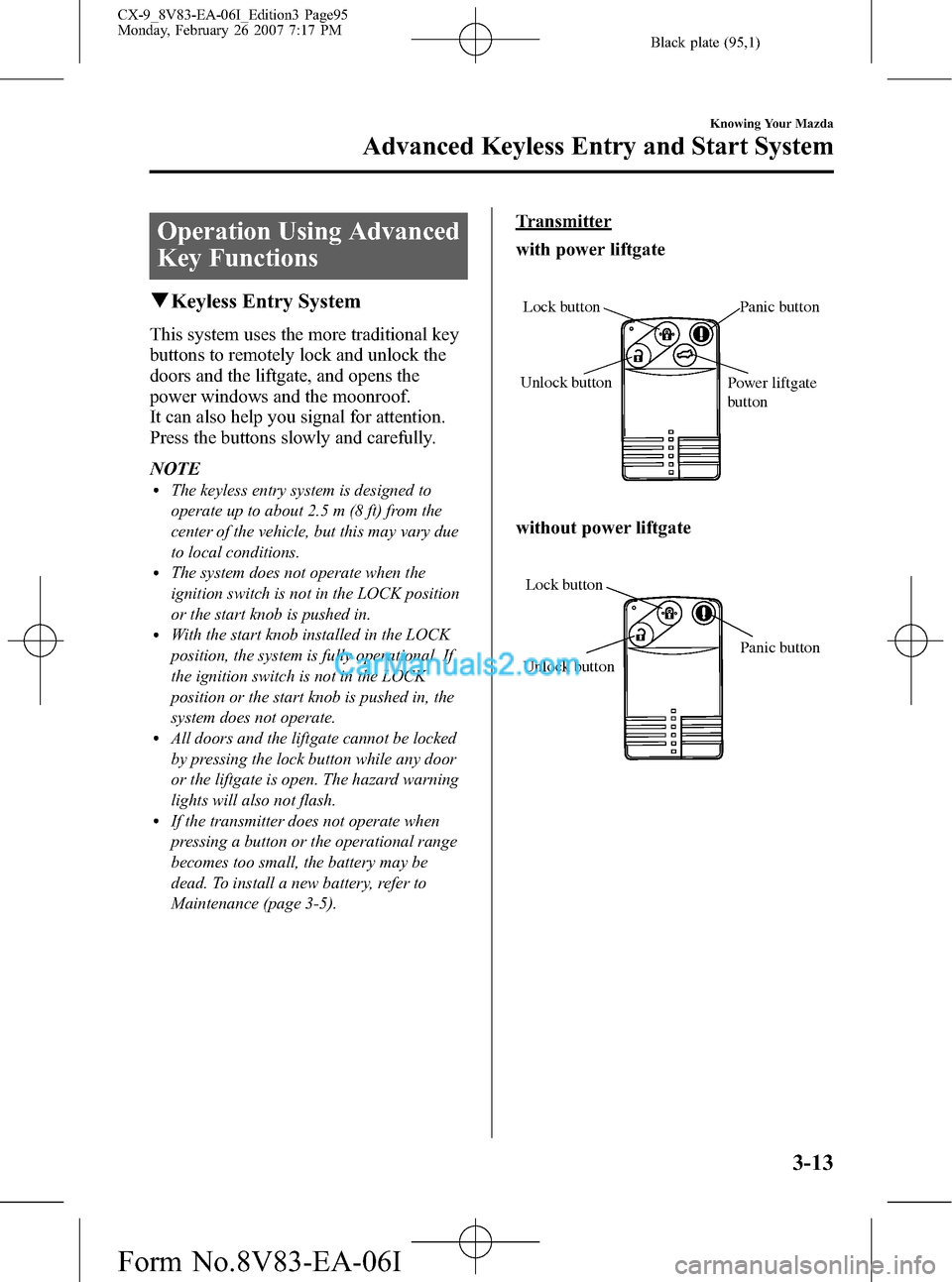

Transmitter
with power liftgate
Panic button
Unlock buttonLock button
Power liftgate
button
without power liftgate
Panic button
Unlock buttonLock button
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
CX-9_8V83-EA-06I_Edition3 Page95
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (96,1)
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-39)
Opening/Closing the Moonroof (page 3-46)
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button. A beep sound will be
heard once and the hazard warning lights
will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that all doors and the liftgate are
locked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-55).
NOTElAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button. A beep will be heard twice
and the hazard warning lights will flash
twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds
and two more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-55).
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8V83-EA-06I_Edition3 Page96
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I
