2007 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (121,1)
Engine-off power window operation
The power windows can be operated for
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If any door is opened, the power
windows will be inoperable.
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.NOTE
When the power window lock switch is in the
locked position, the light on each power
window switch, except for the driver's power
window switch, turns off. The light may be
difficult to see depending on the surrounding
brightness.
qOpening/Closing the Power
Windows from Outside
The front power windows can be opened
or closed from outside the vehicle after
the doors and the liftgate are closed.
The front power windows may be
operated when the power window lock
switch on the driver's door is in the lock
or unlocked position.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
The power windows cannot be opened or
closed from outside the vehicle under the
following condition:
lA door or the liftgate is opened.lThe key is inserted into the ignition switch.l(With advanced key)
The start knob is in any position except
LOCK.
Knowing Your Mazda
Doors and Locks
3-39
CX-9_8V83-EA-06I_Edition3 Page121
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (122,1)
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the two front windows and the
moonroof as you approach the vehicle to
get the air moving before you get in.
WARNING
Use the auto-window function only
when you can see the vehicle and it is
in a secure area:Do not let children play with your
keys. If they open the window
without your knowing, the open
windows are an even bigger
invitation to a thief than leaving the
doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press
once, then press again immediately
and hold.
After the doors and the liftgate are
unlocked, the two front windows and the
moonroof open while the unlock button is
pressed.
To stop the windows and the moonroof
while opening, release the button.
If the operation is performed from the
beginning again, the windows and the
moonroof open. Advanced key
Panic button
Unlock button Lock button
Liftgate button
Retractable type key
Lock button
Unlock button
Panic button
NOTElThe unlock button does not operate unless
it is pressed twice sequentially.
lThe lock button cannot be used to close the
power windows.
With key
1. Insert the key in the driver's door key cylinder.
3-40
Knowing Your Mazda
Doors and Locks
CX-9_8V83-EA-06I_Edition3 Page122
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (123,1)
2. Turn the key toward the front and hold
it. After the doors and the liftgate are
unlocked, the windows fully open
automatically.
Open
To stop this operation, turn the key to the
center position, then turn it toward the
front again.
NOTE
The window opening operation also can be
stopped by turning the key toward the back.
However, the doors and the liftgate will lock.
Closing
The windows can be closed in case they
are left open after getting out of the
vehicle.
NOTE
(With advanced key)
If the auto-lock function (page 3-8) has been
activated, the doors and the liftgate
automatically lock as you walk away from the
vehicle, however, the power windows cannot
be closed. When leaving the vehicle, close the
windows using the power window switch
inside the vehicle, the key, or a request switch.
With key
1. Insert the key in the driver's door key
cylinder.2. Turn the key toward the back and hold
it. After the doors and the liftgate are
locked, the windows close as long as
the key is turned.
Close
With request switch on the driver's
door (Advanced key)
1. If the doors and the liftgate are locked,
unlock them.
2. Press and hold the request switch on
the driver's door. After the doors and
the liftgate are locked, the windows
close as long as the request switch is
pressed.
Request switch
Knowing Your Mazda
Doors and Locks
3-41
CX-9_8V83-EA-06I_Edition3 Page123
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (124,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel cap, loosen the
cap slightly and wait for any hissing to
stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until two or more clicks are heard.
Open
Close
3-42
Knowing Your Mazda
Doors and Locks
CX-9_8V83-EA-06I_Edition3 Page124
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (125,1)
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check fuel cap
warning light may illuminate if the
cap is not tightened securely. If the
light remains on even after you have
tightened the cap securely, this may
indicate a different problem. Contact
an Authorized Mazda Dealer as soon
as possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Slide the hood latch to the right and lift
the hood.
Knowing Your Mazda
Doors and Locks
3-43
CX-9_8V83-EA-06I_Edition3 Page125
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (126,1)
3. Grasp the support rod in the padded
area and secure it in the stay hole
indicated by the arrow to hold the hood
open.
Pad
Clip
Support rod
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Tilt switch Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a
person―especially a child―could
be caught in it as it closes, causing
serious injury or even death.
NOTE
After washing your Mazda or after it rains,
wipe the water off the moonroof before
operating it to avoid water penetration which
could cause rust and water damage to your
headliner.
3-44
Knowing Your Mazda
íSome models.
Doors and Locks
CX-9_8V83-EA-06I_Edition3 Page126
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (127,1)
qOperating the Moonroof
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
push the tilt switch.
To fully close automatically, momentarily
pull the tilt switch or push the front of the
slide switch.
To stop tilting partway, push any part of
the tilt or slide switch.
Tilt up Close Tilt down
(Tilt down)
Slide Operation
To fully open automatically, momentarily
push the rear of the slide switch.
To fully close automatically, momentarily
push the front of the slide switch or pull
the tilt switch.To stop sliding partway, push any part of
the tilt or slide switch.
Open
Close Tilt down
(Close)
Power moonroof initialization
procedure
If the battery had been disconnected
during vehicle maintenance or for other
reasons, the moonroof may not fully open
or close. The moonroof's jam-safe
function does not function while the
moonroof is initializing. Carry out the
following procedure to resume operation:
1. Turn the ignition switch to the ON
position.
2. Pull the tilt switch, to partially tilt open
the rear of the moonroof.
NOTE
If the re-initialization procedure is performed
while the moonroof is in the slide position
(partially open) it closes before the rear tilts
opens.
3. Repeat the procedure in Step 2. The
rear of the moonroof tilts open to the
fully open position, then closes a little.
Knowing Your Mazda
Doors and Locks
3-45
CX-9_8V83-EA-06I_Edition3 Page127
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (128,1)

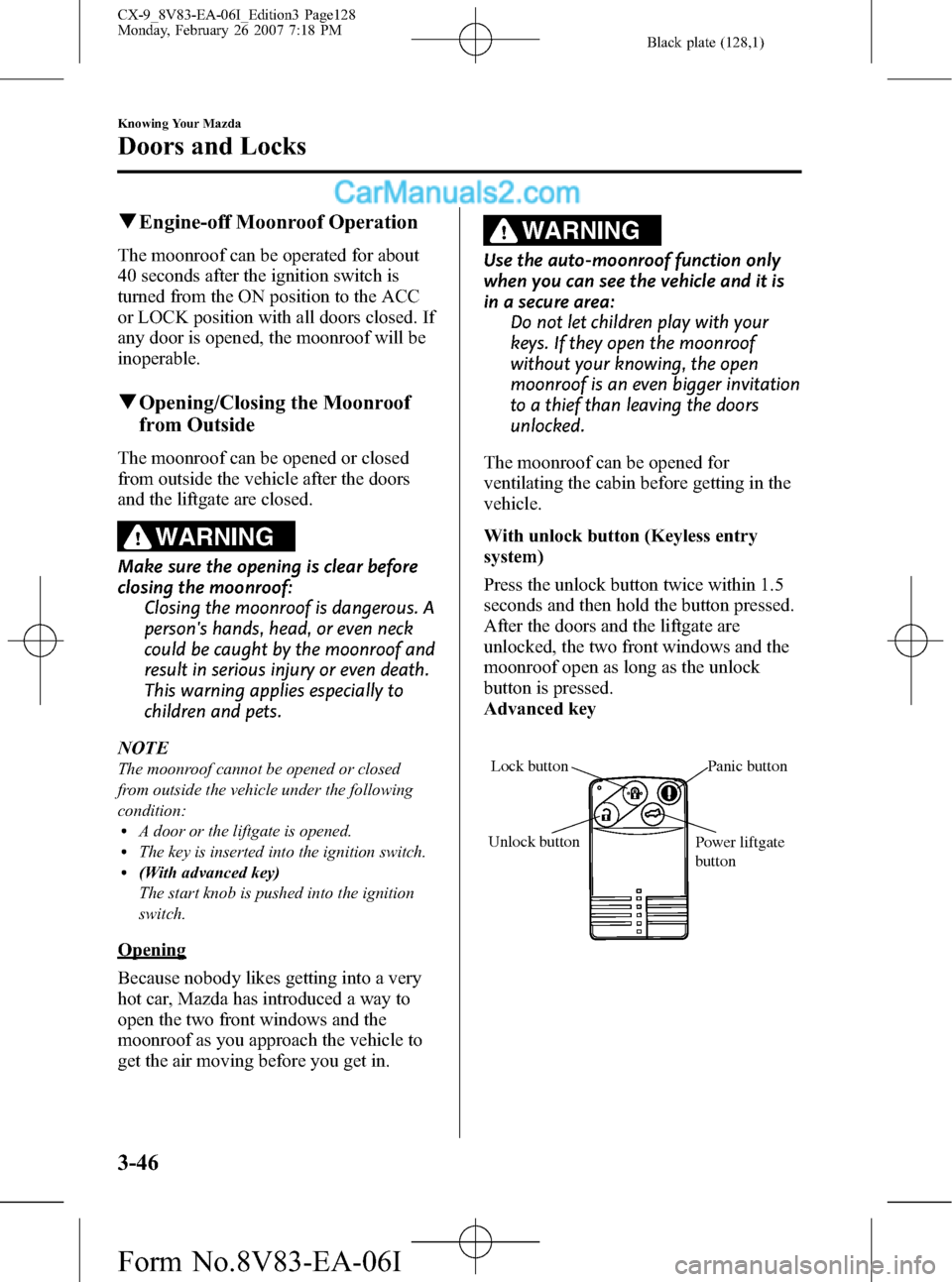

qEngine-off Moonroof Operation
The moonroof can be operated for about
40 seconds after the ignition switch is
turned from the ON position to the ACC
or LOCK position with all doors closed. If
any door is opened, the moonroof will be
inoperable.
qOpening/Closing the Moonroof
from Outside
The moonroof can be opened or closed
from outside the vehicle after the doors
and the liftgate are closed.
WARNING
Make sure the opening is clear before
closing the moonroof:
Closing the moonroof is dangerous. A
person's hands, head, or even neck
could be caught by the moonroof and
result in serious injury or even death.
This warning applies especially to
children and pets.
NOTE
The moonroof cannot be opened or closed
from outside the vehicle under the following
condition:
lA door or the liftgate is opened.lThe key is inserted into the ignition switch.l(With advanced key)
The start knob is pushed into the ignition
switch.
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the two front windows and the
moonroof as you approach the vehicle to
get the air moving before you get in.
WARNING
Use the auto-moonroof function only
when you can see the vehicle and it is
in a secure area:
Do not let children play with your
keys. If they open the moonroof
without your knowing, the open
moonroof is an even bigger invitation
to a thief than leaving the doors
unlocked.
The moonroof can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press the unlock button twice within 1.5
seconds and then hold the button pressed.
After the doors and the liftgate are
unlocked, the two front windows and the
moonroof open as long as the unlock
button is pressed.
Advanced key
Panic button
Unlock buttonLock button
Power liftgate
button
3-46
Knowing Your Mazda
Doors and Locks
CX-9_8V83-EA-06I_Edition3 Page128
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I
