6E-10 Engine Control System (4JH1)

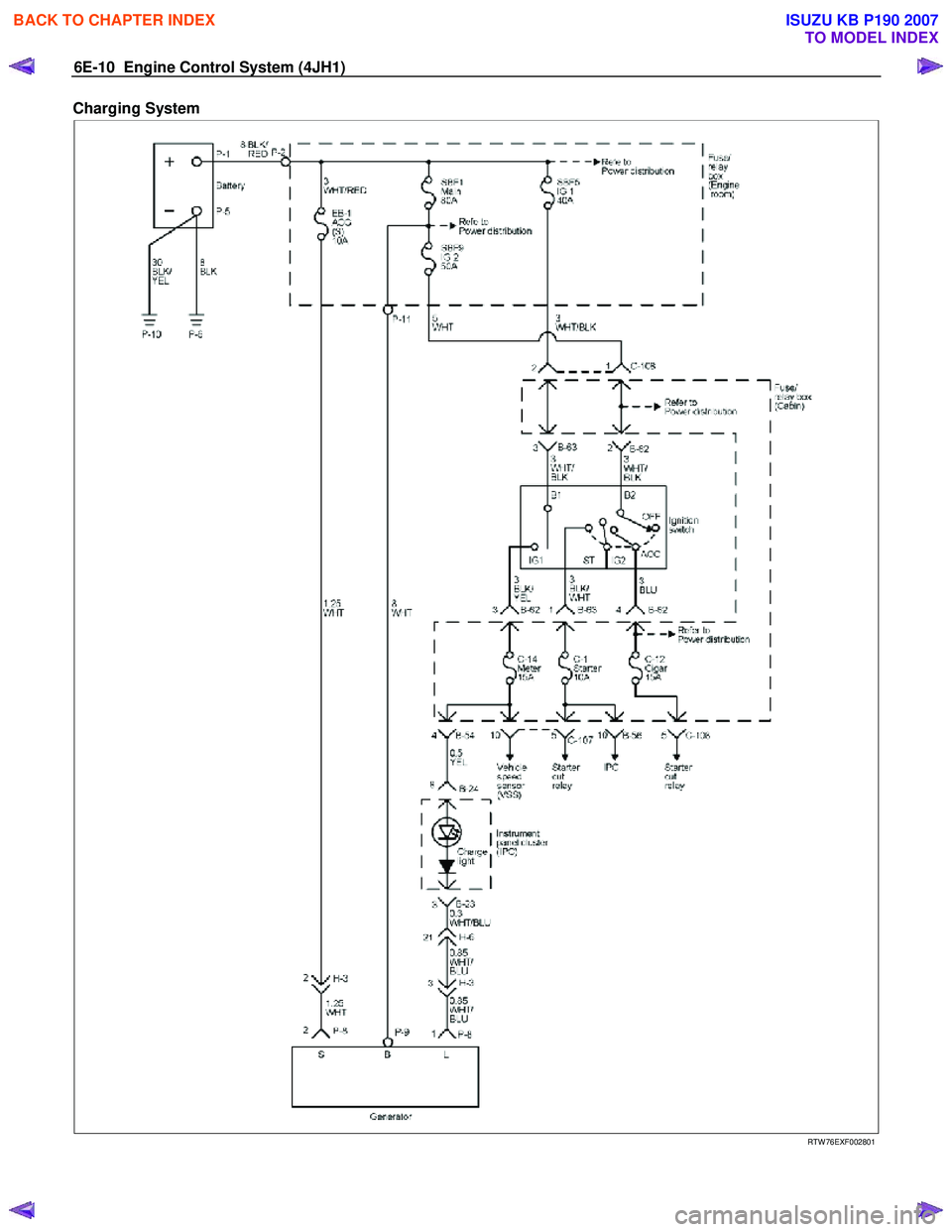

Charging System
RTW 76EXF002801
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1045 of 6020
Engine Control System (4JH1) 6E-11

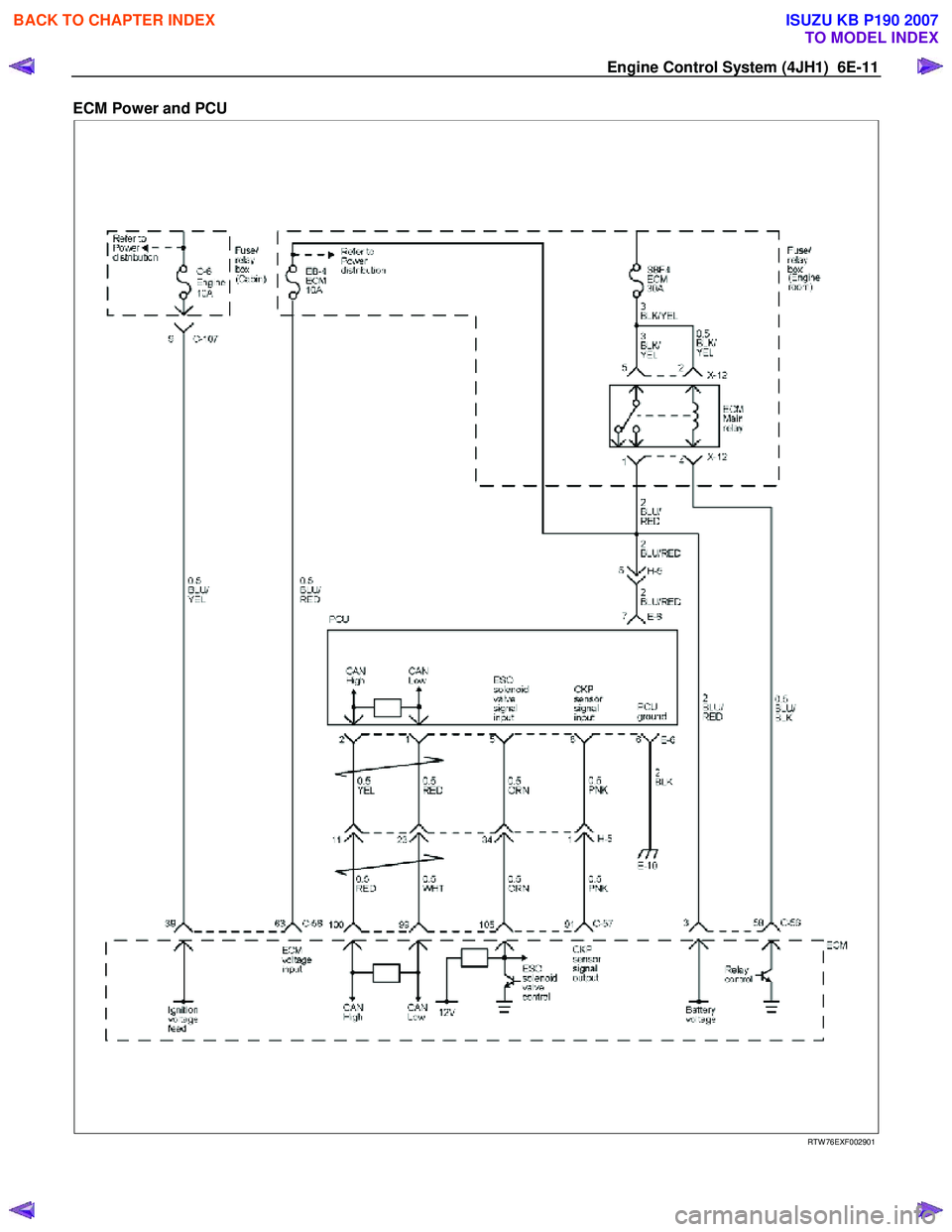

ECM Power and PCU
RTW 76EXF002901
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1046 of 6020
6E-12 Engine Control System (4JH1)

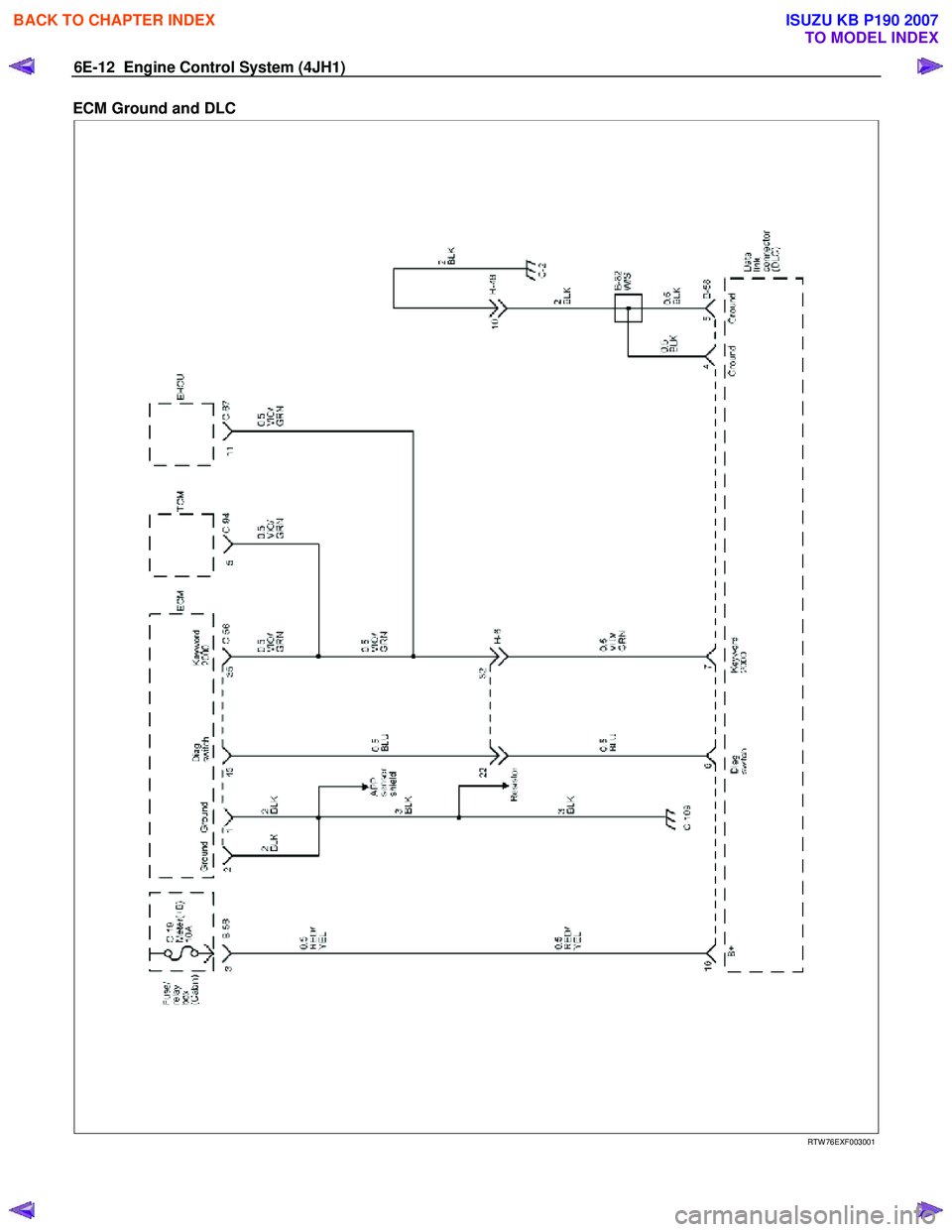

ECM Ground and DLC
RTW 76EXF003001
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1047 of 6020
Engine Control System (4JH1) 6E-13

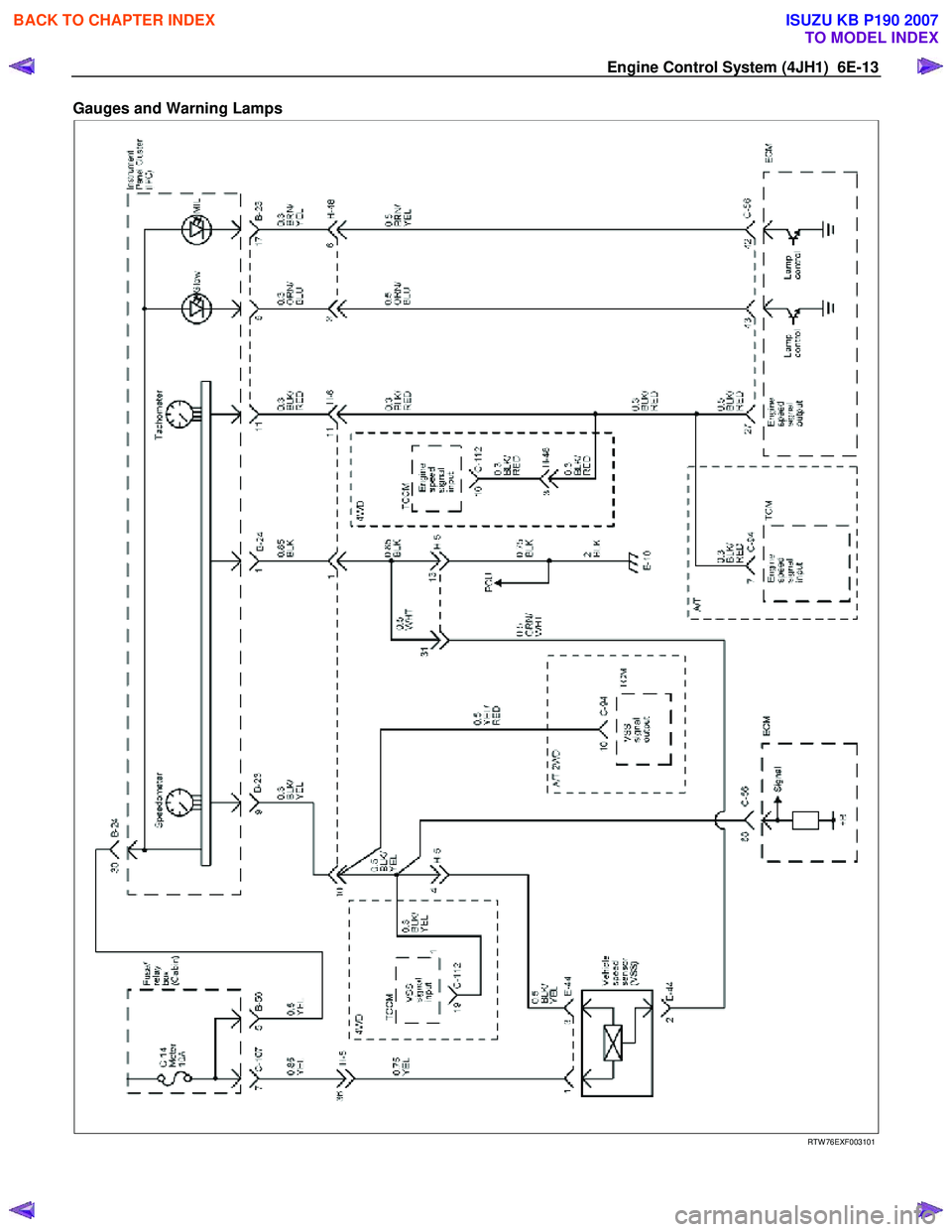

Gauges and Warning Lamps
RTW 76EXF003101
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1048 of 6020
6E-14 Engine Control System (4JH1)
A/C & Neutral Switch Resister, CKP Sensor, APP Sensor and Idle Switch
RTW 76EXF003201
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1049 of 6020
Engine Control System (4JH1) 6E-15
MAF & IAT, Vacuum Pressure and ECT Sensors
RTW 76EXF003301
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1050 of 6020
6E-16 Engine Control System (4JH1)
A/C Control System, Glow Control System, Inhibitor Switch (A/T) and Neutral Switch (M/T)
RTW 76EXF003401
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1051 of 6020
Engine Control System (4JH1) 6E-17

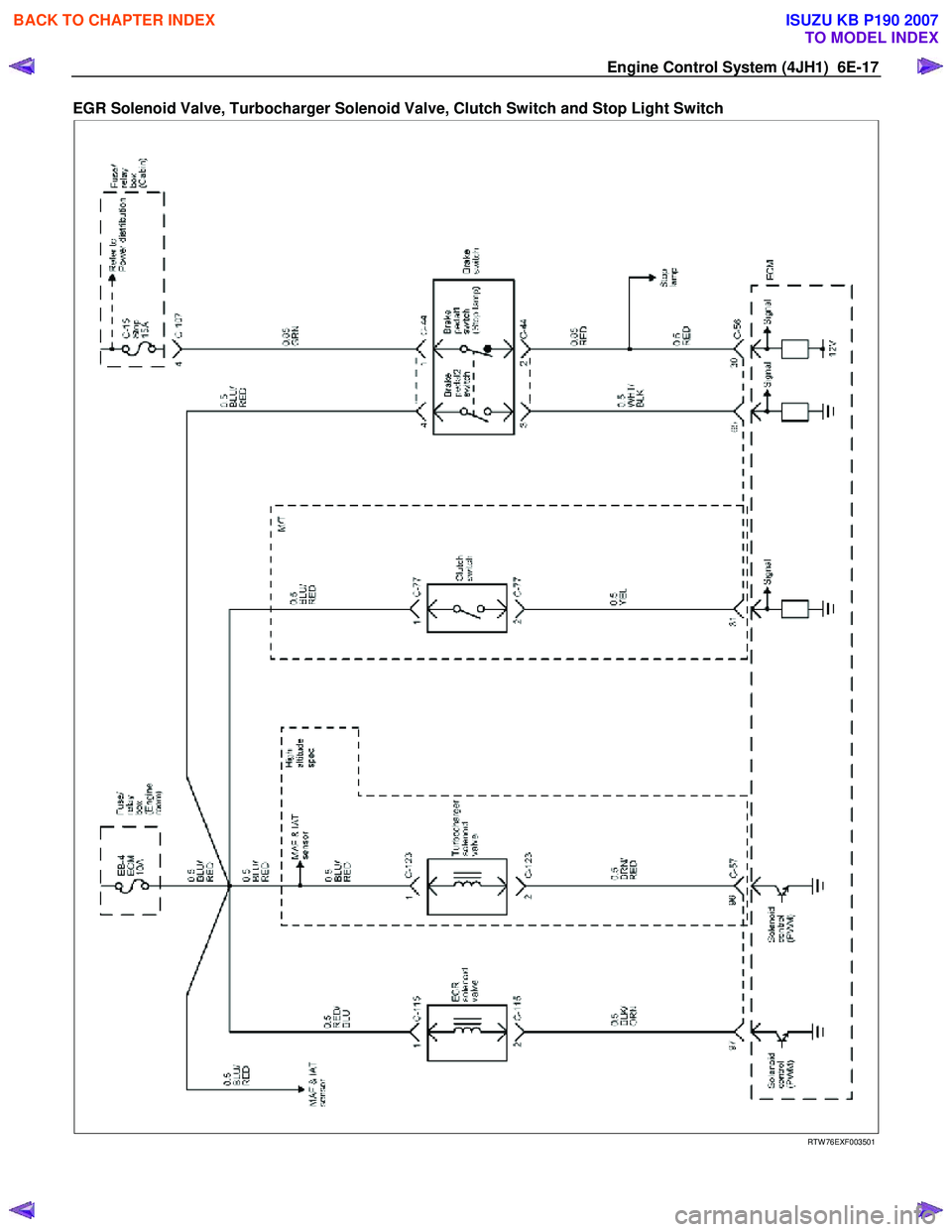

EGR Solenoid Valve, Turbocharger Solenoid Valve, Clutch Switch and Stop Light Switch
RTW 76EXF003501
BACK TO CHAPTER INDEX
TO MODEL INDEX
