ENGINE ELECTRICAL 6D – 27


RTW46DSH003701

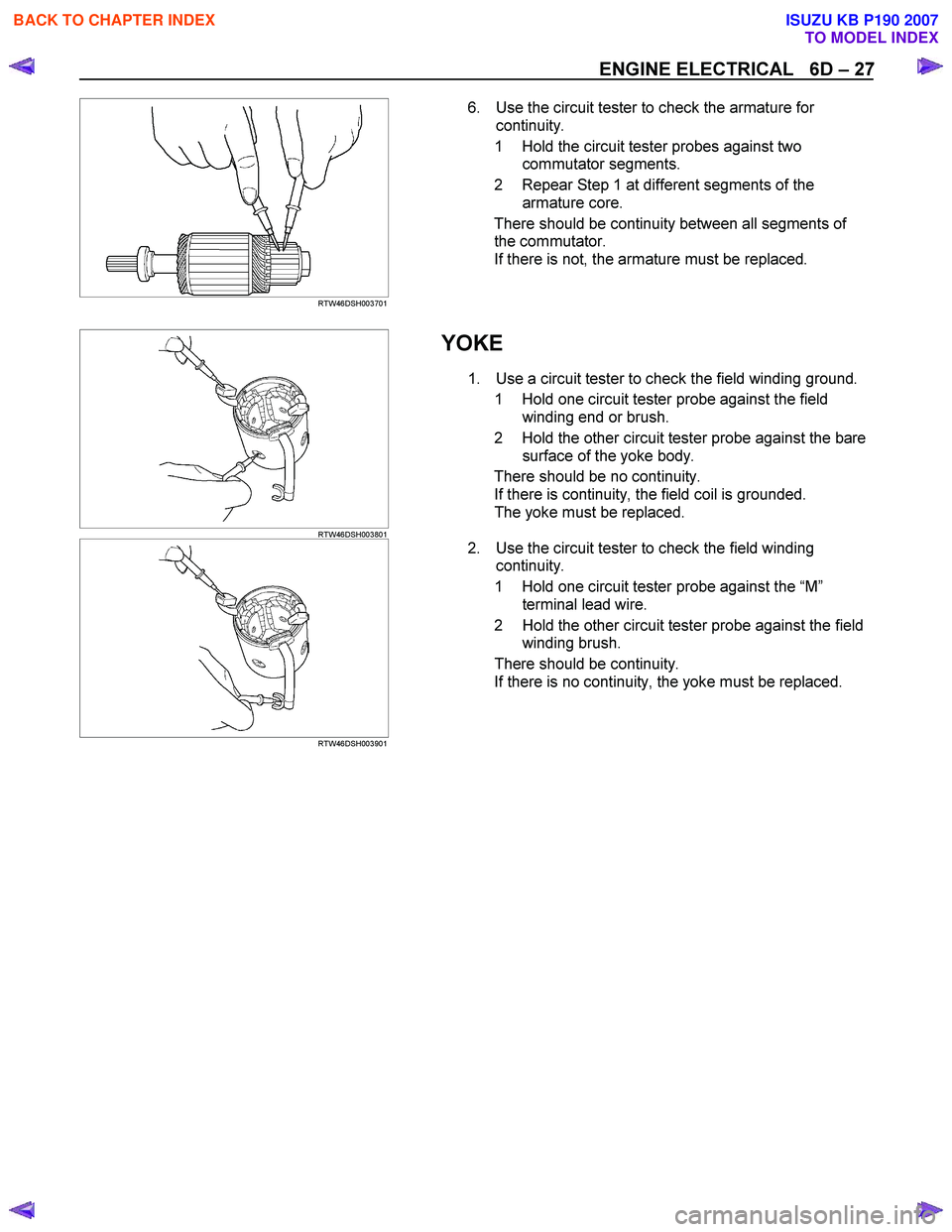

6. Use the circuit tester to check the armature for
continuity.
1 Hold the circuit tester probes against two commutator segments.
2 Repear Step 1 at different segments of the armature core.
There should be continuity between all segments of the commutator.
If there is not, the armature must be replaced.




RTW46DSH003801
YOKE
1. Use a circuit tester to check the field winding ground.
1 Hold one circuit tester probe against the field winding end or brush.
2 Hold the other circuit tester probe against the bare surface of the yoke body.
There should be no continuity. If there is continuity, the field coil is grounded.
The yoke must be replaced.



RTW46DSH003901
2. Use the circuit tester to check the field winding
continuity.
1 Hold one circuit tester probe against the “M ”
terminal lead wire.
2 Hold the other circuit tester probe against the field winding brush.
There should be continuity. If there is no continuity, the yoke must be replaced.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6D – 28 ENGINE ELECTRICAL
BRUSH AND BRUSH HOLDER
1. Use a vernier caliper to measure the brush length (four
brushes).
Replace the brushes as a set if one or more of the
brush lengths is less than the specified limit.
Brush Length mm (in)
Standard Limit
15 (0.59) 12 (0.47)


RTW46DSH004001













RTW46DSH004101
2. Use a circuit tester to check the brush holder
insulation.
Touch one probe to the holder plate and the other
probe to the positive brush holder.
There should be no continuity.





3. Inspect the brushes for excessive wear. If the negative brushes have excessive wear, the
entire brush holder assembly must be replaced.
If the positive brushes have excessive wear, the entire
yoke must be replaced.

OVERRUNNING CLUTCH
1. Inspect the overrunning clutch gear teeth for excessive wear and damage.
Replace the overrunning clutch if necessary.
2. Rotate the pinion clockwise. It should turn smoothly.
3. Try to rotate the pinion in the opposite direction. The pinion should lock.
065RY00035


RTW46DSH004401
BEARING
Inspect the bearings for excessive wear and damage.
Replace the bearings if necessary.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE ELECTRICAL 6D – 29

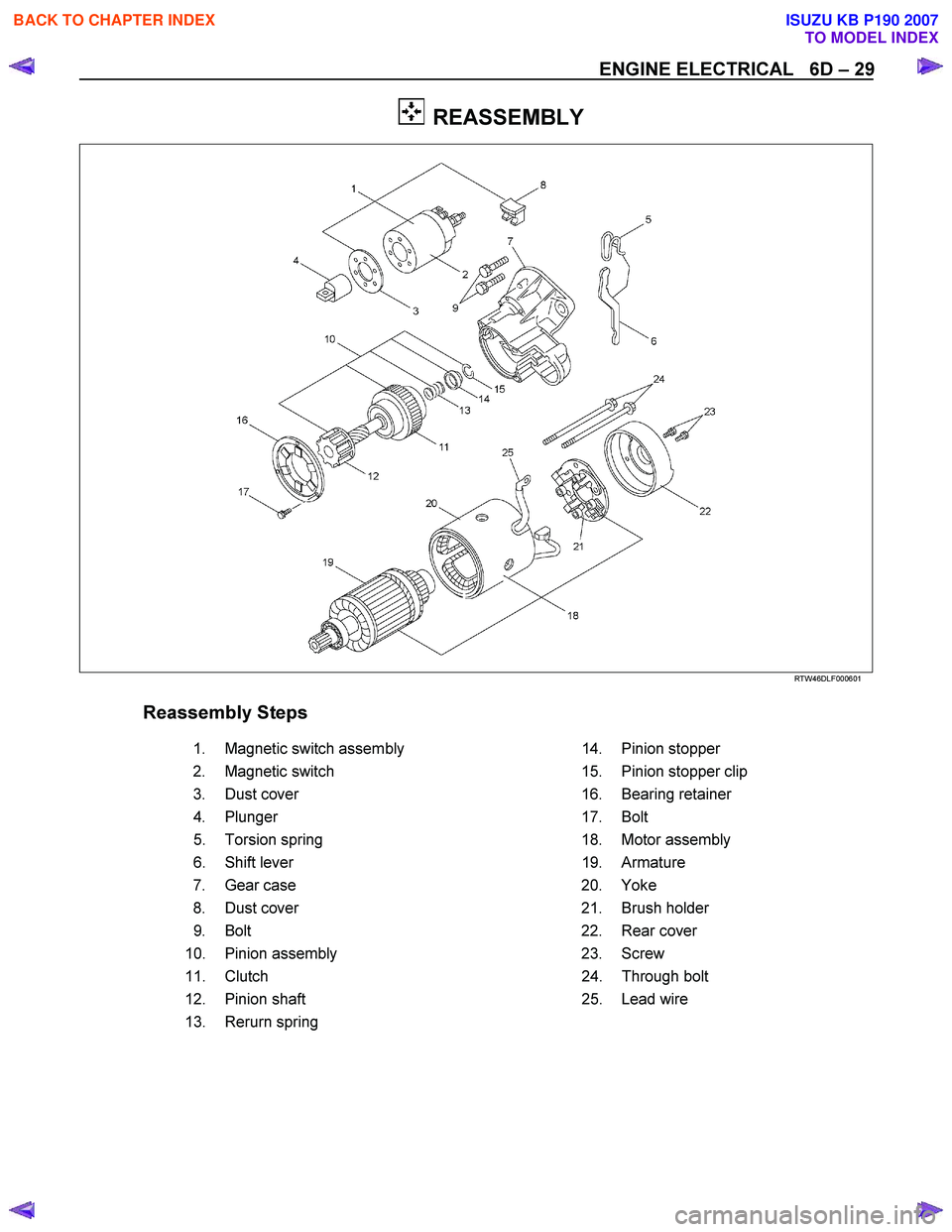

REASSEMBLY



RTW46DLF000601


Reassembly Steps
1.
Magnetic switch assembly
14. Pinion stopper
2.
Magnetic switch 15. Pinion stopper clip
3.
Dust cover 16. Bearing retainer
4.
Plunger 17. Bolt
5.
Torsion spring 18. Motor assembly
6.
Shift lever
19. Armature
7.
Gear case 20. Yoke
8.
Dust cover 21. Brush holder
9.
Bolt 22. Rear cover
10.
Pinion assembly 23. Screw
11.
Clutch 24. Through bolt
12.
Pinion shaft 25. Lead wire
13.
Rerurn spring



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6D – 30 ENGINE ELECTRICAL


RTW46DSH005601

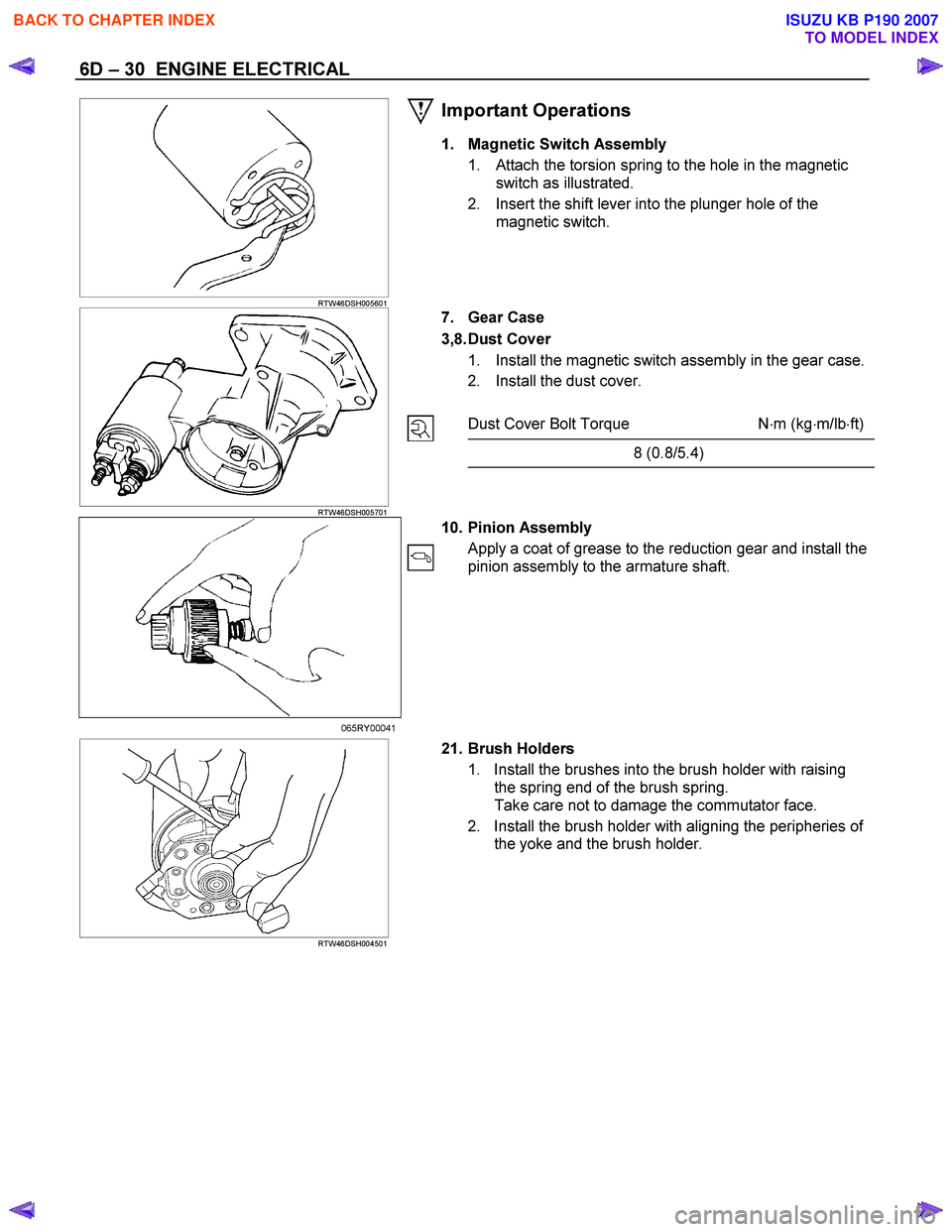

Important Operations
1. Magnetic Switch Assembly
1. Attach the torsion spring to the hole in the magnetic switch as illustrated.
2. Insert the shift lever into the plunger hole of the magnetic switch.




RTW46DSH005701











7. Gear Case
3,8. Dust Cover 1. Install the magnetic switch assembly in the gear case.
2. Install the dust cover.

Dust Cover Bolt Torque N⋅m (kg ⋅m/lb ⋅ft)
8 (0.8/5.4)



10. Pinion Assembly
Apply a coat of grease to the reduction gear and install the
pinion assembly to the armature shaft.
065RY00041



RTW46DSH004501
21. Brush Holders
1. Install the brushes into the brush holder with raising the spring end of the brush spring.
Take care not to damage the commutator face.
2. Install the brush holder with aligning the peripheries of the yoke and the brush holder.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE ELECTRICAL 6D – 31

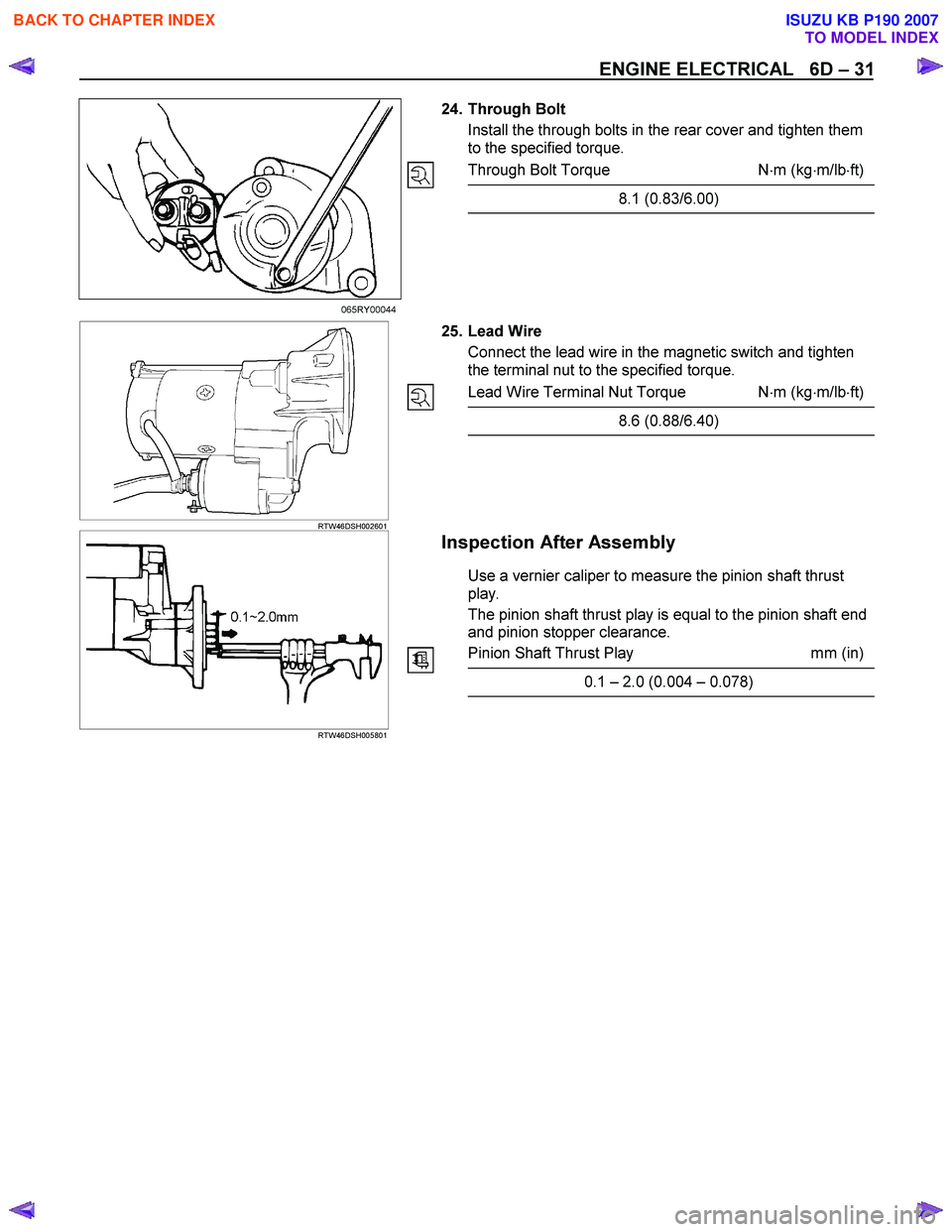

24. Through Bolt
Install the through bolts in the rear cover and tighten them
to the specified torque.
Through Bolt Torque N⋅m (kg ⋅m/lb ⋅ft)
8.1 (0.83/6.00)

065RY00044


RTW46DSH002601






25. Lead Wire
Connect the lead wire in the magnetic switch and tighten
the terminal nut to the specified torque.
Lead Wire Terminal Nut Torque N ⋅m (kg ⋅m/lb ⋅ft)
8.6 (0.88/6.40)







RTW46DSH005801












Inspection After Assembly
Use a vernier caliper to measure the pinion shaft thrust
play.
The pinion shaft thrust play is equal to the pinion shaft end
and pinion stopper clearance.
Pinion Shaft Thrust Play mm (in)
0.1 – 2.0 (0.004 – 0.078)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6D – 32 ENGINE ELECTRICAL

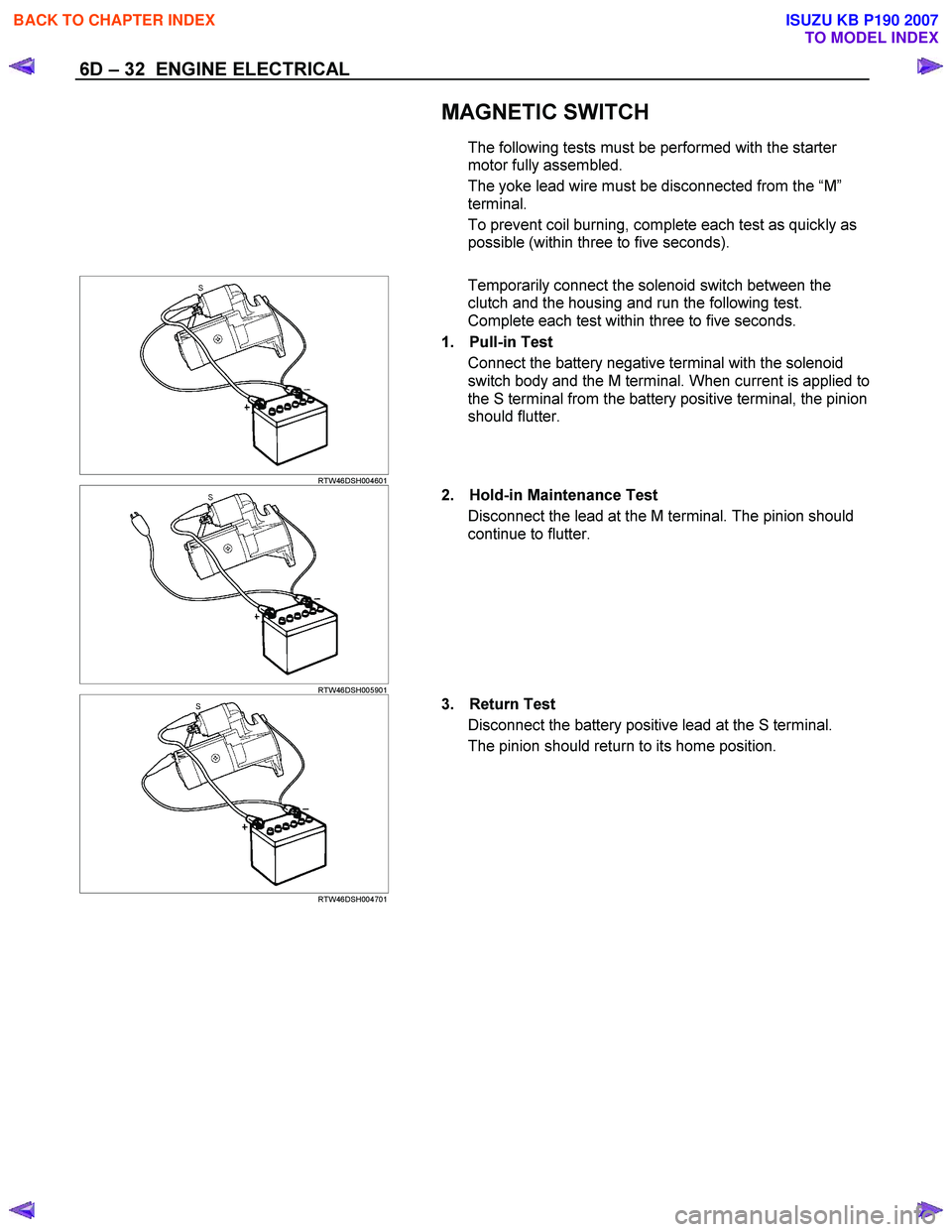

MAGNETIC SWITCH
The following tests must be performed with the starter
motor fully assembled.
The yoke lead wire must be disconnected from the “M ”
terminal.
To prevent coil burning, complete each test as quickly as
possible (within three to five seconds).





RTW46DSH004601
Temporarily connect the solenoid switch between the
clutch and the housing and run the following test.
Complete each test within three to five seconds.
1. Pull-in Test Connect the battery negative terminal with the solenoid
switch body and the M terminal. When current is applied to
the S terminal from the battery positive terminal, the pinion
should flutter.




RTW46DSH005901
2. Hold-in Maintenance Test
Disconnect the lead at the M terminal. The pinion should
continue to flutter.




RTW46DSH004701
3. Return Test
Disconnect the battery positive lead at the S terminal.
The pinion should return to its home position.




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE ELECTRICAL 6D – 33
PRE-HEATING SYSTEM
INSPECTION AND REPAIR
Make the necessary adjustments, repairs, and part replacement if excessive wear of damage is discovered during
inspection.

VISUAL CHECK
Check the main fuses and glow indicator for damage.
Replace the part(s) if required.
GLOW RELAY
The glow relay is located in the relay box the engine
compartment.



825R300046




Use an ohmmeter to measure the resistance between
terminals No.2 and No.3.
If the measured value is outside the specified range, the
glow relay must be replaced.
Glow Relay Resistance Ohms
94 − 114

GLOW PLUG


LNW21KSH001401
Use a circuit tester to test the glow plugs for continuity.
Glow Plug Resistance (Reference) Ohms
Approximately 0.9

EGR SYSTEM 4JA1T (L)
Refer to 6F-9. (EGR system diagram)
