10-16 CAB

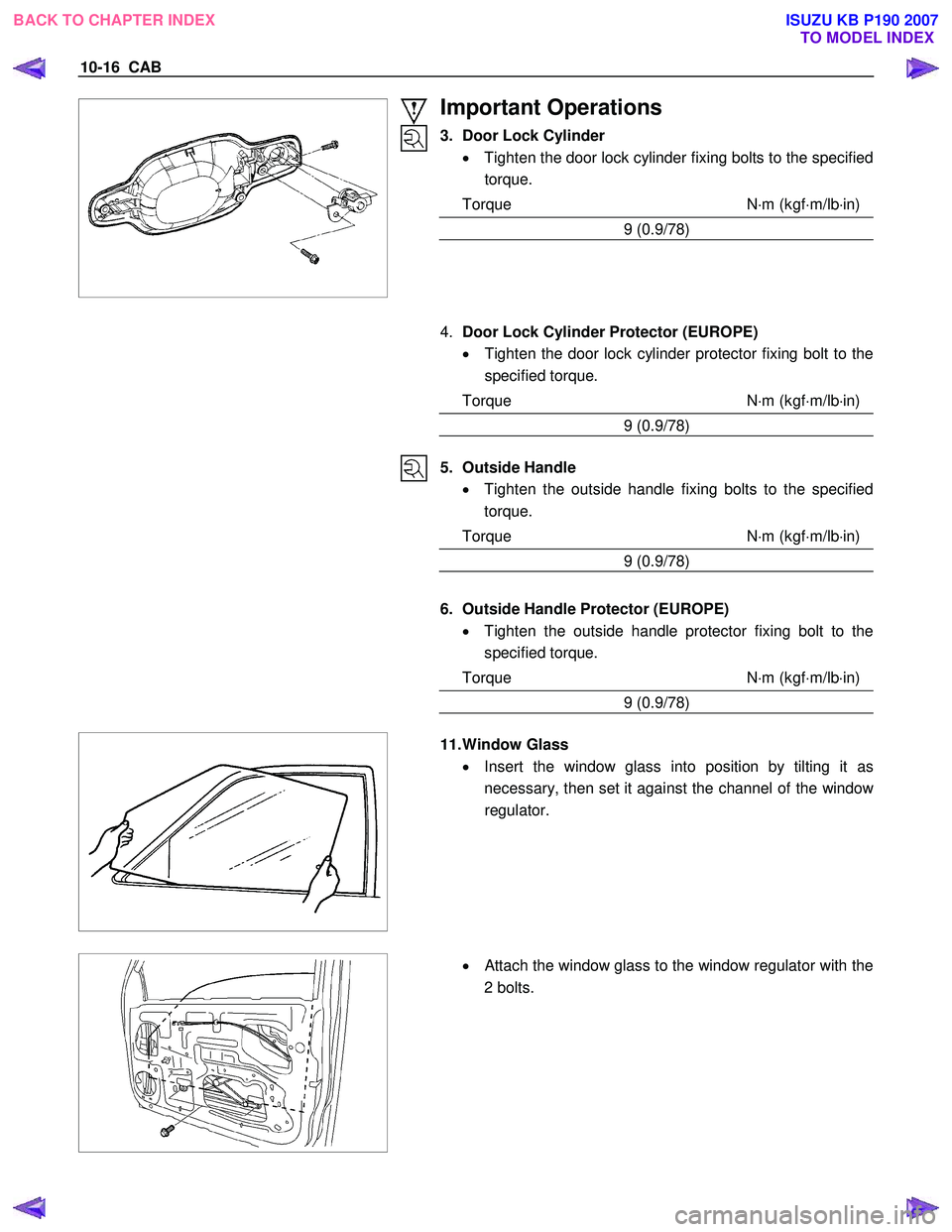

Important Operations
3. Door Lock Cylinder • Tighten the door lock cylinder fixing bolts to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅in)
9 (0.9/78)
4. Door Lock Cylinder Protector (EUROPE)
• Tighten the door lock cylinder protector fixing bolt to the
specified torque.
Torque N ⋅m (kgf ⋅m/lb ⋅in)
9 (0.9/78)
5. Outside Handle
• Tighten the outside handle fixing bolts to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅in)
9 (0.9/78)
6. Outside Handle Protector (EUROPE)
• Tighten the outside handle protector fixing bolt to the
specified torque.
Torque N ⋅m (kgf ⋅m/lb ⋅in)
9 (0.9/78)
11. Window Glass
• Insert the window glass into position by tilting it as
necessary, then set it against the channel of the windo
w
regulator.
•
Attach the window glass to the window regulator with the
2 bolts.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5778 of 6020
10-20 CAB

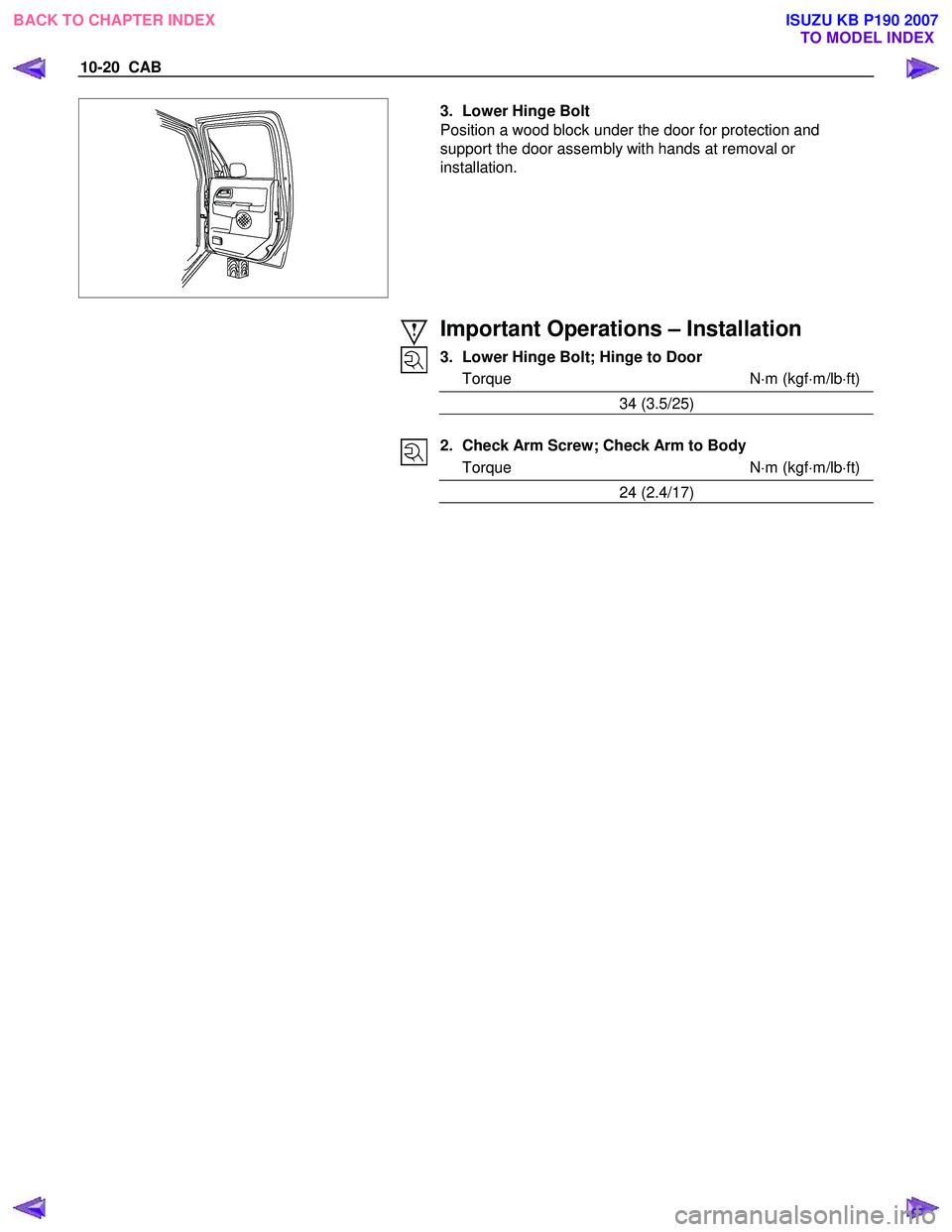

3. Lower Hinge Bolt
Position a wood block under the door for protection and
support the door assembly with hands at removal or
installation.
Important Operations – Installation
3. Lower Hinge Bolt; Hinge to Door
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
34 (3.5/25)
2. Check Arm Screw; Check Arm to Body
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
24 (2.4/17)
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5783 of 6020
CAB 10-25
Important Operations

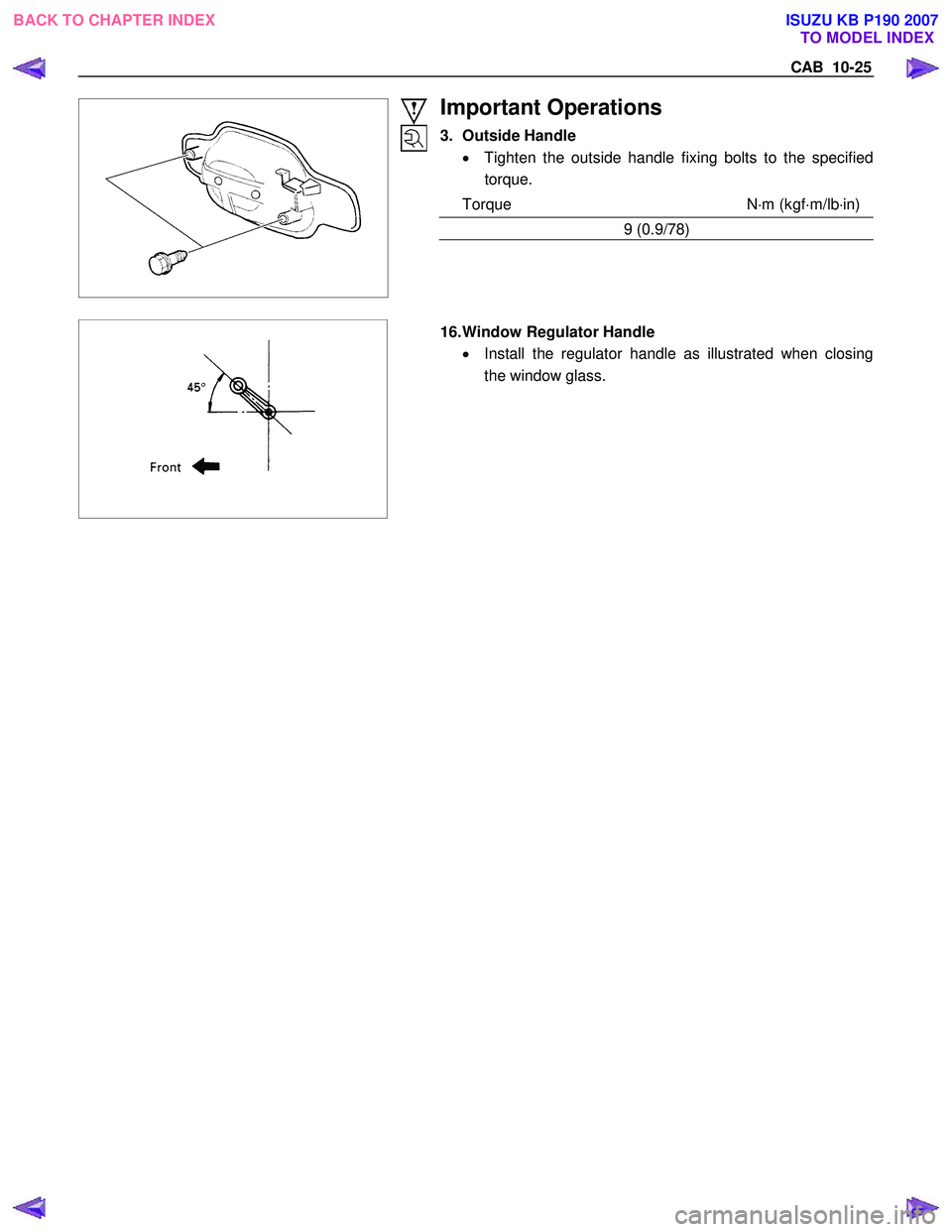

3. Outside Handle • Tighten the outside handle fixing bolts to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅in)
9 (0.9/78)
16. Window Regulator Handle
• Install the regulator handle as illustrated when closing
the window glass.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5792 of 6020
10-34 CAB
Important Operations
17. Instrument Panel Assembly & Cross Beam 1) Tighten the 4 bolts fixing the cross beam and body panel to the specified torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
19 (1.9/14)
RUW 5A0SH002801
2) A Bolt: Steering Column to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
20 (2.0/14)
B Bolt: Pedal Bracket to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
15 (1.5/11)
3) C Bolt: Parking Brake Bracket to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
15 (1.5/11)
23. Steering Wheel/Steering Cowl • Tighten the steering wheel fixing nut to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
34 (3.5/25)
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5806 of 6020
10-48 CAB
Important Operations - Installation

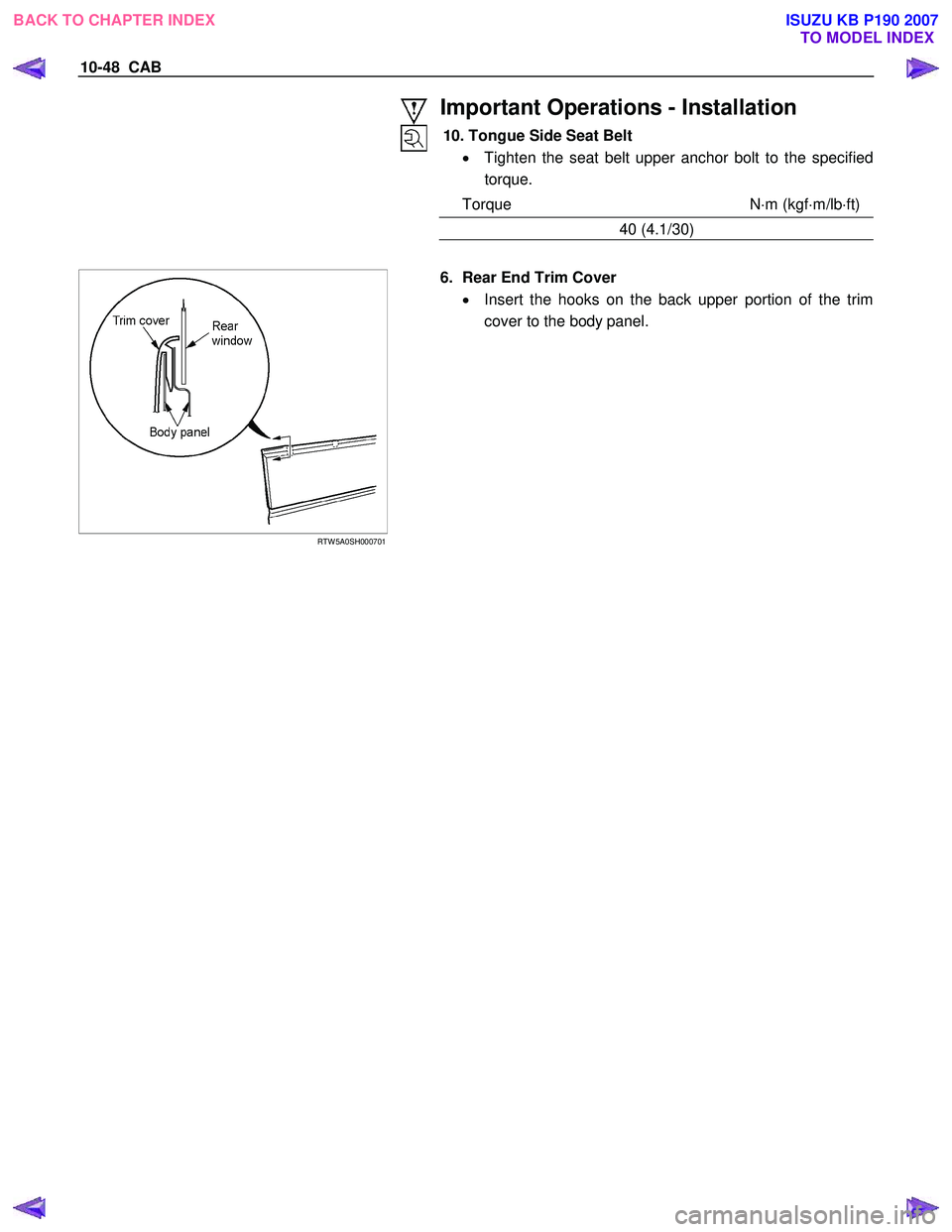

10. Tongue Side Seat Belt • Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1/30)
RTW 5A0SH000701
6. Rear End Trim Cover
• Insert the hooks on the back upper portion of the trim
cover to the body panel.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5809 of 6020
CAB 10-51

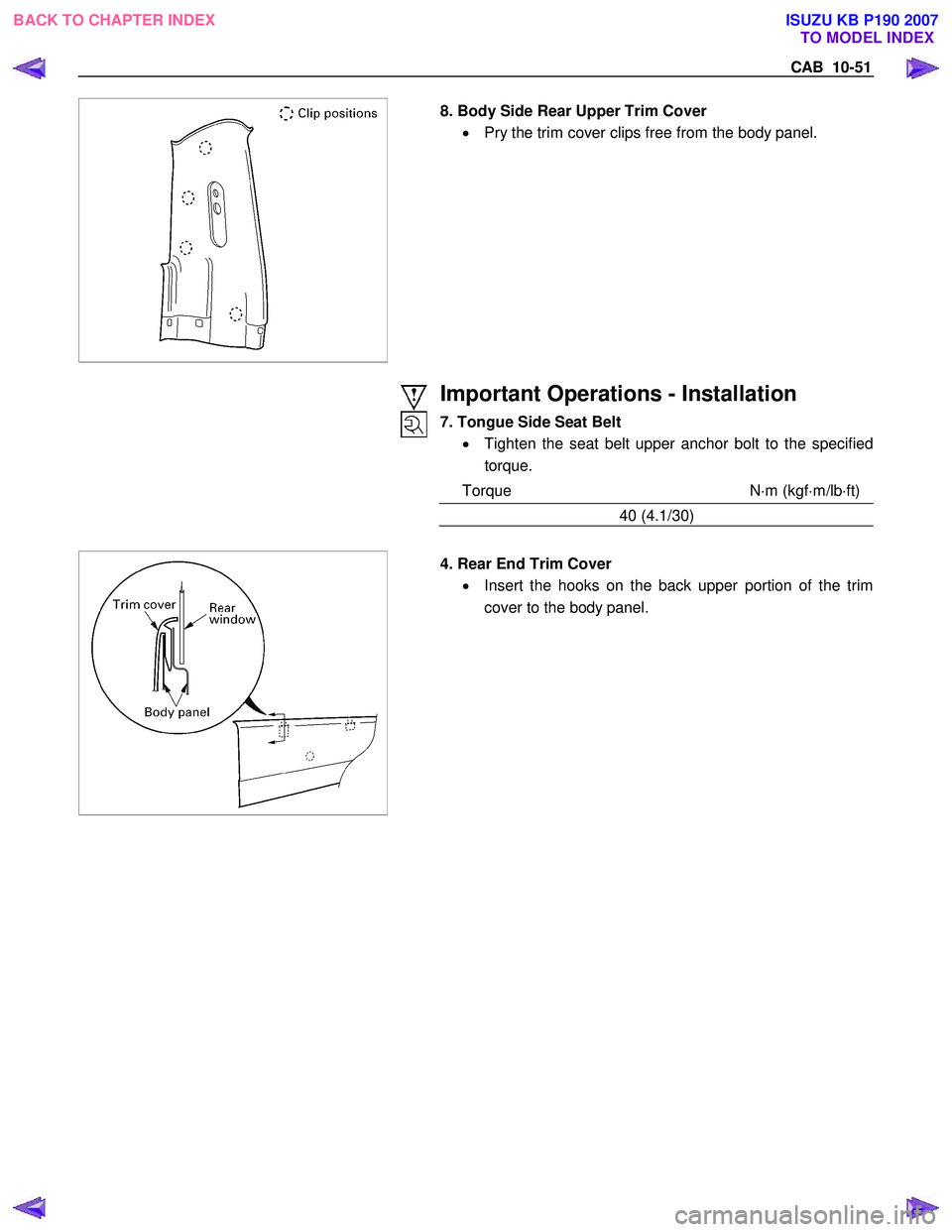

8. Body Side Rear Upper Trim Cover
• Pry the trim cover clips free from the body panel.
Important Operations - Installation
7. Tongue Side Seat Belt • Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1/30)
4. Rear End Trim Cover
• Insert the hooks on the back upper portion of the trim
cover to the body panel.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5812 of 6020
10-54 CAB

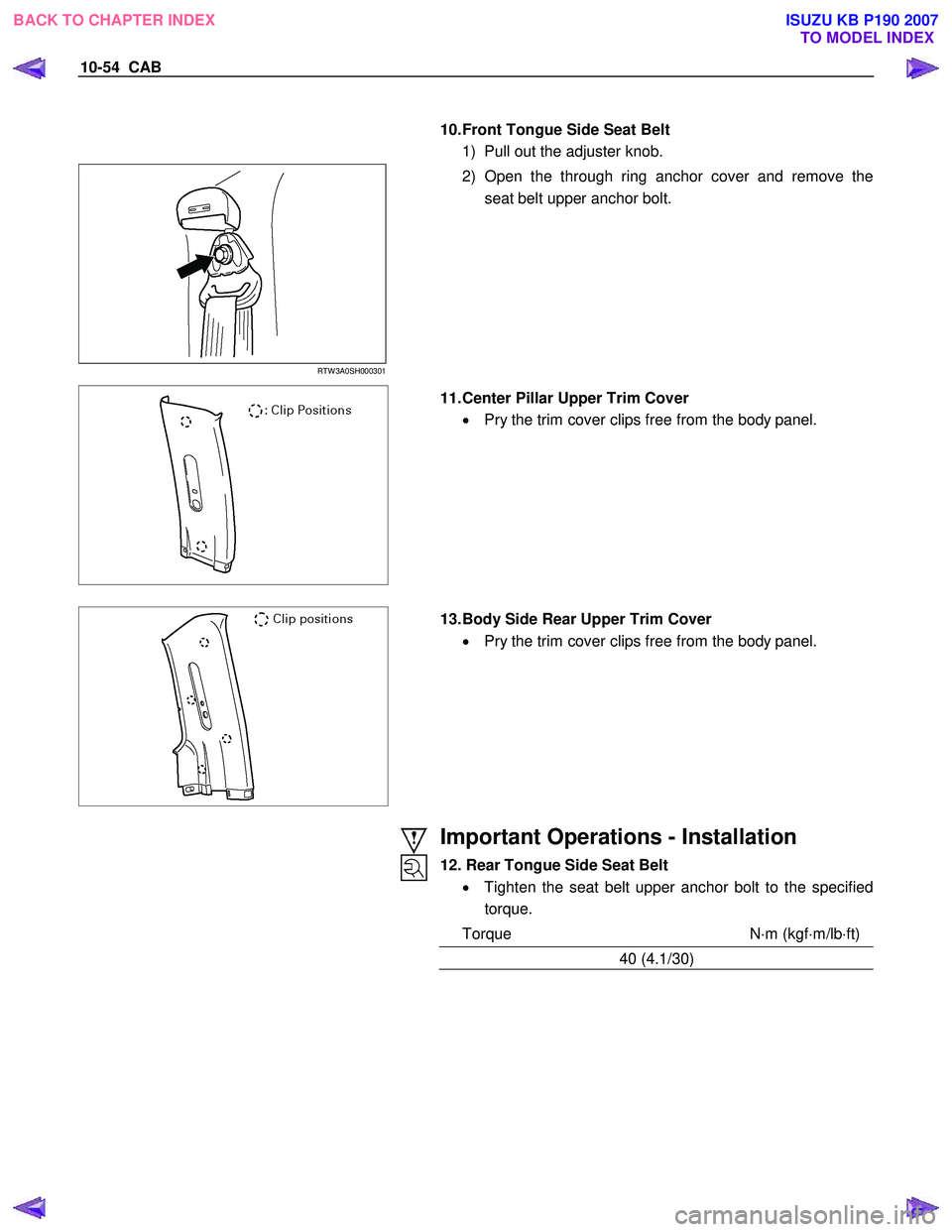

10. Front Tongue Side Seat Belt
1) Pull out the adjuster knob.
RTW 3A0SH000301
2) Open the through ring anchor cover and remove the
seat belt upper anchor bolt.
11. Center Pillar Upper Trim Cover
• Pry the trim cover clips free from the body panel.
13. Body Side Rear Upper Trim Cover
• Pry the trim cover clips free from the body panel.
Important Operations - Installation
12. Rear Tongue Side Seat Belt • Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1/30)
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5813 of 6020
CAB 10-55

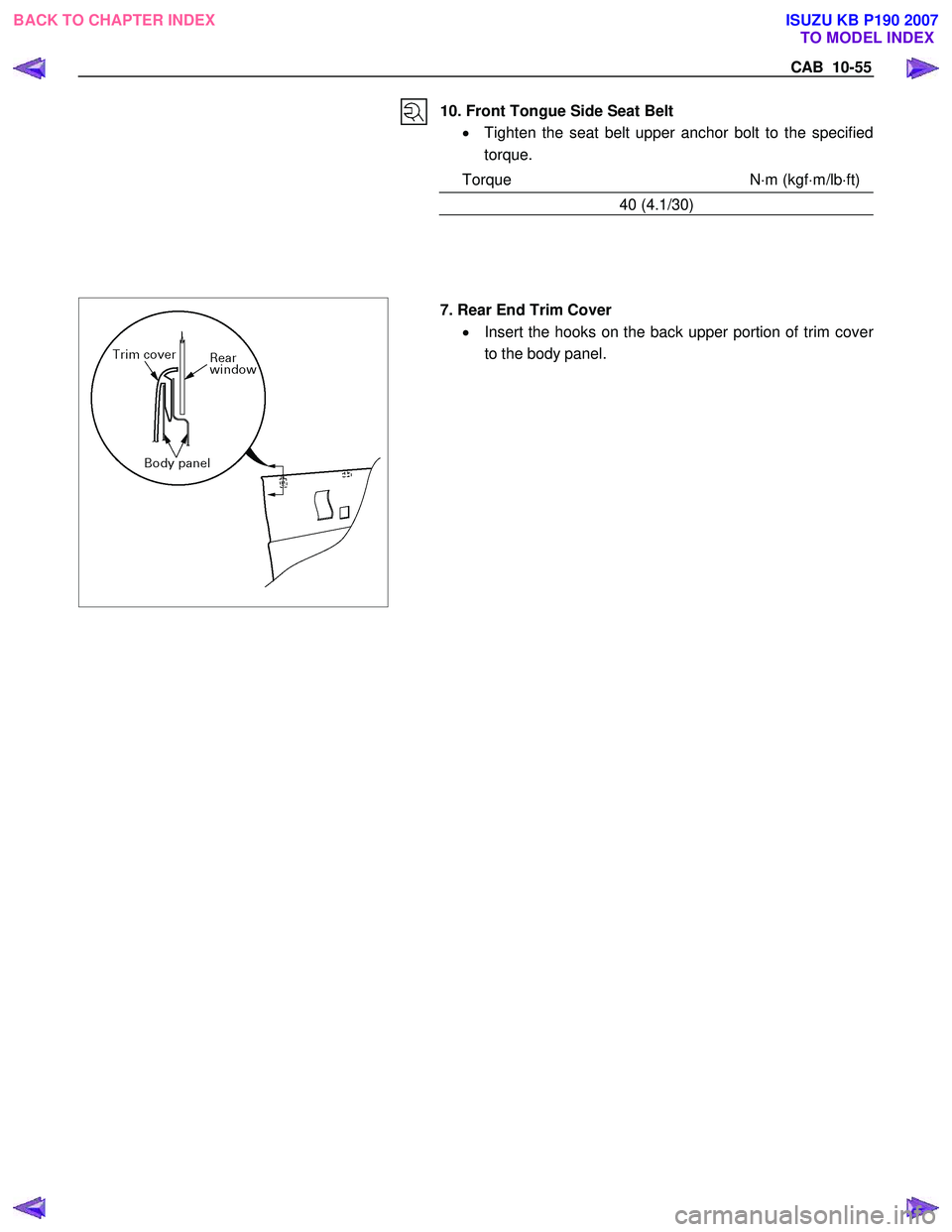

10. Front Tongue Side Seat Belt
