TROUBLE DIAGNOSIS EC-123
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45THRTL SEN 1 [V]××
The throttle position sensor signal voltage is
displayed.
THRTL SEN 2 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal.
THRTL SEN 2 [V]
×
FUEL T/TMP SE
[ ° C] or [ °F] ×

The fuel temperature (determined by the sig-
nal voltage of the fuel tank temperature sen-
sor) is displayed.
INT/A TEMP SE
[ ° C] or [ °F] ××

The intake air temperature (determined by the
signal voltage of the intake air temperature
sensor) is indicated.
EVAP SYS PRES
[V] ×

The signal voltage of EVAP control system
pressure sensor is displayed.
FUEL LEVEL SE
[V] ×

The signal voltage of the fuel level sensor is
displayed.
START SIGNAL
[ON/OFF] ××

Indicates start signal status [ON/OFF] com-
puted by the ECM according to the signals of
engine speed and battery voltage.
After starting the engine, [OFF] is
displayed regardless of the starter
signal.
CLSD THL POS
[ON/OFF] ××

Indicates idle position [ON/OFF] computed by
ECM according to the accelerator pedal posi-
tion sensor signal.
AIR COND SIG
[ON/OFF] ××

Indicates [ON/OFF] condition of the air condi-
tioner switch as determined by the air condi-
tioner signal.
P/N POSI SW
[ON/OFF] ××

Indicates [ON/OFF] condition from the park/
neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF] ××

[ON/OFF] condition of the power steering sys-
tem (determined by the signal voltage of the
power steering pressure sensor) is indicated.
LOAD SIGNAL
[ON/OFF] ××

Indicates [ON/OFF] condition from the electri-
cal load signal.
ON: Rear window defogger switch is ON and/
or lighting switch is in 2nd position.
OFF: Both rear window defogger switch and
lighting switch are OFF.
IGNITION SW
[ON/OFF] ×

Indicates [ON/OFF] condition from ignition
switch signal.
HEATER FAN SW
[ON/OFF] ×

Indicates [ON/OFF] condition from the heater
fan switch signal.
BRAKE SW
[ON/OFF] ×

Indicates [ON/OFF] condition from the stop
lamp switch signal.
INJ PULSE-B1
[msec] ×

Indicates the actual fuel injection pulse width
compensated by ECM according to the input
signals.
When the engine is stopped, a cer-
tain computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING
[BTDC] ×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a cer-
tain value is indicated.
CAL/LD VALUE [%]

Calculated load value indicates the value of
the current air flow divided by peak air flow.
MASS AIRFLOW
[g·m/s]

Indicates the mass air flow computed by ECM
according to the signal voltage of the mass air
flow sensor.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

EC-124
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
PURG VOL C/V
[%]

Indicates the EVAP canister purge volume
control solenoid valve control value computed
by the ECM according to the input signals.

The opening becomes larger as the value
increases.
INT/V TIM(B1)
[ ° CA]

Indicates [ °CA] of intake camshaft advanced
angle.
INT/V TIM(B2)
[ ° CA]
INT/V SOL(B1) [%]

The control condition of the intake valve tim-
ing control solenoid valve (determined by
ECM according to the input signals) is indi-
cated.

The advance angle becomes larger as the
value increases.
INT/V SOL(B2) [%]
AIR COND RLY
[ON/OFF] ×

The air conditioner relay control condition
(determined by ECM according to the input
signals) is indicated.
FUEL PUMP RLY
[ON/OFF] ×

Indicates the fuel pump relay control condition
determined by ECM according to the input
signals.
VENT CONT/V
[ON/OFF]

The control condition of the EVAP canister
vent control valve (determined by ECM
according to the input signals) is indicated.
ON: Closed
OFF: Open
THRTL RELAY
[ON/OFF] ×

Indicates the throttle control motor relay con-
trol condition determined by the ECM accord-
ing to the input signals.
COOLING FAN
[HI/MID/LOW/OFF] ×

The control condition of the cooling fan (deter-
mined by ECM according to the input signals)
is indicated.
HI: High speed operation
MID: Middle speed operation
LOW: Low speed operation
OFF: Stop
HO2S2 HTR (B1)
[ON/OFF]

Indicates [ON/OFF] condition of heated oxy-
gen sensor 2 heater determined by ECM
according to the input signals.
HO2S2 HTR (B2)
[ON/OFF]
I/P PULLY SPD
[rpm]

Indicates the engine speed computed from
the turbine revolution sensor signal.
VEHICLE SPEED
[km/h] or [mph]

Indicates the vehicle speed computed from
the revolution sensor signal.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume learn-
ing
YET: Idle Air Volume Learning has not been
performed yet.
CMPLT: Idle Air Volume Learning has already
been performed successfully.
TRVL AFTER MIL
[km] or [mile]

Distance traveled while MIL is activated.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

TROUBLE DIAGNOSIS EC-125
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45SNOW MODE SW
[ON/OFF]
Indicates [ON/OFF] condition from the snow
mode switch signal.
A/F S1 HTR(B1)
[%]

Air fuel ratio (A/F) sensor 1 heater control
value computed by ECM according to the
input signals.

The current flow to the heater becomes larger
as the value increases.
A/F S1 HTR(B2)
[%]
AC PRESS SEN
[V]

The signal voltage from the refrigerant pres-
sure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the vehicle
speed signal sent from TCM is displayed.
SET VHCL SPD
[km/h] or [mph]

The preset vehicle speed is displayed.
MAIN SW
[ON/OFF]

Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW
[ON/OFF]

Indicates [ON/OFF] condition from CANCEL
switch signal.
RESUME/ACC SW
[ON/OFF]

Indicates [ON/OFF] condition from RESUME/
ACCELERATE switch signal.
SET SW
[ON/OFF]

Indicates [ON/OFF] condition from SET/
COAST switch signal.
BRAKE SW1
[ON/OFF]

Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2
[ON/OFF]

Indicates [ON/OFF] condition of stop lamp
switch signal.
VHCL SPD CUT
[NON/CUT]

Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed increased to excessively
high compared with the ASCD set speed, and
ASCD operation is cut off.
LO SPEED CUT
[NON/CUT]

Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed decreased to excessively
low compared with the ASCD set speed, and
ASCD operation is cut off.
AT OD MONITOR
[ON/OFF]

Indicates [ON/OFF] condition of A/T O/D
according to the input signal from the TCM.
AT OD CANCEL
[ON/OFF]

Indicates [ON/OFF] condition of A/T O/D can-
cel signal sent from the TCM.
DIST SW
[ON/OFF]

Indicates [ON/OFF] condition from DIS-
TANCE switch signal.
CRUISE LAMP
[ON/OFF]

Indicates [ON/OFF] condition of CRUISE
lamp determined by the ECM according to the
input signals.
SET LAMP
[ON/OFF]

Indicates [ON/OFF] condition of SET lamp
determined by the ECM according to the input
signals.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

EC-132
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
CONSULT-II Reference Value in Data MonitorNBS003M8
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification da ta in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED

Run engine and compare CONSULT-II value with the tachometer indica-
tion. Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-137, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-137, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2 See
EC-137, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S

Engine: After warming up More than 70 °C (158 °F)
A/F SEN1 (B1)
A/F SEN1 (B2)

Engine: After warming up Maintaining engine speed at 2,000
rpm Fluctuates around 1.5 V
HO2S2 (B1)
HO2S2 (B2)

Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S2 MNTR(B1)
HO2S2 MNTR(B2) LEAN
←→ RICH
VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedometer
indication. Almost the same speed as the
speedometer indication
BATTERY VOLT

Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1

Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN 1
THRTL SEN 2*

Ignition switch: ON
(Engine stopped)

Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES

Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS

Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG

Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.) ON
P/N POSI SW

Ignition switch: ON Selector lever: P or N ON
Selector lever: Except above OFF
PW/ST SIGNAL

Engine: After warming up, idle
the engine Steering wheel: Not being turned OFF
Steering wheel: Being turned ON
LOAD SIGNAL

Ignition switch: ON Rear window defogger switch is ON
and/or lighting switch is in 2nd ON
Rear window defogger switch is OFF
and lighting switch is OFF OFF
IGNITION SW

Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW

Engine: After warming up, idle
the engine Heater fan: Operating. ON
Heater fan: Not operating OFF

EC-164
[VQ35DE]

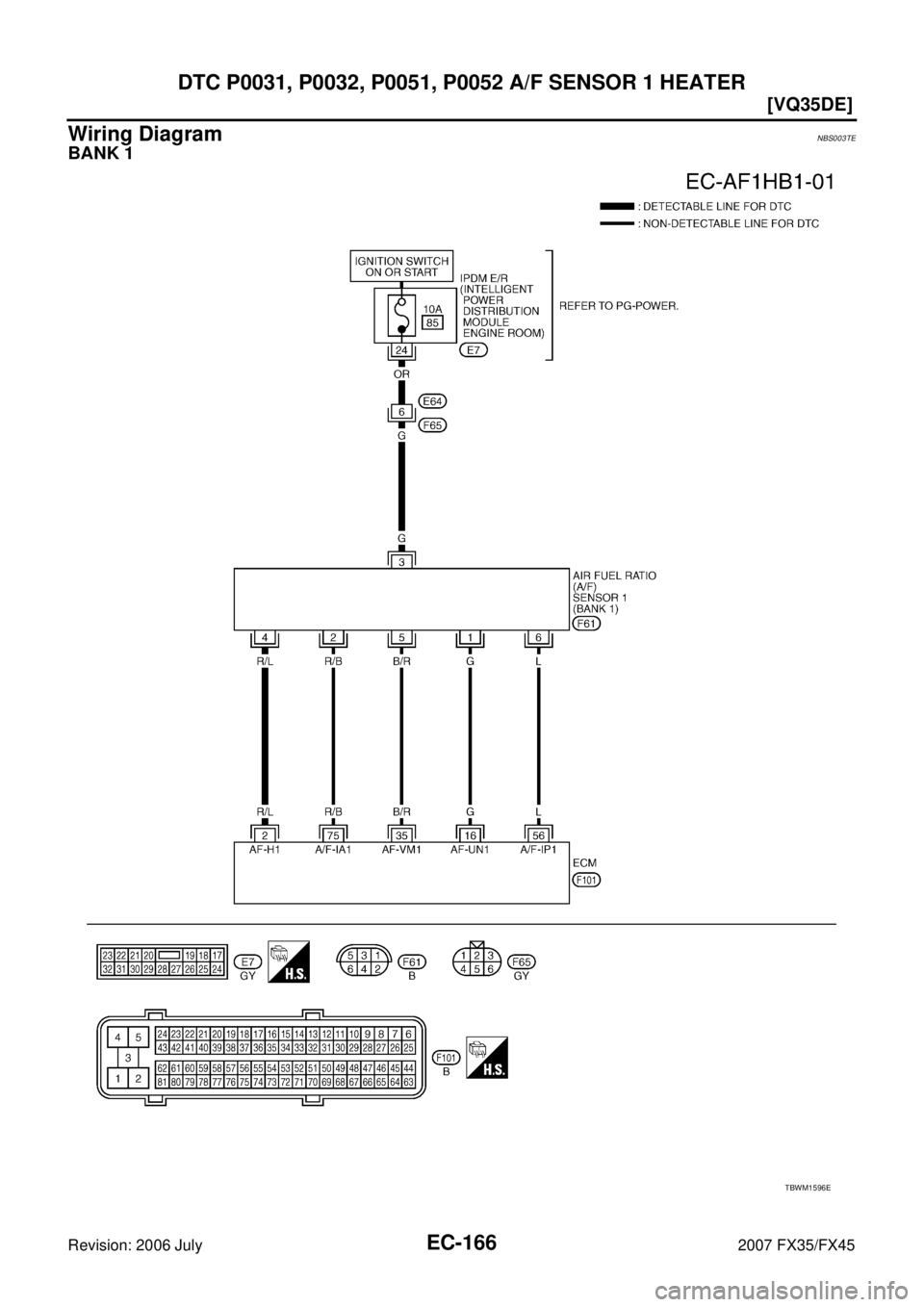

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 July 2007 FX35/FX45
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATERPFP:22693
DescriptionNBS003TA
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the air fuel ratio (A/F) sensor 1 heater corresponding to the engine
operating condition to keep the temperature of air fuel ratio (A/F) sensor 1 element at the specified range.
CONSULT-II Reference Value in Data Monitor ModeNBS003TB
Specification data are reference values.
On Board Diagnosis LogicNBS003TC
DTC Confirmation ProcedureNBS003TD
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
With CONSULT-II
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and let it idle for at least 10 seconds.
3. If 1st trip DTC is detected, go to EC-169, "
Diagnostic Procedure"
.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater control Air fuel ratio (A/F) sensor 1 heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR(B1)
A/F S1 HTR(B2)

Engine: After warming up, idle the engine 0 - 100%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0031
0031
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit
low The current amperage in the heated air fuel ratio
(A/F) sensor 1 heater circuit is out of the normal
range.
(An excessively low voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.)

Harness or connectors
[Air fuel ratio (A/F) sensor 1 heater
circuit is open or shorted.]

Air fuel ratio (A/F) sensor 1 heater
P0051
0051
(Bank 2)
P0032
0032
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit
high The current amperage in the heated air fuel ratio
(A/F) sensor 1 heater circuit is out of the normal
range.
(An excessively high voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.)

Harness or connectors
[Air fuel ratio (A/F) sensor 1 heater
circuit is shorted.]

Air fuel ratio (A/F) sensor 1 heater
P0052
0052
(Bank 2)
SEF058Y

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER EC-165
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II” above.

EC-166
[VQ35DE]
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 July 2007 FX35/FX45
Wiring DiagramNBS003TE
BANK 1
TBWM1596E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER EC-167
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
TERMI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
2R/L A/F sensor 1 heater
(bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
16 G A/F sensor 1 (bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 3.1V
35 B/R Approximately 2.6V
56 L Approximately 2.3V
75 R/B Approximately 2.3V
PBIB1584E
