BRC-28
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Note 1: After completing repairs of shorted sensor circuit, when turning ignition switch ON, ABS warning lamp turned on. Make t hat ABS
warning lamp turned off while driving vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute according to self-
diagnosis procedure. In addition, if wheel sensor 2 is displayed for wheels, check wheel sensor circuit and also check ABS actu ator and
electric unit (control unit) power voltage.
Note 2: If multiple malfunctions are detected including CAN communication line [U1000], perform diagnosis for CAN communication line
first.
Note 3: “ACTUATOR RLY” on the CONSULT-II self-diagnostic results indicates the malfunction of actuator relay or circuit. Actuat or relay
is imbedded in ABS actuator and electric unit (control unit).
Note 4:Only AWD models. DECEL G SEN SET
[C1160] (Note 4) Neutral position correction of decel G sensor is not finished. BRC-51, "
When “DECEL G
SEN SET” Appears on Self-
diagnostic Results Display
(AWD Models)"
BRC-7, "Calibration of Decel G
Sensor (AWD Models)"
VARIANT CODING
[C1170] V coding is not functioning. ABS actuator and electric unit
(control unit) and circuit
ENGINE SIGNAL 1
[C1130] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine fuel cut system is malfunctioning.
BRC-38, "
Engine System"
ENGINE SIGNAL 2
[C1131] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine ETC system is malfunctioning.
ENGINE SIGNAL 3
[C1132] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine CAN system is malfunctioning.
ENGINE SIGNAL 4
[C1133] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine torque down system is malfunctioning.
ENGINE SIGNAL 6
[C1136] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine control system is malfunctioning.
CAN COMM CIRCUIT
[U1000] When a ABS actuator and electric unit (control unit) is not transmitting
or receiving CAN communication signal for 2 seconds or more. BRC-52, "
CAN Communication
Circuit" (Note 2)
Self-diagnostic item Malfunction detecting condition Check system

TROUBLE DIAGNOSIS BRC-33
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
For Fast and Accurate DiagnosisNFS000NH
PRECAUTIONS FOR DIAGNOSIS

Before performing diagnosis, always read precautions. Refer to BRC-11, "How to Proceed with Diagnosis"
.

If ABS actuator and electric unit (control unit), steering angle sensor, steering system parts or suspension
system parts have been replaced, or if alignment has been adjusted, be sure to adjust neutral position of
steering angle sensor before driving. Refer to BRC-6, "
Adjustment of Steering Angle Sensor Neutral Posi-
tion" .

After diagnosis is finished, be sure to erase memory. Refer to BRC-25, "Self-Diagnosis" .

When checking continuity and voltage between units, be sure to check for disconnection, looseness,
bend, or collapse of connector terminals. If any malfunction is found, repair or replace connector termi-
nals.

For intermittent symptoms, possible cause is malfunction in harness, harness connector, or terminals.
Move harness, harness connector, and terminals to check for poor connections.

If a circuit tester is used for the check, be careful not to forcibly extend any connector terminal.

To use CONSULT-II to perform self-diagnosis of ABS actuator and electric unit (control unit), active tests,
or work support, first stop work, then connect CONSULT-II and select “ABS”.

While self-diagnostic results of CONSULT-II shows malfunction, if CONSULT-II active test is performed,
an engine system error may be indicated. In this case, start engine to resume the normal screen.

VDC/TCS/ABS system electronically controls brake operation and engine output. The following symptoms
may be caused by normal operations:
Symptom Symptom description Result
Motor operation noise This is noise of motor inside ABS actuator and electric unit (control unit).
Slight noise may occur during VDC, TCS, and ABS operation.
Normal
When the vehicle speed goes over 20 km/h (12.5 MPH), motor and valves
operating noise may be heard. It happens only once after ignition switch is
ON. This is a normal status of the system operation check.
System operation check noise When engine starts, slight “click” noise may be heard from engine room.
This is normal and is part of system operation check. Normal
VDC/TCS operation
(SLIP indicator lamp blinking) TCS may activate momentarily if wheel speed changes when driving over
location where friction coefficient varies, when up/downshifting, or when
fully depressing accelerator pedal.
Normal
Cancel the VDC/TCS
function for the inspec-
tion on a chassis dyna-
mometer.
For inspection of speedometer or other instruments, press VDC OFF
switch to turn VDC/TCS function off.
When accelerator pedal is depressed on a chassis dynamometer (fixed
front-wheel type), vehicle speed will not increase. This is not normal. It is
result of TCS being activated by stationary front wheels. Warning lamp may
also illuminate to indicate “sensor system error”. This is also normal, and is
the result of the stationary front wheels being detected. To be certain,
restart engine, and drive vehicle at 30 km/h (19 MPH) or more. Make sure
warning lamp does not illuminate.
ABS operation
(Longer stopping distance) On roads with low friction coefficients, such as snowy roads or gravel
roads, vehicles with ABS may require a longer stopping distance. There-
fore, when driving on such roads, avoid overconfidence and keep speed
sufficiently low. Normal
Insufficient feeling of acceler-
ation Depending on road conditions, driver may feel that feeling of acceleration
is insufficient. This is because traction control, which controls engine and
brakes to achieve optimal traction, has the highest priority (for safety). As a
result, there may be times when acceleration is slightly less than usual for
the same accelerator pedal operation. Normal

BRC-34
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Basic InspectionNFS000NI
BRAKE FLUID AMOUNT, LEAKS, AND BRAKE PADS INSPECTION
1. Check fluid level in the brake reservoir tank. If fluid level is low, refill brake fluid.
2. Check brake piping and around ABS actuator and electric unit (control unit) for leaks. If there is leaking or oozing fluid, check the following items.

If ABS actuator and electric unit (control unit) connection is loose, tighten piping to the specified torque
and re-perform the leak inspection to make sure there are no leaks.

If there is damage to the connection flare nut or ABS actuator and electric unit (control unit) screw,
replace the damaged part and re-perform the leak inspection to make sure there are no leaks.

When there is fluid leaking or oozing from a part other than ABS actuator and electric unit (control unit)
connection, if fluid is just oozing out, use a clean cloth to wipe off the oozing fluid and re-check for
leaks. If fluid is still oozing out, replace the damaged part.

When there is fluid leaking or oozing at ABS actuator and electric unit (control unit), if fluid is just oozing
out, use a clean cloth to wipe off oozing fluid and re-check for leaks. If fluid is still oozing out, replace
ABS actuator and electric unit (control unit) body.
CAUTION:
ABS actuator and electric unit (control unit) body can not be disassembled.
3. Check brake pad degree of wear. Refer to BR-19, "
PAD WEAR INSPECTION" in “Front Disc Brake” and
BR-25, "
PAD WEAR INSPECTION" in “Rear Disc Brake”
POWER SYSTEM TERMINAL LOOSENESS AND BATTERY INSPECTION
Make sure battery positive cable, negative cable and ground connection are not loose. If looseness is
detected, tighten the cables. In addition, check the battery voltage to make sure it has not dropped and alter-
nator is normal.
ABS WARNING LAMP, VDC OFF INDICATOR LAMP, SLIP INDICATOR LAMP AND BRAKE
WARNING LAMP INSPECTION
× : ON –: OFF
Note 1:Brake warning lamp will turn on in case of operating parking brake (switch turned on) or of actuating brake fluid level switch
(brake fluid is insufficient).
Note 2:After starting engine, turn OFF.
1. Make sure ABS warning lamp, VDC OFF indicator lamp (when VDC OFF switch is OFF), and SLIP indica- tor lamp turn on approximately 2 second, and brake warning lamp turns on when ignition switch is turned
ON. If they do not, check VDC OFF indicator lamp and then VDC OFF switch. Refer to BRC-52, "
VDC
OFF SWITCH" . Check CAN communications. Refer to “CAN Communication Inspection”. If there are no
errors with VDC OFF switch and CAN communication system, check combination meter. Refer to DI-5,
"COMBINATION METERS" .
2. Make sure ABS warning lamp, VDC OFF indicator lamp, SLIP indicator lamp turn off approximately 2 sec- ond after turn ignition switch ON, and brake warning lamp turns off after engine starts. If lamps do not turn
off, perform self-diagnosis.
Condition ABS warning
lamp VDC OFF
indicator lamp SLIP indicator
lamp Brake warning
lamp (Note 1) Remarks
Ignition switch OFF. – – – — —
Approx. 2 seconds after igni-
tion switch is turned ON. ×× ××
(Note 2) —
Approx. 2 seconds later after
ignition switch ON. –– –
× (Note 2) Go out 2 seconds after igni-
tion switch is turned ON.
VDC OFF switch is turned ON.
(VDC/TCS function is OFF.) –
× –— —
VDC/TCS/ABS error. ×× × — There is an ABS actuator
and electric unit (control
unit) error. (Power, ground or
system malfunction)
When VDC/TCS is not function-
ing normally. –
×× ——
EBD error. ×× × × —

TROUBLE DIAGNOSIS BRC-35
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
3. With engine running, make sure VDC OFF indicator lamp turns on and off when VDC OFF switch is
turned ON and OFF. If indicator lamp status does not correspond to switch operation, check the VDC OFF
switch system. Refer to BRC-52, "
VDC OFF SWITCH" .
4. Make sure ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp turn off 2 seconds after engine is started. If ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp have not turned
off 10 seconds after engine has been started, perform self-diagnosis of ABS actuator and electric unit
(control unit).
5. After performing the self-diagnosis, be sure to erase the error memory. Refer to BRC-25, "
Self-Diagnosis"
.
NOTE:
Brake warning lamp turns on when parking brake is operated (switch on) and brake fluid level switch is acti-
vated (leak of brake fluid).

BRC-38
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2006 July 2007 FX35/FX45
Engine SystemNFS000NK
DTC C1130-C1133, C1136
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK ENGINE SYSTEM
1. Perform an ECM self-diagnosis and repair or replace malfunctioning items. Perform ECM self-diagnosis again.
2. Perform ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace malfunctioning items. Perform the self-diagnosis again.
VDC/TCS/ABS Control Unit CircuitNFS000NL
DTC C1110
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Is the above displayed in the self-diagnosis display items?
YES >> Replace ABS actuator and electric unit (control unit). Perform the self-diagnosis again.
NO >> INSPECTION END
Self-diagnostic results
ENGINE SIGNAL 1
ENGINE SIGNAL 2
ENGINE SIGNAL 3
ENGINE SIGNAL 4
ENGINE SIGNAL 6
Self-diagnostic results
CONTROLLER FAILURE

BRC-42
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2006 July 2007 FX35/FX45
4. CHECK STEERING WHEEL PLAY
Check steering wheel play. Refer to PS-10, "
CHECKING STEERING WHEEL PLAY" .
OK or NG
OK >> GO TO 5
NG >> Adjust steering wheel play.
5. PERFORM DATA MONITOR
1. Connect steering angle sensor and ABS actuator and electric unit (control unit) connectors.
2. Perform “DATA MONITOR” of the “STEERING ANGLE SIGNAL” to check if the status is normal.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self-diagnosis again.
NG >> Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to BRC-
6, "Adjustment of Steering Angle Sensor Neutral Position" .
Yaw Rate/Side G Sensor (2WD Models), Yaw Rate/Side/Decel G Sensor (AWD
Models) Circuit
NFS000NO
DTC C1113, C1145, C1146
CAUTION:
Sudden turns (such as spin turns, acceleration turns), drifting, etc. may cause the G sensor circuit
indicate a malfunction. However, this is not a malfunction, if normal operation can be resumed after
restarting engine.
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
CAUTION:
When on a turntable, such as at a parking structure entrance, or when on a moving object with engine
running, VDC OFF indicator lamp might turn on and self-diagnosis using CONSULT-II the yaw rate sen-
sor system might be displayed, but in this case there is no malfunction in yaw rate sensor circuit. As
soon as vehicle leaves turntable or moving object, restart engine to return the system to normal.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
Steering condition Data monitor display
Straight-ahead -3.5 deg - +3.5 deg
Turn wheel to the right by 90 °. Approx. -90 deg
Turn wheel to the left by 90 °. Approx. +90 deg
Self-diagnostic results
YAW RATE SENSOR
SIDE G-SEN CIRCUIT
G-SENSOR (AWD models)

TROUBLE DIAGNOSIS FOR SYSTEM BRC-47
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45

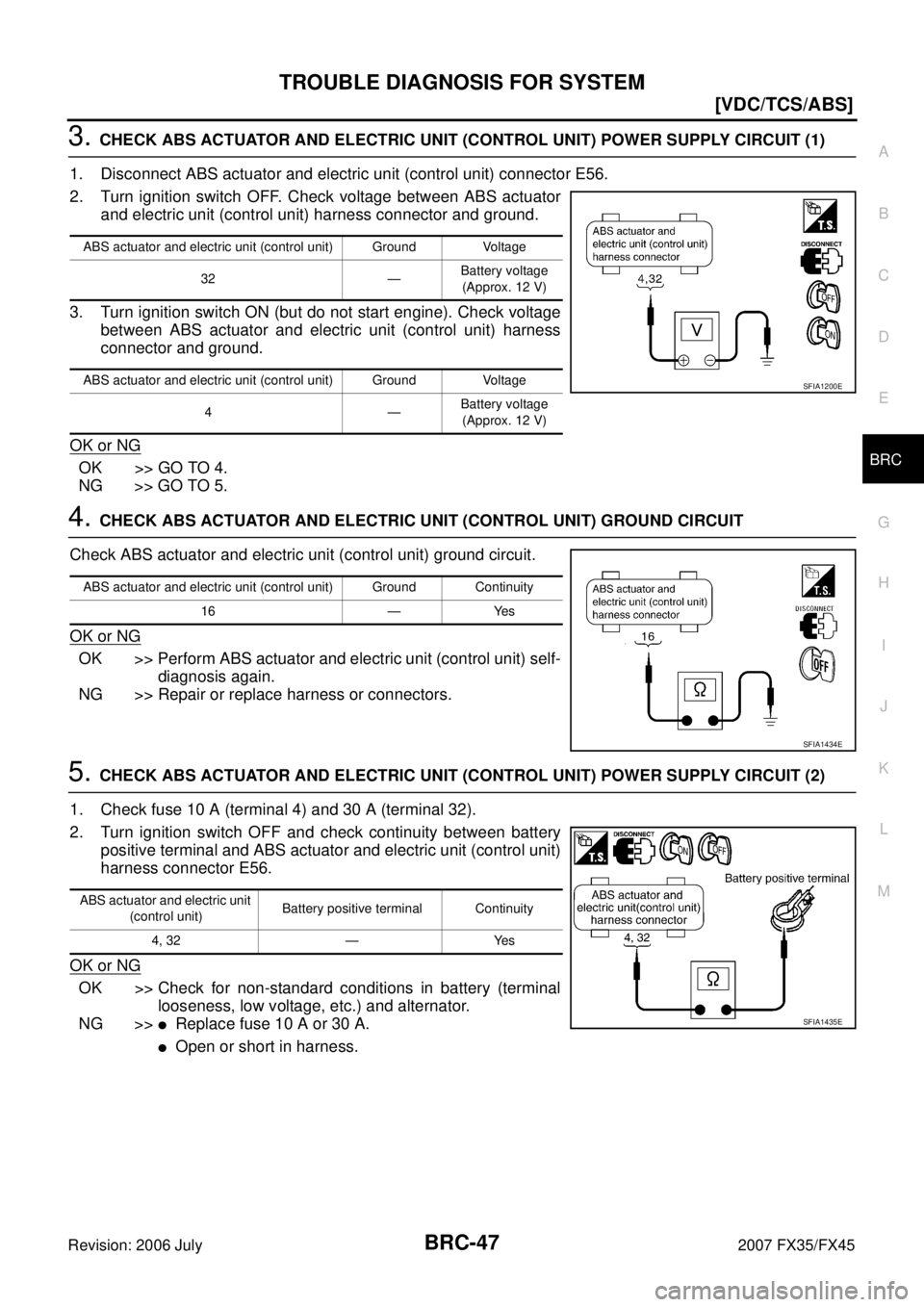

3. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT (1)
1. Disconnect ABS actuator and electric unit (control unit) connector E56.
2. Turn ignition switch OFF. Check voltage between ABS actuator and electric unit (control unit) harness connector and ground.
3. Turn ignition switch ON (but do not start engine). Check voltage between ABS actuator and electric unit (control unit) harness
connector and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
Check ABS actuator and electric unit (control unit) ground circuit.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self- diagnosis again.
NG >> Repair or replace harness or connectors.
5. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT (2)
1. Check fuse 10 A (terminal 4) and 30 A (terminal 32).
2. Turn ignition switch OFF and check continuity between battery positive terminal and ABS actuator and electric unit (control unit)
harness connector E56.
OK or NG
OK >> Check for non-standard conditions in battery (terminal looseness, low voltage, etc.) and alternator.
NG >>

Replace fuse 10 A or 30 A.

Open or short in harness.
ABS actuator and electric unit (control unit) Ground Voltage
32 — Battery voltage
(Approx. 12 V)
ABS actuator and electric unit (control unit) Ground Voltage 4— Battery voltage
(Approx. 12 V)
SFIA1200E
ABS actuator and electric unit (control unit) Ground Continuity
16 — Yes
SFIA1434E
ABS actuator and electric unit (control unit) Battery positive terminal Continuity
4, 32 — Yes
SFIA1435E

BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 July 2007 FX35/FX45
The Braking Distance is LongNFS000O0
CAUTION:
On slippery road surfaces, the stopping distance might be longer with the ABS operating than when
the ABS is not operating.
1. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector E56 to deactivate ABS. In this condition,
check stopping distance. After inspection, connect connector.
OK or NG
OK >>
Bleed air from brake piping.

Check brake system.
NG >> GO TO 2. CHECK WHEEL SENSOR. Refer to BRC-53, "
Excessive ABS Function Operation Fre-
quency" .
The ABS Function Does Not OperateNFS000O1
CAUTION:
The ABS does not operate when the speed is 10 km/h (6 MPH) or less.
1. CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 2 seconds after the ignition switch is turned ON or when driv-
ing.
OK or NG
OK >> GO TO 2. CHECK WHEEL SENSOR. Refer to BRC-53, "Excessive ABS Function Operation Fre-
quency" .
NG >> Perform self-diagnosis. Refer to BRC-25, "
Self-Diagnosis" .
Pedal Vibration or ABS Operation Sound OccursNFS000O2
CAUTION:
Under the following conditions, when brake pedal is lightly depressed (just place a foot on it), ABS is
activated and vibration is felt. However, this is normal.

When shifting gears

When driving on slippery road

During cornering at high speed

When passing over bumps or grooves

When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]
1. SYMPTOM CHECK 1
Check if pedal vibration or operation sound occurs when engine is started.
OK or NG
OK >> Perform self-diagnosis. Refer to BRC-25, "Self-Diagnosis" .
NG >> GO TO 2.
2. SYMPTOM CHECK 2
Check symptom when electrical component (headlamps, etc.) switches are operated.
Does the symptom occur when the electrical component (head lamp, etc.) switches are operated?
YES >> Check if there is a radio, antenna, antenna lead wire, or wiring close to ABS actuator and electric unit (control unit) (or its wiring), and if there is, move it farther away.
NO >> GO TO 2. CHECK WHEEL SENSOR. Refer to BRC-53, "
Excessive ABS Function Operation Fre-
quency" .
