BR-16

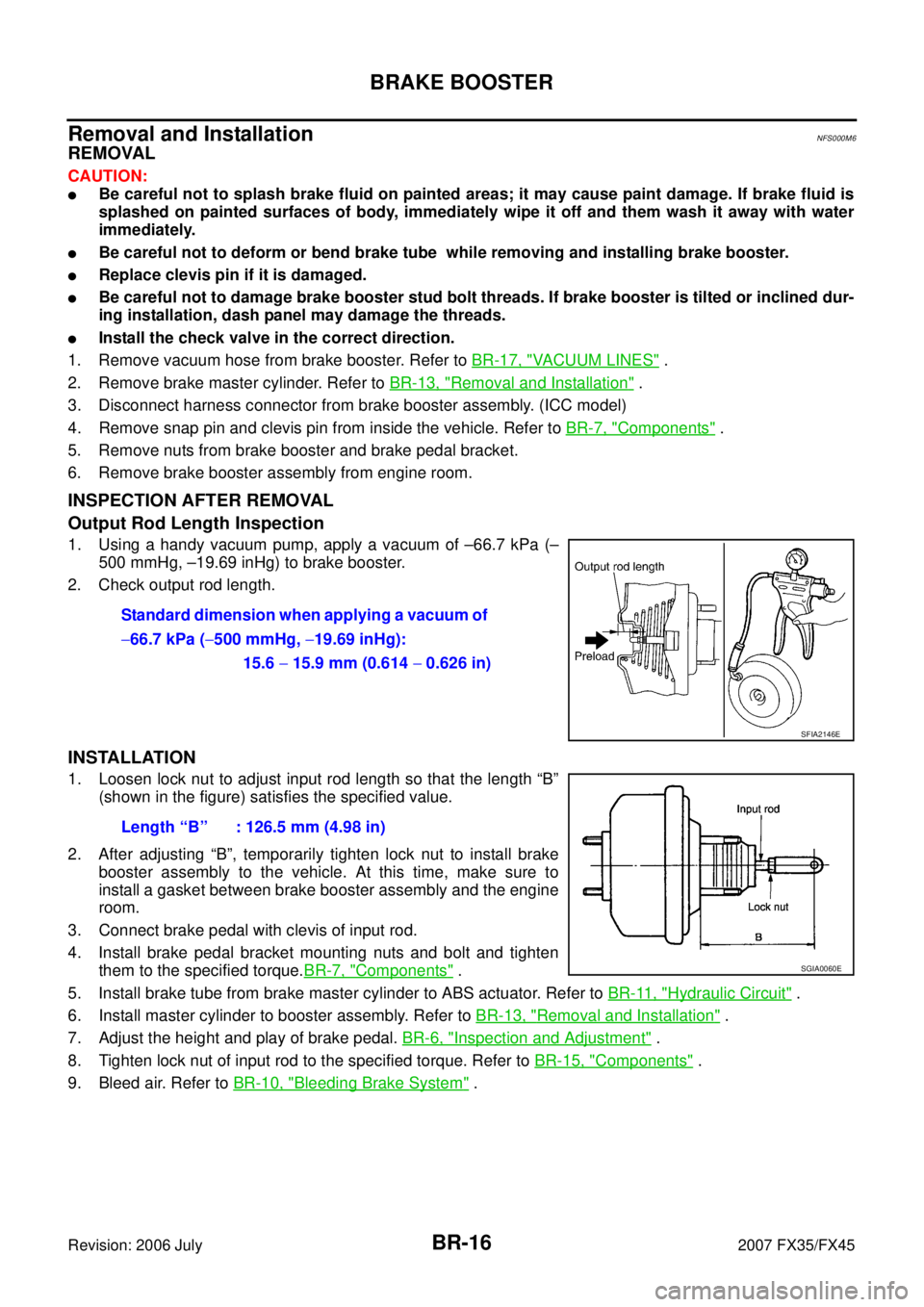

BRAKE BOOSTER
Revision: 2006 July 2007 FX35/FX45
Removal and InstallationNFS000M6
REMOVAL
CAUTION:

Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is
splashed on painted surfaces of body, immediately wipe it off and them wash it away with water
immediately.

Be careful not to deform or bend brake tube while removing and installing brake booster.

Replace clevis pin if it is damaged.

Be careful not to damage brake booster stud bolt threads. If brake booster is tilted or inclined dur-
ing installation, dash panel may damage the threads.

Install the check valve in the correct direction.
1. Remove vacuum hose from brake booster. Refer to BR-17, "
VACUUM LINES" .
2. Remove brake master cylinder. Refer to BR-13, "
Removal and Installation" .
3. Disconnect harness connector from brake booster assembly. (ICC model)
4. Remove snap pin and clevis pin from inside the vehicle. Refer to BR-7, "
Components" .
5. Remove nuts from brake booster and brake pedal bracket.
6. Remove brake booster assembly from engine room.
INSPECTION AFTER REMOVAL
Output Rod Length Inspection
1. Using a handy vacuum pump, apply a vacuum of –66.7 kPa (– 500 mmHg, –19.69 inHg) to brake booster.
2. Check output rod length.
INSTALLATION
1. Loosen lock nut to adjust input rod length so that the length “B” (shown in the figure) satisfies the specified value.
2. After adjusting “B”, temporarily tighten lock nut to install brake booster assembly to the vehicle. At this time, make sure to
install a gasket between brake booster assembly and the engine
room.
3. Connect brake pedal with clevis of input rod.
4. Install brake pedal bracket mounting nuts and bolt and tighten them to the specified torque. BR-7, "
Components" .
5. Install brake tube from brake master cylinder to ABS actuator. Refer to BR-11, "
Hydraulic Circuit" .
6. Install master cylinder to booster assembly. Refer to BR-13, "
Removal and Installation" .
7. Adjust the height and play of brake pedal. BR-6, "
Inspection and Adjustment" .
8. Tighten lock nut of input rod to the specified torque. Refer to BR-15, "
Components" .
9. Bleed air. Refer to BR-10, "
Bleeding Brake System" .
Standard dimension when applying a vacuum of
− 66.7 kPa ( −500 mmHg, −19.69 inHg):
15.6 − 15.9 mm (0.614 − 0.626 in)
SFIA2146E
Length “B” : 126.5 mm (4.98 in)
SGIA0060E

VACUUM LINES BR-17
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 July 2007 FX35/FX45

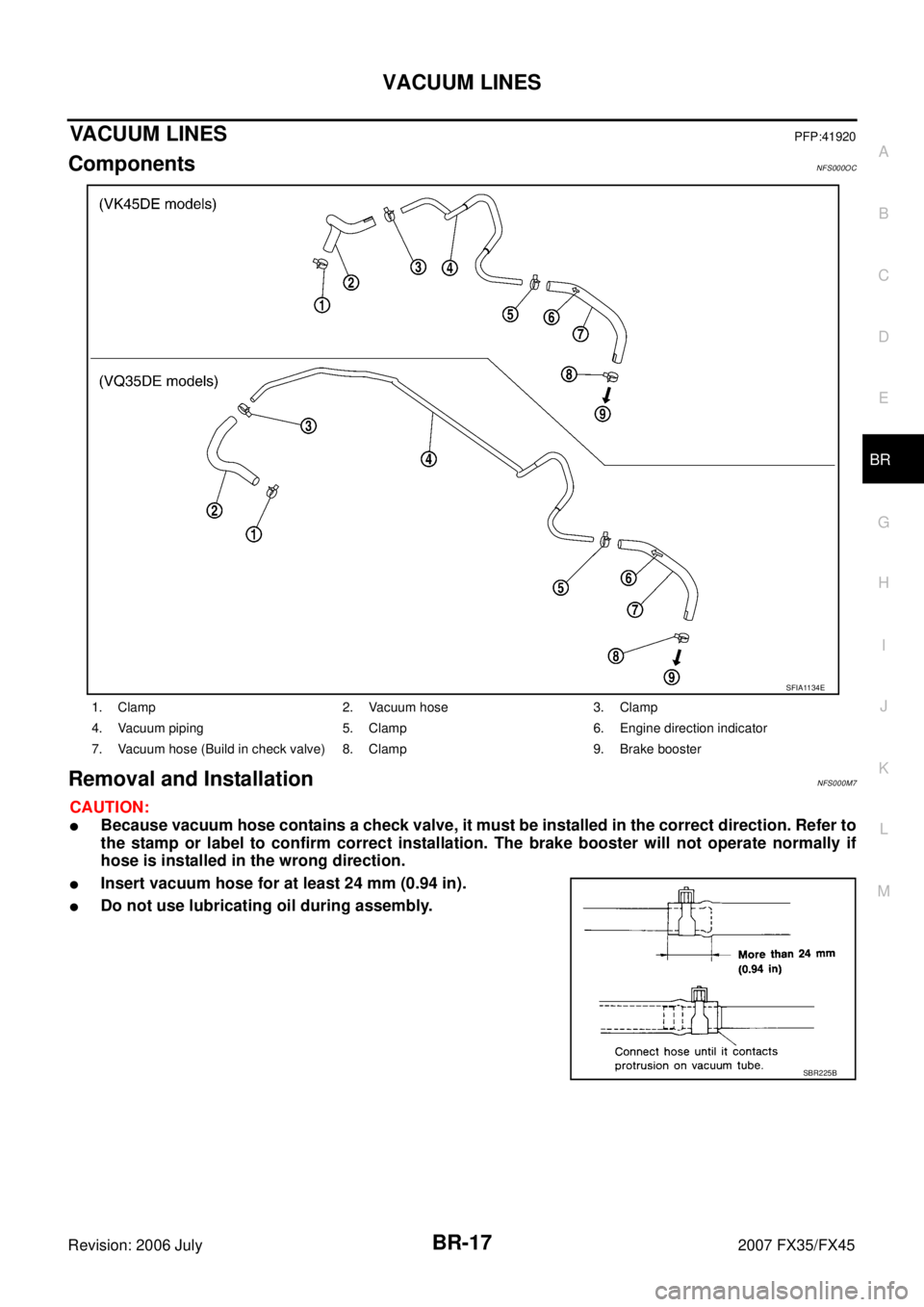

VACUUM LINESPFP:41920
ComponentsNFS000OC
Removal and InstallationNFS000M7
CAUTION:

Because vacuum hose contains a check valve, it must be installed in the correct direction. Refer to
the stamp or label to confirm correct installation. The brake booster will not operate normally if
hose is installed in the wrong direction.

Insert vacuum hose for at least 24 mm (0.94 in).

Do not use lubricating oil during assembly.
1. Clamp 2. Vacuum hose 3. Clamp
4. Vacuum piping 5. Clamp 6. Engine direction indicator
7. Vacuum hose (Build in check valve) 8. Clamp 9. Brake booster
SFIA1134E
SBR225B

BR-18
VACUUM LINES
Revision: 2006 July 2007 FX35/FX45
InspectionNFS000M8
VISUAL INSPECTION
Check for improper assembly, damage and deterioration.
CHECK VALVE INSPECTION
Airtightness Inspection
Use a handy vacuum pump to check.
When connected to booster side (1): Vacuum decrease should be within 1.3 kPa
(10 mmHg, 0.39 inHg) for 15 seconds under a
vacuum of –66.7 kPa (–500 mmHg, –19.69
inHg)
When connected to engine side (2): No vacuum will be applied
SFIA1306E

SERVICE DATA AND SPECIFICATIONS (SDS) BR-31
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsNFS000MJ
Unit: mm (in)
Brake PedalNFS000MK
Brake BoosterNFS000ML
Va c u u m t y p e
Check ValveNFS000MM
Front Disc BrakeNFS000MN
Rear Disc BrakeNFS000MO
Front brake Rotor outer diameter
× thickness 320 × 34 (12.598 × 1.339)
Pad length × width × thickness 130.0 × 50.0 × 11.0 (5.118 × 1.969 × 0.433)
Cylinder bore diameter 45.0 (1.772) × 2
Rear brake Rotor outer diameter
× thickness 308 × 16 (12.13 × 0.63)
Pad length × width × thickness 83.0 × 33.0 × 8.5 (3.268 × 1.299 × 0.335)
Cylinder bore diameter 42.86 (1.6874)
Master cylinder Cylinder bore diameter 25.4 (1.00)
Control valve Valve model Electric brake force distribution
Brake booster Diaphragm diameter Primary 228.5 (9.0)
Secondary 203.0 (8.0)
Recommended brake fluid DOT 3
Brake pedal height (from dash lower panel top surface) 161.5 − 171.5 mm (6.358 − 6.752 in)
Depressed pedal height
[under a force of 490 N (50 kg, 110 lb) with engine running] More than 95 mm (3.74 in)
Clearance between stopper rubber and the threaded end of stop lamp
switch and ASCD cancel switch (or brake switch) 0.74
− 1.96 mm (0.0291 − 0.0772 in)
Pedal play 3 − 11 mm (0.12 − 0.43 in)
Output rod length 15.6 − 15.9 mm (0.614 − 0.626 in)
Input rod length 126.5 mm (4.98 in)
Vacuum leakage
[at a vacuum of –66.7 kPa (–500 mmHg, –19.69 inHg)] Within vacuum of 1.3 kPa (10 mmHg, 0.39 inHg) for 15
seconds
Brake pad Standard thickness 11.0 mm (0.433 in)
Repair limit thickness 2.0 mm (0.079 in)
Disc rotor Standard thickness 34.0 mm (1.339 in)
Wear limit 32.0 mm (1.260 in)
Maximum uneven wear (measured at 8 positions) 0.015mm (0.0006 in) or less
Runout limit (with the disc rotor attached to the vehicle) 0.04 mm (0.0016 in) or less
Brake pad Standard thickness 8.5 mm (0.335 in)
Repair limit thickness 2.0 mm (0.079 in)
Disc rotor Standard thickness 16.0 mm (0.630 in)
Wear limit 14.0 mm (0.551 in)
Maximum uneven wear (measured at 8 positions) 0.015 mm (0.0006 in) or less
Runout limit (with the disc rotor attached to the vehicle) 0.05 mm (0.0020 in) or less

PRECAUTIONS BRC-3
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000MW
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemNFS000MX

Recommended fluid is brake fluid “DOT 3”. Refer to MA-12, "RECOMMENDED FLUIDS AND LUBRI-
CANTS" .

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.

Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.

Using a flare nut crowfoot and torque wrench, securely tighten
brake tube flare nuts.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.

Before working, turn ignition switch OFF and disconnect electri-
cal connectors of ABS actuator and electric unit (control unit) or
battery negative terminal.

When installing brake piping, be sure to check torque.
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe with
a dust collector.
Precautions for Brake ControlNFS000MY

During VDC/TCS/ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This
is normal.

Just after starting vehicle after turning ignition switch ON, brake pedal may vibrate or motor operating
noise may be heard from engine room. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level, and
fluid leaks.

If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.
SBR686C

BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45

If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, VDC/TCS/ABS
function may have a malfunction or error.

If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness
pinches, open circuits, and improper wiring.

If the following components are replaced with non-genuine components or converted, VDC OFF indicator
lamp and SLIP indicator lamp may turn on or the VDC system may not operate properly. Components
related to suspension (shock absorber, strut, spring, bushing, etc.), Tires, wheels (exclude specified size),
components related to brake (pad, rotor, caliper, etc.), components related to engine (muffler, ECM, etc.),
components related to body reinforcement (roll bar, tower bar, etc.).

Driving in the condition of breakage or excessive wear of suspension, tires or components related to the
brakes may cause VDC OFF indicator lamp and SLIP indicator lamp turn on, and the VDC system may
not operate properly.

When the TCS or VDC is activated by sudden acceleration or sudden turn, some noise may occur. The
noise is a result of the normal operation of the TCS and VDC.

When driving on roads which have extreme slopes (such as mountainous roads) or high banks (such as
sharp carves on a freeway), the VDC may not operate normally, or VDC OFF indicator lamp and SLIP
indicator lamp may turn on. However, this is not a malfunction, if normal operation can be resumed after
restarting engine.

Sudden turns (such as spin turns, acceleration turns), drifting, etc. When VDC function is OFF (VDC OFF
SW ON) may cause the G sensor system indicate a malfunction. However, this is not a malfunction, if nor-
mal operation can be resumed after restarting engine.

Change 4 tires at a time. Be sure to use specified-size tires that have the same brand name and pattern.
Wheel sensor errors can be detected be self-diagnosis when tires have wide abrasion variations or the
size is different from the genuine tires.

SYSTEM DESCRIPTION BRC-9
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
ABS

The Anti-Lock Braking System is a function that detects wheel revolution while braking, and it improves
handling stability during sudden braking by electrically preventing 4 wheel lock. Maneuverability is also
improved for avoiding obstacles.

If the electrical system malfunctions, then the fail-safe function starts, the ABS becomes inoperative, and
ABS warning lamp turns on.

Electrical system diagnosis by CONSULT-II is available.

During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
EBD

The Electronic Brake Distribution is a function that detects subtle slippages between front and rear wheels
during braking, and it improves handling stability by electronically controlling the brake fluid pressure
which results in reduced rear wheel slippage.

In case of electrical system malfunction, the fail-safe function is activated, EBD and ABS becomes inoper-
ative, and ABS warning lamp and brake warning lamp are turned on.

Electrical system diagnosis by CONSULT-II is available.

During EBD operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without EBD when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
Fail-Safe FunctionNFS000N8
VDC / TCS SYSTEM
In case of malfunction in the VDC/TCS system, VDC OFF indicator lamp and SLIP indicator lamp are turned
on, and the condition of vehicle is the same as the condition of vehicles without VDC/TCS system. In case of
malfunction in the VDC/TCS system, the ABS control continues to operate normally without VDC/TCS control.
CAUTION:
If the fail-safe function is activated, then perform the self-diagnosis for VDC/TCS/ABS control system.
ABS, EBD SYSTEM
In case of electrical malfunctions with the ABS, ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp will turn on. In case of electrical malfunctions with the EBD, brake warning lamp, ABS warning lamp,
VDC OFF indicator lamp and SLIP indicator lamp will turn on. Simultaneously, the VDC/TCS/ABS become one
of the following conditions of the fail-safe function.

For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of
vehicles without TCS/ABS system.
NOTE:
ABS self-diagnosis sound may be heard. That is a normal condition because a self-diagnosis for “Ignition
switch ON” and “The first starting” are being performed.

For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as
the condition of vehicles without TCS/ABS, EBD system.

TROUBLE DIAGNOSIS BRC-25
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Self-DiagnosisNFS000OI
DESCRIPTION

If an error is detected in the system, ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp
on the combination meter turn on. In this case, perform self-diagnosis as follows:

While CONSULT-II is used, ABS warning lamp, VDC OFF indicator lamp, SLIP indicator lamp may be
turned on in a case of no malfunctioning.
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
3. Turn ignition switch ON.
4. Start engine and drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping vehicle, with the engine running, touch “ABS”, “SELF-DIAG RESULTS” in order on the CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on the
ignition switch, “ABS” might not be displayed in the “SELECT SYSTEM” screen. In this case,
repeat the operation from step 1. If it can not be shown after several attempts, ABS actuator and
electric unit (control unit) may have malfunctioned.
6. The self-diagnostic results are displayed. (If necessary, the self-diagnostic results can be printed out by touching “PRINT”.)

When “NO FAILURE” is displayed, check ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp.
7. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning component.
8. Drive the vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute. CAUTION:
In a case that a wheel sensor is malfunctioning, ABS warning lamp, VDC OFF indicator lamp, SLIP
indicator lamp will turn on. If vehicle is not driven at approximately 30 km/h (19 MPH) or more for
at least approximately 1 minute after repair of the wheel sensor system, ABS warning lamp, VDC
OFF indicator lamp and SLIP indicator lamp may not turn off even if everything is normal. Check
again to make sure that there is no malfunction on other parts.
ERASE MEMORY
1. Turn ignition switch OFF.
2. Start the engine and touch “ABS”, “SELF-DIAG RESULTS”, “ERASE MEMORY” in order on the CON- SULT-II screen to erase the error memory.
CAUTION:
If the error memory is not erased, re-conduct the operation from step 4.
3. Perform self-diagnosis again, and make sure that diagnostic memory is erased.
4. Drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp turn off.
NOTE:
VDC OFF switch should not stay “ON” position.
