2007 HONDA S2000 Owners Manual

µµ
µ
µ You may experience periods when
XM radio does not transmit the artist
name and or the song title
inf ormation. If this happens, there is
nothing wrong with your system.
This inf ormation is not available
under certain situations.
If youpressandholdtheDISP/
MODE button f or 5 seconds, it will
change between category mode and
channel mode. The display will show
CH f or the channel mode or
CATEGORY f or the category mode.
In the channel mode, you can receive
all of the available channels in all of
the dif f erent categories. In category
mode, you will receive only the
stations within the selected category.
Expands the display to
show the 6 remaining letters beyond
the first 10 letters in an artist’s name
or song title. The system is set up so
only 16 letters can be displayed f or any title or name. Press MORE to
view the next 6 letters. The system
will return to the original display
af ter 8 seconds.
Turn the TUNE knob lef t
to go down the channels or right to
go up. In the channel mode, the
TUNE knob will tune up or down
through all the channels available
from the XM radio. In the category
mode, the TUNE knob will cycle
through only the channels within the
category you have currently selected.
Use
the CATEGORY bar to select a
desired category, such as jazz, rock,
classical, etc. In both category mode
and channel mode, pressing the
category bar will change the
category up or down.
Each time the
DISP button is pressed and released,
the display inf ormation changes in
the f ollowing sequence: channel
name, channel number, category,
artist name, and music title. To listen to satellite radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the CD/XM
button. Adjust the volume by turning
the PWR/VOL knob. The last
channel you listened to will show in
the display. Playing the Satellite Radio
MORETUNE
CA T EGORY (SEEK /SK IP)
DISPL AY/MODE
Playing the XMSatellite Radio (Optional on U.S. Models)
94

µµ
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. To store a channel:
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel: Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
Once a channel is stored, simply
press and release the proper preset
button to tune to it.
Thepresetsmaybelostif your
vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. Repeat steps 2 through 3 to store
the f irst six channels.
Use the TUNE knob, the
CATEGORY bar, or the SCAN
buttons to tune to a desired
channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected. Press the CD/XM button. Either
XM1 or XM2 will show in the
display.
Press the CD/XM button again.
The available XM band will show.
Store the next six channels using
steps 2 through 3.
1.
2. 3.
4.
5.
CONT INUED
SCAN
Preset
Playing the XMSatellite Radio (Optional on U.S. Models)
Features
95

TheXMsatellitesareinorbitover
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.
Playing the XMSatellite Radio (Optional on U.S. Models)
96

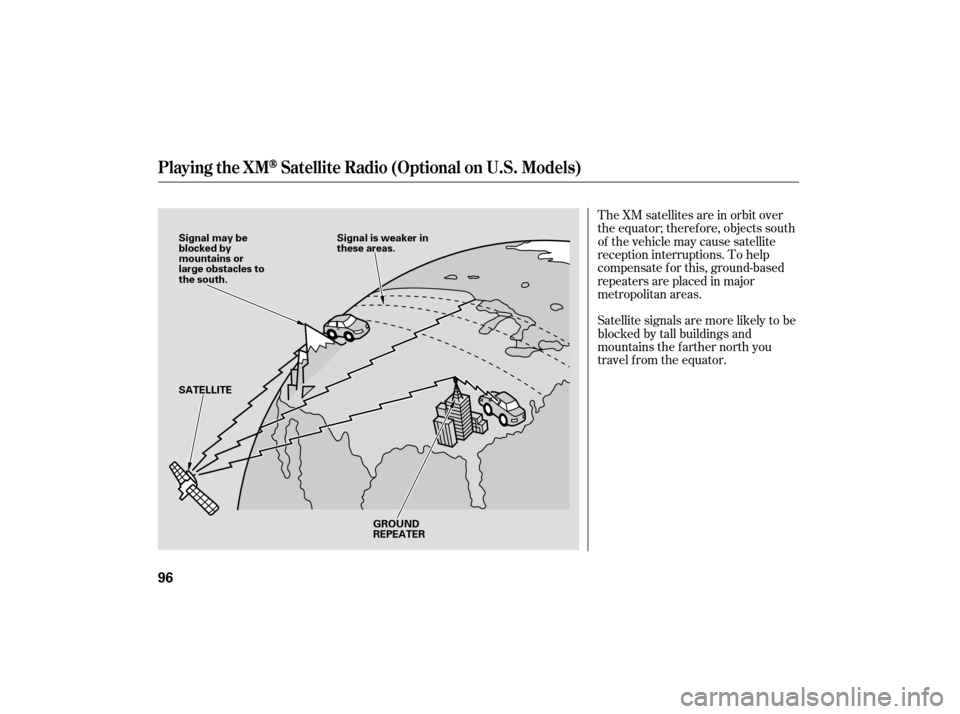

Signal may be
blocked by
mountains or
large obstacles to
the south.GROUND
REPEATER
SATELLITE Signal is weaker in
these areas.

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you. Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. Driving on the south side of an
east/west mountain road. There may also be other geographic
situations that could af f ect satellite
radio reception.
If you decide to purchase XM
satellite radio service, contact XM
Radio at
, or at1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
After you’ve registered with XM
Radio, keep your audio system in the
Satellite Radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting for activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display,
andyou’llbeabletolistentoXM
Radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from the activation request. If the
service has not been activated after
36 hours, contact XM Radio.
Driving on the lower level of a
multi-tiered road. If your XM Radio service has expired,
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, push the
PWR/VOL knob to turn on the audio
system, and press the CD/XM
button. A variety of music types and
styles will play.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com
Playing the XMSatellite Radio (Optional on U.S. Models)
Receiving Satellite Radio Service
Features
97

Playing a CD
98

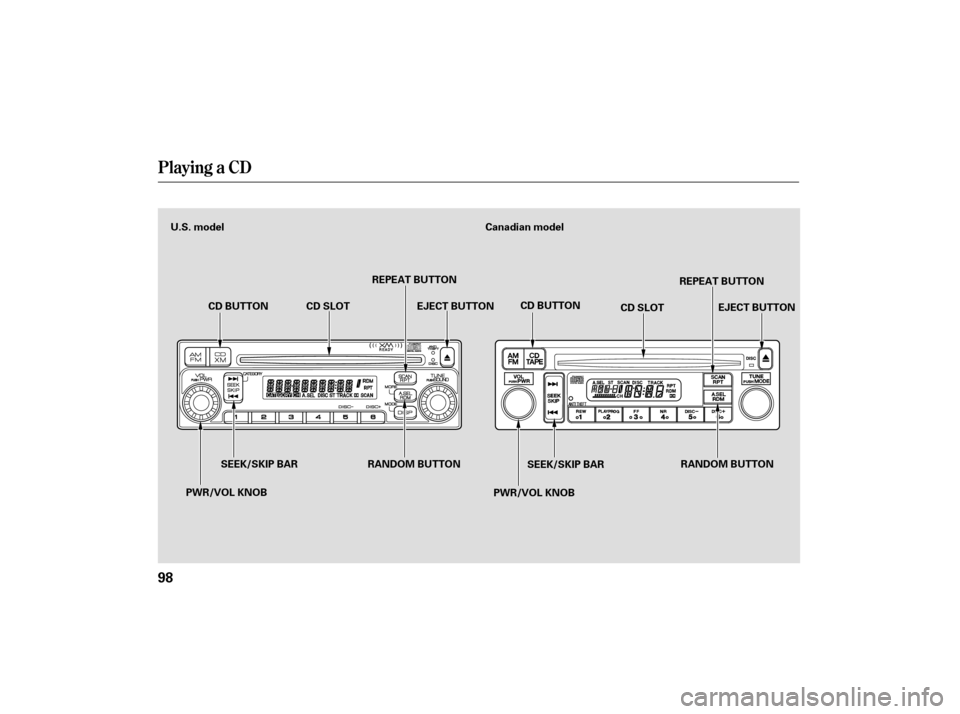

Canadian model
U.S. model
SEEK/SKIP BAR
CD BUTTON
REPEAT BUTTON
CD SLOT EJECT BUTTON
RANDOM BUTTON CD BUTTON
REPEAT BUTTON
CD SLOT
RANDOM BUTTONEJECT BUTTON
SEEK/SKIP BAR
PWR/VOL KNOB PWR/VOL KNOB

µµ
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
Each time you press and
release the side of the skip bar,
the player skips forward to the
beginning of the next track. Press
and release the side of the bar
to skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off.
You operate the CD player with the
same controls used f or the radio. To
select the CD player, press the CD
button. The number of the track
playing is shown in the display. The
system will continuously play a CD
until you change modes.
Insert a CD about half way into the
CD slot. The drive will pull the CD in
the rest of the way and begin to play
it. When the system reaches the end
of the disc, it will return to the
beginning and play the disc again.
To move rapidly within a track, press
and hold or .
To move rapidly within a
track, press and hold the SEEK/
SKIP bar. Press and hold to
move forward. Press and hold to move backward. Release the
bar when the system reaches the
point you want.
CONT INUED
To Play a CD SK IP To Change or Select Tracks
SEEK
Playing a CD
Features
99
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

µµ
µ´
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it of f .
This f eature plays the
tracks in random order. To activate
random play, press and release the
RDM button. You will see RDM in
the display. Press it again to return
to normal play.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing. If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off.
An optional six disc CD changer is
available for your vehicle. This CD
changer uses the same controls used
f or the in-dash CD player.
Load the desired CDs into the
magazine, and load the magazine
into the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a dif f erent CD, use the preset 5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot.
REPEAT
RANDOM
To Stop Playing a CD
Operating the Optional CD
Changer
Playing a CD, CD Changer
100

When using CD-R discs, use only
high quality CDs labeled f or audio
use.
When recording a CD-R, the
recording must be closed f or it to
be used by the system.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping.When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean sof t cloth.
Wipe across the CD f rom the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert f oreign objects in
the CD player or the magazine.

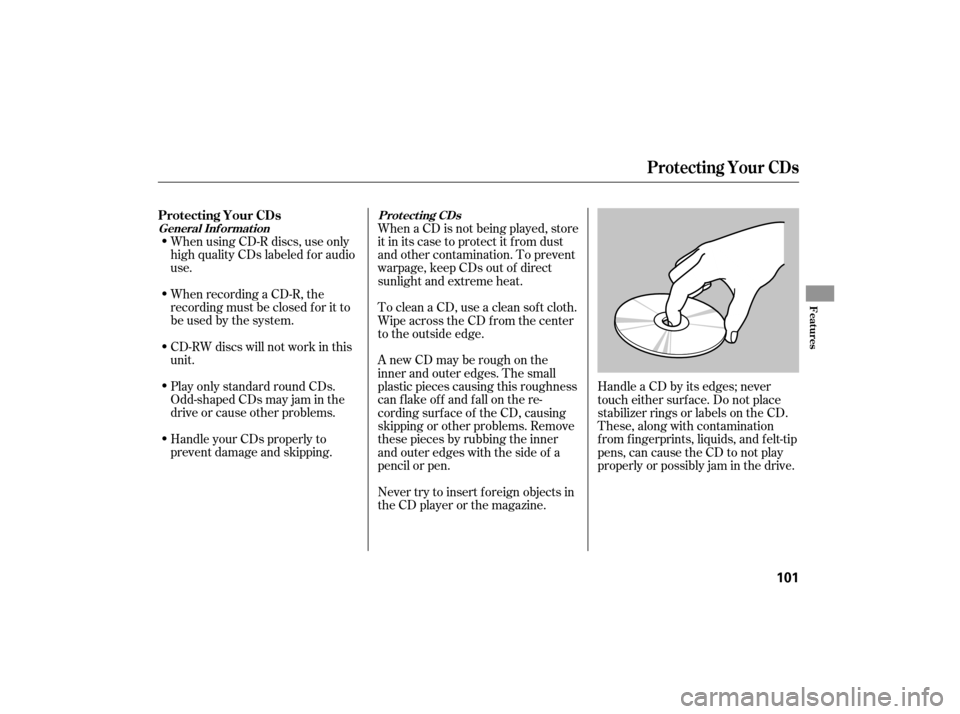

Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the CD to not play
properly or possibly jam in the drive.
Protecting Your CDs
General Inf ormat ion
Prot ect ing CDs
Protecting Your CDs
Features
101
