2007 HONDA FIT Owners Manual

If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire. Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or reverse (manual). Apply the
parking brake.Open the tailgate. Raise the cargo
area f loor lid by lif ting it up with
the strap that has a loop. To keep
the f loor lid open, hook the loop of
the strap to a leg of the rear center
head restraint.
Take the tool kit out of the spare
tire.
4. 3.
2. 1.
CONT INUED
Changing a Flat Tire
T aking Care of t he Unexpect ed
207
JACK STRAP
TOOL KIT
SPARE
TIRE
LOOP
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.

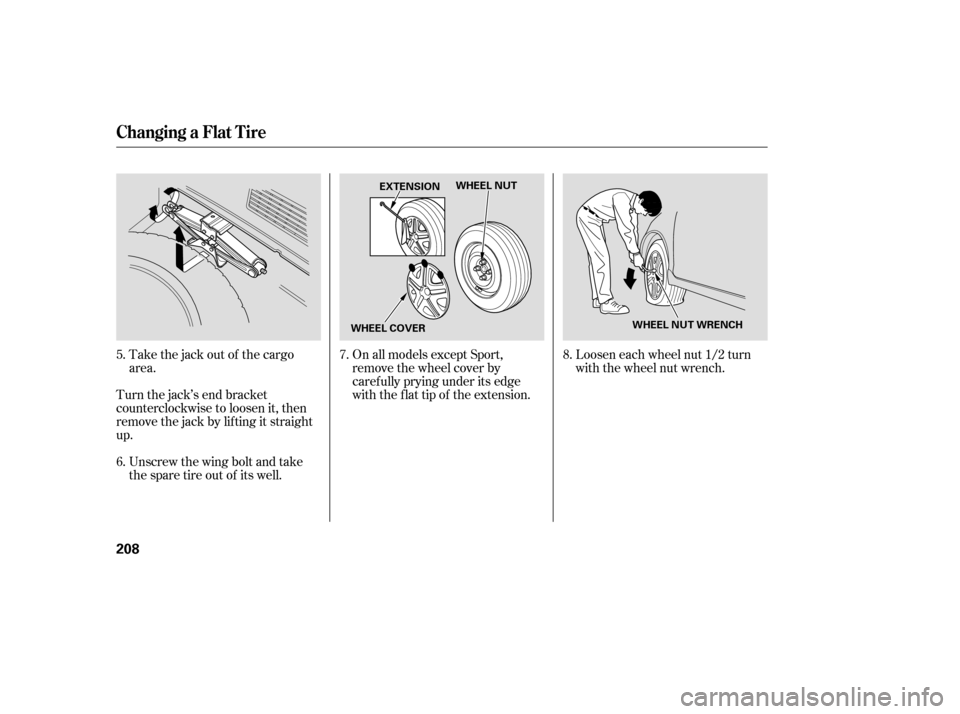

Take the jack out of the cargo
area.
Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack by lif ting it straight
up. Unscrew the wing bolt and take
the spare tire out of its well. Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
On all models except Sport,
remove the wheel cover by
caref ully prying under its edge
with the flat tip of the extension.
5.
6. 7. 8.
Changing a Flat Tire
208
WHEEL NUT WRENCH
WHEEL NUT
WHEEL COVER EXTENSION

Ú
CONT INUED
Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.Bef ore mounting the spare tire,
wipe any dirt of f the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Place the jack under the jacking
point nearest the tire you need to
change. It is pointed to by a
mark molded into the underside of
the body (Sport model). Turn the
end bracket clockwise until the top
of the jack contacts the jacking
point. Make sure the jacking point
tab is resting in the jack notch.
9.
11. 12.
10.
Changing a Flat Tire
T aking Care of t he Unexpect ed
209
JACKING POINT EXTENSION
WHEEL NUT WRENCH BRAKE HUB

Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
Lower the vehicle to the ground,
and remove the jack.Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:Place the flat tire face down in the
spare tire well.
Securetheflattirebyscrewing
the wing bolt back into its hole.
Remove the center cap before
storing the f lat tire.
13.
14.
15.
16.17.
18.
On Sport model:
Changing a Flat Tire
210
For
normal
tire
For
spare
tire
80 lbf·ft (108 N·m , 11 kgf·m)

CONT INUED
Store the jack. Place the tool kit in
the center of the flat tire.
Store the wheel cover or center
cap in the cargo area. Make sure it
will not get scratched or damaged.
Remove the strap loop from the
leg of the head restraint, then
lower the f loor lid, and close the
tailgate.Align the valve mark on the wheel
cover to the tire valve on the
wheel, then install the wheel cover.
Make sure the wire support ring is
hooked into the clips around the
edge of the wheel cover.
1.
2.
19.
20.
21.
All models except Sport
Changing a Flat Tire
Inst alling a wheel cover
T aking Care of t he Unexpect ed
211
CLIPS
CLIPS
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.

When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound or series of clicks, or
nothing at all.
Check these things:
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the floor or the
starter will not operate. With an
au tomatic transmission, it must be
in Park or neutral.
Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. See on page .
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run. You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
Diagnosing why the engine won’t
start f alls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:
Make sure the wire support ring is
ontheoutersideof thetirevalve
as shown.
3.
214
Changing a Flat Tire, If the Engine Won’t Start
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
If the Engine Won’t Start
212
WIRE SUPPORT RING

Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the fuses. If the fuses
areOK,thereisprobably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualified technician to
determine the problem. See
on page .
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
co rroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ). In
this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to the START (III)
position, but the engine does not run.
Are you using the proper starting
procedure? Refer to
on page .
Are
you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ). Do
you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
226
203 214 76
148 221
226
If theEngineWon’tStart
Emergency T owing T he Starter Operates Normally
Starting the
Engine Emergency
Towing
T aking Care of t he Unexpect ed
213

Although this seems like a simple
procedure, you should take several
precautions.
You cannot start your vehicle with an
automatic transmission by pushing
or pulling it.The numbers in the illustration show
you the order to connect the jumper
cables.
Turn of f all the electrical
accessories: heater, A/C (if
equipped), audio system, lights,
etc. Put the transmission in neutral
(M/T) or Park (A/T), and set the
parking brake. Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or f rozen, do not try
jump starting until it thaws.
1.
2.To Jump Start Your Vehicle:
Jump Starting
214
BOOSTER BATTERY
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
