2007 HONDA CIVIC HYBRID Owners Manual

Canadian models
U.S. models
U.S. models
Canadian models Canadian models
U.S. models

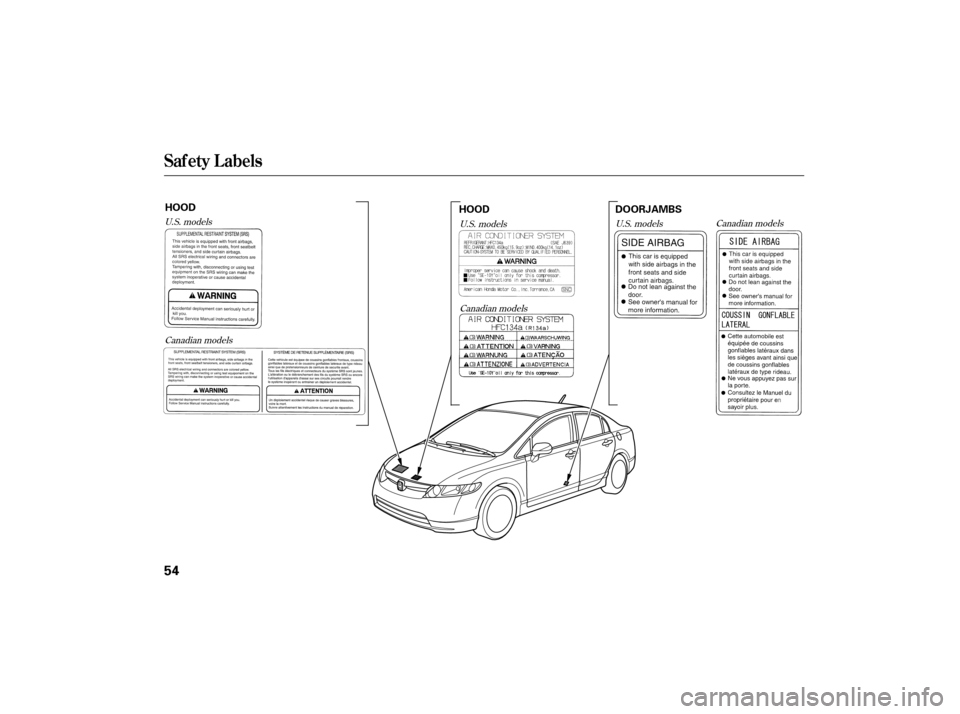

Saf ety L abels
54
HOOD
DOORJAMBS
HOOD

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .56
............................
Instrument Panel .57
..........
Instrument Panel Indicators .58
.............................................
Gauges .64
.....................................
Odometer .64
..............
Display Change Button .65
.................
Current Fuel Mileage .65
...................
Temperature Gauge .65
...................................
Trip Meter .66
................
Average Fuel Mileage .66
..................................
Fuel Gauge .66
Outside Temperature
...................................
Indicator .67
..........
Check Fuel Cap Indicator .68
..................
Maintenance Minder .68
.........
IMA Battery Level Gauge .69
................
Charge/Assist Gauge .70
Controls Near the Steering ...........................................
Wheel .71
.
Windshield Wipers and Washers .72
...........
Turn Signal and Headlights .73
............
Daytime Running Lights .74
........
Instrument Panel Brightness .74
.................
Hazard Warning Button .74
.................
Rear Window Def ogger .75
..........
Steering Wheel Adjustment .75 ...............................
Keys and Locks .76
........................
Immobilizer System .78
................................
Ignition Switch .79
......................................
Door Locks .80
......................
Power Door Locks .80
..............
Childproof Door Locks .81
.
Auto Door Locking/Unlocking .81
.....................
Auto Door Locking .81
.................
Auto Door Unlocking .83
................................................
Trunk .86
........
Emergency Trunk Opener .86
.......................
Remote Transmitter .87
.................................................
Seats .89
..............................
Power Windows .92
.............................................
Mirrors .93
.................................
Parking Brake .94
...........
Interior Convenience Items .95
.........................
Beverage Holder .96
...........
Accessory Power Socket .96
....................................
Glove Box .96
...............
Console Compartment .96
.................................
Interior Lights .97
Instruments and Controls
Inst rument s and Cont rols
55

Control Locations
56
POWER WINDOW
SWITCHES MIRROR CONTROLS
FUEL FILL DOOR
RELEASE HANDLE
(P. 151)
INSTRUMENT
PANEL INDICATORS
GAUGES AUDIO
SYSTEM
POWER DOOR LOCK
MASTER SWITCH
Vehicle with navigation system is shown (P.
106)
(P.
58)
(P. 64)
(P. 93)
(P. 80)
(P. 92) (P.
80)
(P.
100)
DOOR LOCK TAB
TRUNK RELEASE
HANDLE
(P. 86)
AUTOMATIC TRANSMISSION (CVT)
(P. 143)
AUXILIARY
INPUT JACK
(P. 166) ACCESSORY POWER
SOCKET
(P.
96)
CLIMATE CONTROL
SYSTEM

ÎThe U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Instrument Panel
Instru m ent sand Cont ro ls
57
CHARGING SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
TRUNK-OPEN
INDICATOR
LOW OIL PRESSURE
INDICATOR
CRUISE MAIN
INDICATOR
CRUISE CONTROL
INDICATOR
IMA SYSTEM INDICATOR HIGH
BEAM
INDICATOR
MALFUNCTION INDICATOR LAMP
(P.
60) (P. 60)
IMMOBILIZER SYSTEM
INDICATOR
AUTO
IDLE STOP INDICATOR
SECURITY
SYSTEM INDICATOR
(P. 62) LOW
FUEL INDICATOR
(P. 61)
(P. 61)
(P. 61)
(P. 62)
DAYTIME
RUNNING LIGHTS
INDICATOR (P. 60) (P.
60)
(P. 62)
(P. 59) MAINTENANCE
MINDER
INDICATOR(P. 61)
SEAT BELT REMINDER
INDICATOR
SIDE AIRBAG OFF
INDICATOR
LIGHTS
ON
INDICATOR
(P. 62, 227)
(P. 62, 228)
(P. 62, 170, 171)
(P. 30, 59)
(P.
30, 59)
ANTI-LOCK
BRAKE
SYSTEM (ABS)
INDICATOR (P.
59)
(P.
18, 58)
DOOR-OPEN
INDICATOR
(P. 60)
BRAKE SYSTEM
INDICATOR (AMBER)
(P. 63)
ELECTRIC POWER
STEERING (EPS)
INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (RED)
(P. 58, 230) (P.
63)

The instrument panel has many
indicators to give you important
info rmation about your vehicl e. If
it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
This indicator reminds you and your
passengers to fasten your seat belts.
If your front passenger does not
fasten their seat belt, the indicator
comes on about 6 seconds after the
ignition switch is turned to the ON
(II) position. If
either of you do not fasten your
seat belt while driving, the beeper
will sound and the indicator will flash
again at regular intervals. For more
inf ormation, see page .
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on.
1.2.
230
18
Instrument Panel Indicators
Seat Belt Reminder
Indicator
Parking Brake
and Brake
System
Indicator (Red)
58
U.S. Canada

This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock function. For more
info rmation, see page .
This
indicator comes on for several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates a poten tial problem with
your front airbags. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automa tic cutoff system,
side curtain airbags, automatic seat
belt tensioners, driver’s seat position
sensor, or the front passenger’s
weight sensors. For more
info rmation, see page . This
indicator comes on for several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more information, see page .This
indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. It will then go off if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine’s fuel system will be
disabled (see page ).
30 78
174
30
Supplemental Restraint
System Indicator
Immobilizer System
Indicator
Anti-lock Brake System
(A BS) Indicator Side Airbag Of f
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
U.S. Canada

The left or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle flash. If
this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in a circuit. Have your vehicle
checked by your dealer.
This indicator comes on with the
high beam headlights. For more
info rmation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ). This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if any door
is not closed tightly.
199 200
73
74
Instrument Panel Indicators
Turn Signal and
Hazard Warning
Indicators Lights On Indicator
‘‘Daytime Running
Lights’’ Indicator
High Beam Indicator
Trunk-open Indicator
Door-open Indicator
60

This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
This indicator comes on when the
washer fluid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ). This
indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator is in the f uel gauge. It
comesonasareminderthatyou
must ref uel soon. When the indicator
comes on, there is about 0.9 US gal
(3.5
) of f uel remaining in the tank
bef ore the reading reaches E. There
is a small reserve of f uel remaining
in the tank when the reading does
reach E.
145 145
194 179
Canadian models only
Instrument Panel Indicators
Cruise Main Indicator
Maintenance Minder
Indicator
Cruise Control Indicator
Washer Level Indicator Low Fuel Indicator
Inst rument s and Cont rols
61
