2007 HONDA CIVIC HYBRID Owners Manual

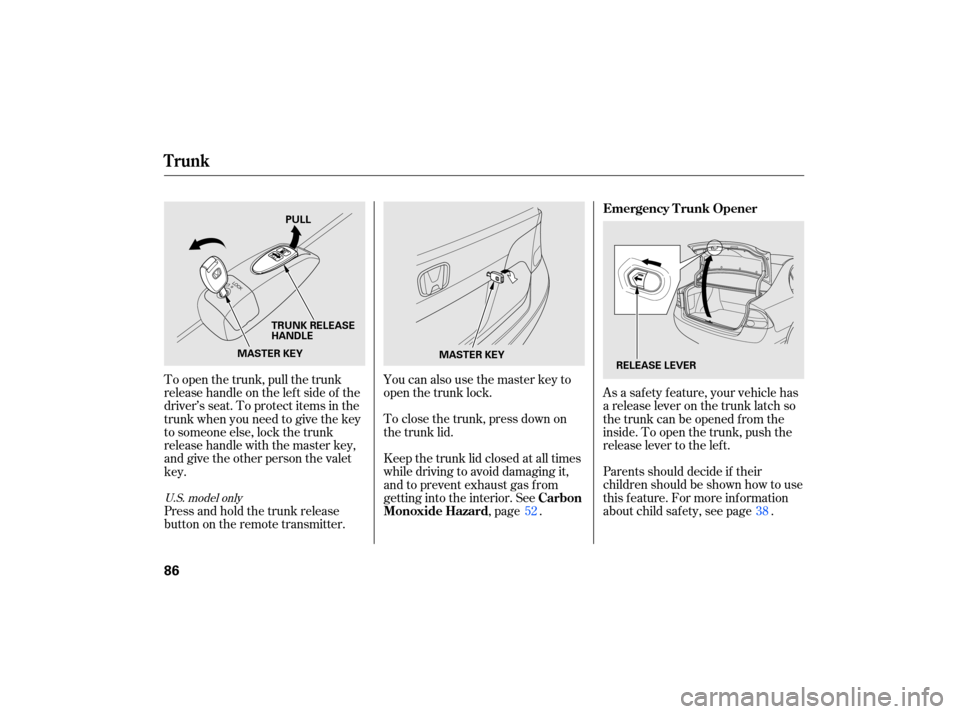

You can also use the master key to
open the trunk lock.
Parents should decide if their
children should be shown how to use
this feature. For more information
about child safety, see page .
To
close the trunk, press down on
the trunk lid.
Keep the trunk lid closed at all times
while driving to avoid damaging it,
and to prevent exhaust gas from
getting into the interior. See
,page .
Press and hold the trunk release
button on the remote transmitter. To open the trunk, pull the trunk
release handle on the lef t side of the
driver’s seat. To protect items in the
trunk when you need to give the key
to someone else, lock the trunk
release handle with the master key,
and give the other person the valet
key. As a saf ety f eature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened f rom the
inside. To open the trunk, push the
release lever to the lef t.
52 38
U.S. model only
Emergency T runk Opener
Carbon
Monoxide Hazard
Trunk
86
MASTER KEY
MASTER KEY TRUNK RELEASE
HANDLE
RELEASE LEVER
PULL

µµµ
µ
Press this button once to
lock all doors. Some exterior lights
will f lash once. When you push
LOCK twice within 5 seconds, you
will hear a horn to verif y that the
doors are locked. You cannot lock
the doors if any door is not f ully
closed or the key is in the ignition
switch. Press this button once
to unlock the driver’s door. Push it
twice to unlock the other doors.
Some exterior lights will f lash twice
each time you press the button. This
button does not work when the key
is in the ignition switch.
The ceiling light (if the ceiling light
switch is in the door activated
position) will come on when you
press the UNLOCK button. If you do
not open any door, the light stays on
f or about 30 seconds, then f ades out.
If you relock the doors with the
remote transmitter before 30
seconds have elapsed, the light goes
of f immediately.
If you unlock the doors with the
remote transmitter, but do not open
any of the doors within 30 seconds,
the doors automatically relock and
the security system will also set. Pressthisbuttonfor
about 1 second to attract attention;
the horn will sound and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Press this
button f or about 1 second to open
the trunk. You cannot open the trunk
if the key is in the ignition switch.
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
If you push the LOCK button twice
within 5 seconds, you will hear a
horn to verify that the security
system has set.
On U.S. model
Remote Transmitter
LOCK UNL OCK PA NIC
T RUNK REL EA SE
Remote Transmitter Care
Inst rument s and Cont rols
87
UNLOCK
BUTTON
LOCK
BUTTON PANIC
BUTTON
LOCK
BUTTON PANIC BUTTON
U.S. model
Canadian model
TRUNK
RELEASE
BUTTON
UNLOCK BUTTON

To replace the battery:Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Separate the transmitter by prying
its middle seam with your
f ingernail. Inside the transmitter, separate
the inner cover f rom the keypad
by releasing the two tabs on the
cover.
Battery type: CR1616 If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
1.
2.3.
Remote Transmitter
Replacing the Transmitter
Battery
88
SCREWBATTERY
U.S. model is shown
U.S. model is shown TAB

µ
´
CONTINUED
To adjust the seat forward or
backward, pull up on the bar under
the seat cushion’s front edge. Move
the seat to the desired position, and
releasethebar.Trytomovetheseat
to make sure it is locked in position.
Remove
the old battery from the
back of the inner cover, and note
the polarity. Make sure the
polarity of the new battery is the
same ( side facing down), then
insert it into the back of the cover.
An improperly disposed of battery
can hurt the environmen t.
Always confirm local regulations
for battery disposal.
Install the parts in reverse order. Make all adjustments bef ore you
start driving.
4.
5.
See pages f or important saf ety inf ormation and warnings about how toproperly position seats and seat-backs.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device. 1311
Remote Transmitter, Seats
FrontSeatAdjustments
Inst rument s and Cont rols
89

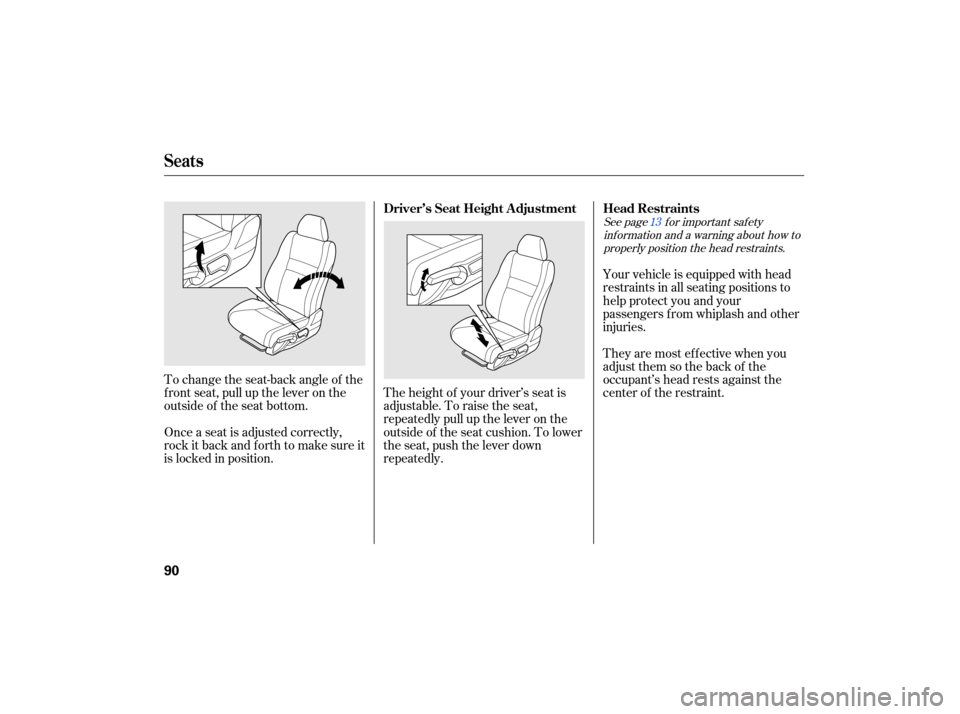

To change the seat-back angle of the
front seat, pull up the lever on the
outside of the seat bottom.
Once a seat is adjusted correctly,
rock it back and forth to make sure it
is locked in position. The
height of your driver’s seat is
adjustable. To raise the seat,
repeatedly pull up the lever on the
outside of the seat cushion. To lower
the seat, push the lever down
repeatedly. Your
vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from whiplash and other
injuries.
They are most effective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
See page f or important saf ety
inf ormation and a warning about how toproperly position the head restraints. 13
Driver’s Seat Height Adjustment Head Restraints
Seats
90

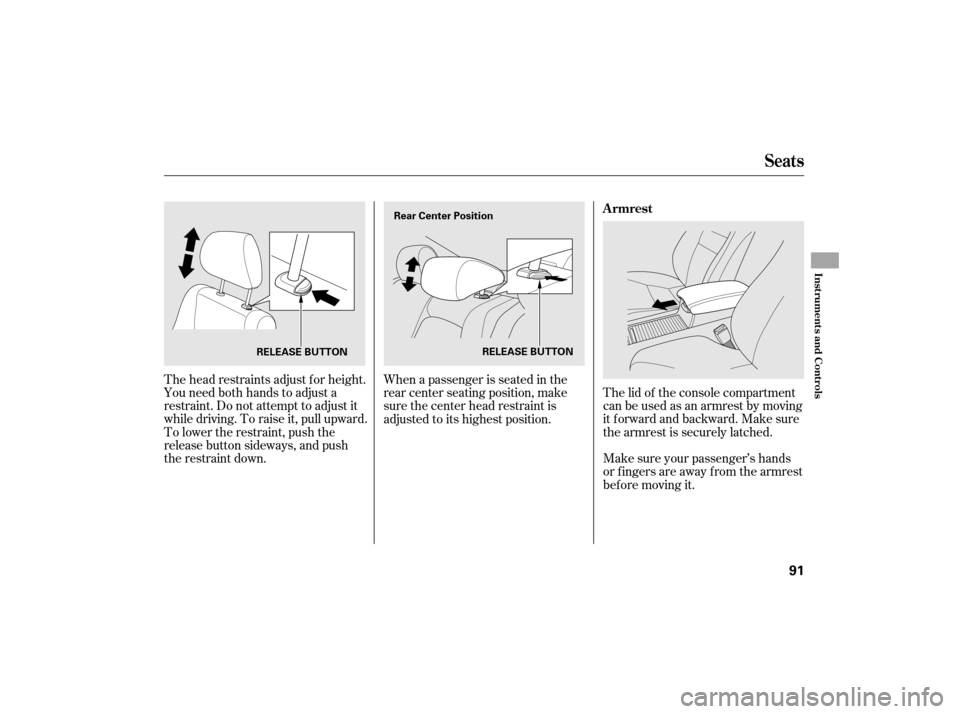

The head restraints adjust f or height.
You need both hands to adjust a
restraint. Do not attempt to adjust it
while driving. To raise it, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.The lid of the console compartment
canbeusedasanarmrestbymoving
it f orward and backward. Make sure
the armrest is securely latched.
When a passenger is seated in the
rear center seating position, make
sure the center head restraint is
adjusted to its highest position.
Make sure your passenger’s hands
orfingersareawayfromthearmrest
bef ore moving it. Armrest
Seats
Inst rument s and Cont rols
91
Rear Center Position
RELEASE BUTTON
RELEASE BUTTON

µµ

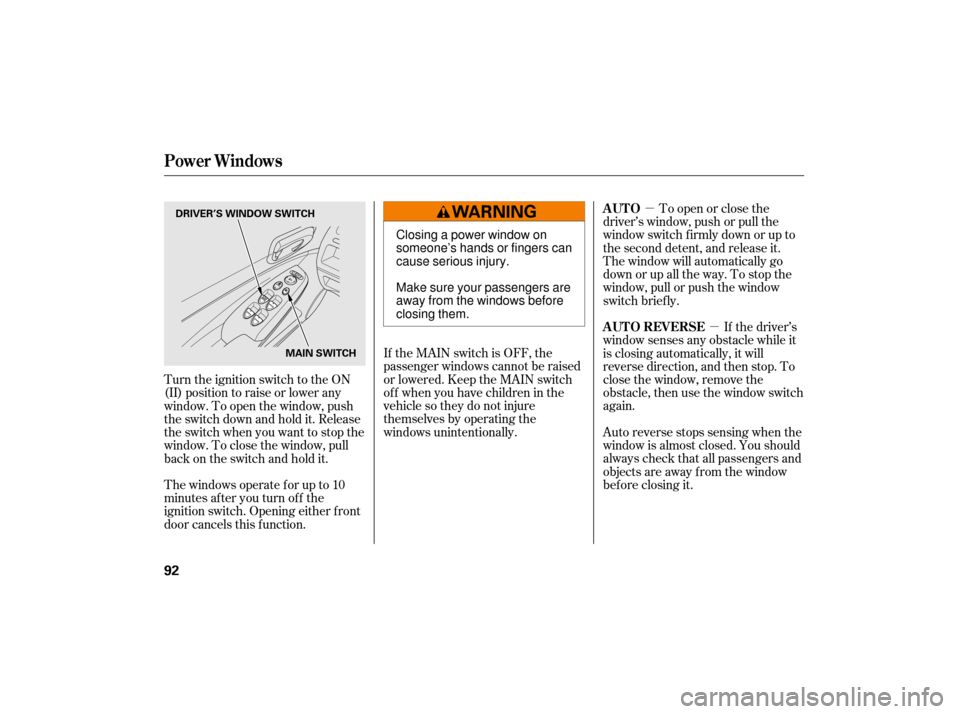

If the MAIN switch is OFF, the
passenger windows cannot be raised
or lowered. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally. To open or close the
driver’s window, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go
down or up all the way. To stop the
window, pull or push the window
switch brief ly.
If the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it.
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open the window, push
the switch down and hold it. Release
the switch when you want to stop the
window. To close the window, pull
back on the switch and hold it.
Thewindowsoperateforupto10
minutes after you turn off the
ignition switch. Opening either f ront
door cancels this f unction. AUTO
AUTO REVERSE
Power Windows
92
DRIVER’S WINDOW SWITCH
MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.

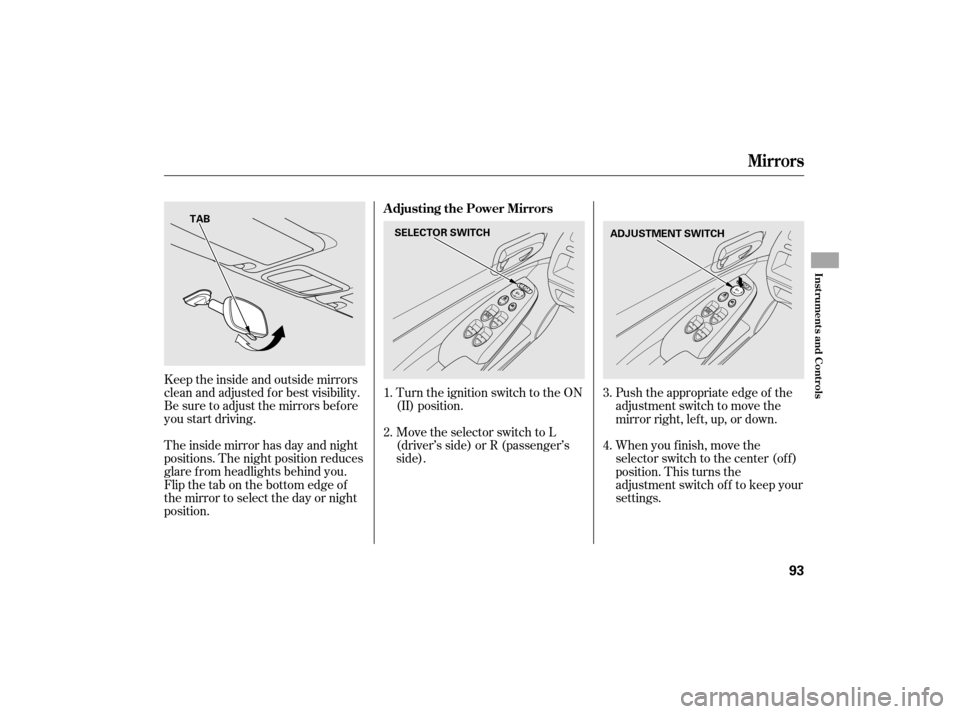

Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
1.
2.
3.
4.
Mirrors
Adjusting the Power Mirrors
Inst rument s and Cont rols
93
SELECTOR SWITCH
TAB
ADJUSTMENT SWITCH
