2007 HONDA CIVIC HYBRID Owners Manual

µYou will see a ‘‘0’’ displayed af ter
pressing a preset bar if auto select
cannot f ind a strong station f or every
preset bar.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset bars
as previously described.
,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set. Press the SOUND (TUNE) knob
repeatedly to display the bass (BAS),
treble (TRE), fader (FAD), balance
(BAL), and speed-sensitive volume
compensation (SVC) settings.
Eachmodeisshowninthedisplayas
it changes. Turn the SOUND
(TUNE) knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘ ’’ in
the display. The system will
automatically return the display to
the selected audio mode about 5
seconds af ter you stop adjusting a
mode.

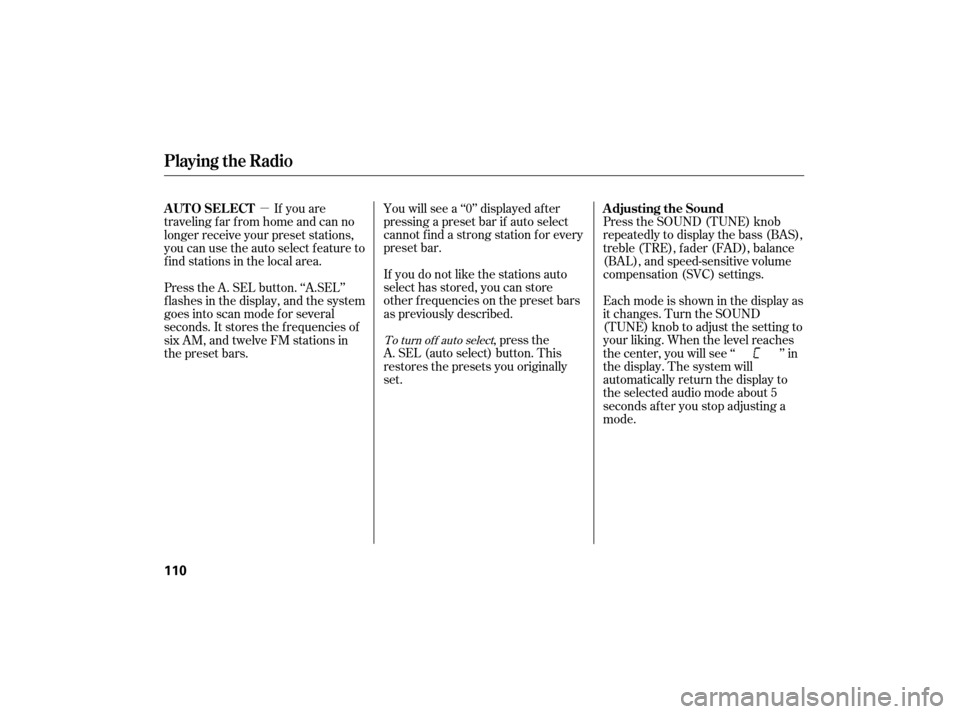

If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset bars.
To turn of f auto select
Playing the Radio
Adjusting the Sound
AUTO SELECT
110

µµ
µ
These two
modes adjust the strength of the
sound coming from each speaker.
BALANCE adjusts the side-to-side
strength, while FADER adjusts the
front-to-back strength. You
can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
The SVC
mode controls the volume based on
vehicle speed. The f aster you go, the
louder the audio volume becomes.
As you slow down, the audio volume
decreases.
The SVC has f our modes; SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. The def ault setting is MID.
Turn the SOUND (TUNE) knob to
adjust the setting to your liking.
If you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high.
Use the TREBLE/
BASS modes to adjust the tone to
your liking.
74
Playing the Radio
Balance/FaderA udio System L ighting
Speed-sensitive volume
compensation (SVC)
Treble/Bass
Features
111

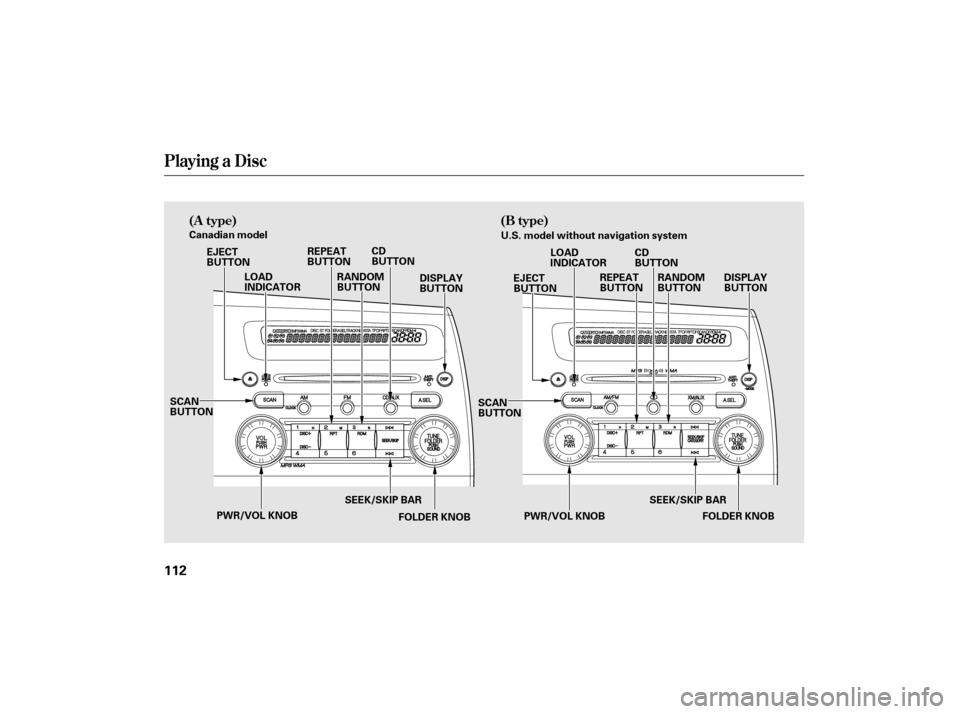

Playing a Disc
(A type)(B type)
112
SCAN
BUTTON SCAN
BUTTON
FOLDER KNOB
SEEK/SKIP BAR
PWR/VOL KNOB
REPEAT
BUTTON
LOAD
INDICATOR
EJECT
BUTTON
REPEAT
BUTTON
Canadian model
U.S. model without navigation system
RANDOM
BUTTON CD
BUTTON
DISPLAY
BUTTON
PWR/VOL KNOB FOLDER KNOBEJECT
BUTTON
LOAD
INDICATOR
CD
BUTTON
RANDOM
BUTTON DISPLAY
BUTTON
SEEK/SKIP BAR

To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the CD player with the
same controls used f or the radio. To
select the CD player, press the CD
button. You will see ‘‘CD’’ in the
display. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes.The specif ications of the compatible
MP3 f ile are:
Sampling f requency: 32/44.1/48 kHz
(MPEG1), 24, 22.05, 16 kHz
(MPEG2)
Bit rate: 32/40/48/56/64/80/96/
112/128/160/192/224/256/320 kbps
(MPEG1), 8/16/24/32/40/48/56/
64/80/96/112/128/160 kbps
(MPEG2)
Compatible with variable bit rate and
multi-session.
Maximum layers
(including ROOT): 8 layers
Sampling f requency: 32/44.1/48 kHz
Bit rate: 48/64/80/96/128/160/192
kbps
Compatible with variable bit rate and
multi-session.
Maximum layers (including ROOT):
8 layers The specif ications of the compatible
WMA f ile are:Insert the disc about half way into the
disc slot. The drive will pull the disc
in the rest of the way and begin to
play it. When the system reaches the
end of the disc, it will return to the
beginning and play the disc again.
You can also play 3-inch (8-cm) discs
without using an adapter ring.
To play the radio when a disc is
playing, press the AM/FM button
(AM or FM button). Press the CD
button again to switch back to the
CD player.
The disc player can also play CD-Rs
andCD-RWscompressedinCD-
TEXT,MP3,andWMAformats.
When playing a disc in MP3 or WMA,
you will see ‘‘MP3’’ or ‘‘WMA’’ in the
display. You can select up to 255
folders or tracks.
Video CDs and DVDs will not work
in this unit.
CONT INUED
To Play a Disc
Playing a Disc
Features
113
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

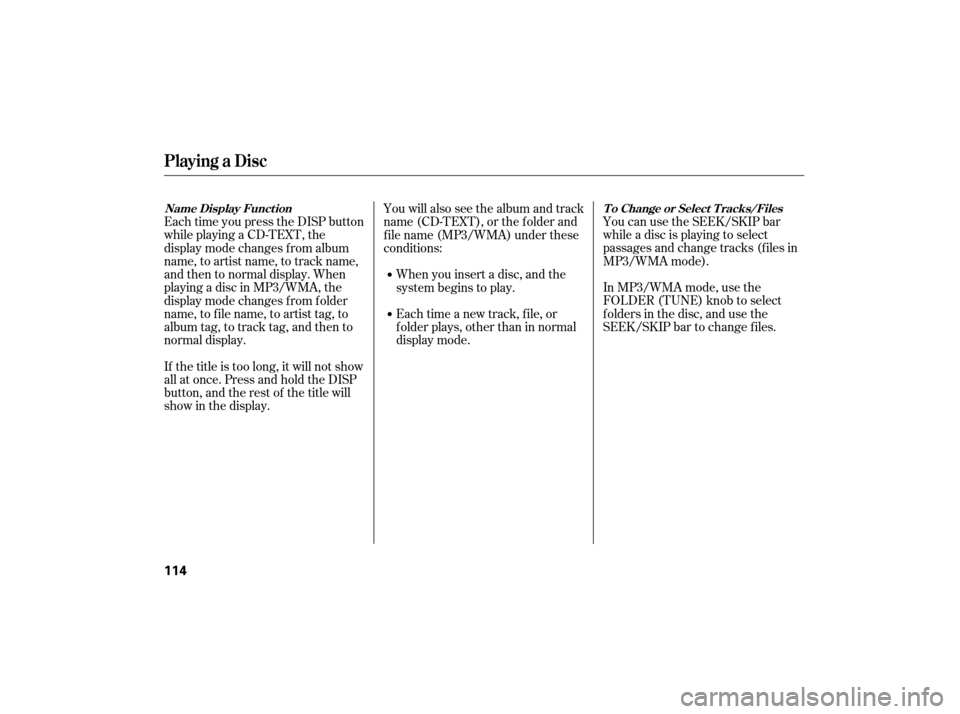

You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks (f iles in
MP3/WMA mode).
In MP3/WMA mode, use the
FOLDER (TUNE) knob to select
f olders in the disc, and use the
SEEK/SKIP bar to change f iles.
Each time you press the DISP button
while playing a CD-TEXT, the
display mode changes f rom album
name, to artist name, to track name,
andthentonormaldisplay.When
playing a disc in MP3/WMA, the
display mode changes f rom f older
name,tofilename,toartisttag,to
album tag, to track tag, and then to
normal display.
If the title is too long, it will not show
all at once. Press and hold the DISP
button, and the rest of the title will
show in the display. You will also see the album and track
name (CD-TEXT), or the f older and
f ile name (MP3/WMA) under these
conditions:
When you insert a disc, and the
system begins to play.
Each time a new track, file, or
f older plays, other than in normal
display mode.
Playing a Disc
T o Change or Select T racks/Files
Name Display Funct ion
114

µ
µ
µ
In MP3/WMA mode
To
select a different folder, turn the
FOLDER (TUNE) knob clockwise to
move to the beginning of the next
folder. Turn the knob
counterclockwise to move to the
beginning of the current f older. Turn
it counterclockwise again to skip to
the beginning of the previous f older.
Each time you
press and release the side, the
player skips f orward to the
beginning of the next track (f iles in
MP3/WMA mode). Press and
release the side to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP bar. To continuously replay
atrack(fileinMP3/WMAmode),
press and release the RPT button.
You will see RPT in the display.
Press and hold the RPT button to
turn it off.
CONT INUED
Playing a Disc
FOLDER SELECTION
SEEK /SK IP REPEA T (T RA CK /FIL E
REPEAT)
Features
115

µµµ
In MP3/WMA mode In MP3/WMA mode

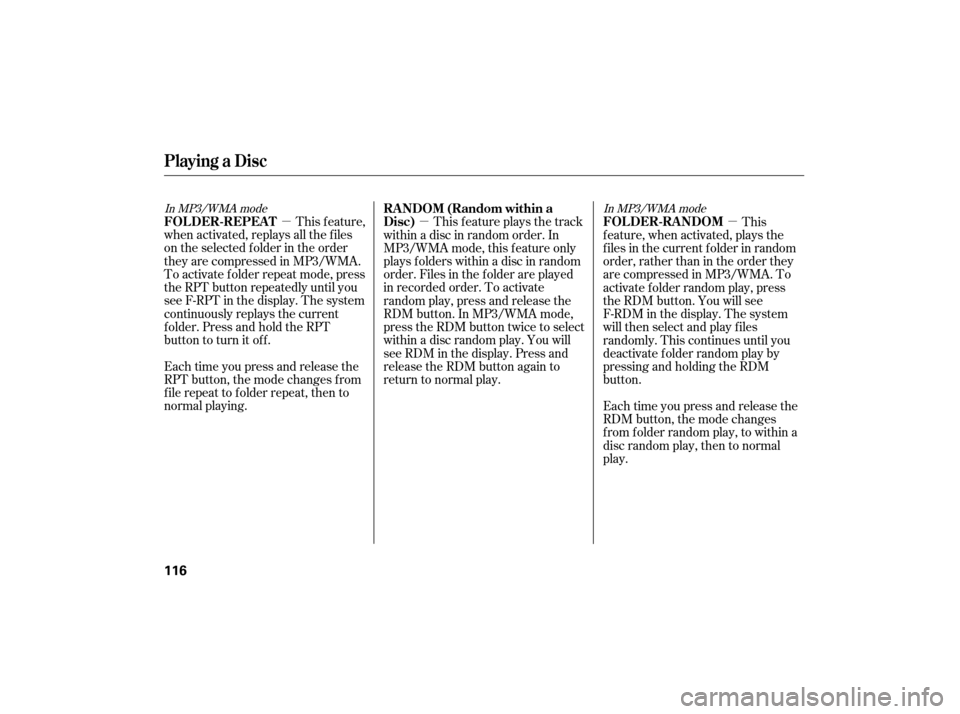

This feature,
when activated, replays all the f iles
on the selected f older in the order
they are compressed in MP3/WMA.
To activate f older repeat mode, press
the RPT button repeatedly until you
see F-RPT in the display. The system
continuously replays the current
folder.PressandholdtheRPT
button to turn it of f .
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, then to
normal playing. This f eature plays the track
within a disc in random order. In
MP3/WMA mode, this f eature only
plays f olders within a disc in random
order. Files in the f older are played
in recorded order. To activate
random play, press and release the
RDM button. In MP3/WMA mode,
press the RDM button twice to select
within a disc random play. You will
seeRDMinthedisplay.Pressand
release the RDM button again to
return to normal play. This
f eature, when activated, plays the
f iles in the current f older in random
order, rather than in the order they
are compressed in MP3/WMA. To
activate folder random play, press
the RDM button. You will see
F-RDM in the display. The system
will then select and play f iles
randomly. This continues until you
deactivate f older random play by
pressing and holding the RDM
button.
Each time you press and release the
RDM button, the mode changes
f rom f older random play, to within a
disc random play, then to normal
play.
Playing a Disc
FOL DER-REPEA T RANDOM (Random within a
Disc) FOL DER-RANDOM
116

µµIn MP3/WMA mode

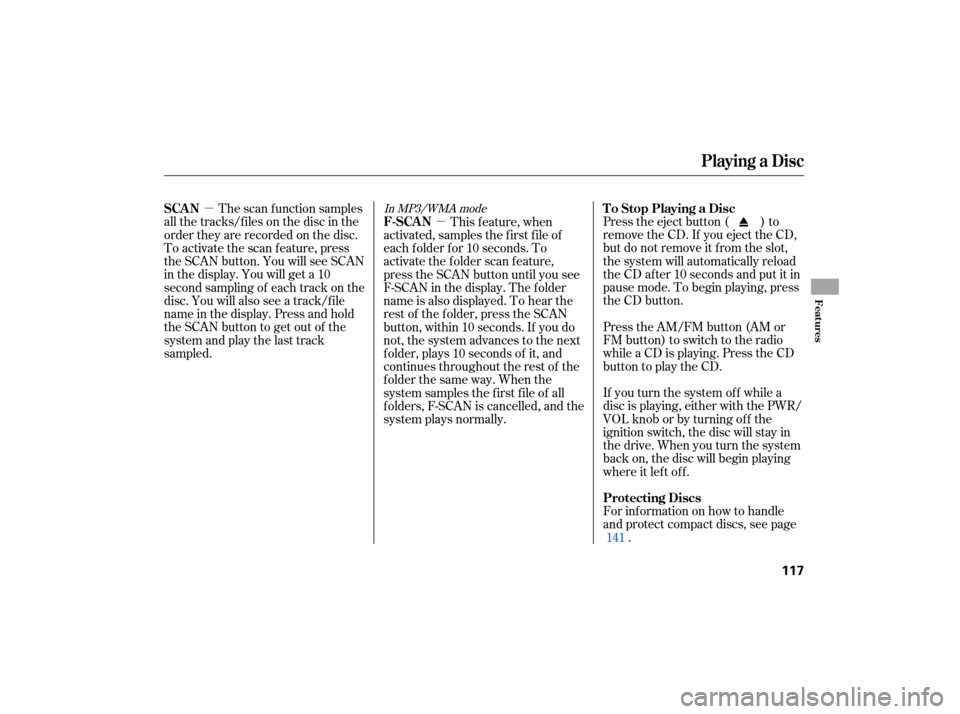

Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it from the slot,
the system will automatically reload
the CD after 10 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button (AM or
FM button) to switch to the radio
while a CD is playing. Press the CD
button to play the CD.
If you turn the system off while a
disc is playing, either with the PWR/
VOL knob or by turning off the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it lef t of f .
For inf ormation on how to handle
and protect compact discs, see page .
The scan f unction samples
all the tracks/f iles on the disc in the
order they are recorded on the disc.
To activate the scan feature, press
the SCAN button. You will see SCAN
in the display. You will get a 10
second sampling of each track on the
disc. You will also see a track/f ile
name in the display. Press and hold
the SCAN button to get out of the
system and play the last track
sampled. This f eature, when
activated, samples the first file of
each f older f or 10 seconds. To
activate the folder scan feature,
press the SCAN button until you see
F-SCAN in the display. The f older
name is also displayed. To hear the
rest of the f older, press the SCAN
button, within 10 seconds. If you do
not, the system advances to the next
f older, plays 10 seconds of it, and
continues throughout the rest of the
folderthesameway.Whenthe
system samples the f irst f ile of all
f olders, F-SCAN is cancelled, and the
system plays normally.
141
Playing a Disc
To Stop Playing a Disc
SCAN
Protecting Discs
F-SCAN
Features
117
