2007 HONDA CIVIC HYBRID Owners Manual

µ
With the ignition in the
ACCESSORY (I) or ON (II) position,
press the OPEN button, and insert a
disc about halfway into the disc slot.
The drive will pull the disc in the rest
of the way, and the disc will begin to
play. You operate the disc player
with the same controls used for the
radio. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes. Push the button to play the next
track on the disc. Push the
button once to replay the track
in play; press it twice to replay the
previous track. To move rapidly
within a track, press and hold the or the button.
Push the AUDIO button to show the
audio system screen. You can also
operate the audio system without
showing the audio system screen by
using the standard controls. The
status bar is shown at the bottom of
the screen each time you press a
button.
When you play CD-TEXT, you will
see the track name, artist name, and
album name on the screen. When
you play MP3/WMA discs, you will
see the track name and folder name
on the screen. If the disc was not
recorded with this inf ormation, it will
not be displayed. The player can also play CD-TEXT,
MP3, and WMA f ormats. Press the RPT button
to continuously replay a track. You
will see REPEAT in the display.
Press the RPT button again to turn it
of f . In MP3/WMA mode, press and
hold the RPT button to activate
f older repeat. Folder repeat
continuously replays the f older.
Playing a Disc (Vehicles with Navigation System)
Disc Player To Change Tracks
REPEAT
126
CLOSE BUTTON DISC SLOT
Avoid using discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

µ

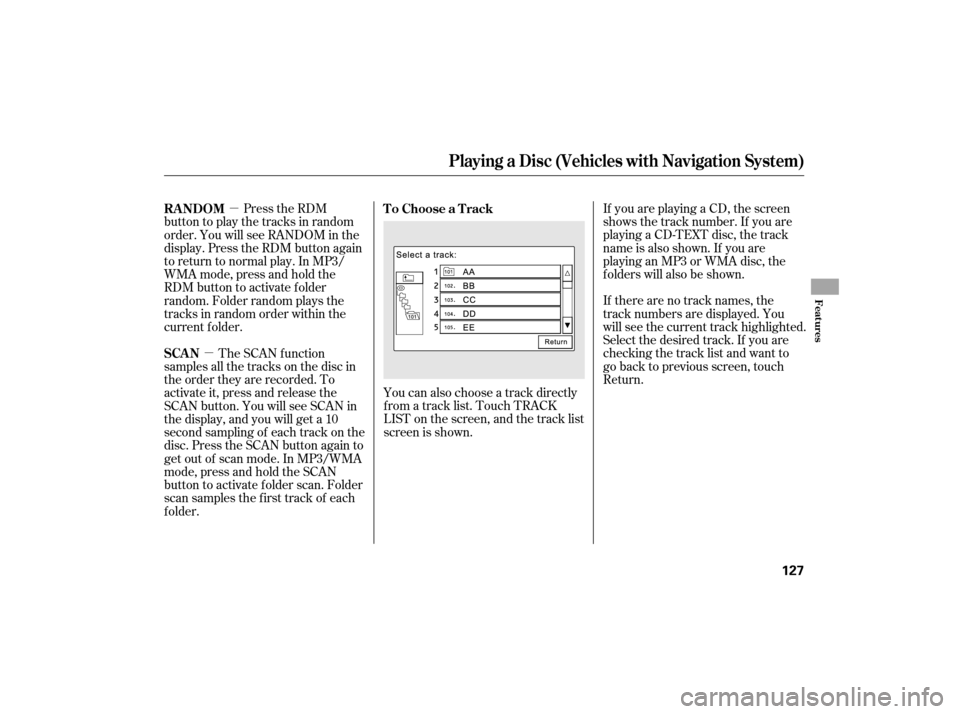

µ You can also choose a track directly
f rom a track list. Touch TRACK
LIST on the screen, and the track list
screen is shown. If you are playing a CD, the screen
shows the track number. If you are
playing a CD-TEXT disc, the track
name is also shown. If you are
playinganMP3orWMAdisc,the
f olders will also be shown.
If there are no track names, the
track numbers are displayed. You
will see the current track highlighted.
Select the desired track. If you are
checking the track list and want to
go back to previous screen, touch
Return.
Press the RDM
button to play the tracks in random
order. You will see RANDOM in the
display. Press the RDM button again
to return to normal play. In MP3/
WMA mode, press and hold the
RDM button to activate f older
random. Folder random plays the
tracks in random order within the
current f older.
The SCAN f unction
samples all the tracks on the disc in
the order they are recorded. To
activate it, press and release the
SCAN button. You will see SCAN in
the display, and you will get a 10
second sampling of each track on the
disc. Press the SCAN button again to
get out of scan mode. In MP3/WMA
mode,pressandholdtheSCAN
button to activate f older scan. Folder
scan samples the f irst track of each
f older. To Choose a Track
RANDOM
SCAN
Playing a Disc (Vehicles with Navigation System)
Features
127

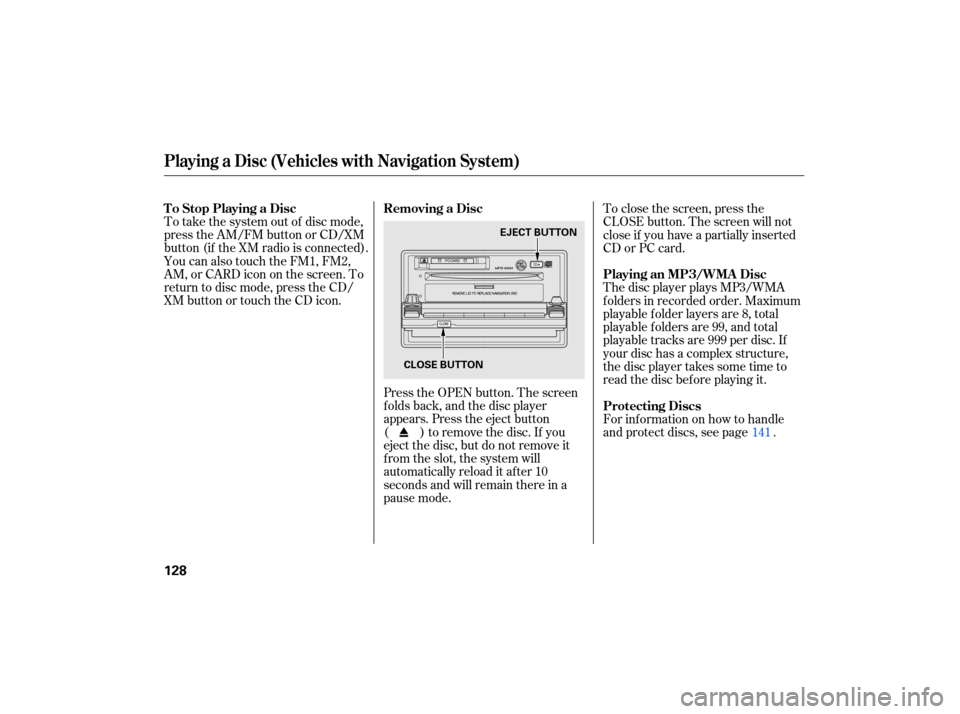

To take the system out of disc mode,
press the AM/FM button or CD/ XM
button (if the XM radio is connected).
You can also touch the FM1, FM2,
AM, or CARD icon on the screen. To
return to disc mode, press the CD/
XM button or touch the CD icon.
Press the OPEN button. The screen
folds back, and the disc player
appears. Press the eject button
( ) to remove the disc. If you
eject the disc, but do not remove it
from the slot, the system will
au tomatically reload it after 10
seconds and will remain there in a
pause mode. To
close the screen, press the
CLOSE button. The screen will not
close if you have a partially inserted
CD or PC card.
The disc player plays MP3/WMA
folders in recorded order. Maximum
playable folder layers are 8, total
playable folders are 99, and total
playable tracks are 999 per disc. If
your disc has a complex structure,
the disc player takes some time to
read the disc bef ore playing it.
For inf ormation on how to handle
and protect discs, see page . 141
To Stop Playing a Disc
Removing a Disc
Playing an MP3/WMA Disc
Protecting Discs
Playing a Disc (Vehicles with Navigation System)
128
EJECT BUTTON
CLOSE BUTTON

µ´

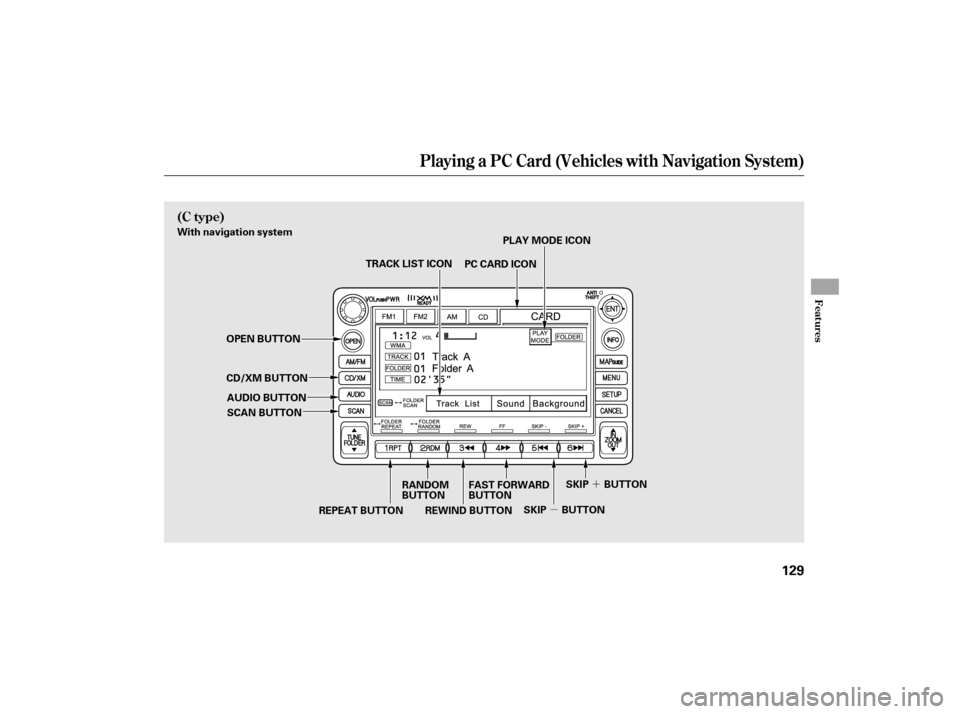

Playing a PC Card (Vehicles with Navigation System)
Features
(C type)
129
REPEAT BUTTON
OPEN BUTTON
CD/XM BUTTON
AUDIO BUTTON
SCAN BUTTON
With navigation system
PLAY MODE ICON
TRACK LIST ICON PC CARD ICON
RANDOM
BUTTON REWIND BUTTON FAST FORWARD
BUTTON
SKIP BUTTONSKIP BUTTON

With the ignition in the
ACCESSORY (I) or ON (II) position,
press the OPEN button, insert a PC
card all the way into the card slot,
then press the CLOSE button. The
PC card will begin to play. You
operate the PC card with the same
controls used f or the radio. The
number of the track playing is shown
in the display. The system will
continuously play a card until you
change modes.Push the AUDIO button to show the
audio system screen. You can also
operate the audio system without
showing the audio system screen by
using the standard controls. The
status bar is shown at the bottom of
the screen each time you press a
button.
You cannot close the display until
the PC card is inserted all the way
in or removed.
Never insert f oreign objects into
the PC card slot.
ThePCcardplayercanplayMP3
and WMA formats. When you insert a PC card into
the slot, make sure you put it in
straight. If you cannot insert it,
remove it, and insert again.
Do not keep PC cards in the
vehicle. Direct sunlight and high
heat will damage them.
To avoid damaging the card
reader, do not insert hard disc
drive cards into the PC card slot. Thesystemmaynotbeableto
read some memory cards
depending on the type of memory
card or combination of PC card
adaptor and memory card.
Recommended memory cards are
CompactFlash and Flash ATA
memory cards.
Playing a PC Card (Vehicles with Navigation System)
PC Card
130
NOTE:CLOSE BUTTON
PC CARD SLOT

CONT INUED
Playing a PC Card (Vehicles with Navigation System)

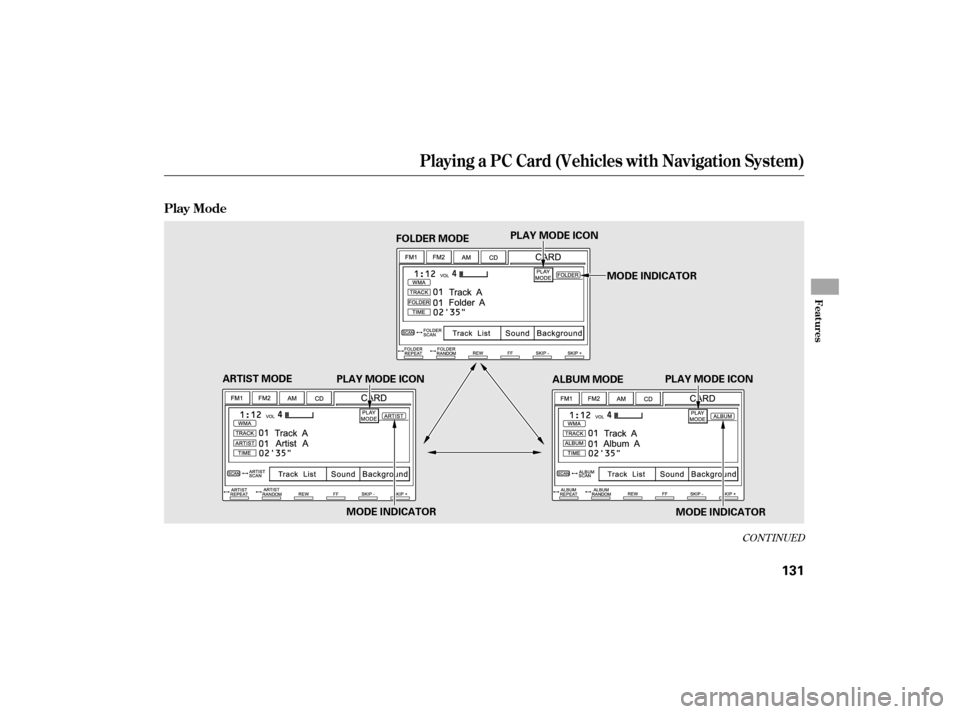

Play Mode
Features
131
FOLDER MODE
ARTIST MODE ALBUM MODEMODE INDICATOR
PLAY MODE ICON
PLAY MODE ICONMODE INDICATOR
MODE INDICATOR
PLAY MODE ICON

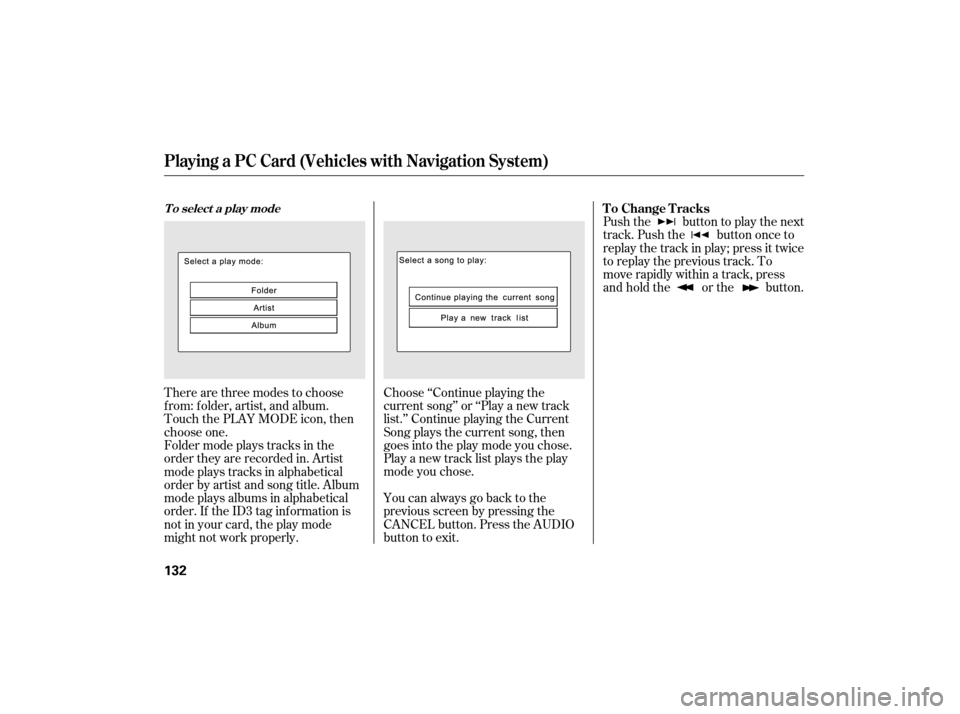

There are three modes to choose
f rom: f older, artist, and album.
Touch the PLAY MODE icon, then
choose one.Choose ‘‘Continue playing the
current song’’ or ‘‘Play a new track
list.’’ Continue playing the Current
Song plays the current song, then
goesintotheplaymodeyouchose.
Play a new track list plays the play
mode you chose.Push the button to play the next
track. Push the button once to
replay the track in play; press it twice
to replay the previous track. To
move rapidly within a track, press
and hold the or the button.
Foldermodeplaystracksinthe
order they are recorded in. Artist
modeplaystracksinalphabetical
order by artist and song title. Album
mode plays albums in alphabetical
order. If the ID3 tag information is
not in your card, the play mode
might not work properly. You can always go back to the
previous screen by pressing the
CANCEL button. Press the AUDIO
button to exit.
Playing a PC Card (Vehicles with Navigation System)
T o select a play modeTo Change Tracks
132

µµ µ

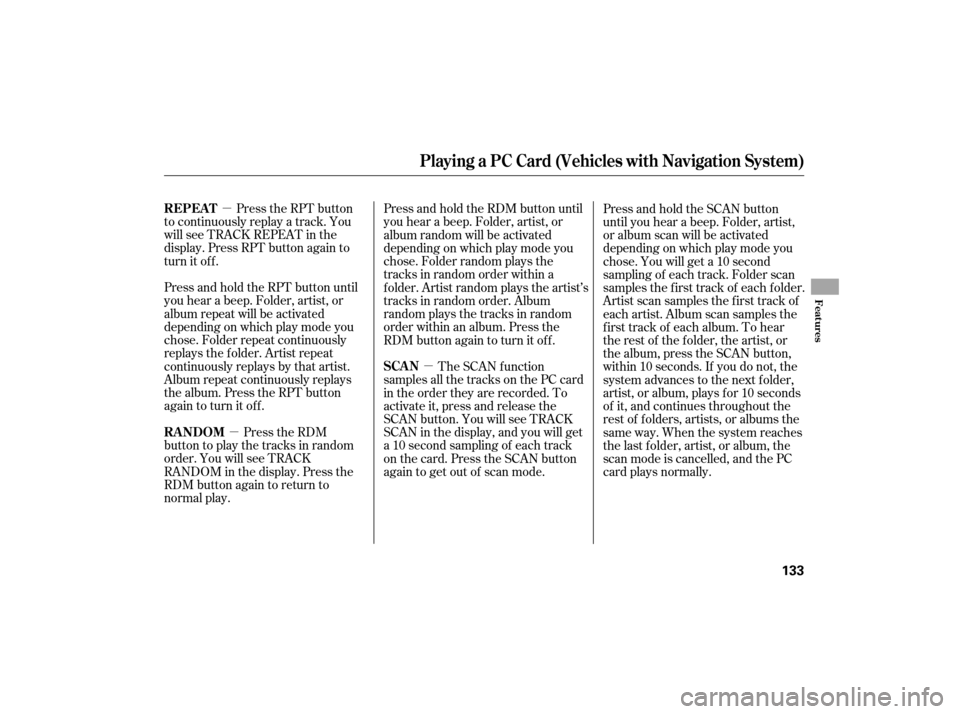

Press the RPT button
to continuously replay a track. You
will see TRACK REPEAT in the
display. Press RPT button again to
turn it off.
Press and hold the RPT button until
you hear a beep. Folder, artist, or
album repeat will be activated
depending on which play mode you
chose. Folder repeat continuously
replays the f older. Artist repeat
continuously replays by that artist.
Album repeat continuously replays
the album. Press the RPT button
again to turn it off.
Press the RDM
button to play the tracks in random
order. You will see TRACK
RANDOM in the display. Press the
RDM button again to return to
normal play. Press and hold the RDM button until
you hear a beep. Folder, artist, or
album random will be activated
depending on which play mode you
chose. Folder random plays the
tracks in random order within a
f older. Artist random plays the artist’s
tracks in random order. Album
random plays the tracks in random
order within an album. Press the
RDM button again to turn it off.
The SCAN f unction
samples all the tracks on the PC card
in the order they are recorded. To
activate it, press and release the
SCAN button. You will see TRACK
SCAN in the display, and you will get
a10secondsamplingof eachtrack
on the card. Press the SCAN button
again to get out of scan mode. Press and hold the SCAN button
until you hear a beep. Folder, artist,
or album scan will be activated
depending on which play mode you
chose. You will get a 10 second
sampling of each track. Folder scan
samples the f irst track of each f older.
Artist scan samples the f irst track of
each artist. Album scan samples the
f irst track of each album. To hear
the rest of the f older, the artist, or
the album, press the SCAN button,
within 10 seconds. If you do not, the
system advances to the next folder,
artist,oralbum,playsfor10seconds
of it, and continues throughout the
rest of f olders, artists, or albums the
same way. When the system reaches
the last f older, artist, or album, the
scan mode is cancelled, and the PC
card plays normally.
Playing a PC Card (Vehicles with Navigation System)
REPEAT
RANDOM
SCAN
Features
133
