2007 GMC CANYON Owner's Manual

How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where you
change your oil prior to a CHANGE OIL message
being turned on, reset the system.
To reset the Engine Oil Life system, do the
following:
1. With the engine off, turn the ignition to ON.
2. Press and release the stem in the lower center
of the instrument cluster until the OIL LIFE
message is displayed.
3. Once the alternating OIL LIFE and RESET
messages appear, press and hold the stem
until several beeps sound. This conrms
that the oil life system has been reset.
4. Turn the key to LOCK.
If the CHANGE OIL message comes back on
when you start your vehicle, the engine oil
life system has not reset. Repeat the procedure.
SeeDIC Warnings and Messages on page 198.
What to Do with Used Oil
Used engine oil contains certain elements that
may be unhealthy for your skin and could
even cause cancer. Do not let used oil stay on
your skin for very long. Clean your skin and nails
with soap and water, or a good hand cleaner.
Wash or properly dispose of clothing or rags
containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil
products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil
from the lter before disposal. Never dispose of oil
by putting it in the trash, pouring it on the
ground, into sewers, or into streams or bodies of
water. Instead, recycle it by taking it to a place
that collects used oil. If you have a problem
properly disposing of your used oil, ask your
dealer, a service station, or a local recycling
center for help.
329

Engine Air Cleaner/Filter
The engine air cleaner/lter is located in the
engine compartment on the passenger’s side of
the vehicle. SeeEngine Compartment Overview on
page 324for more information on location.
When to Inspect the Engine Air
Cleaner/Filter
Inspect the air cleaner/lter at the MaintenanceII
intervals and replace it at the rst oil change
after each 50,000 mile (83 000 km) interval. See
Scheduled Maintenance on page 437for
more information. If you are driving in dusty/dirty
conditions, inspect the lter at each engine
oil change.
How to Inspect the Engine Air
Cleaner/Filter
To inspect or replace the engine air cleaner/lter,
do the following:
1. Unfasten the clips that hold the cover on and
remove the cover.
2. Lift out the engine air cleaner/lter.
3. Inspect or replace the air lter. SeeNormal
Maintenance Replacement Parts on page 449
to determine which lter to use.
4. Reinstall the engine air cleaner/lter cover.
Fasten the clips to hold the cover in place.
330

{CAUTION:
Operating the engine with the air
cleaner/lter off can cause you or others
to be burned. The air cleaner not only
cleans the air; it helps to stop ames if
the engine backres. If it is not there and
the engine backres, you could be
burned. Do not drive with it off, and be
careful working on the engine with the air
cleaner/lter off.
Notice:If the air cleaner/lter is off, a backre
can cause a damaging engine re. And, dirt
can easily get into your engine, which will
damage it. Always have the air cleaner/lter in
place when you are driving.
Automatic Transmission Fluid
When to Check and Change Automatic
Transmission Fluid
A good time to check your automatic transmission
uid level is when the engine oil is changed.
Change the uid and lter at the intervals listed in
Additional Required Services on page 440, and
be sure to use the transmission uid listed in
Recommended Fluids and Lubricants on page 447.
331

How to Check Automatic Transmission
Fluid
Because this operation can be a little difficult, you
may choose to have this done at the dealership
service department.
If you do it yourself, be sure to follow all the
instructions here, or you could get a false reading
on the dipstick.
Notice:Too much or too little uid can
damage your transmission. Too much can
mean that some of the uid could come out
and fall on hot engine parts or exhaust system
parts, starting a re. Too little uid could
cause the transmission to overheat. Be sure to
get an accurate reading if you check your
transmission uid.
Wait at least 30 minutes before checking the
transmission uid level if you have been driving:
When outside temperatures are above
90°F (32°C).
At high speed for quite a while.
In heavy traffic — especially in hot weather.
While pulling a trailer.To get the right reading, the uid should be at
normal operating temperature, which is 180°F to
200°F (82°C to 93°C).
Get the vehicle warmed up by driving about
15 miles (24 km) when outside temperatures are
above 50°F (10°C). If it is colder than 50°F (10°C),
drive the vehicle in THIRD (3) until the engine
temperature gage moves and then remains steady
for 10 minutes.
A cold uid check can be made after the vehicle has
been sitting for eight hours or more with the engine
off, but this is used only as a reference. Let the
engine run at idle for ve minutes if outside
temperatures are 50°F (10°C) or more. If it is colder
than 50°F (10°C), you may have to idle the engine
longer. Should the uid level be low during this cold
check, you must check the uid hot before adding
uid. Checking the uid hot will give you a more
accurate reading of the uid level.
Checking the Fluid Level
Prepare your vehicle as follows:
1. Park your vehicle on a level place. Keep the
engine running.
2. With the parking brake applied, place the shift
lever in PARK (P).
332

3. With your foot on the brake pedal, move the
shift lever through each gear range, pausing
for about three seconds in each range.
Then, position the shift lever in PARK (P).
4. Let the engine run at idle for three minutes
or more.
Then, without shutting off the engine, follow these
steps:
1. Flip the handle up and then pull out the
dipstick and wipe it with a clean rag or
paper towel.
The automatic
transmission dipstick
handle with this symbol
on it is located in the
engine compartment on
the passenger’s side
of the vehicle.
SeeEngine Compartment Overview on
page 324for more information on location.
2. Push it back in all the way, wait three seconds
and then pull it back out again.3. Check both sides of the dipstick, and read the
lower level. The uid level must be in the
COLD area, below the cross-hatched area, for
a cold check or in the HOT or cross-hatched
area for a hot check. Be sure to keep the
dipstick pointed down to get an accurate
reading.
4. If the uid level is in the acceptable range,
push the dipstick back in all the way; then
ip the handle down to lock the dipstick
in place.
333

How to Add Automatic Transmission
Fluid
Refer to the Maintenance Schedule to determine
what kind of transmission uid to use. See
Recommended Fluids and Lubricants on page 447.
Add uid only after checking the transmission
uid while it is hot. A cold check is used only as a
reference. If the uid level is low, add only
enough of the proper uid to bring the level up to
the HOT area for a hot check. It does not take
much uid, generally less than one pint (0.5 L). Do
not overll.
Notice:Use of the incorrect automatic
transmission uid may damage your vehicle,
and the damages may not be covered by
your warranty. Always use the automatic
transmission uid listed inRecommended
Fluids and Lubricants on page 447.
After adding uid, recheck the uid level as
described under “How to Check Automatic
Transmission Fluid,” earlier in this section.
When the correct uid level is obtained, push
the dipstick back in all the way; then ip the
handle down to lock the dipstick in place.
Manual Transmission Fluid
When to Check
A good time to have it checked is when the
engine oil is changed. However, the uid in your
manual transmission does not require changing.
How to Check
Because this operation can be a little difficult, you
may choose to have this done at your GM
dealership service department.
If you do it yourself, be sure to follow all the
instructions here, or you could get a false reading.
Notice:Too much or too little uid can
damage your transmission. Too little uid
could cause the transmission to overheat. Be
sure to get an accurate reading if you check
your transmission uid.
Check the uid level only when your engine is off,
the vehicle is parked on a level place and the
transmission is cool enough for you to rest your
ngers on the transmission case.
334

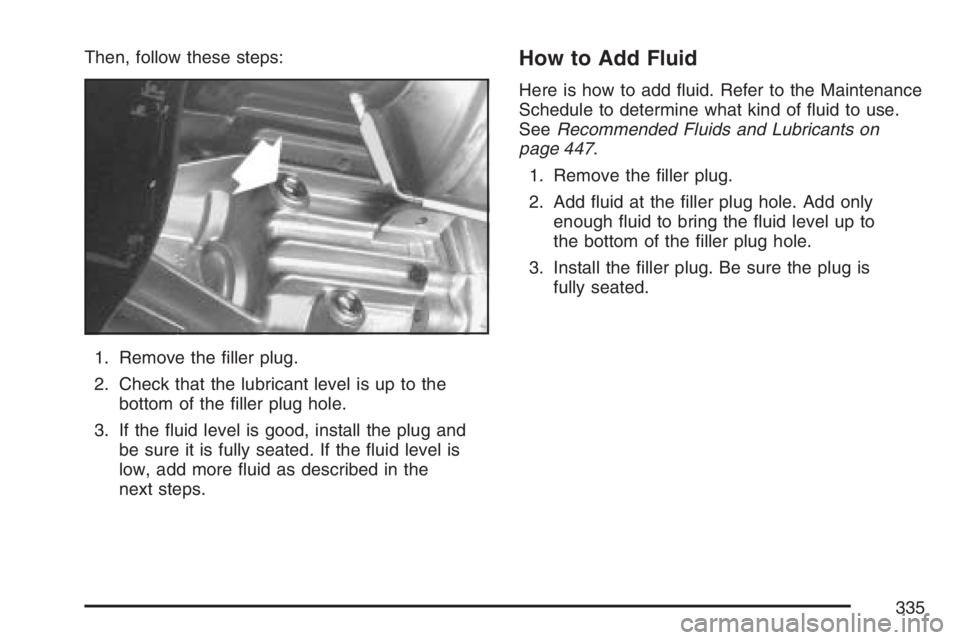

Then, follow these steps:
1. Remove the ller plug.
2. Check that the lubricant level is up to the
bottom of the ller plug hole.
3. If the uid level is good, install the plug and
be sure it is fully seated. If the uid level is
low, add more uid as described in the
next steps.How to Add Fluid
Here is how to add uid. Refer to the Maintenance
Schedule to determine what kind of uid to use.
SeeRecommended Fluids and Lubricants on
page 447.
1. Remove the ller plug.
2. Add uid at the ller plug hole. Add only
enough uid to bring the uid level up to
the bottom of the ller plug hole.
3. Install the ller plug. Be sure the plug is
fully seated.
335

Hydraulic Clutch
The hydraulic clutch linkage in your vehicle is
self-adjusting. The clutch master cylinder reservoir
is lled with hydraulic clutch uid.
The hydraulic clutch
uid reservoir cap has
this symbol on it.
SeeEngine
Compartment Overview
on page 324for
reservoir location.
It is not necessary to regularly check clutch uid
unless you suspect there is a leak in the system.
Adding uid will not correct a leak.
A uid loss in this system could indicate a
problem. Have the system inspected and repaired.
When to Check and What to Use
Refer to the Maintenance Schedule to determine
how often you should check the uid level in
your clutch master cylinder reservoir and for the
proper uid. SeeRecommended Fluids and
Lubricants on page 447.
336
