2007 GMC CANYON Owner's Manual

3. Put an automatic transmission in PARK (P)
or a manual transmission in FIRST (1).
4. Follow the dolly manufacturer’s instructions
to attach and secure the vehicle being towed
to the dolly and then the loaded dolly to
the tow vehicle.
{CAUTION:
Shifting a four-wheel-drive vehicle’s
transfer case into NEUTRAL can cause
your vehicle to roll even if the
transmission is in PARK (P) for an
automatic transmission, or if your
vehicle is in gear, for a manual
transmission. You or others could be
injured. Make sure the parking brake is
rmly set before you shift the transfer
case to NEUTRAL.5. Shift the transfer case to NEUTRAL. See
Four-Wheel Drive on page 126for more
information.
6. Release the parking brake only after the
vehicle being towed is rmly attached to
the tow vehicle.
7. Turn the ignition to LOCK.
If the tow vehicle will not be started or driven
for six weeks or more, remove the battery
cable from the negative terminal (post) of the
battery to prevent your battery from draining
while towing.
After towing see “Shifting Out of NEUTRAL” under
Four-Wheel Drive on page 126.
297

Rear Towing
(Rear Wheels Off the Ground)
Two-Wheel-Drive Vehicles
Use the following procedure to tow your vehicle
from the rear:
1. Drive the vehicle onto the dolly.
2. Firmly set the parking brake. SeeParking
Brake on page 130for more information.3. Put an automatic transmission in PARK (P)
or a manual transmission in FIRST (1).
4. Follow the dolly manufacturer’s instructions to
attach and secure the vehicle being towed to
the dolly and then the loaded dolly to the
tow vehicle. Make sure the wheels are straight
before towing.
For manual transmission vehicles, make sure
the wheels are straight before proceeding
to the next steps. On automatic transmission
vehicles, use an adequate clamping device
to ensure that the front wheels are locked into
the straight position.
5. Release the parking brake only after the
vehicle being towed is rmly attached to
the tow vehicle.
6. Turn the ignition to LOCK.
If the tow vehicle will not be started or driven
for six weeks or more, remove the battery
cable from the negative terminal (post) of the
battery to prevent your battery from draining
while towing.
298

Four-Wheel-Drive Vehicles
Use the following procedure to tow your vehicle
from the rear:
1. Drive the vehicle onto the dolly.
2. Firmly set the parking brake. SeeParking
Brake on page 130for more information.
3. Put an automatic transmission in PARK (P)
or a manual transmission in FIRST (1).
4. Follow the dolly manufacturer’s instructions
to attach and secure the vehicle being towed
to the dolly and then the loaded dolly to
the tow vehicle.For manual transmission vehicles, make sure
the wheels are straight before proceeding
to the next steps. On automatic transmission
vehicles, use an adequate clamping device
to ensure that the front wheels are locked into
the straight position.
{CAUTION:
Shifting a four-wheel-drive vehicle’s
transfer case into NEUTRAL can cause
your vehicle to roll even if the
transmission is in PARK (P) for an
automatic transmission, or if your vehicle
is in gear, for a manual transmission.
You or others could be injured. Make sure
the parking brake is rmly set before you
shift the transfer case to NEUTRAL.
5. Shift the transfer case to NEUTRAL. See
Four-Wheel Drive on page 126for more
information.
6. Release the parking brake only after the
vehicle being towed is rmly attached to the
tow vehicle.
299

7. Turn the ignition to LOCK.
If the tow vehicle will not be started or driven
for six weeks or more, remove the battery
cable from the negative terminal (post) of the
battery to prevent your battery from draining
while towing.
After towing, see “Shifting Out of NEUTRAL”
underFour-Wheel Drive on page 126.
Towing a Trailer
{CAUTION:
If you do not use the correct equipment
and drive properly, you can lose control
when you pull a trailer. For example, if the
trailer is too heavy, the brakes may not
work well — or even at all. You and your
passengers could be seriously injured.
Pull a trailer only if you have followed all
the steps in this section. Ask your dealer
for advice and information about towing
a trailer with your vehicle.Notice:Pulling a trailer improperly can
damage your vehicle and result in costly
repairs that would not be covered by your
warranty. Always follow the instructions in this
section and check with your dealer for more
information about towing a trailer with
your vehicle.
To identify the trailering capacity of your vehicle,
you should read the information in “Weight of
the Trailer” that appears later in this section.
Trailering is different than just driving your vehicle
by itself. Trailering means changes in handling,
acceleration, braking, durability and fuel economy.
Successful, safe trailering takes correct
equipment, and it has to be used properly.
That’s the reason for this part. In it are many
time-tested, important trailering tips and safety
rules. Many of these are important for your safety
and that of your passengers. So please read
this section carefully before you pull a trailer.
300

If You Do Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed
limit restrictions, having to do with trailering.
Make sure your rig will be legal, not only where
you live but also where you’ll be driving. A good
source for this information can be state or
provincial police.
Consider using a sway control. You can ask a
hitch dealer about sway controls.
Don’t tow a trailer at all during the rst 500 miles
(800 km) your new vehicle is driven. Your
engine, axle or other parts could be damaged.
Then, during the rst 500 miles (800 km) that
you tow a trailer, don’t drive over 50 mph
(80 km/h) and don’t make starts at full throttle.
This helps your engine and other parts of your
vehicle wear in at the heavier loads.
You may want to shift the transmission to
THIRD (3) or, if necessary, a lower gear
selection if the transmission shifts too often
(e.g., under heavy loads and/or hilly
conditions). If you have a manual transmission
and you are towing a trailer, it’s better not to
use the highest gear.Three important considerations have to do with
weight:
the weight of the trailer,
the weight of the trailer tongue
and the weight on your vehicle’s tires.
Weight of the Trailer
How heavy can a trailer safely be?
It depends on how you plan to use your rig.
For example, speed, altitude, road grades, outside
temperature and how much your vehicle is used
to pull a trailer are all important. It can also depend
on any special equipment that you have on your
vehicle, and the amount of tongue weight the
vehicle can carry. See “Weight of the Trailer
Tongue” later in this section for more information.
Maximum trailer weight is calculated assuming
only the driver is in the tow vehicle and it has all
the required trailering equipment. The weight
of additional optional equipment, passengers and
cargo in the tow vehicle must be subtracted
from the maximum trailer weight.
301

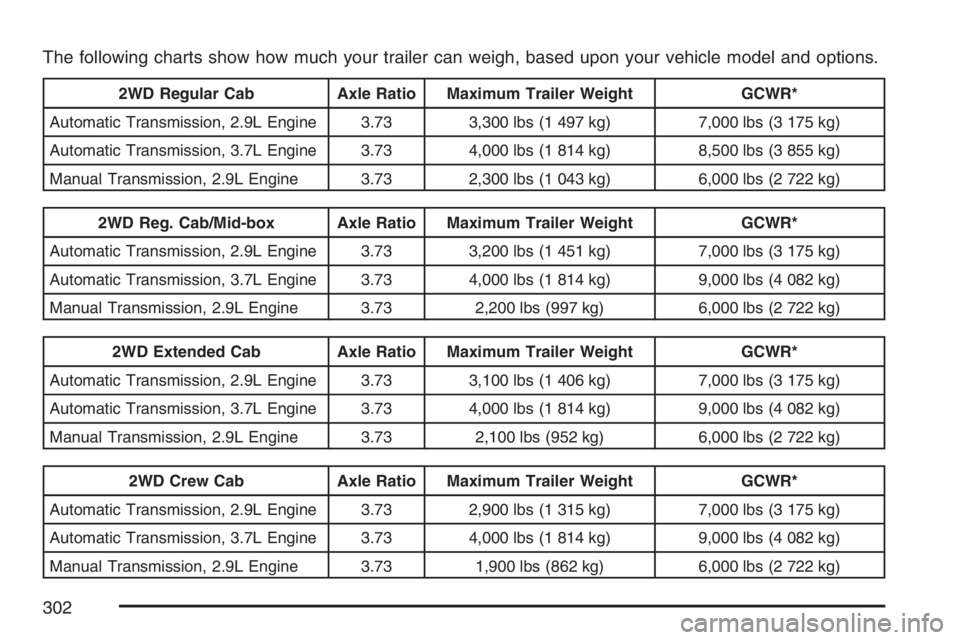

The following charts show how much your trailer can weigh, based upon your vehicle model and options.
2WD Regular Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 3,300 lbs (1 497 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 8,500 lbs (3 855 kg)
Manual Transmission, 2.9L Engine 3.73 2,300 lbs (1 043 kg) 6,000 lbs (2 722 kg)
2WD Reg. Cab/Mid-box Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 3,200 lbs (1 451 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 2,200 lbs (997 kg) 6,000 lbs (2 722 kg)
2WD Extended Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 3,100 lbs (1 406 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 2,100 lbs (952 kg) 6,000 lbs (2 722 kg)
2WD Crew Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 2,900 lbs (1 315 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 1,900 lbs (862 kg) 6,000 lbs (2 722 kg)
302

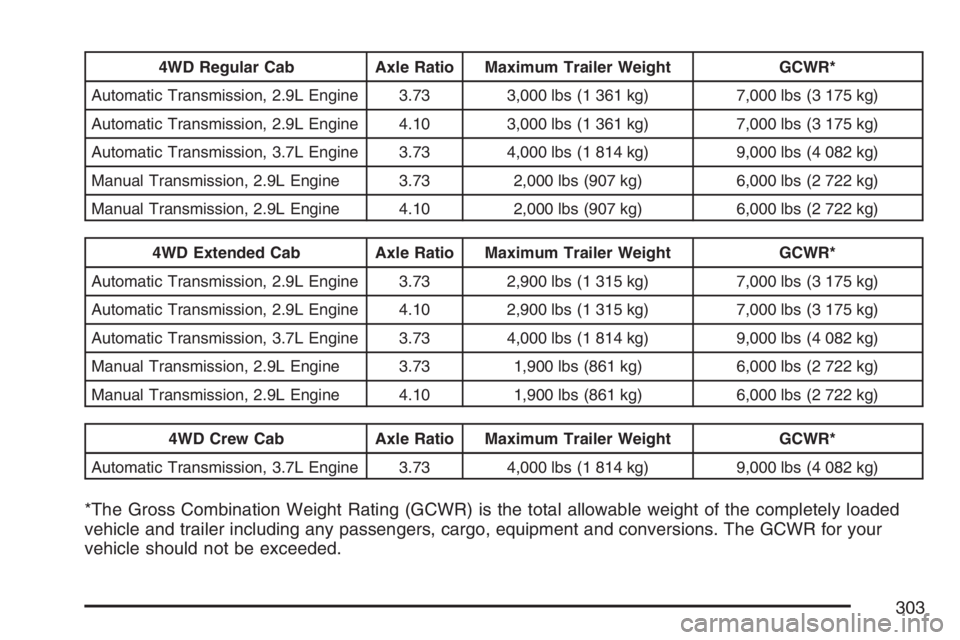

4WD Regular Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 3,000 lbs (1 361 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 2.9L Engine 4.10 3,000 lbs (1 361 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 2,000 lbs (907 kg) 6,000 lbs (2 722 kg)
Manual Transmission, 2.9L Engine 4.10 2,000 lbs (907 kg) 6,000 lbs (2 722 kg)
4WD Extended Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 2,900 lbs (1 315 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 2.9L Engine 4.10 2,900 lbs (1 315 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 1,900 lbs (861 kg) 6,000 lbs (2 722 kg)
Manual Transmission, 2.9L Engine 4.10 1,900 lbs (861 kg) 6,000 lbs (2 722 kg)
4WD Crew Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
*The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded
vehicle and trailer including any passengers, cargo, equipment and conversions. The GCWR for your
vehicle should not be exceeded.
303

You can ask your dealer for our trailering
information or advice, or you can write us at our
Customer Assistance Offices. SeeCustomer
Assistance Offices on page 460for more
information.
Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total
or gross weight of your vehicle. The Gross Vehicle
Weight (GVW) includes the curb weight of the
vehicle, any cargo you may carry in it, and
the people who will be riding in the vehicle. If you
have a lot of options, equipment, passengers
or cargo in your vehicle, it will reduce the tongue
weight your vehicle can carry, which will also
reduce the trailer weight your vehicle can tow. And
if you will tow a trailer, you must add the tongue
load to the GVW because your vehicle will be
carrying that weight, too. SeeLoading Your
Vehicle on page 286for more information about
your vehicle’s maximum load capacity.The trailer tongue weight (A) should be 10 percent
to 15 percent of the total loaded trailer weight,
up to a maximum of 500 lbs (226 kg) with a weight
carrying hitch.
Do not exceed the maximum allowable tongue
weight for your vehicle. Choose the shortest hitch
extension that will position the hitch ball closest
to the vehicle. This will help reduce the effect
of trailer tongue weight on the rear axle.
304
