2007 FORD FREESTAR Owners Manual

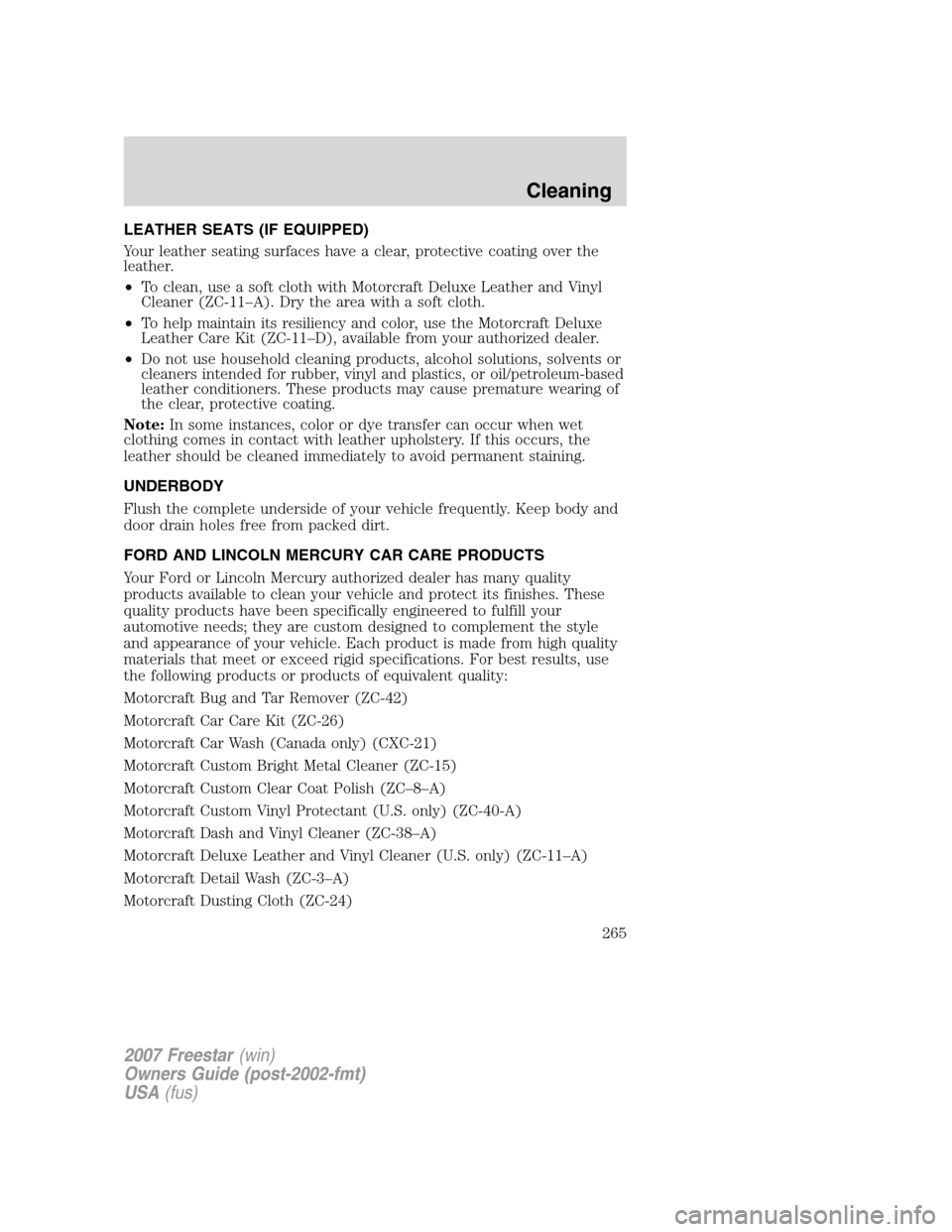

Page 265 of 312

FORD FREESTAR 2007 1.G Owners Manual LEATHER SEATS (IF EQUIPPED)
Your leather seating surfaces have a clear, protective coating over the
leather.
•To clean, use a soft cloth with Motorcraft Deluxe Leather and Vinyl
Cleaner (ZC-11–A).

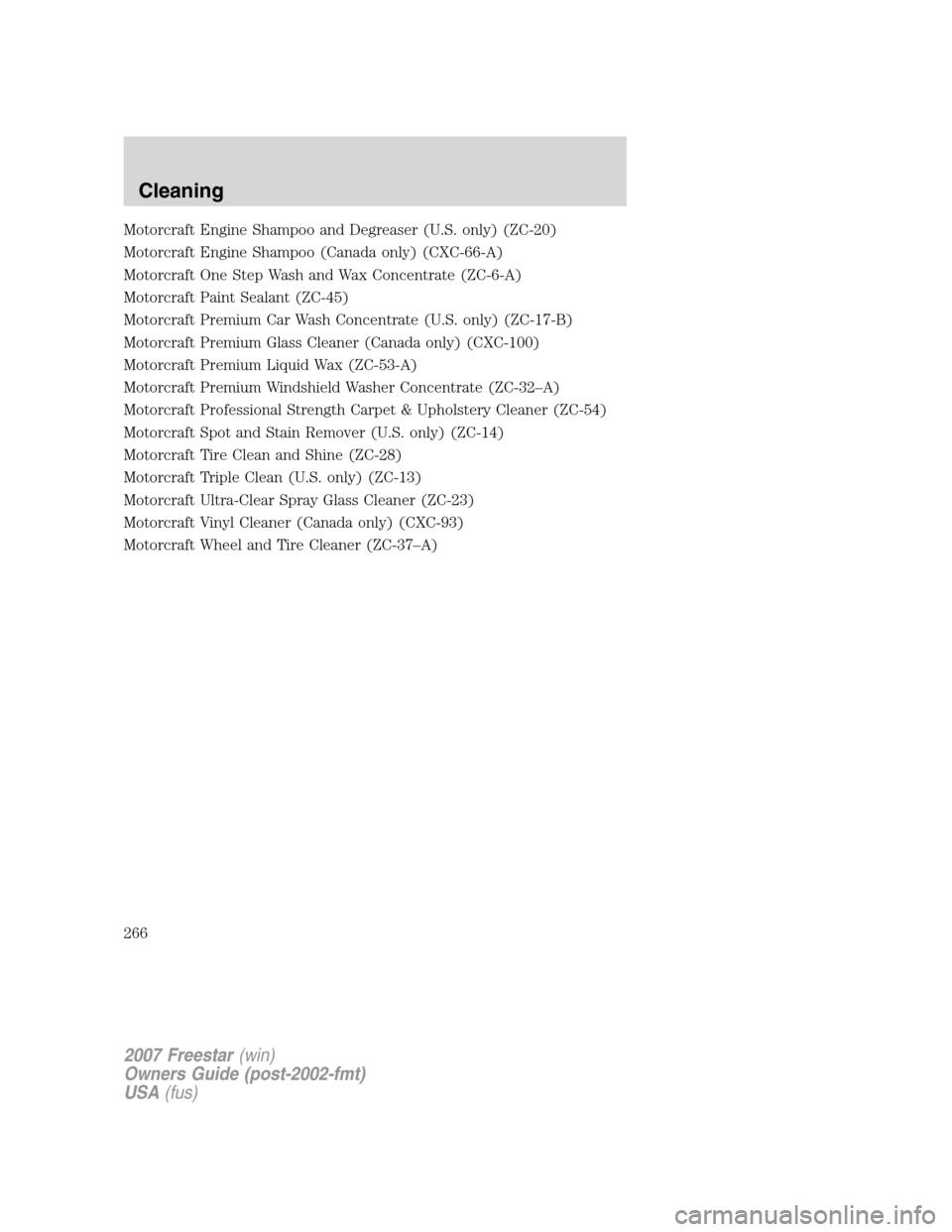

Page 266 of 312

FORD FREESTAR 2007 1.G Owners Manual Motorcraft Engine Shampoo and Degreaser (U.S. only) (ZC-20)
Motorcraft Engine Shampoo (Canada only) (CXC-66-A)
Motorcraft One Step Wash and Wax Concentrate (ZC-6-A)
Motorcraft Paint Sealant (ZC-45)
Mo

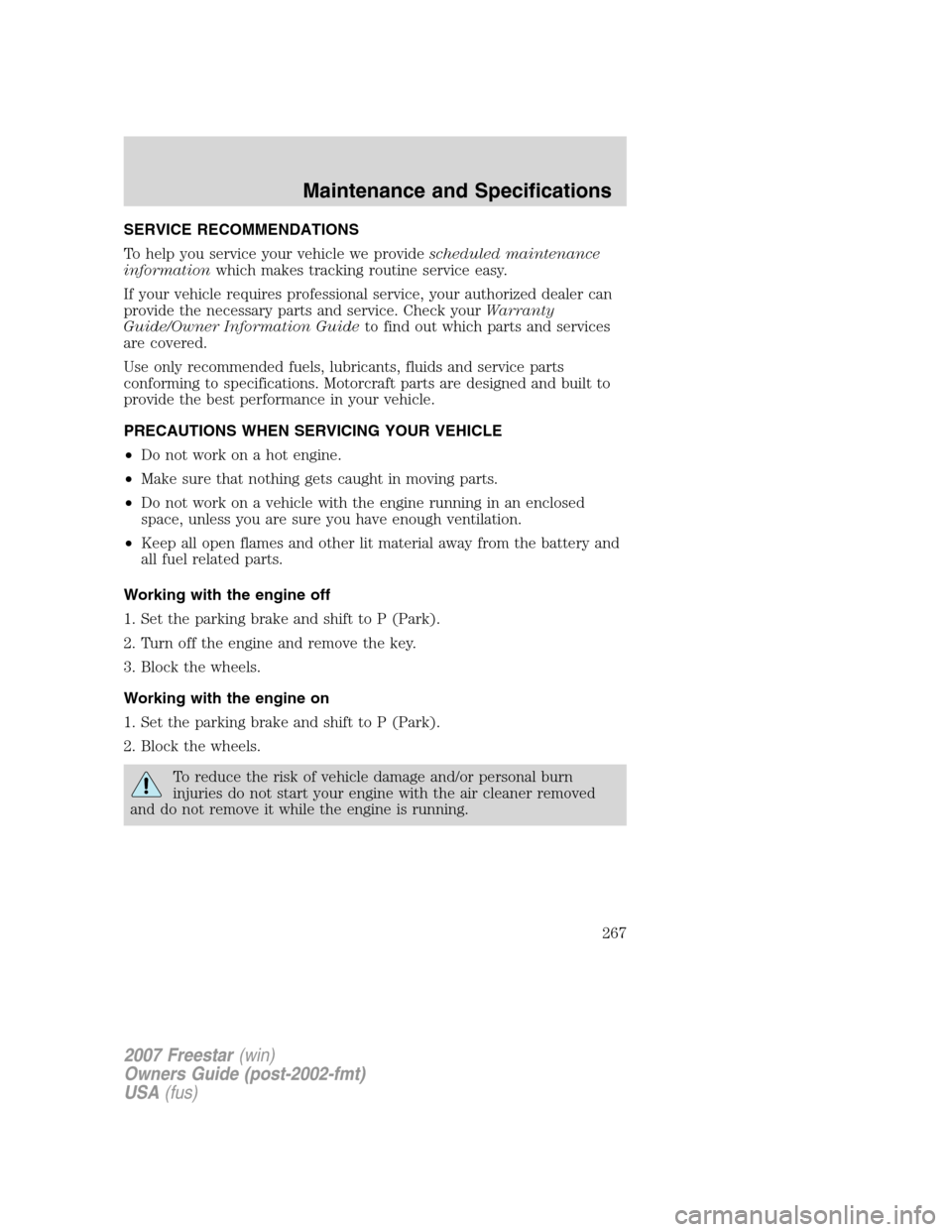

Page 267 of 312

FORD FREESTAR 2007 1.G Owners Manual SERVICE RECOMMENDATIONS
To help you service your vehicle we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your autho

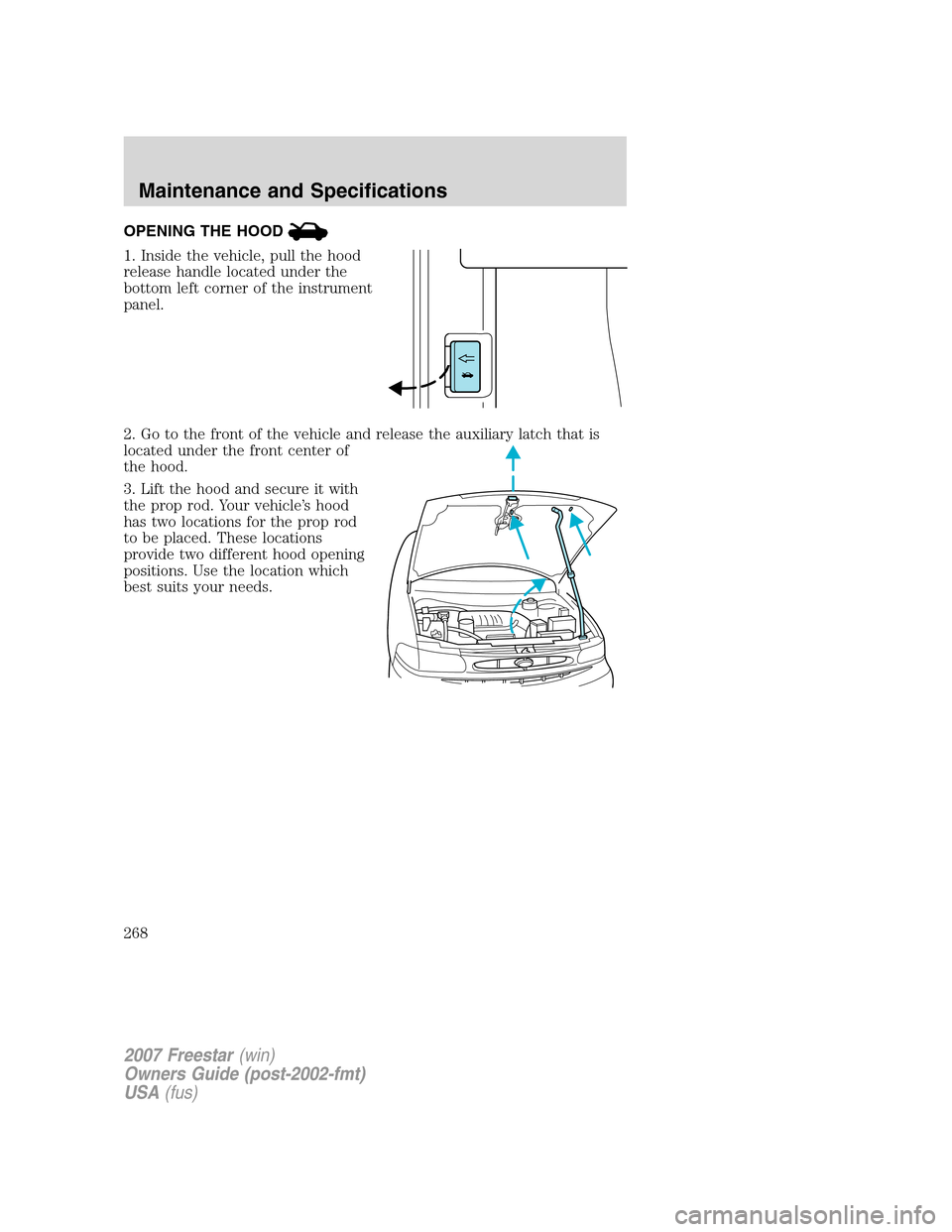

Page 268 of 312

FORD FREESTAR 2007 1.G Owners Manual OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located under the
bottom left corner of the instrument
panel.
2. Go to the front of the vehicle and release the auxiliary latch tha

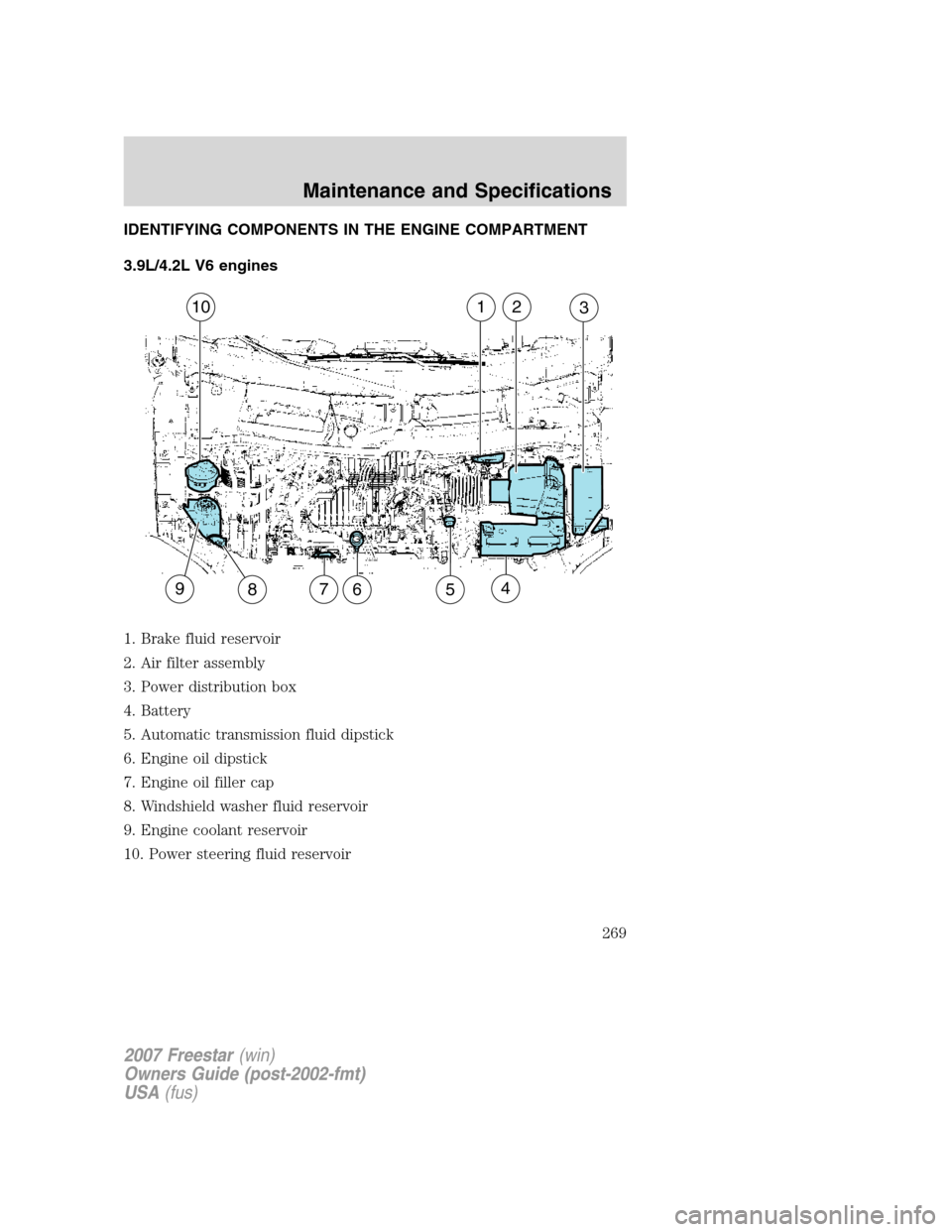

Page 269 of 312

FORD FREESTAR 2007 1.G Owners Manual IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.9L/4.2L V6 engines
1. Brake fluid reservoir
2. Air filter assembly
3. Power distribution box
4. Battery
5. Automatic transmission fluid dipstick
6. E

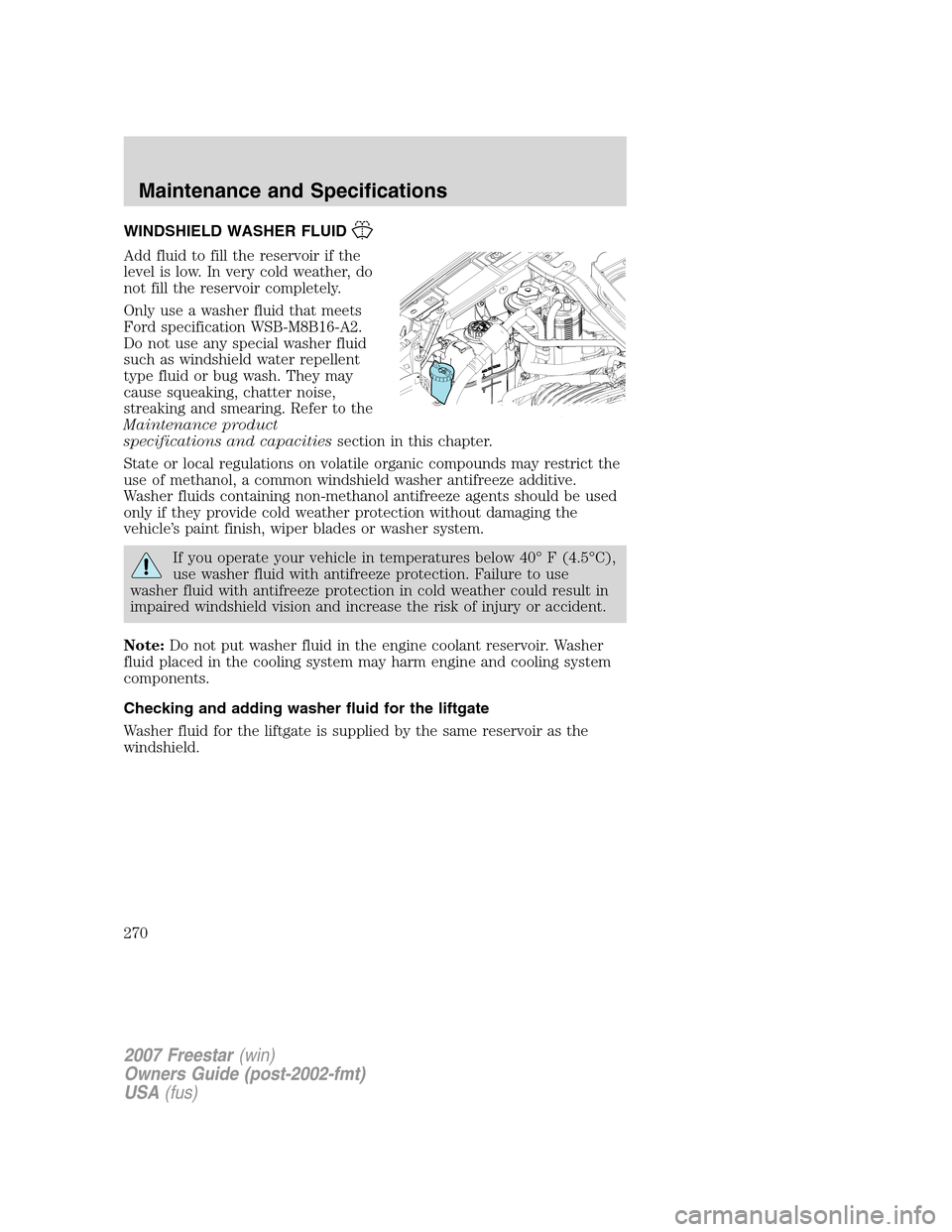

Page 270 of 312

FORD FREESTAR 2007 1.G Owners Manual WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16

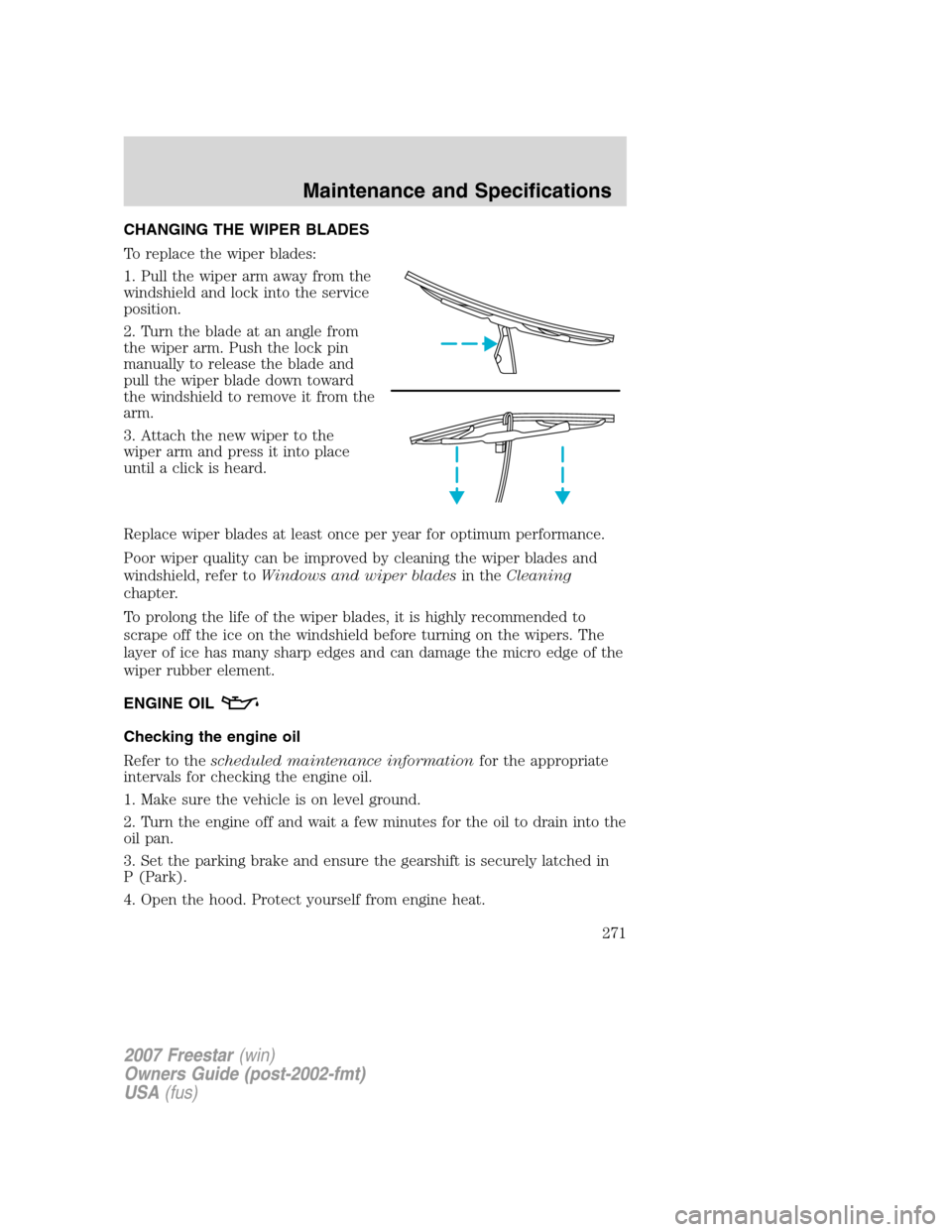

Page 271 of 312

FORD FREESTAR 2007 1.G Owners Manual CHANGING THE WIPER BLADES
To replace the wiper blades:
1. Pull the wiper arm away from the
windshield and lock into the service
position.
2. Turn the blade at an angle from
the wiper arm. Push the loc

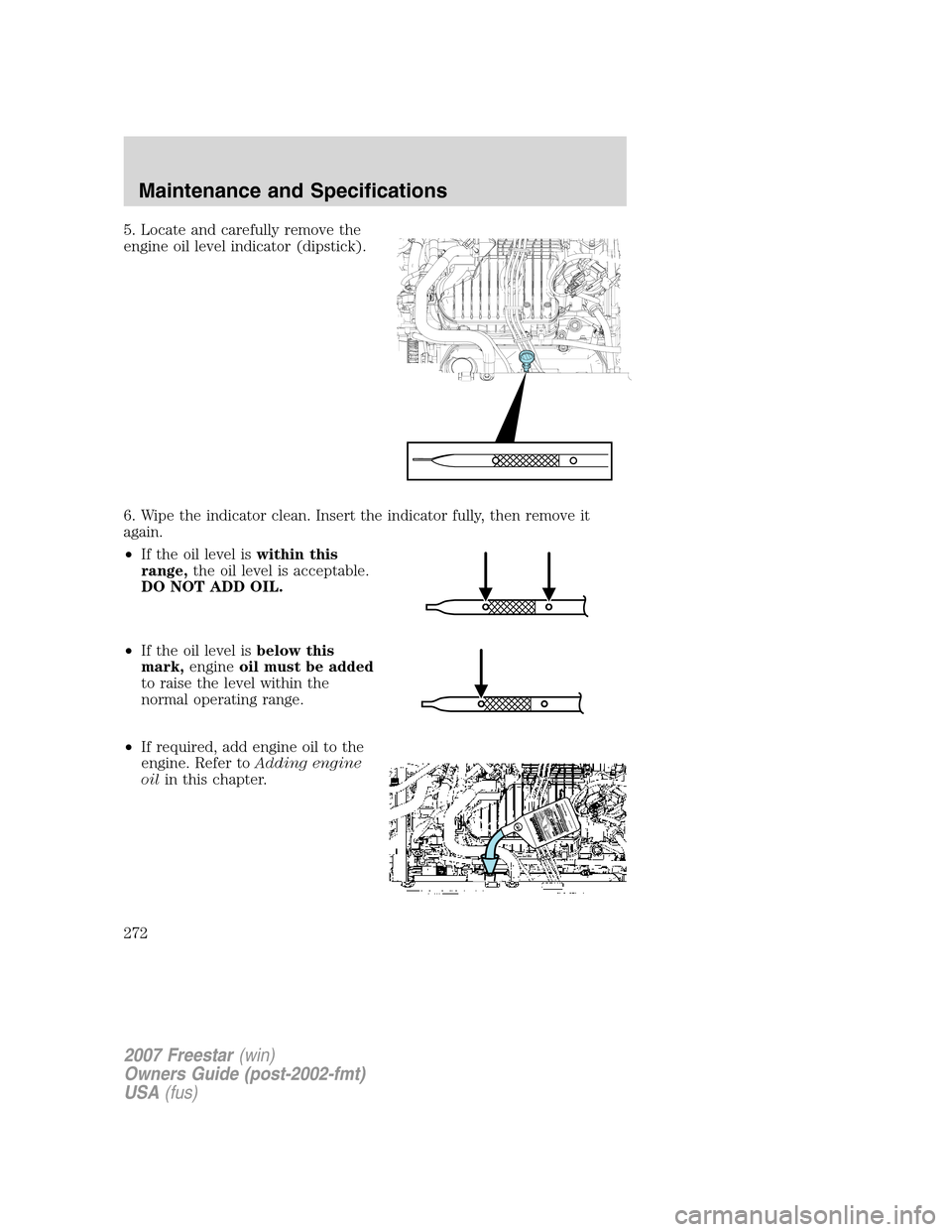

Page 272 of 312

FORD FREESTAR 2007 1.G Owners Manual 5. Locate and carefully remove the
engine oil level indicator (dipstick).
6. Wipe the indicator clean. Insert the indicator fully, then remove it
again.
•If the oil level iswithin this
range,the oil
