2007 FORD FREESTAR Owners Manual

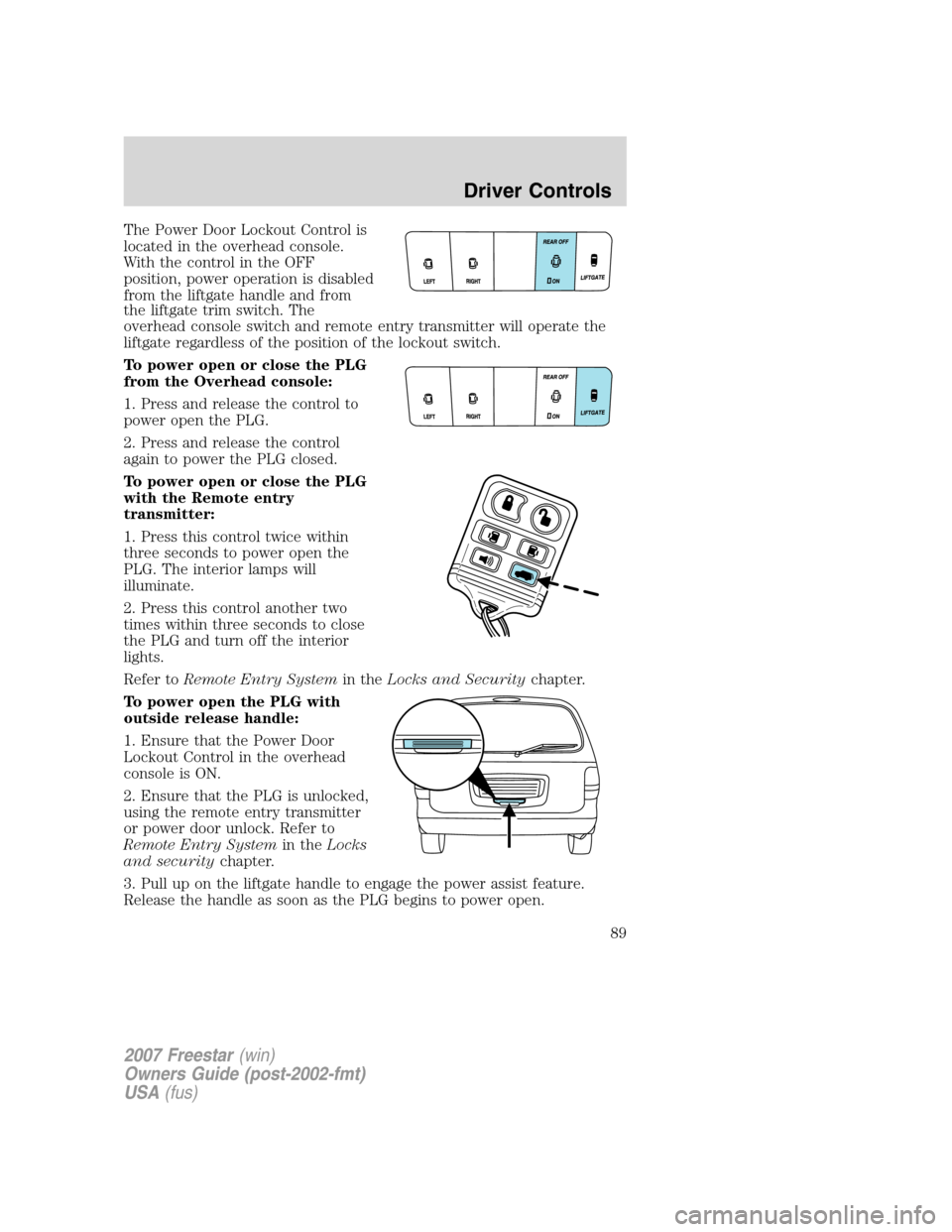

The Power Door Lockout Control is
located in the overhead console.
With the control in the OFF
position, power operation is disabled
from the liftgate handle and from
the liftgate trim switch. The
overhead console switch and remote entry transmitter will operate the
liftgate regardless of the position of the lockout switch.
To power open or close the PLG
from the Overhead console:
1. Press and release the control to
power open the PLG.
2. Press and release the control
again to power the PLG closed.
To power open or close the PLG
with the Remote entry
transmitter:
1. Press this control twice within
three seconds to power open the
PLG. The interior lamps will
illuminate.
2. Press this control another two
times within three seconds to close
the PLG and turn off the interior
lights.
Refer toRemote Entry Systemin theLocks and Securitychapter.
To power open the PLG with
outside release handle:
1. Ensure that the Power Door
Lockout Control in the overhead
console is ON.
2. Ensure that the PLG is unlocked,
using the remote entry transmitter
or power door unlock. Refer to
Remote Entry Systemin theLocks
and securitychapter.
3. Pull up on the liftgate handle to engage the power assist feature.
Release the handle as soon as the PLG begins to power open.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
89

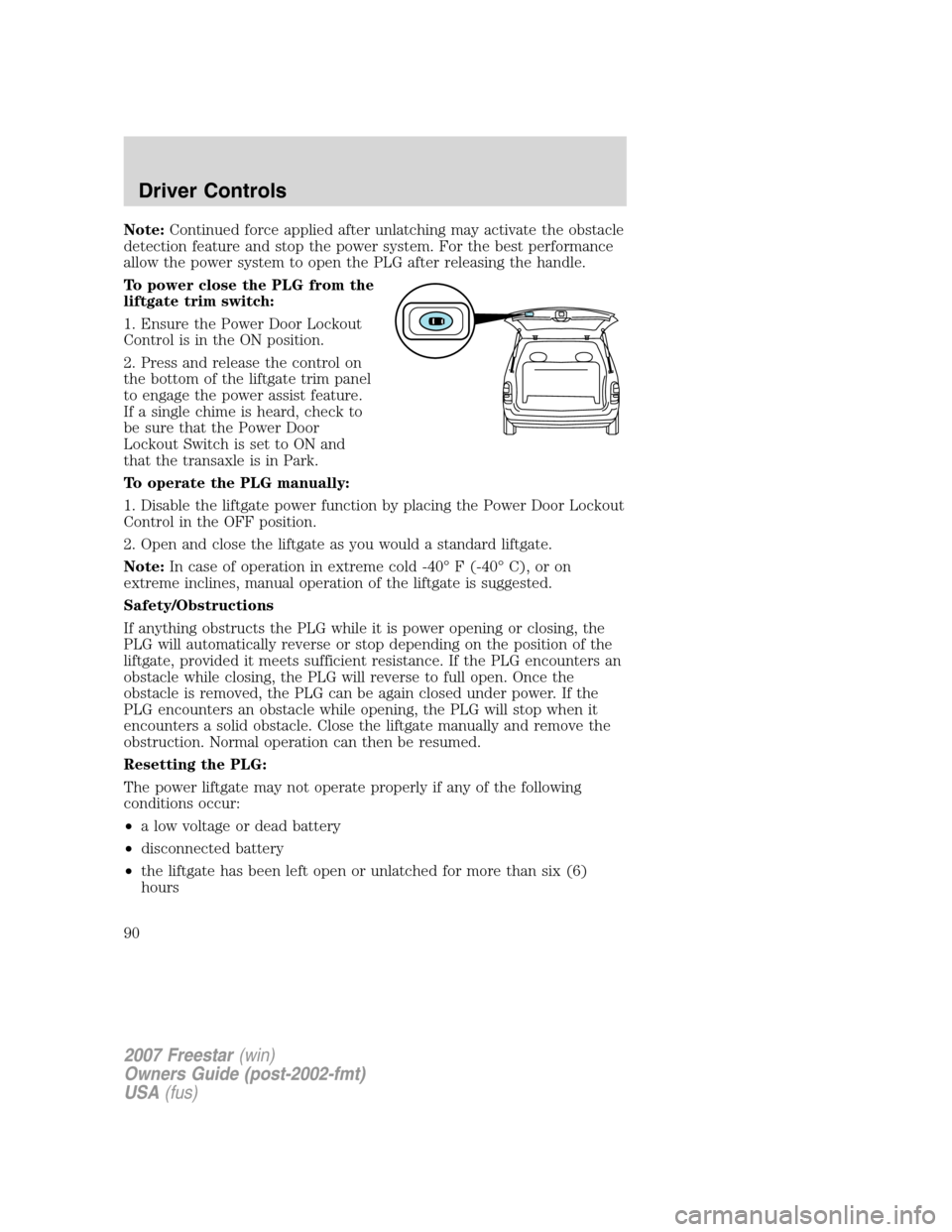

Note:Continued force applied after unlatching may activate the obstacle
detection feature and stop the power system. For the best performance
allow the power system to open the PLG after releasing the handle.
To power close the PLG from the
liftgate trim switch:
1. Ensure the Power Door Lockout
Control is in the ON position.
2. Press and release the control on
the bottom of the liftgate trim panel
to engage the power assist feature.
If a single chime is heard, check to
be sure that the Power Door
Lockout Switch is set to ON and
that the transaxle is in Park.
To operate the PLG manually:
1. Disable the liftgate power function by placing the Power Door Lockout
Control in the OFF position.
2. Open and close the liftgate as you would a standard liftgate.
Note:In case of operation in extreme cold -40° F (-40° C), or on
extreme inclines, manual operation of the liftgate is suggested.
Safety/Obstructions
If anything obstructs the PLG while it is power opening or closing, the
PLG will automatically reverse or stop depending on the position of the
liftgate, provided it meets sufficient resistance. If the PLG encounters an
obstacle while closing, the PLG will reverse to full open. Once the
obstacle is removed, the PLG can be again closed under power. If the
PLG encounters an obstacle while opening, the PLG will stop when it
encounters a solid obstacle. Close the liftgate manually and remove the
obstruction. Normal operation can then be resumed.
Resetting the PLG:
The power liftgate may not operate properly if any of the following
conditions occur:
•a low voltage or dead battery
•disconnected battery
•the liftgate has been left open or unlatched for more than six (6)
hours
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
90

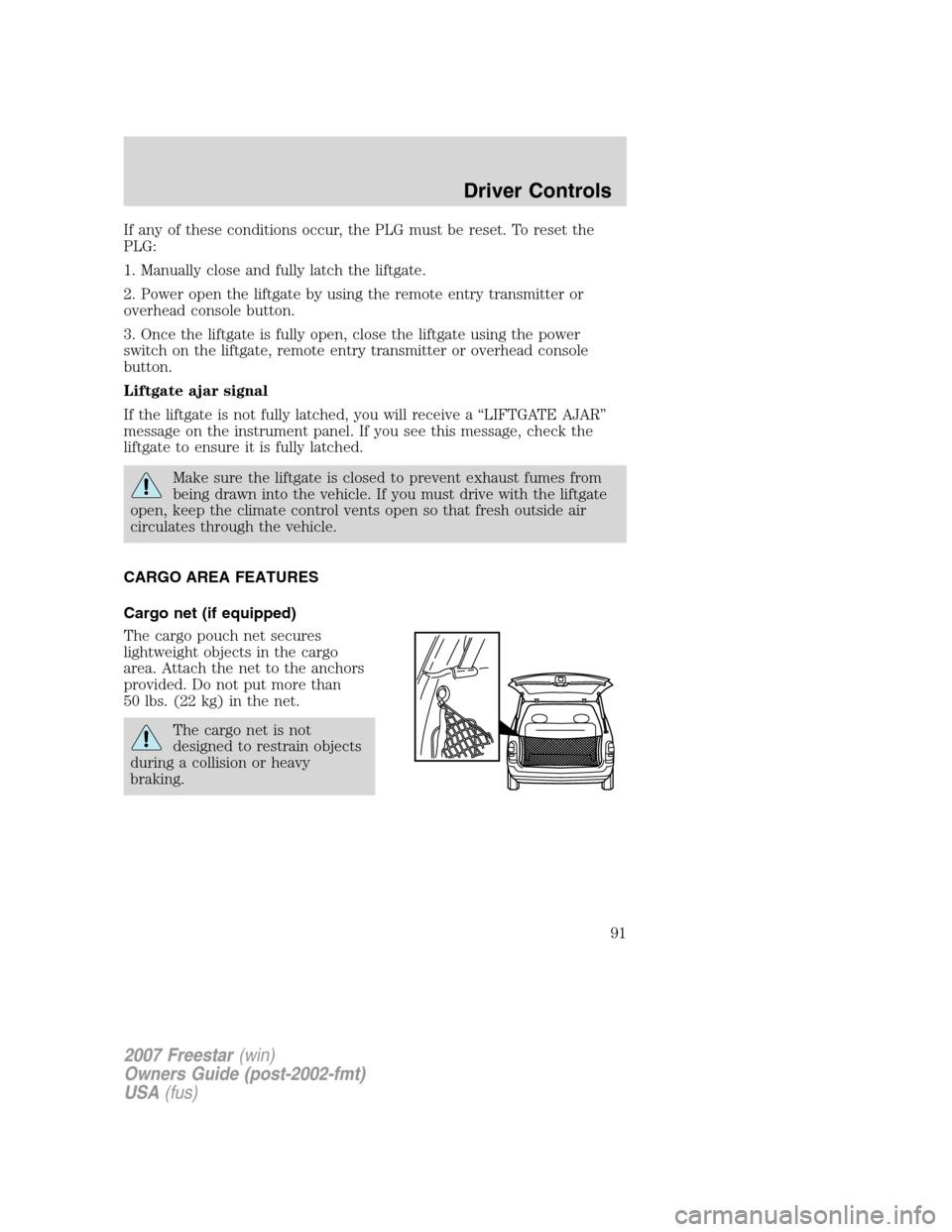

If any of these conditions occur, the PLG must be reset. To reset the
PLG:
1. Manually close and fully latch the liftgate.
2. Power open the liftgate by using the remote entry transmitter or
overhead console button.
3. Once the liftgate is fully open, close the liftgate using the power
switch on the liftgate, remote entry transmitter or overhead console
button.
Liftgate ajar signal
If the liftgate is not fully latched, you will receive a “LIFTGATE AJAR”
message on the instrument panel. If you see this message, check the
liftgate to ensure it is fully latched.
Make sure the liftgate is closed to prevent exhaust fumes from
being drawn into the vehicle. If you must drive with the liftgate
open, keep the climate control vents open so that fresh outside air
circulates through the vehicle.
CARGO AREA FEATURES
Cargo net (if equipped)
The cargo pouch net secures
lightweight objects in the cargo
area. Attach the net to the anchors
provided. Do not put more than
50 lbs. (22 kg) in the net.
The cargo net is not
designed to restrain objects
during a collision or heavy
braking.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
91

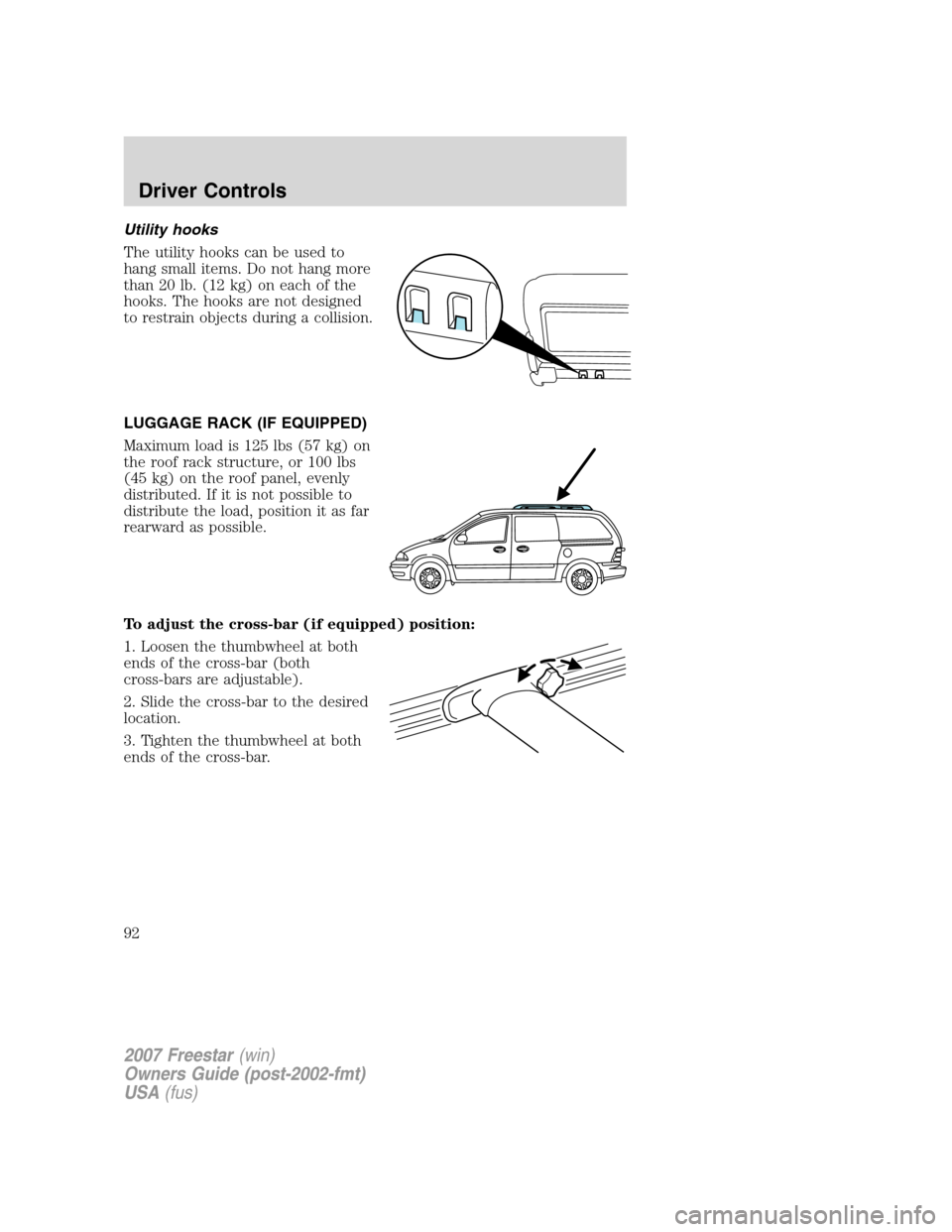

Utility hooks
The utility hooks can be used to
hang small items. Do not hang more
than 20 lb. (12 kg) on each of the
hooks. The hooks are not designed
to restrain objects during a collision.
LUGGAGE RACK (IF EQUIPPED)
Maximum load is 125 lbs (57 kg) on
the roof rack structure, or 100 lbs
(45 kg) on the roof panel, evenly
distributed. If it is not possible to
distribute the load, position it as far
rearward as possible.
To adjust the cross-bar (if equipped) position:
1. Loosen the thumbwheel at both
ends of the cross-bar (both
cross-bars are adjustable).
2. Slide the cross-bar to the desired
location.
3. Tighten the thumbwheel at both
ends of the cross-bar.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
92

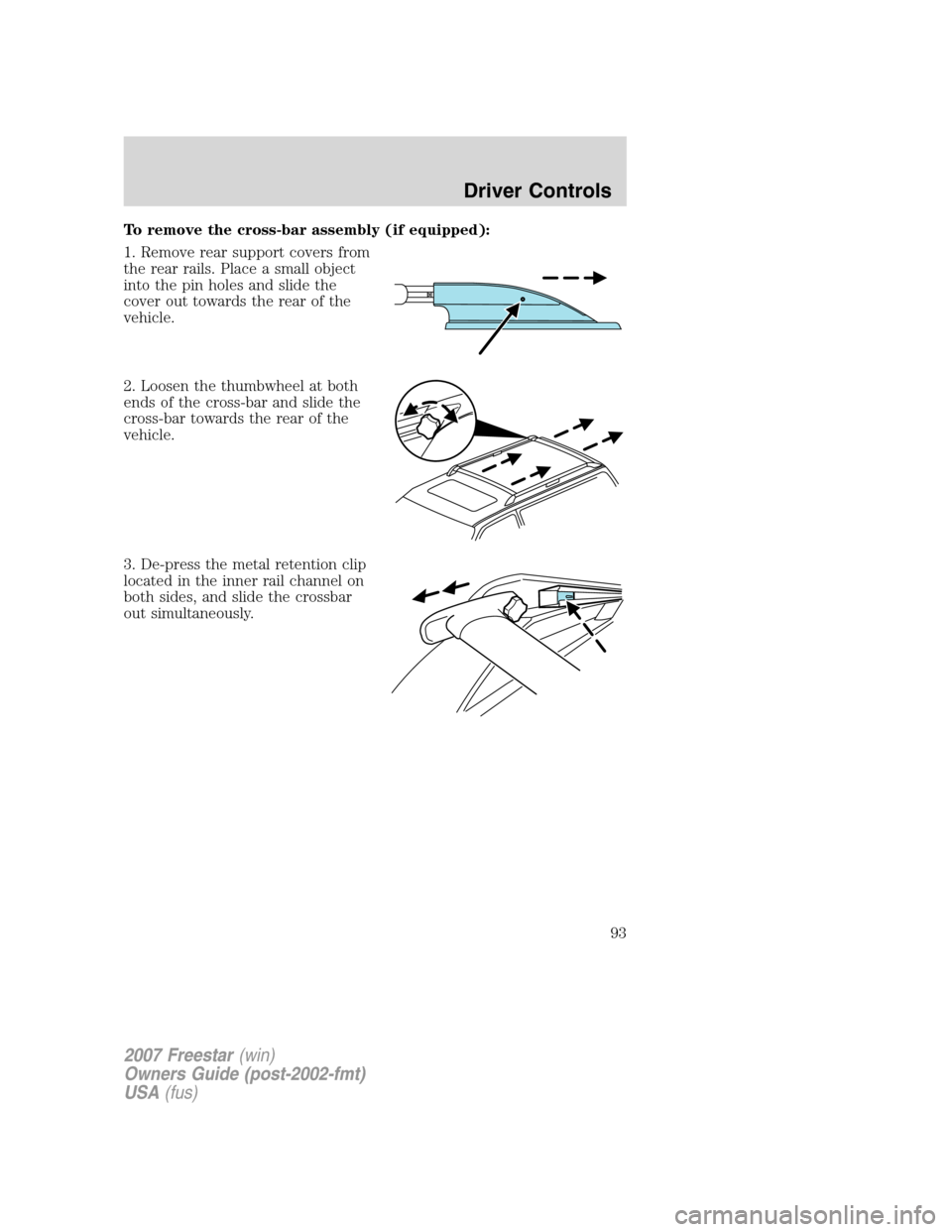

To remove the cross-bar assembly (if equipped):
1. Remove rear support covers from
the rear rails. Place a small object
into the pin holes and slide the
cover out towards the rear of the
vehicle.
2. Loosen the thumbwheel at both
ends of the cross-bar and slide the
cross-bar towards the rear of the
vehicle.
3. De-press the metal retention clip
located in the inner rail channel on
both sides, and slide the crossbar
out simultaneously.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
93

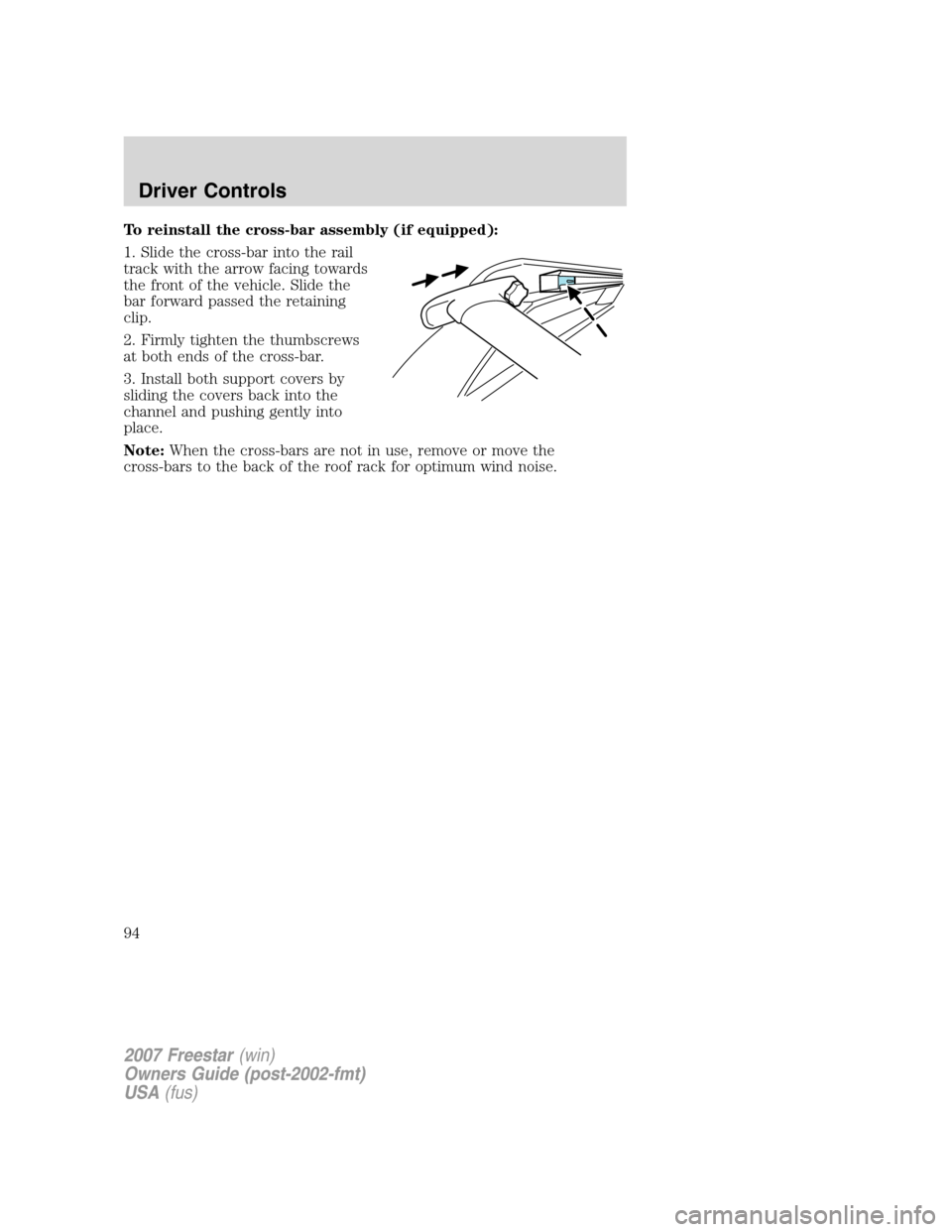

To reinstall the cross-bar assembly (if equipped):
1. Slide the cross-bar into the rail
track with the arrow facing towards
the front of the vehicle. Slide the
bar forward passed the retaining
clip.
2. Firmly tighten the thumbscrews
at both ends of the cross-bar.
3. Install both support covers by
sliding the covers back into the
channel and pushing gently into
place.
Note:When the cross-bars are not in use, remove or move the
cross-bars to the back of the roof rack for optimum wind noise.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
94

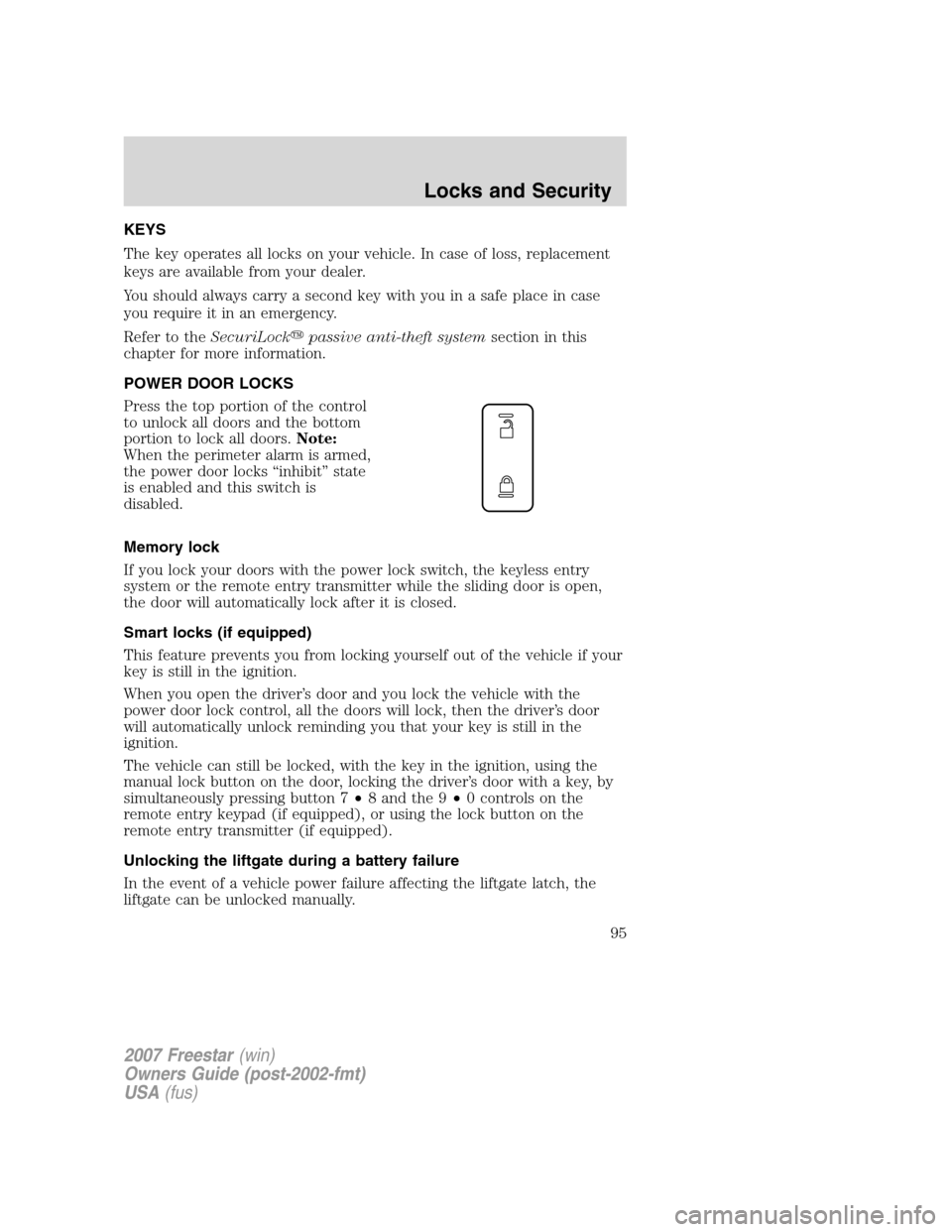

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
Refer to theSecuriLockpassive anti-theft systemsection in this
chapter for more information.
POWER DOOR LOCKS
Press the top portion of the control
to unlock all doors and the bottom
portion to lock all doors.Note:
When the perimeter alarm is armed,
the power door locks “inhibit” state
is enabled and this switch is
disabled.
Memory lock
If you lock your doors with the power lock switch, the keyless entry
system or the remote entry transmitter while the sliding door is open,
the door will automatically lock after it is closed.
Smart locks (if equipped)
This feature prevents you from locking yourself out of the vehicle if your
key is still in the ignition.
When you open the driver’s door and you lock the vehicle with the
power door lock control, all the doors will lock, then the driver’s door
will automatically unlock reminding you that your key is still in the
ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock button on the door, locking the driver’s door with a key, by
simultaneously pressing button 7•8 and the 9•0 controls on the
remote entry keypad (if equipped), or using the lock button on the
remote entry transmitter (if equipped).
Unlocking the liftgate during a battery failure
In the event of a vehicle power failure affecting the liftgate latch, the
liftgate can be unlocked manually.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
95

1. Locate the liftgate trim access
panel in the center of the liftgate.
2. Using your key, a small
screwdriver or knife, pry off the
access panel.
3. Using your key, a small
screwdriver or knife, poke or cut a
hole in the liftgate door foam as
large as the access window and
move the lock/unlock lever
accordingly:
•For vehicles without power
liftgate, pull the lock/unlock lever
to the right (drivers side).
•For vehicles with power liftgate,
pull the lock/unlock lever toward
you (toward the front of the
vehicle).
Once the lock/unlock lever has been
moved, you can open the liftgate
from the outside liftgate handle.
Autolock
This feature automatically locks all vehicle doors when:
•all doors are closed,
•the ignition is in the 4 (ON) position,
•the brake is pressed before reaching 5 mph (8 km/h), and
•the vehicle increases to more than 5 mph (8 km/h).
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
96
